Havit Lighting Hv3642 Lisse + Essil Wall Light Installation Guide

Lisse + Essil Wall Light Installation Instructions

Product Specifications

Model No.	HV3642T-BLK-240V	HV3642T-WHT-240V	HV3646T-BLK-240V	HV3646T-WHT-240V	HV3642T-BLK-12V	HV3642T-WHT-12V	HV3646T-BLK-12V	HV3646T-WHT-12V
Name	Lisse		Essi		Lisse		Essie
Material	Aluminium
Colour	Black	White	Black	White	Black	White	Black	White
IP Rating	IPS4				IPS4
Protection Class	(240v Requires Earth)				(Low Voltage)
Input Voltage	240v AC				12vDC
Lamp Base	Built-in LED				Built-in LED
Lamp Wattage	2× 3w				2× 3w
Colour Temp					TRI Colour – 3000k, 4000k, 5500k
Lumens	2x 1801m, 2x 1871m, 2x 1951m				2x 1801m, 2x 1871m, 2x 1951m
CRI	> 80				> 80
Wring	Parallel				Parallel
Dimmable	No				No
Warranty	3 Years Replacement*				3 Years Replacement*

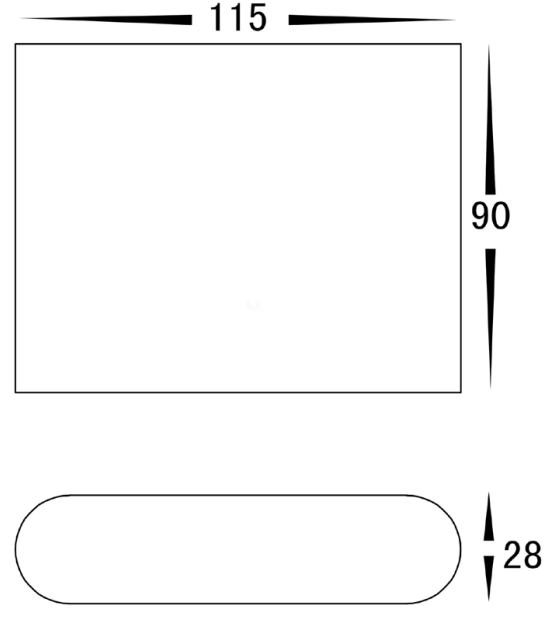

HV3642 Dimensions

HV3646 Dimensions

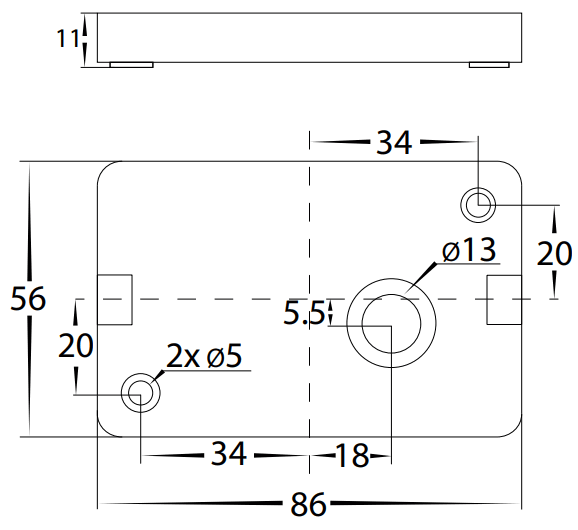

Mounting Base Diagram

Important Safety Issues:

This product must be installed by a qualified electrician according to AS/NZS 3000.

• Ensure all electrical mains are disconnected before any installation.
• Modification of this product will void any warranty.
• Havit Lighting does not take responsibility for wrong installation, incorrect use, or use of installation material that does not belong to the system.
• Aluminum and 304SS fittings must not be installed within 5km of any saltwater environments.
• All o-rings and seals must be in place correctly to maintain a warranty
• This form may be updated at any time due to product improvements, please check the online installation form for the most current version.

Steps for Installation:

1. Make sure that the electrical circuit is free of voltage (master switch off)
2. Loosen Allen screws from the side of the fitting.
3. Remove base plate from fitting.
4. Install base plate to the wall in the desired location using appropriate screws for application.
5. Seal all holes including cable entry and around screws
6. 240v Models
   • – Use wire with earth; connect the earth first, then live and a neutral wire.
7. 12v DC Models, Use an appropriate 12v DC LED Driver – DO NOT CONNECT LIGHT FITTING DIRECTLY TO 240V
   – • Connect Live and then neutral.
8. Fitting is preset to 3000k, to change the slide switch located inside the base of fitting to desired color temperature.
9. Reattach fitting to base plate making sure screws are tight to avoid any water penetration.
10. Apply silicone around the edge of the fitting to prevent any water from getting inside to electrical connections.
11. All connections must be carried out carefully, inspect all contacts before switching back on the electric circuit.

Must be installed by a licensed electrician
Contact Details:
143 Beauchamp Road
Matraville NSW 2036
Australia
Tel: 02 9381 8300
Fax: 02 9666 8881
Email: [email protected]
Web: www.havit.com.au

Warranty Terms & Conditions*	Additional Information
https://havit.com.au/pages/warranty-terms-and-conditions	https://havit.com.au/
