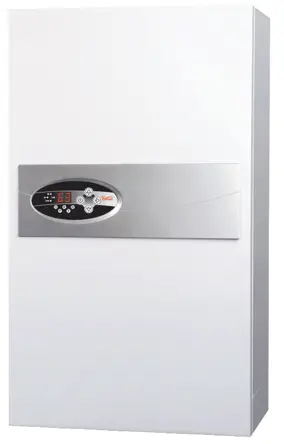

6kW EHC COMET Electric Boiler
User Guide

Contents hide

Comet Electric System Boilers are designed to eliminate unnecessary external plumbing and pipe work. They are the ideal choice for wet central heating and underfloor heating systems.
Our single phase Electric System Boiler outputs are 6kW, 9kW, and 12kW with the 14.4kW available for properties that require larger outputs.
To ensure maximum efficiency, all our Comet Boilers are fully modulating. This unique facility will enable the Boiler to reduce electricity consumption and running costs.
The operating temperature of the Boiler can be adjusted from 20 degrees through to a maximum of 85 degrees.
In larger homes or light commercial properties with a 3-Phase electricity supply, we supply 12kW, 14,4kW, 23kW, 39kW, and 48kW output Boilers.

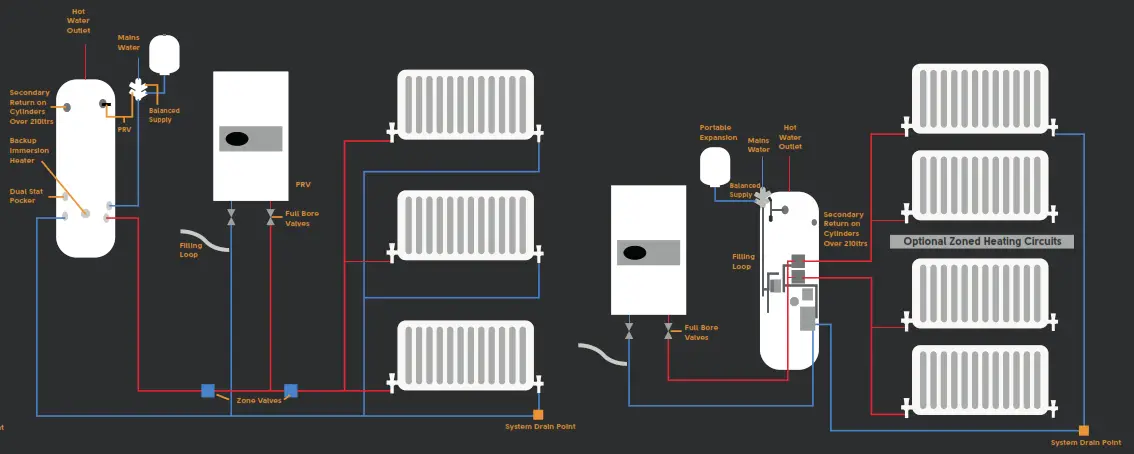

For multiple Boiler installations, it is also possible to install them in series in a low-loss header configuration for properties with higher heat demands.
Please allow an addition of 3kW or 10000BTU’s if coupling with an Indirect cylinder.

Height: 710mm Width: 418mm Depth: 251mm Weight: 25kg

Boiler Range	kW	6kW	9kW	12kW	14.4kW
Pipe Entry from Boilers				Bottom Entry	Bottom Entry
Flow & Return Pipes	mm			22
Min/Max Water Pressure	Bar			0.5/3.0
Expansion Vessel	Ltrs			6.0
Dry Weight	Kgs			25
Electricity Supply	VAC			240V 1ph 50Hz
Load Current	Amp	25	38	50	60
Heating Output	Btu’s per/kW	20472	30709	40945	49134
Min/Max Temp Settings	°C			20/85
Overheat Protection	°C			100
Pump Included				Yes
Recommended Pump Settings				Factory Set to Max (adjustable)
Recommended Diameter of Mains Cable	mm	6	10	16	16
Protection	Amp	32	50	63	80
IP Rating		D	D	D	D
