JCHR35W1A/2A
6-channel LED Remote Controller
User Manual
Product Info

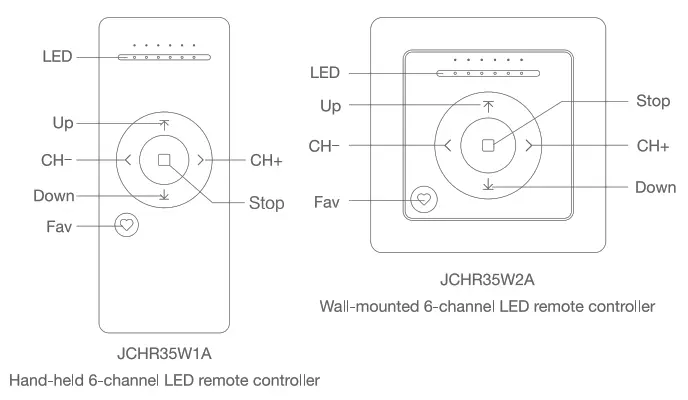

a Front

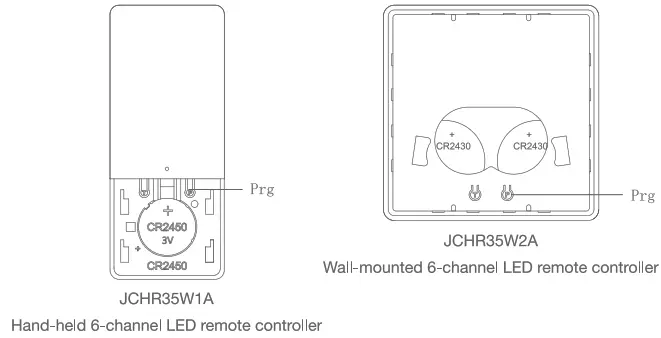

b. Back
Models & Parameters (more info please refer to the nameplate)
| Electrical Specification | Standard | |
| Battery Type | Hand-held:CR2450’3Ve1 | Wall-mounted: CR2430’3V*2 |
| Working Temperature | -10’C-50 C | |
| Radio Frequency | 433.92Mt100KHz | |
| Transmit Distance | >=30m indoor | |
Caution!
- The transmitter should not be exposed to moisture or impact, 50 as not to affect is .
- During use, when the remote control distance is significantly shorter or less sensitive, please check whether the battery needs to be replaced.
- When the battery voltage is too low, the orange LED willflcker during operation.
- Please property dispose of used batteries according to the local garbage classification and recycling policy.
Instructions

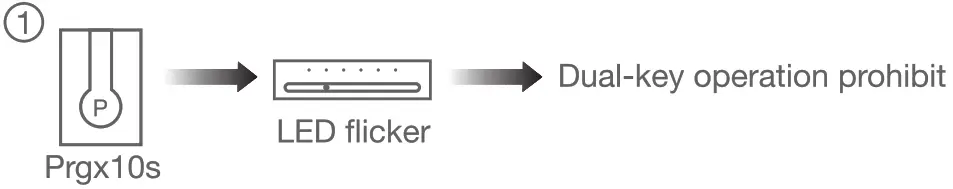

a. Prohibit Dual-key Operation
2 Repeat the above, dual-key operation activated
Note: When dual-key operation prohibited, these programming setting functions are not allowed.

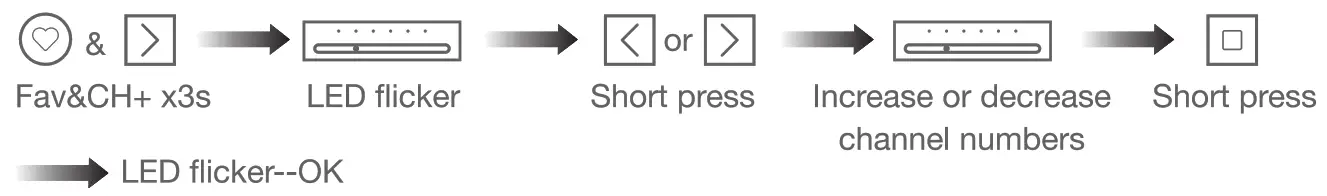

b. Number of Channels Setting
Note: When all LEDs are lit, that is channel 0 ( All channels move together ).
c. For other operations, please refer to the motor operation instruction
