JCHR35W5A5/A6/A7
Remote Controller
User Manual
Product Info
a. Front

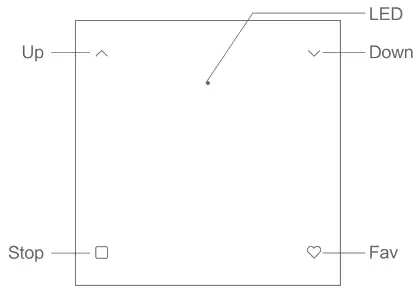

JCHR35W5A5
Single channel remote controller

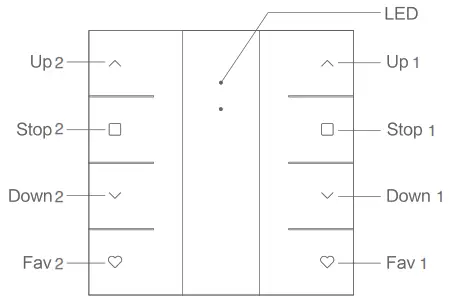

JCHR35W5A6
Single channel dual remote controller

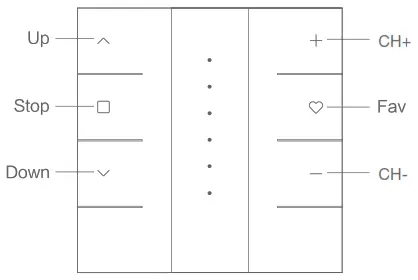

JCHR35W5A7
6-channel remote controller

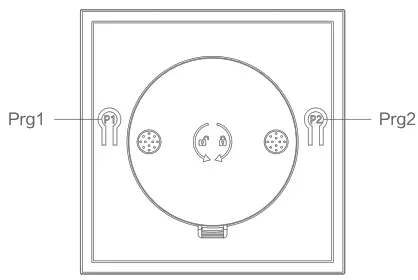

b. back
JCHR35W5A5/A6/A7
Models & Parameters (more info please refer to the nameplate)
| Electrical Specification | Standard |
| Battery Type | CR2430*3V*2 |
| Working Temperature | —10°C-50r |
| Radio Frequency | 433.92M ± 100KHz |
| Transmit Distance | >=30m indoor |
Caution!
- The transmitter should not be exposed to moisture or impact, so as not to affect its life
- During use, when the remote control distance is significantly shorter or less sensitive, please check whether the battery needs to be replaced.
- When the battery voltage is too low, orange LED flickers when you press button, indicating to replace battery.
- Please properly dispose of used batteries according to the local garbage classification and recycling policy.
Instructions

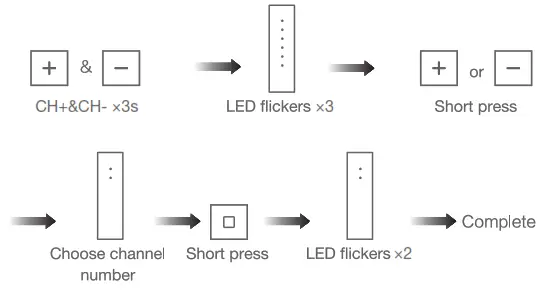

a. Number of Channels Setting (only apply to JCHR35W5A7)

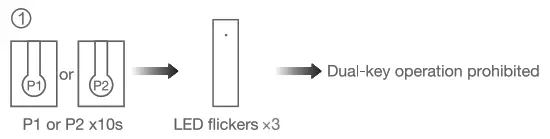

b. Child-lock (Prohibit dual-key operation)
2 Repeat above step, dual-key operation activated
Note: When dual-key operation prohibited, these programming setting functions are not allowed: such as limits setting
c. For other operations, please refer to the motor operation instruction
