e 965
Quick Guide

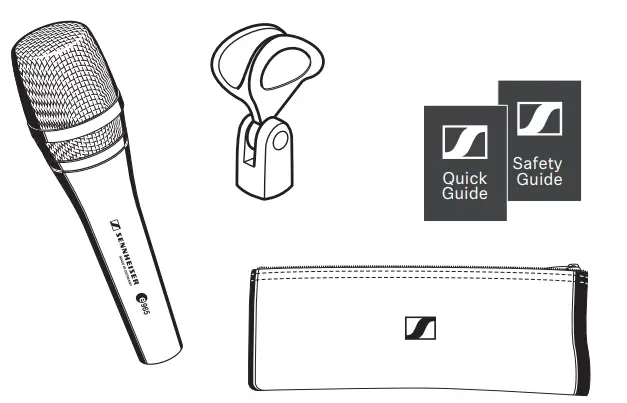

In the box

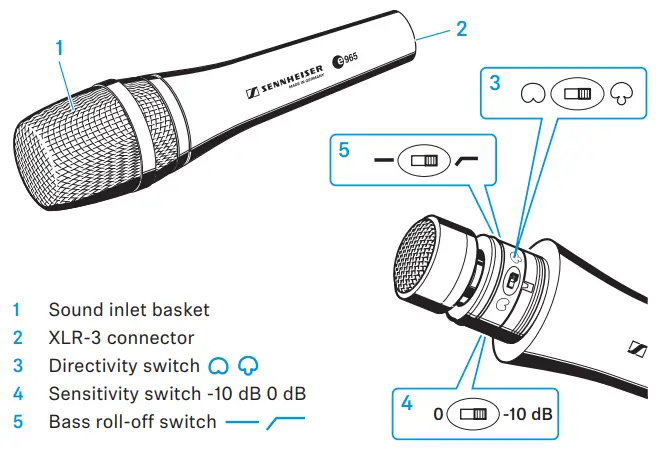

Overview
Accessory

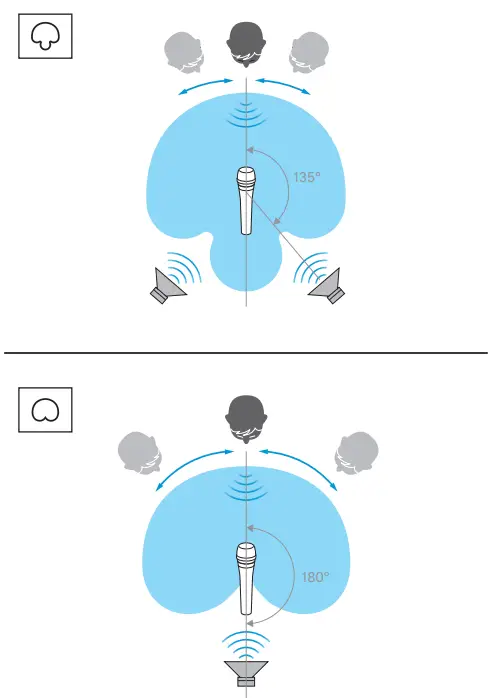

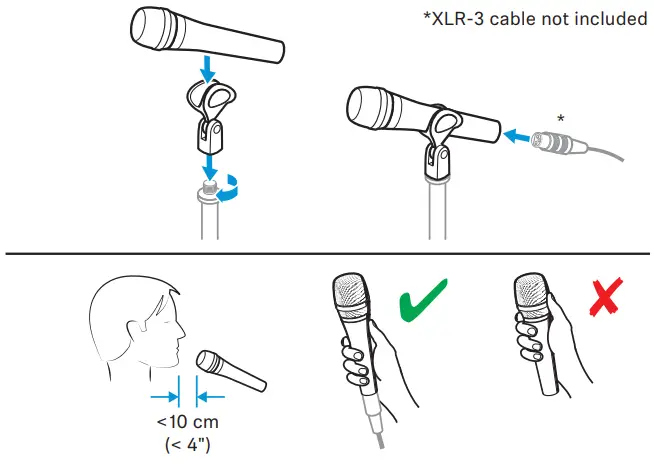

Setup
 |  |

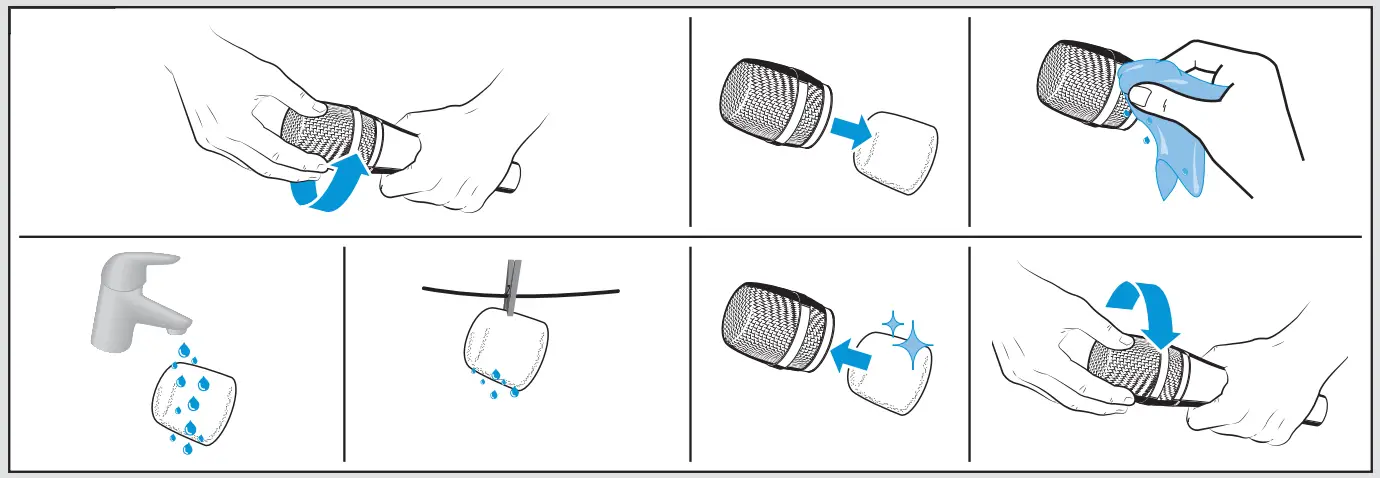

Cleaning

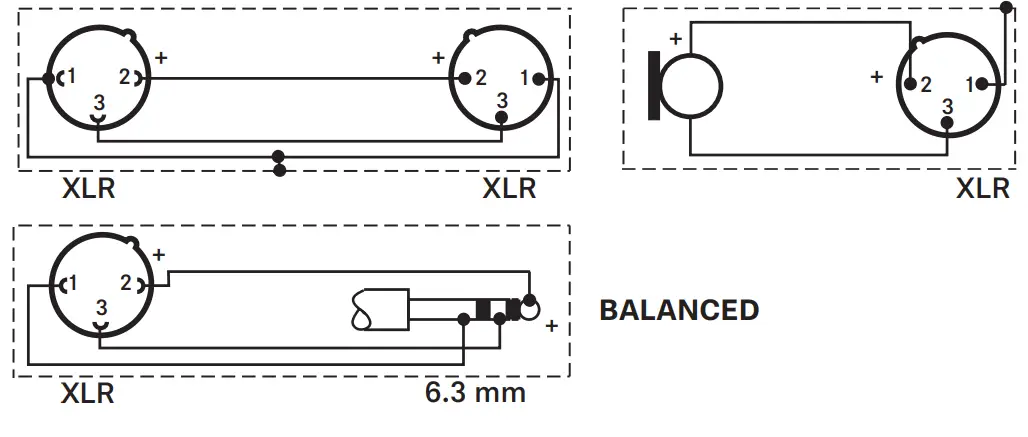

Connector assignment
Specifications
| Transducer principle | externally polarized dual-diaphragm AF condenser microphone |
| Membran diameter | 25.4 mm/1″ |
| Frequency response | 40 – 20,000 Hz |
| Pick-up pattern | cardioid/super-cardioid, switchable |
| Sensitivity (free field, at 1 kHz) with pre-attenuation | 7 mV/Pa 2.3 mV/Pa |
| Nominal impedance (at 1 kHz) | 50 Ω |
| Min. terminating impedance | 1 k Ω |
| Maximum sound pressure level (passive) with pre-attenuation | 142 dB 152 dB |
| Equivalent noise level | 21 dB (A) |
| Phantom powering | 48 V / 3.5 mA |
| Connector | XLR-3 |
| Temperature range | 0 °C to +40 °C |
| Dimensions | ∅ 48 x 199 mm |
| Weight | 396 g |

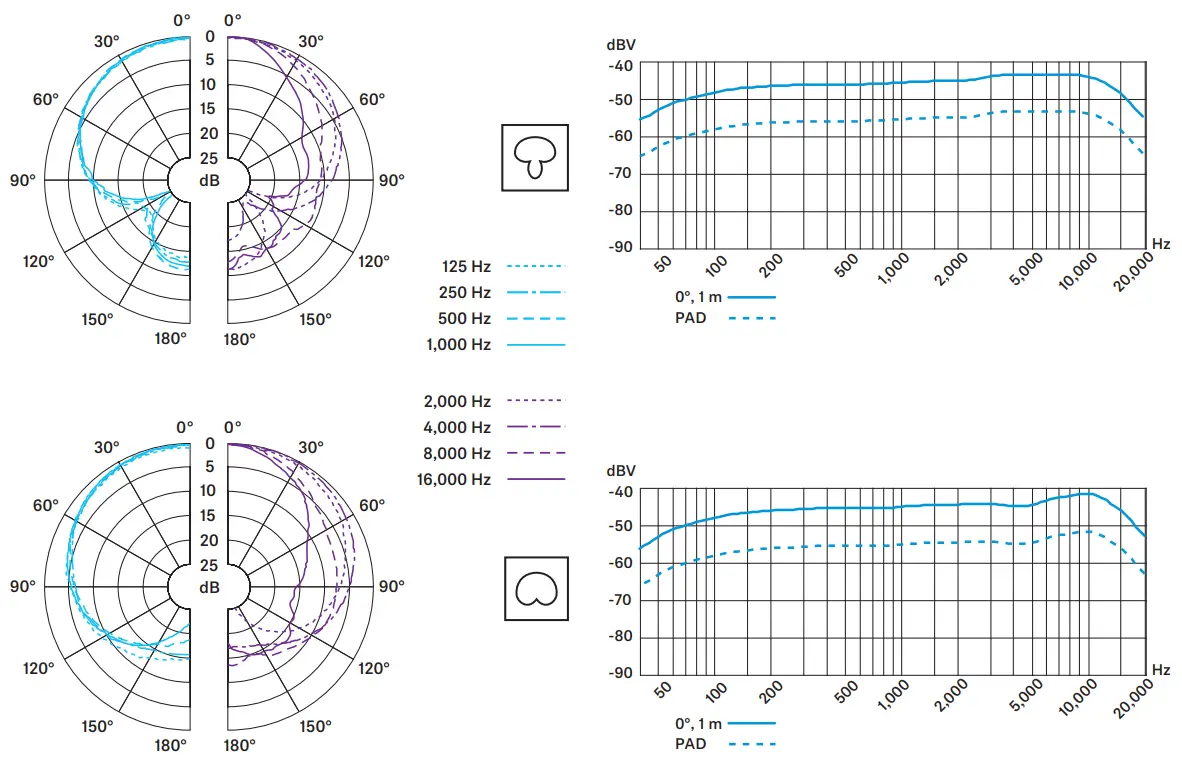

Polar pattern and frequency response
or online at
www.sennheiser.com/download
evolution wired_
Sennheiser Documentation App
Sennheiser electronic GmbH & Co. KG
Am Labor 1, 30900 Wedemark, Germany
www.sennheiser.com
Printed in Germany
Publ. 08/21, 581340/A03
