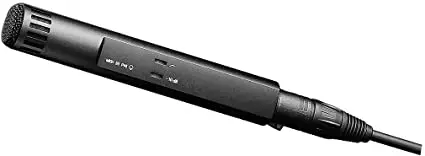

Sennheiser Mkh 50-p48 Super Cardioid Condenser Microphone User Guide

SENNHEISER MKH 50-P48 Super Cardioid Condenser Microphone User Guide

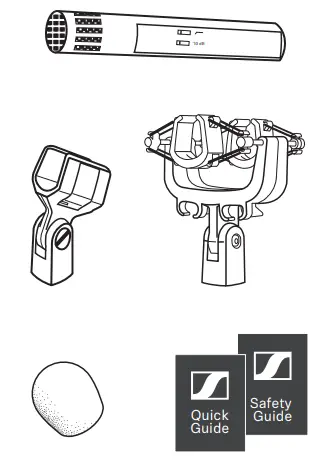

In the box

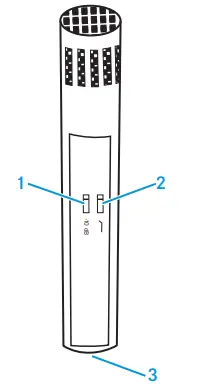

Overview

1. switch for preattenuation
2. switch for roll-off-filter
3. XLR-3 connector

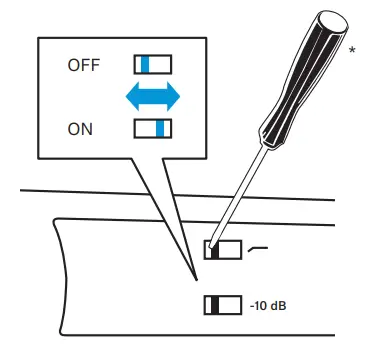

Adjusting

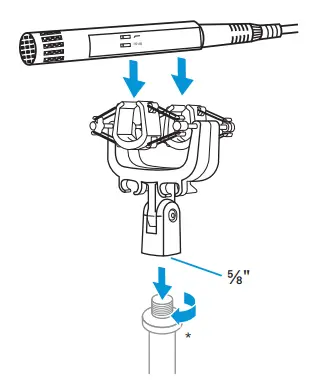

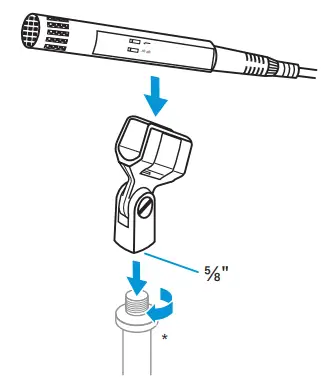

Setup

* not included

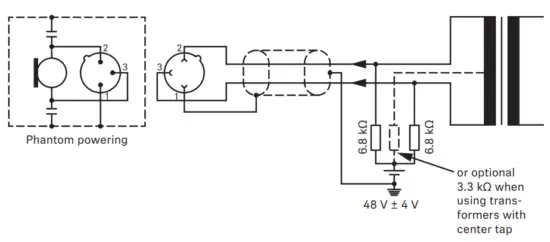

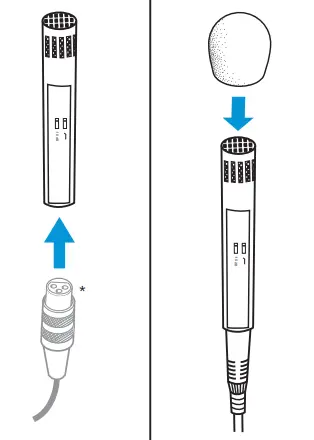

Power supply and connections

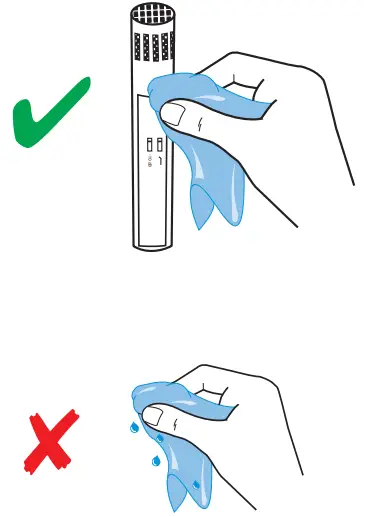

Cleaning

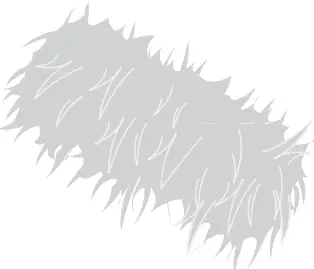

Accessories

• MZS 20-1*

• MZS 20-1*

• MZH 20-1*


* not included

Specifications

• Pick-up pattern: super-cardioid
• Frequency response: 40 – 20,000 Hz
• Sensitivity (free field, no load, 1 kHz): 25 (8) mV/Pa ±1 dB
• Max. SPL: 134 (142) dB / 1 kHz
• Equivalent noise level:
  A-weighted:  12 (18) dB(A)
  CCIR-weighted: 21 (27) dB
• Nominal impedance: 150 Ω
• Min. terminating impedance:  1 kΩ
• Phantom powering:  48 V ±4 V
• Current consumption:  2 m
• Dimension: ⌀ 25 x 153 mm
• Weight: approx. 100 g

Values in () with attenuator switched on (–10 dB)

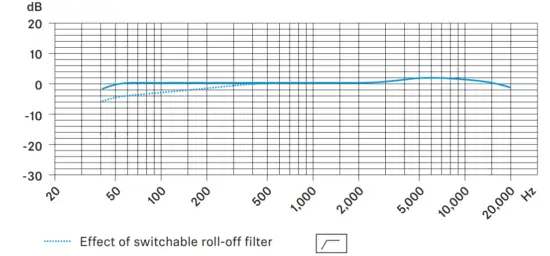

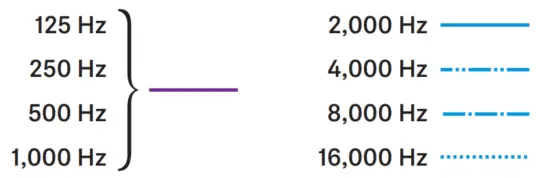

Polar pattern and frequency response

Sennheiser electronic GmbH & Co. KG

Am Labor 1, 30900 Wedemark, Germany
www.sennheiser.com
Printed in Germany, Publ. 10/21, 583989/A02
