SENNHEISER e 965 True Condenser Vocal Microphone

SENNHEISER-e-965-True-Condenser-Vocal-Microphone-product

Product Information

The Sennheiser Documentation App is a resource for users to access product documentation and manuals. Additionally, users can also find the product manual online at www.sennheiser.com/download. The product being referred to in this manual is the evolution wired microphone, specifically the e 965 model. Sennheiser electronic GmbH & Co. KG is the manufacturer of this product and is located at Am Labor 1, 30900 Wedemark, Germany. It is important to note that the XLR-3 cable is not included with the product.

The following items are included in the box:

  • e 965 microphone
  • Kvikstartguide Pikaohje
  • Kisa Kilavuz
  • Safety Quick Guide Guide

Product Usage Instructions

  1. Before using the microphone, ensure that the XLR-3 cable is properly connected to the device that it will be used with.
  2. Power on the device and adjust the volume settings as necessary.
  3. Hold the microphone by the handle and position it approximately 6-12 inches away from your mouth.
  4. Speak or sing into the microphone in a clear and consistent manner.
  5. When finished, power off the device and disconnect the XLR-3 cable from both the microphone and device.
  6. Store the microphone in a safe and dry location until its next use.

or online at www.sennheiser.com/download
search at: evolution wired_

SENNHEISER-e-965-True-Condenser-Vocal-Microphone-fig-1

Sennheiser electronic GmbH & Co. KG
Am Labor 1, 30900 Wedemark, Germany
www.sennheiser.com

Printed in Germany
Publ. 05/23, 581340/A04

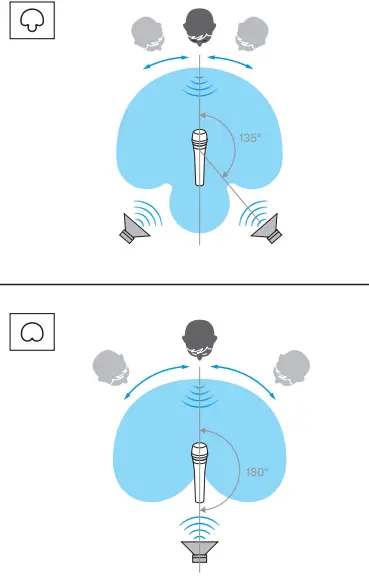

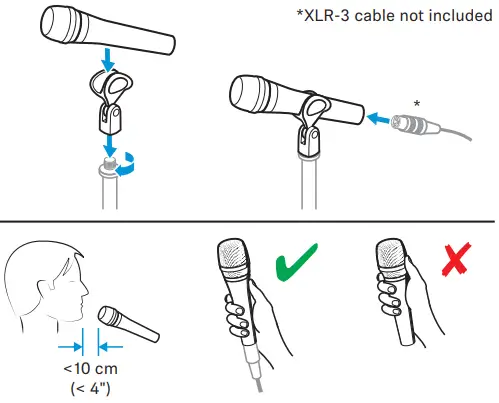

Setup

SENNHEISER-e-965-True-Condenser-Vocal-Microphone-fig-2SENNHEISER-e-965-True-Condenser-Vocal-Microphone-fig-3

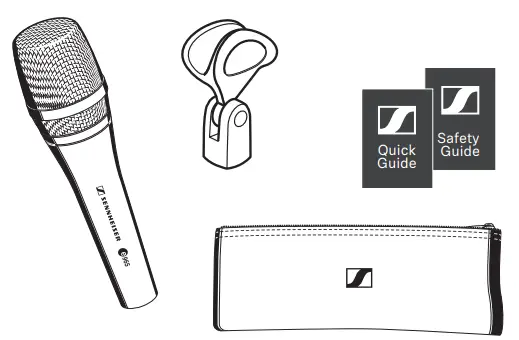

In the boxSENNHEISER-e-965-True-Condenser-Vocal-Microphone-fig-4

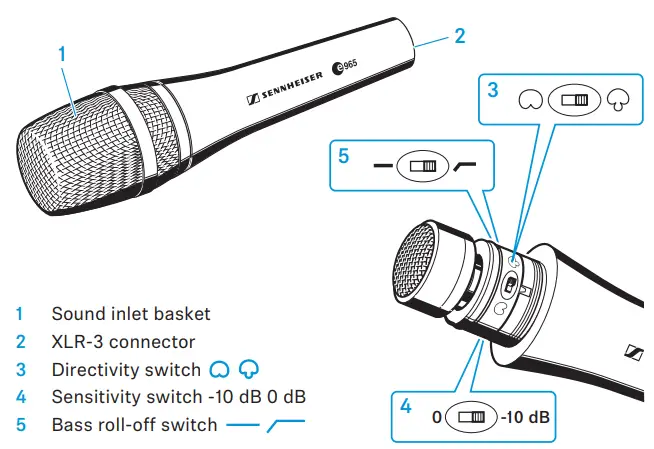

OverviewSENNHEISER-e-965-True-Condenser-Vocal-Microphone-fig-5

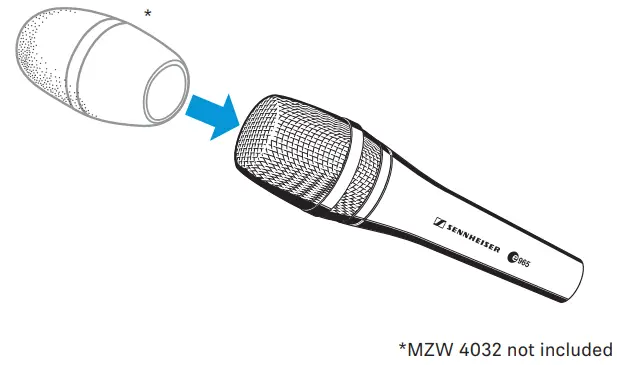

Accessory

SENNHEISER-e-965-True-Condenser-Vocal-Microphone-fig-6

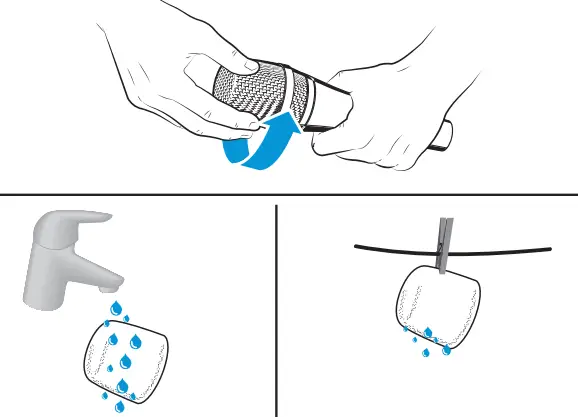

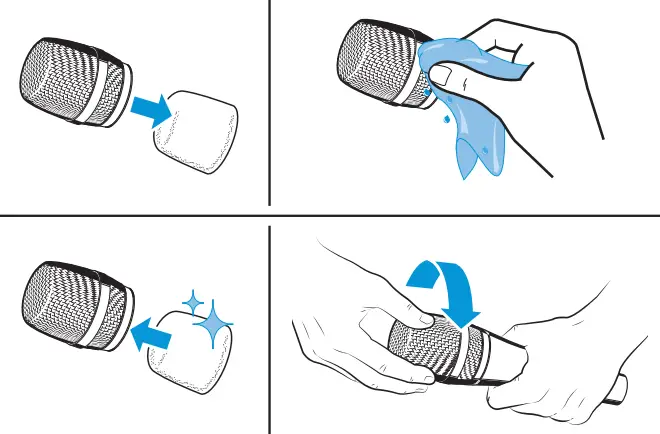

CleaningSENNHEISER-e-965-True-Condenser-Vocal-Microphone-fig-7SENNHEISER-e-965-True-Condenser-Vocal-Microphone-fig-8

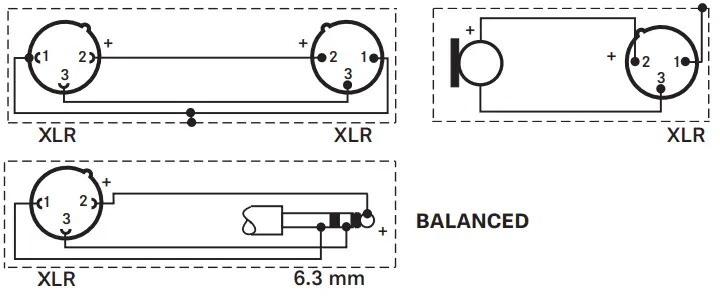

Connector assignmentSENNHEISER-e-965-True-Condenser-Vocal-Microphone-fig-9

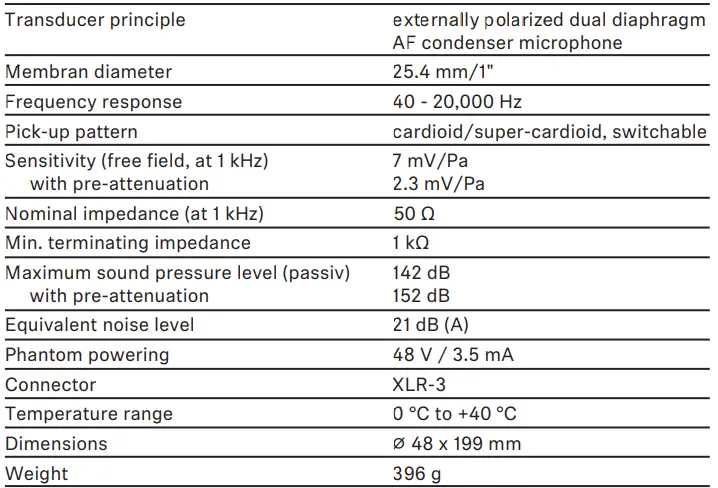

SpecificationsSENNHEISER-e-965-True-Condenser-Vocal-Microphone-fig-10

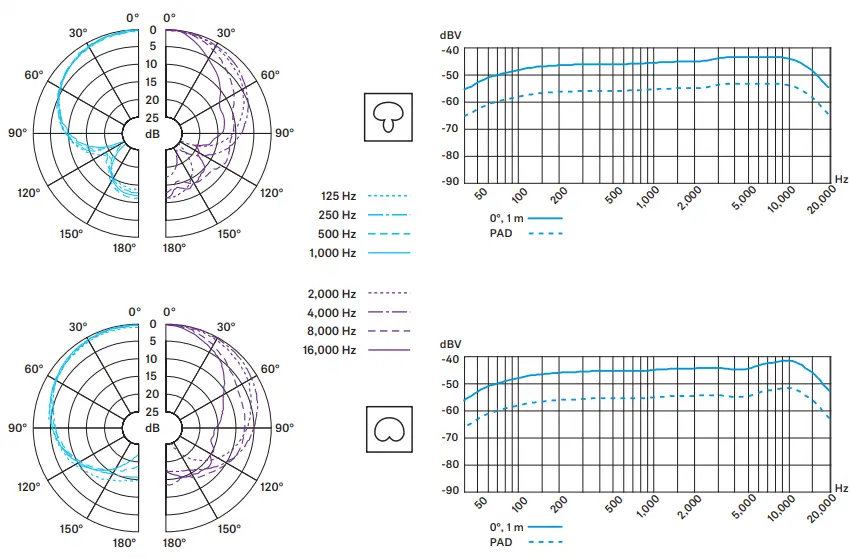

Polar pattern and frequency responseSENNHEISER-e-965-True-Condenser-Vocal-Microphone-fig-11
