MK 4 Quick Guide

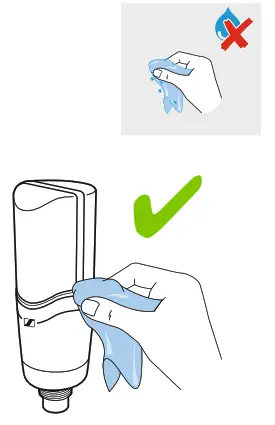

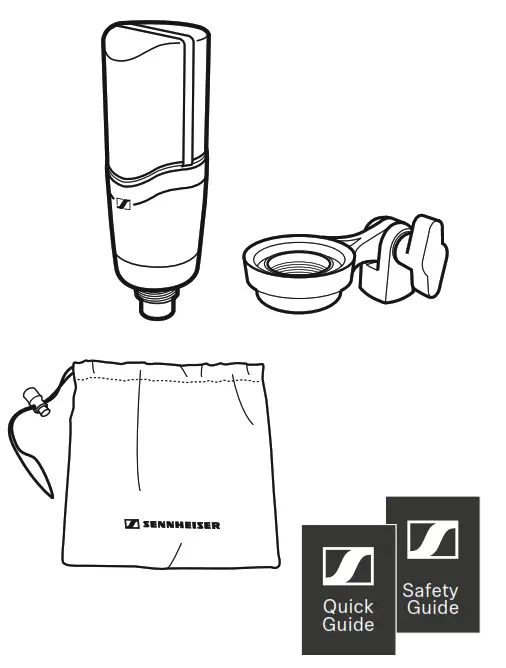

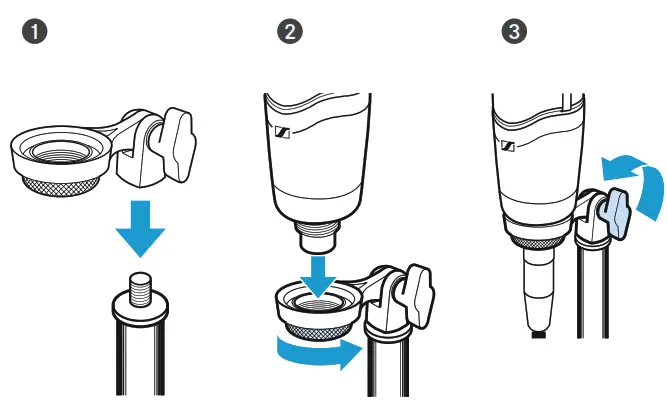

In the box Recording Setup Cleaning
 |  |
 |  |

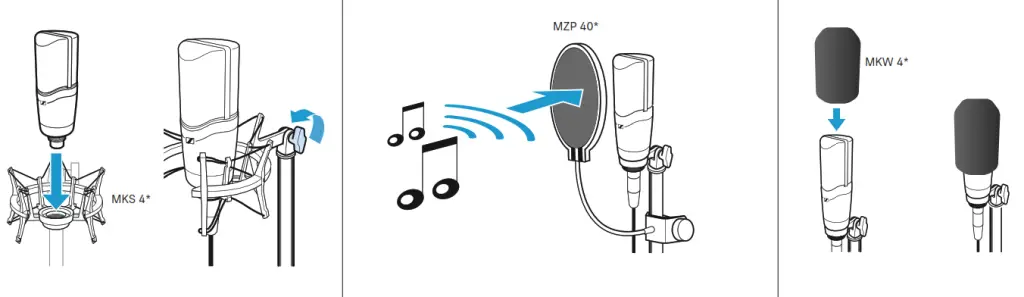

Accessories

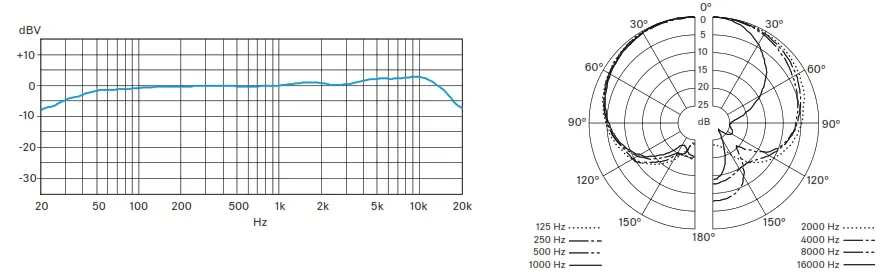

Polar pattern and frequency response

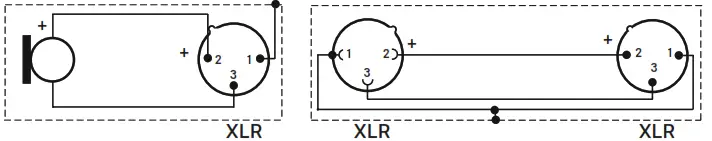

Connector assignment
Specifications
| Transducer principle | externally polarized condenser microphone |
| Diameter of diaphragm | 25.4 mm / 1″ |
| Acoustic operating principle | pressure gradient transducer |
| Pick-up pattern | cardioid |
| Frequency response | 20 – 20,000 Hz |
| Sensitivity | 25 mV/Pa |
| Max. SPL | 140 dB |
| Equivalent noise level CCIR-weighted | 10 dB(A) 20 dB |
| Dynamic range | 130 dB |
| Nominal impedance | approx. 50 Ω |
| Min. terminating impedance | 1 kΩ |
| Power supply | phantom powering 48 V (P48) |
| Current consumption | 3.1 mA |
| Diameter | approx. 57 mm |
| Length | approx. 160 mm |
| Weight | approx. 485 g |
| Operting temperature | 0 °C to +40 °C |
| Storage temperature | –20 °C to +70 °C |
Sennheiser electronic GmbH & Co. KG Am Labor 1, 30900 Wedemark, Germany
www.sennheiser.com Printed in Germany, Publ. 06/21, 587413/A04
