MKH 8090
Quick Guide

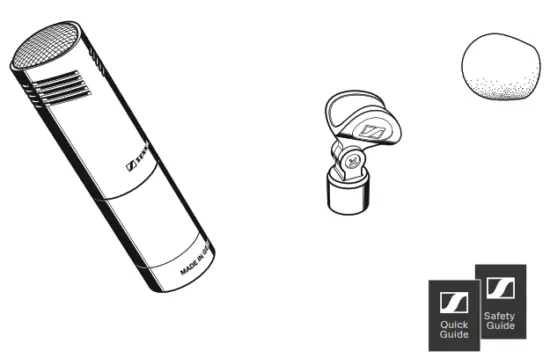

In the box

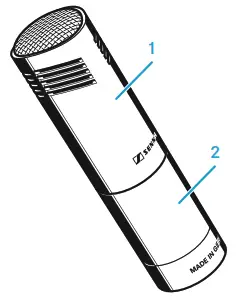

Overview
1.Microphone head
2. XLR module

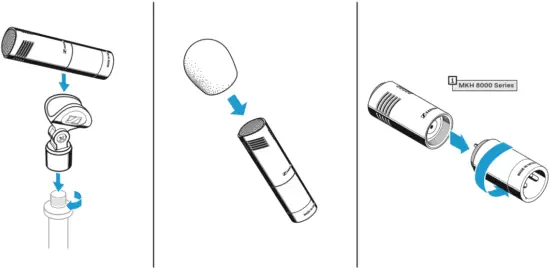

Setup
Stereo recording
Time-of-arrival stereo (AB): (almost) only time-of-arrival differences

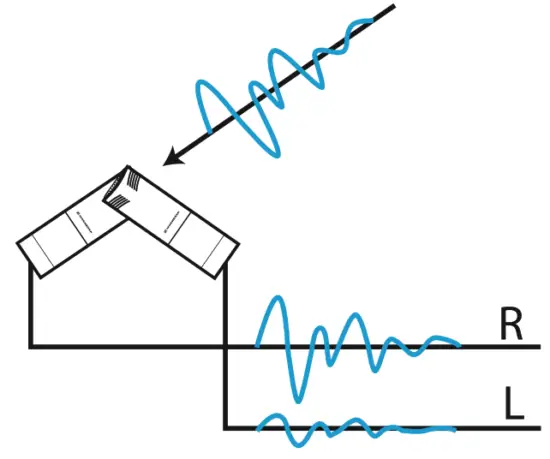

Intensity stereo (XY): only sound pressure level differences

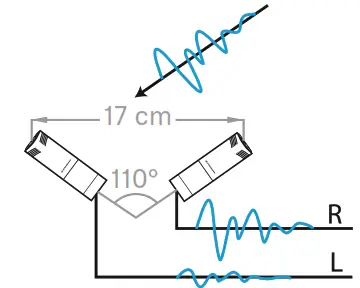

Equivalence or mixed stereo (here: ORTF): sound pressure level and time-of-arrival differences

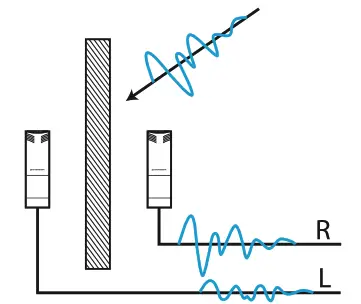

Baffle stereo (here: OSS): sound pressure level, time-of-arrival and spectral differences with off-axis sound

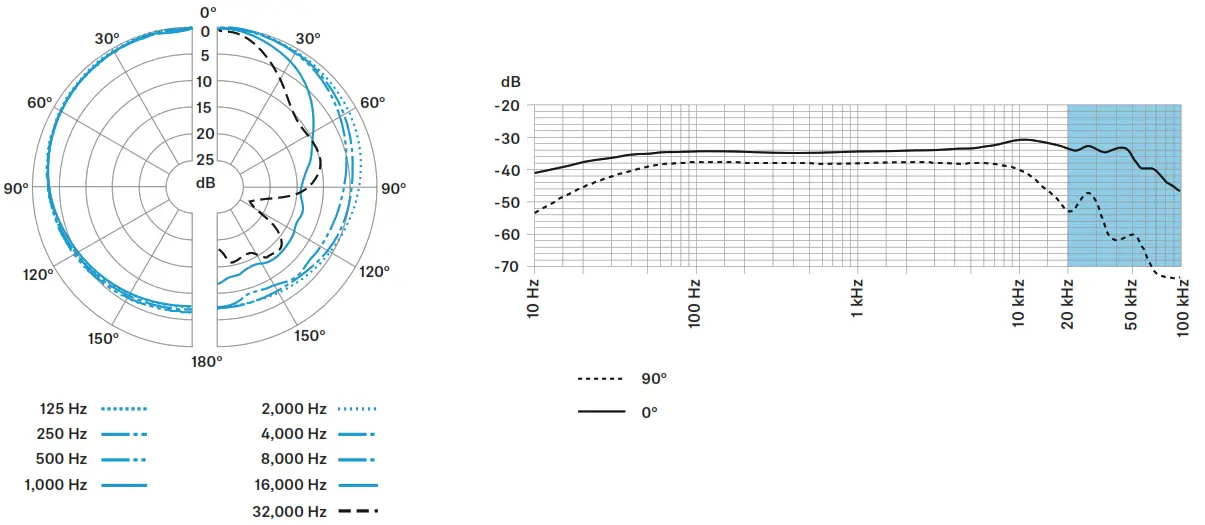

Polar pattern and frequency response
Specifications
| Pick-up pattern | wide cardioid |
| Frequency response | 30 – 50,000 Hz |
| Sensitivity with MZF 8000 | −34 dBV/Pa (31 mV/Pa) −44 dBV/Pa (10 mV/Pa) |
| Max. SPL with MZF 8000 | 142 dB 142 dB |
| Equivalent noise level | 13 dB(A) 23 dB (CCIR) |
| Nominal impedance | 25 Ω |
| Min. terminating impedance | 4 Ω |
| Phantom powering | 48 V ±4 V (P48, IEC 61938) |
| Current consumption | 3.3 mA |
| Diameter | approx. 19 mm |
| Length with MZF 8000 | approx. 41 mm approx. 75 mm |
| Weight with MZF 8000 | approx. 25 g approg. 55 g |
| Operting temperature | -10 °C to 60 °C |
MKH 8000 Series

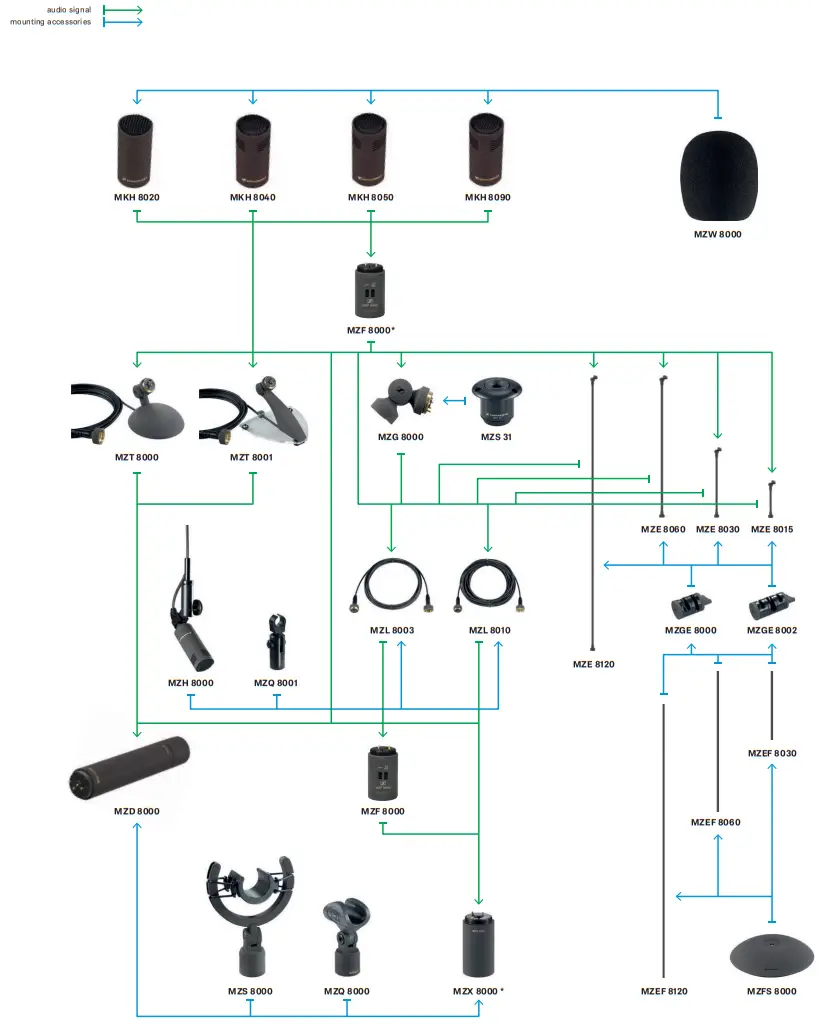

Microphone and accessories overview
*Screw filter module MZF 8000 at suitable place between microphone head and XLR module.
Sennheiser electronic GmbH & Co. KG
Am Labor 1, 30900 Wedemark, Germany
www.sennheiser.com
Printed in Germany, Publ. 12/19, 581393/A02
