Sennheiser Md 435 Handheld Cardioid Microphone User Guide

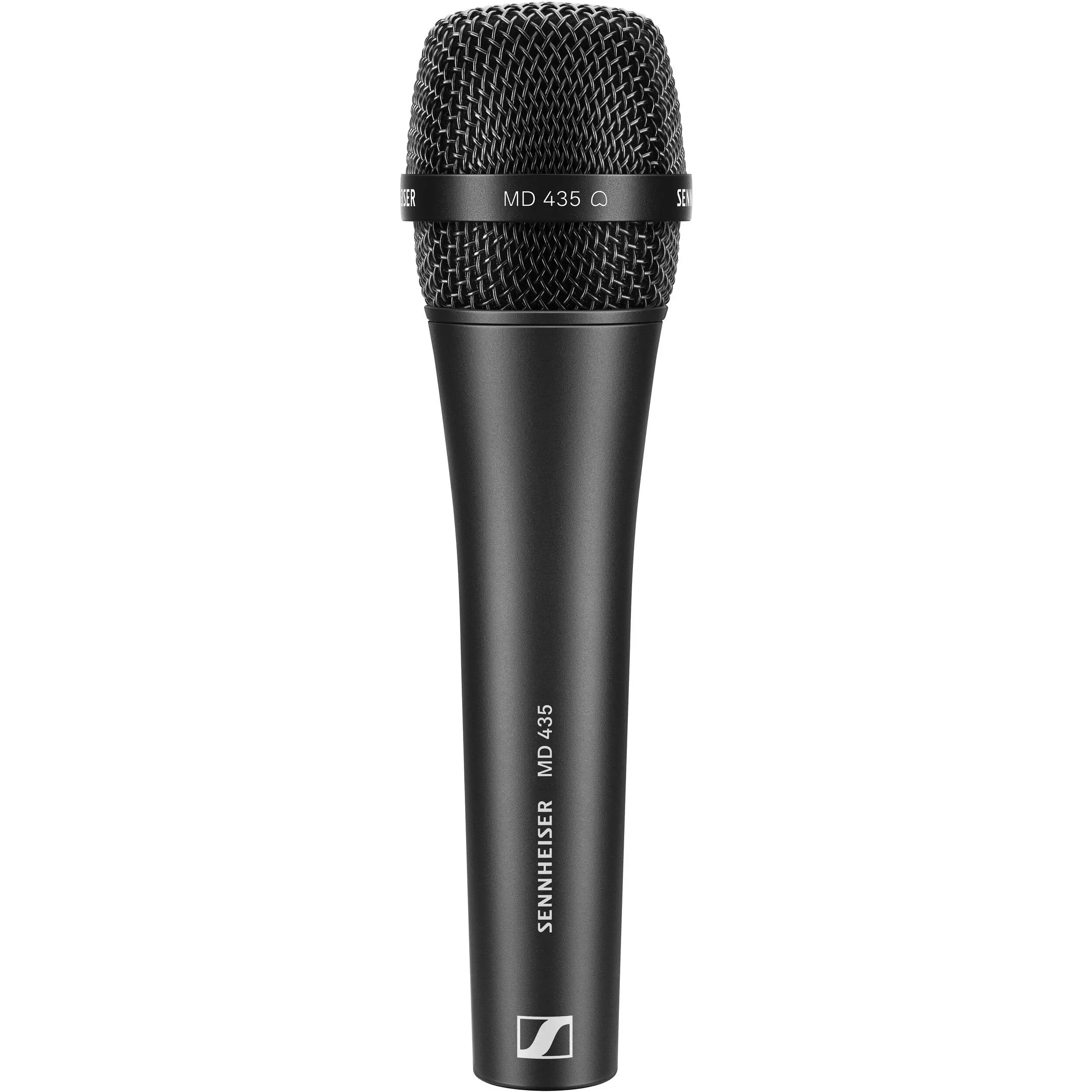

SENNHEISER MD 435 Handheld Cardioid Microphone

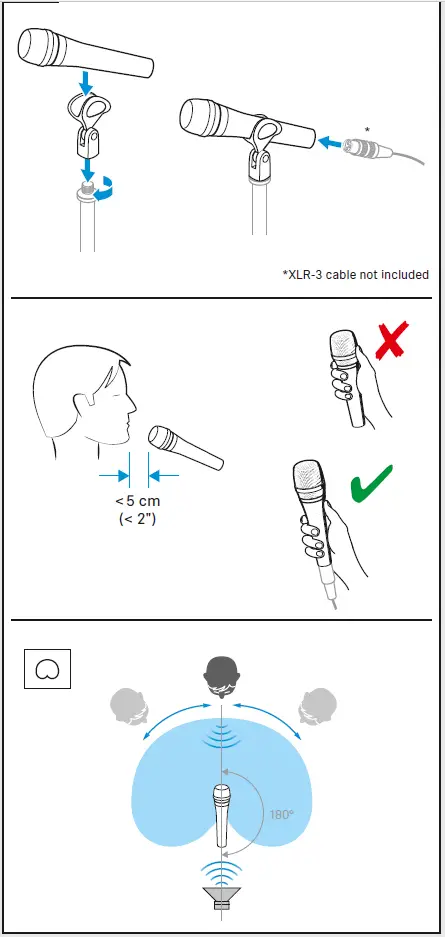

Setup

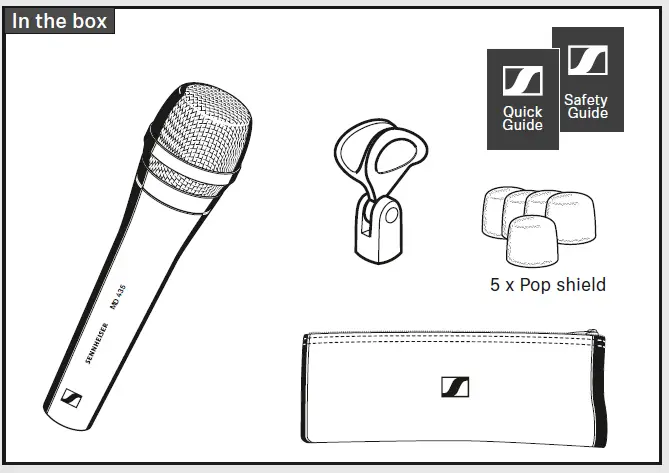

In the box

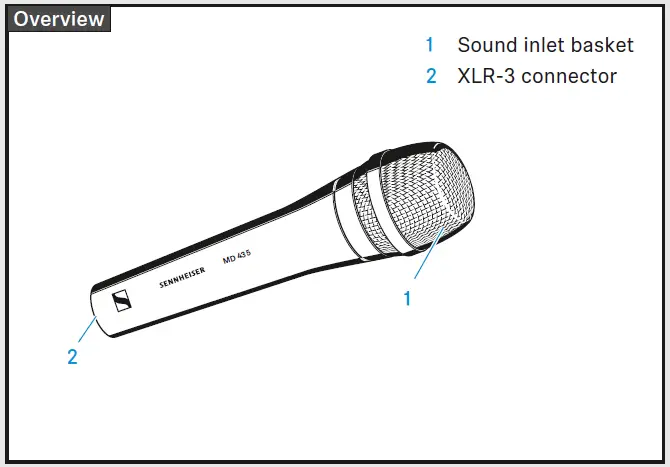

Overview

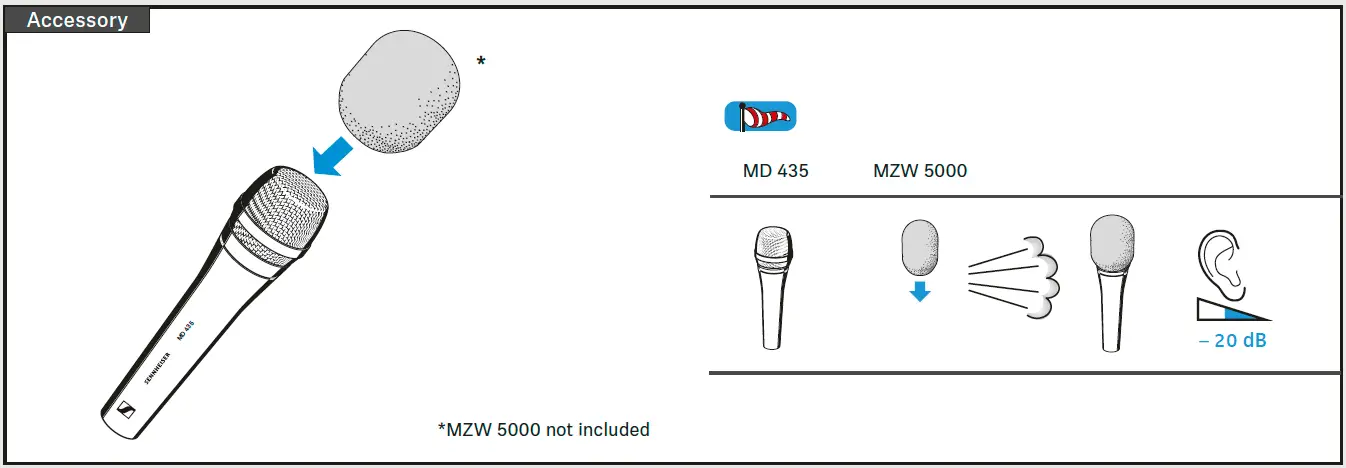

Accessory

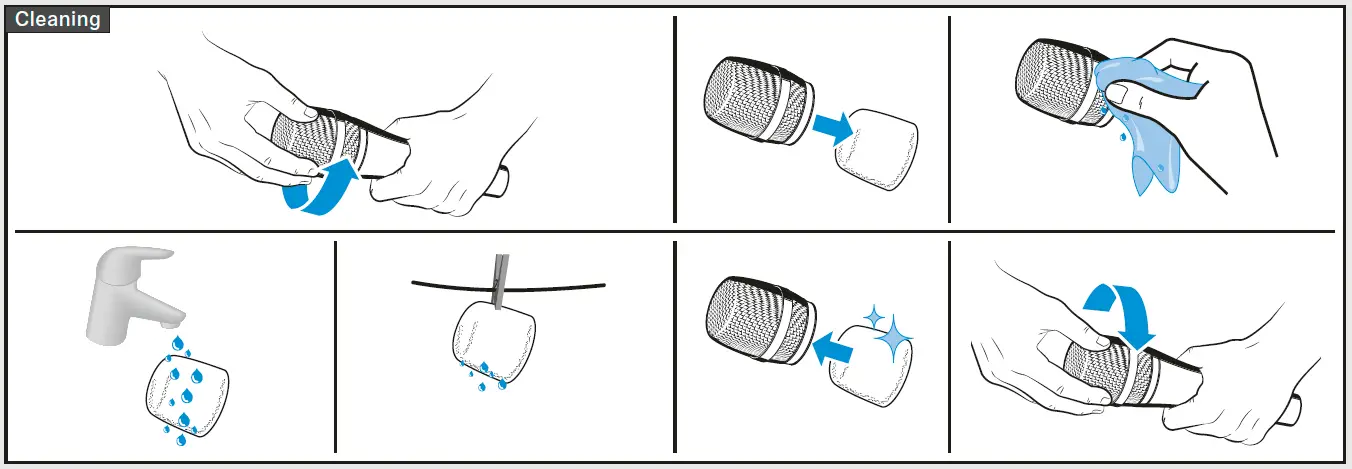

Cleaning

Specifications

• Transducer principle : dynamic
• Frequency response : 40 – 20,000 Hz
• Pick-up pattern : cardioid
• Sensitivity (free field, at 1 kHz) : 1.8 mV/Pa
• Max SPL at 1 kHz : 163 dB
• Dynamic range : 146 db (A)
• Nominal impedance (at 1 kHz) : 245
• Min. terminating impedance : 1 k
• Connector : XLR-3m
• Dimensions : 47.5 x 181 mm
• Weight : 350 g

Connector assignment

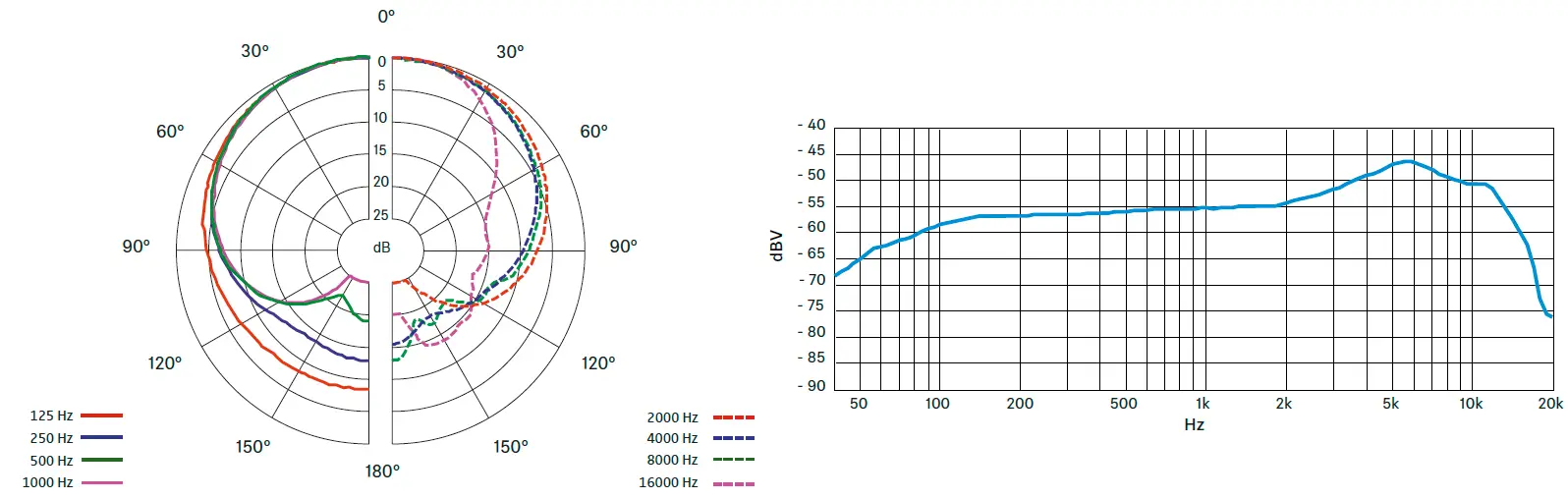

Polar pattern and frequency response
