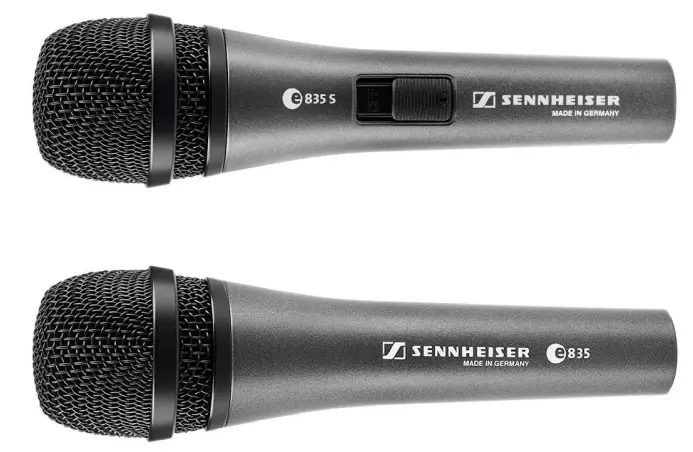

Sennheiser E835 Series Handheld Cardioid Dynamic Microphone Instruction Manual

e 835/e 835 S
Instruction manual

Delivery includes

• e 835 / e 835 S
• MZQ 800 microphone clamp
• pouch
• quick guide
• safety guide

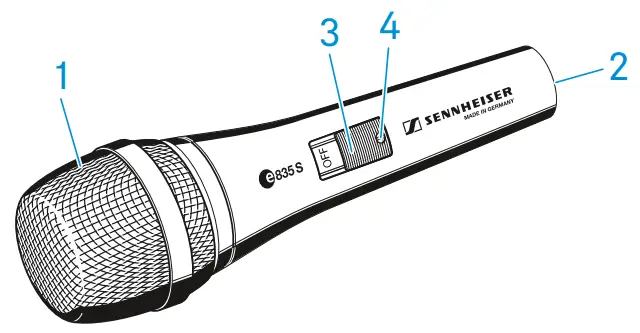

Product Overview

1. Sound inlet basket
2. XLR-3 connector
3. On/off switch (e 835 S only)
4. Screw (e 835 S only)

Installation

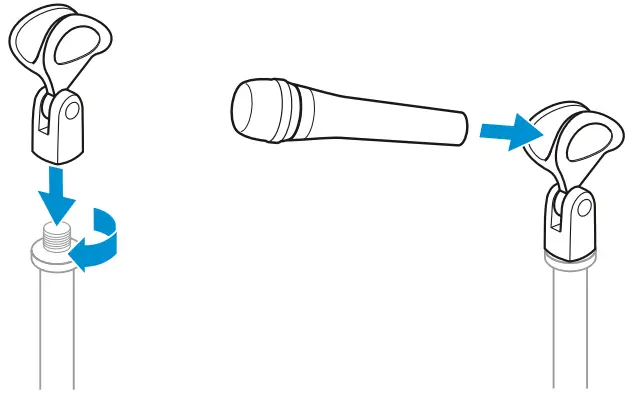

Attaching the microphone

• Screw the microphone clamp to a stand.
• Place the microphone with its back end into the microphone clamp.
• Orient the microphone together with the microphone clamp.

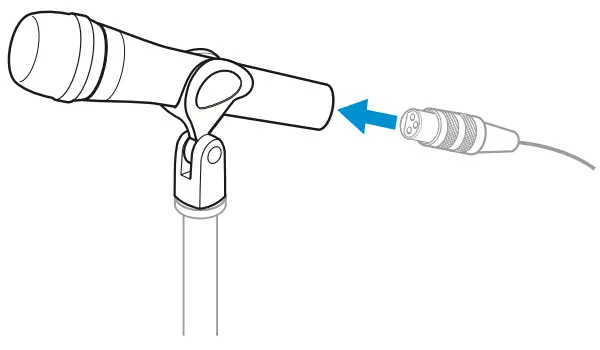

Connecting the microphone

• Connect the XLR-3 socket of the microphone cable (optional accessories) to the XLR-3 socket of the microphone.

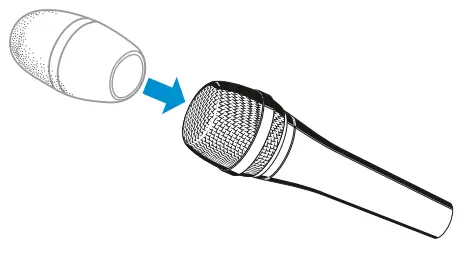

Using the windshield

• Place the MZW 4032 (optional accessories) windshield over the microphone head.

Operation

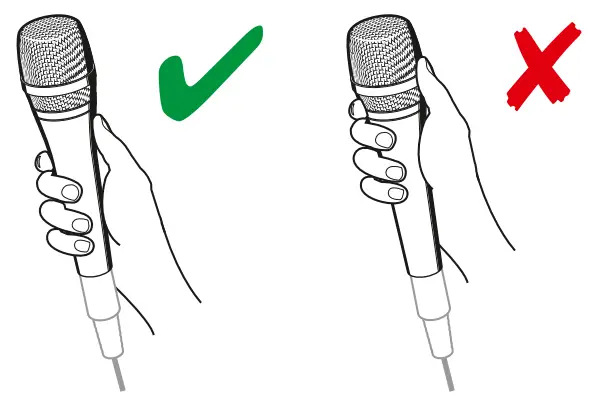

Holding the microphone
If you cover the microphone head during transmission, this will change the pick-up pattern of the microphone and consequently the sound.

• Only hold the radio microphone by its body.

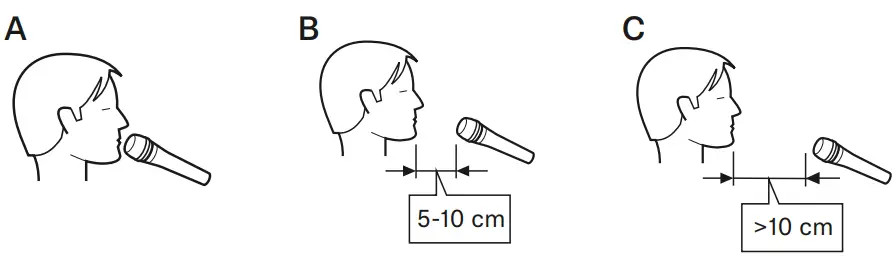

Positioning the microphone

• It is vital to observe the following notes:

If sibilance occurs:

• Position the microphone slightly to the side and not directly in front of the mouth.

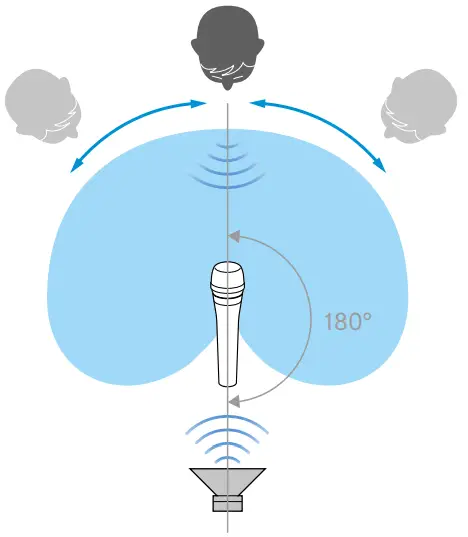

Positioning the monitor loudspeakers

• To prevent feedback and crosstalk, position your monitor loudspeakers in the angle area of the highest cancellation of the microphone (approx. 180°).

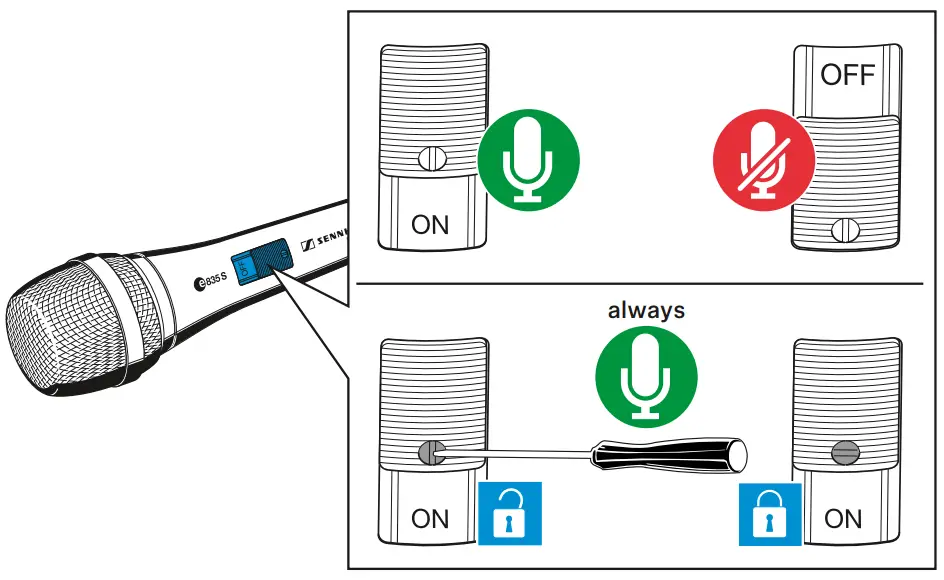

Switching the e 835 S on/off

• Use the on/off switch to switch the e 835 S on or off.
• If necessary, use the screw to lock the on/off switch in the „on“ position.

Cleaning and maintaining the e 835 / e 835 S

CAUTION
LIQUIDS CAN DAMAGE THE ELECTRONICS OF THE PRODUCT!
Liquids entering the housing of the product can cause a short circuit and damage the electronics.

• Keep all liquids away from the product.
• Do not use any solvents or cleansing agents.
• Disconnect the products from the power supply system and remove rechargeable batteries and batteries before you begin cleaning.
• Clean all products only with a soft, dry cloth.

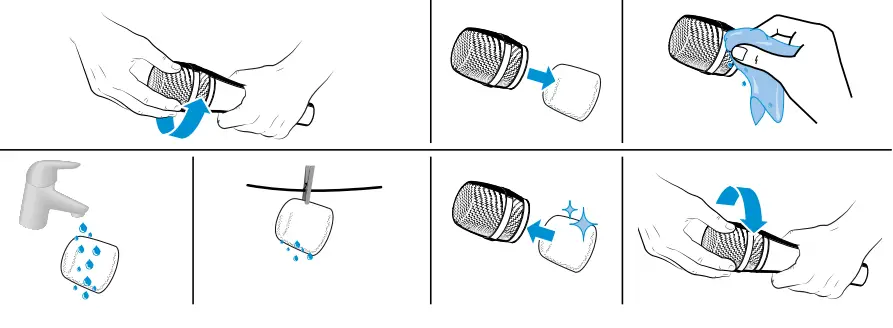

Cleaning the sound inlet basket of the microphone module

• Unscrew the sound inlet basket.
• Remove the foam insert from the sound inlet basket.
• Use a slightly damp cloth to clean the sound inlet basket from the inside and outside.
• If necessary, clean the foam insert with a mild detergent or replace the foam insert.
• Dry the foam insert.
• Reinsert the foam insert.
• Replace the sound inlet basket on the microphone head and screw it tight.

Specifications

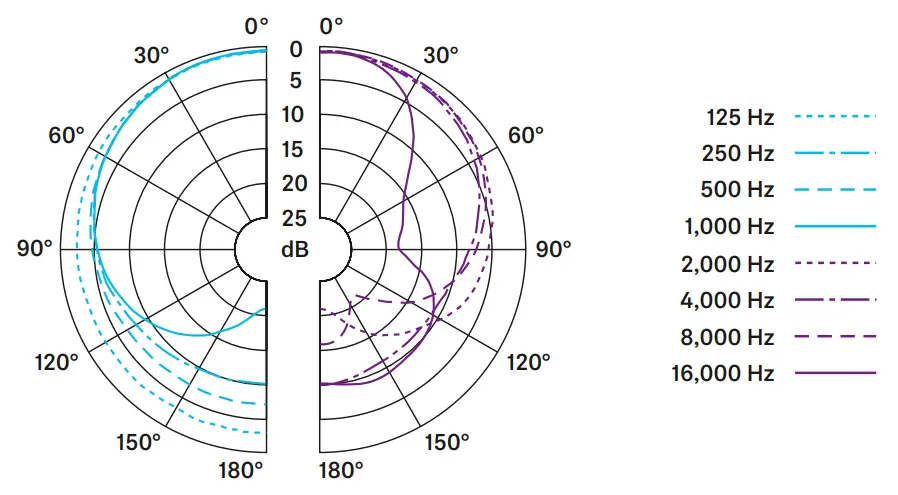

Polar pattern

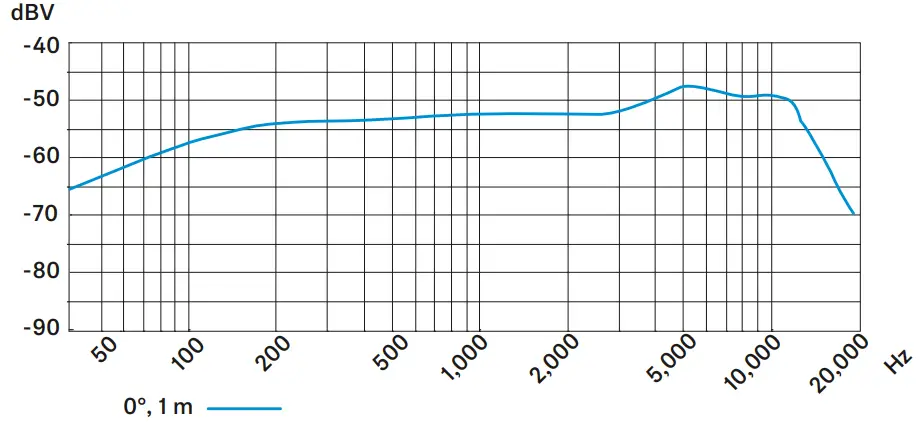

Frequency response

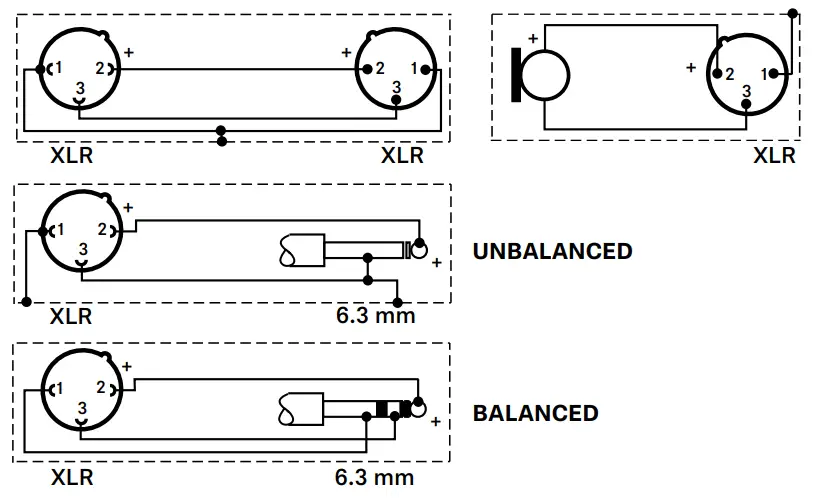

Connector assignment

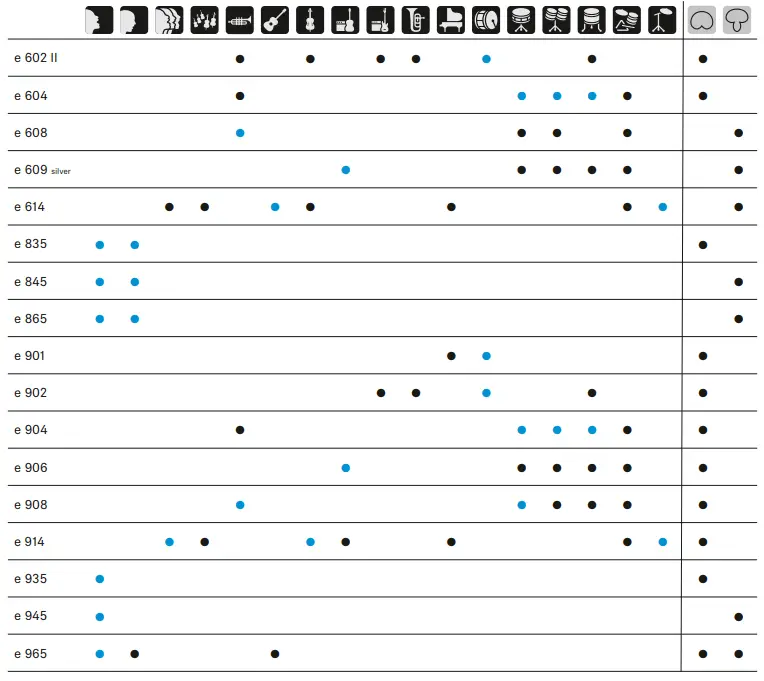

Overview of applications

• Primary application
• Secondary application
