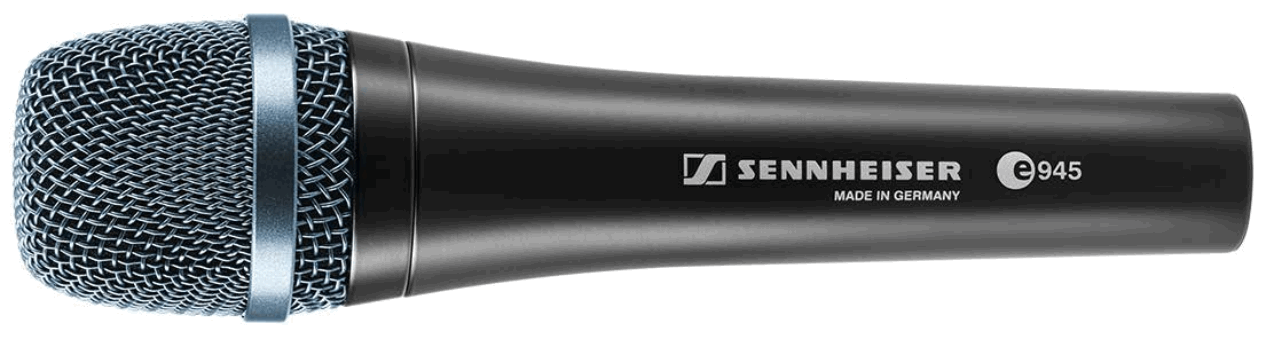

Sennheiser E 945 Dynamic Vocal Microphone Instruction Manual

e 945
Dynamic Vocal Microphone
Instruction manual

Delivery includes

• e 945
• MZQ 800 microphone clamp
• pouch
• quick guide
• safety guide

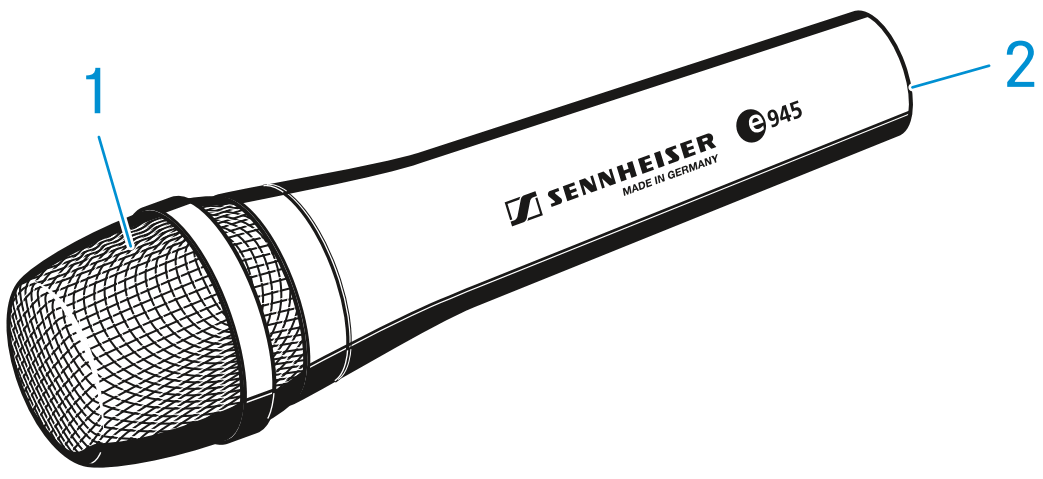

Product Overview

1. Sound inlet basket
2. XLR-3 connector

Installation

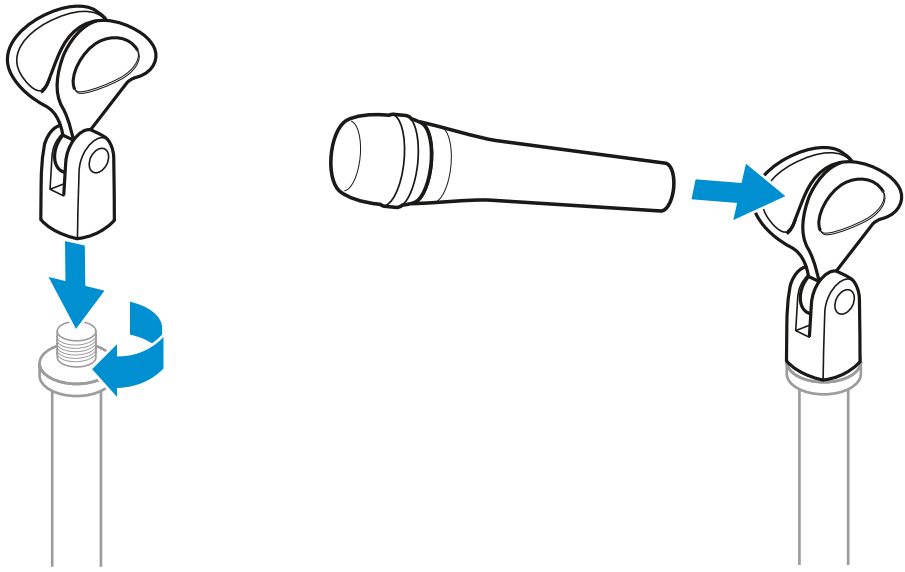

Attaching the microphone
Screw the microphone clamp to a stand.
Place the microphone with its back end into the microphone clamp.
Orient the microphone together with the microphone clamp.

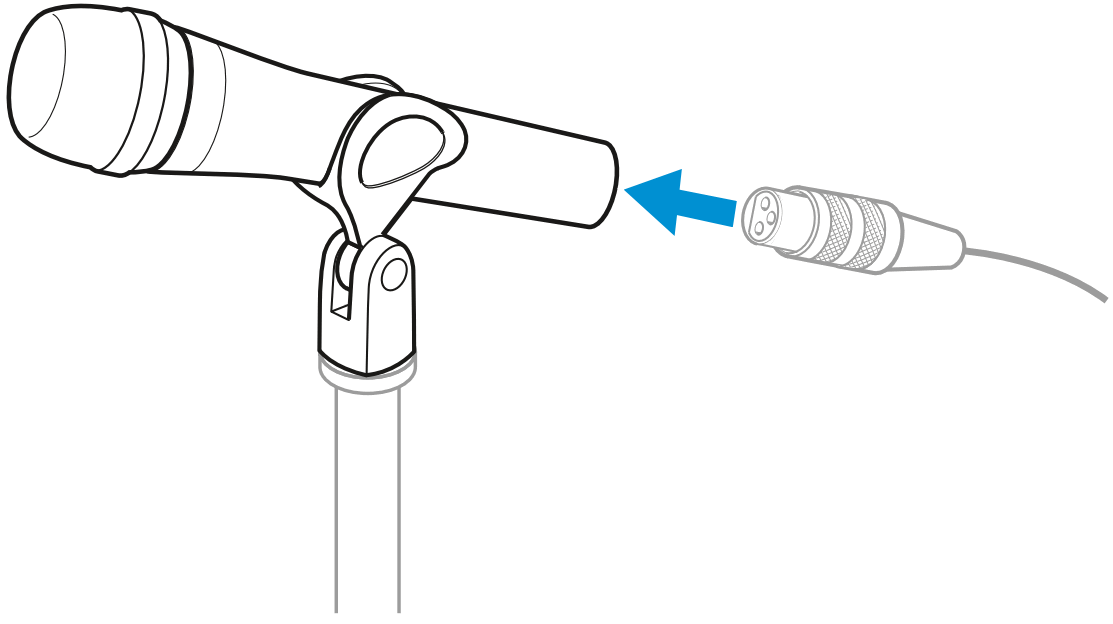

Connecting the microphone
Connect the XLR-3 socket of the microphone cable (optional accessories) to the XLR-3 socket of the microphone.

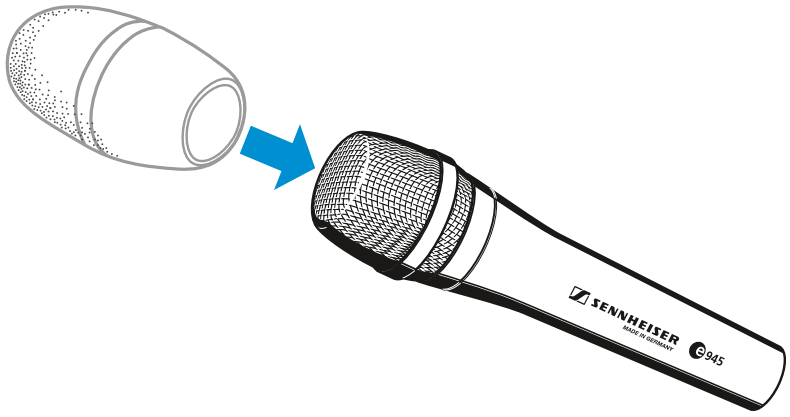

Using the windshield
Place the MZW 4032 (optional accessories) windshield over the microphone head.

Operation

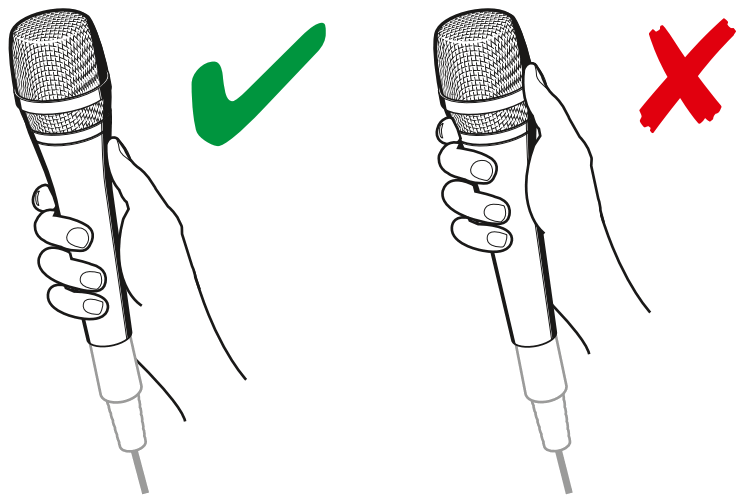

Holding the microphone
If you cover the microphone head during transmission, this will change the pick-up pattern of the microphone and consequently the sound.
Only hold the microphone by its body.

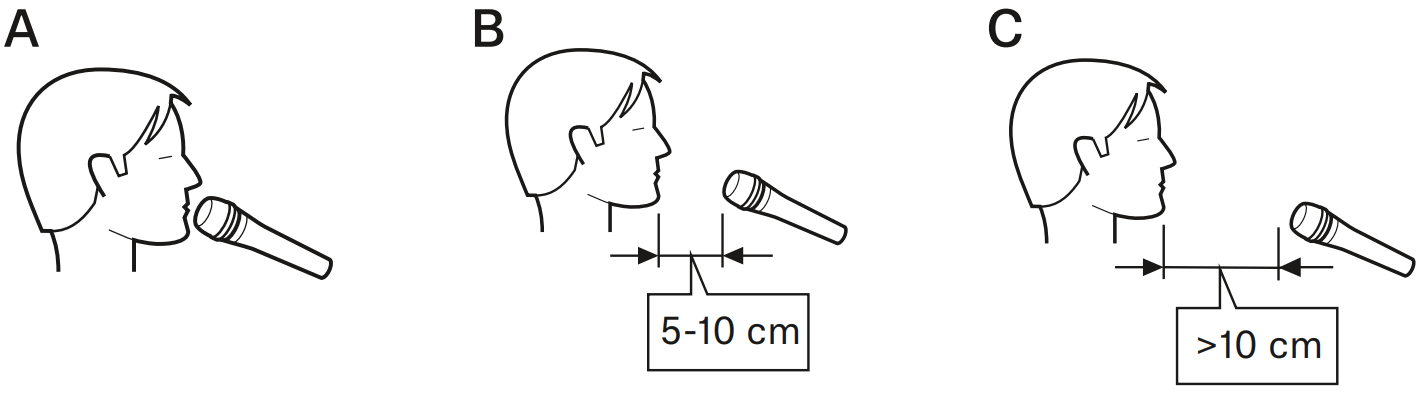

Positioning the microphone
It is vital to observe the following notes:

If sibilance occurs:
Position the microphone slightly to the side and not directly in front of the mouth.

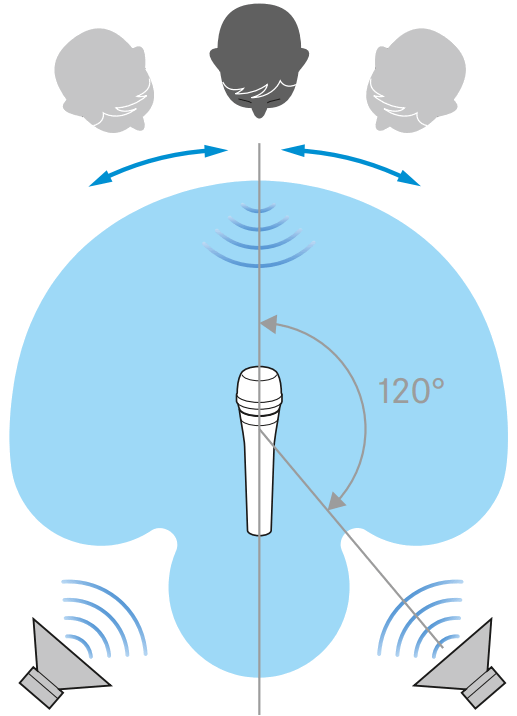

Positioning the monitor loudspeakers
To prevent feedback and crosstalk, position your monitor loudspeakers in the angle area of the highest cancellation of the microphone (approx. 120°).

Cleaning and maintaining the e 945

CAUTION
LIQUIDS CAN DAMAGE THE ELECTRONICS OF THE PRODUCT!
Liquids entering the housing of the product can cause a short-circuit and damage the electronics.
Keep all liquids away from the product.
Do not use any solvents or cleansing agents.
Disconnect the products from the power supply system and remove rechargeable batteries and batteries before you begin cleaning.
Clean all products only with a soft, dry cloth.

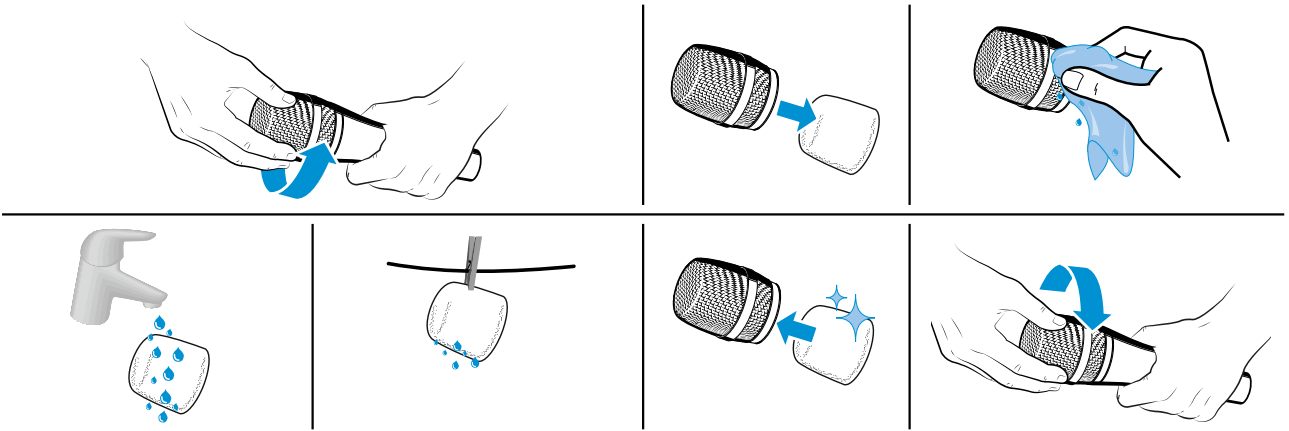

Cleaning the sound inlet basket of the microphone module
Unscrew the sound inlet basket.
Remove the foam insert from the sound inlet basket.
Use a slightly damp cloth to clean the sound inlet basket from the inside and outside.
If necessary, clean the foam insert with a mild detergent or replace the foam insert.
Dry the foam insert.
Reinsert the foam insert.
Replace the sound inlet basket on the microphone head and screw it tight.

Specifications

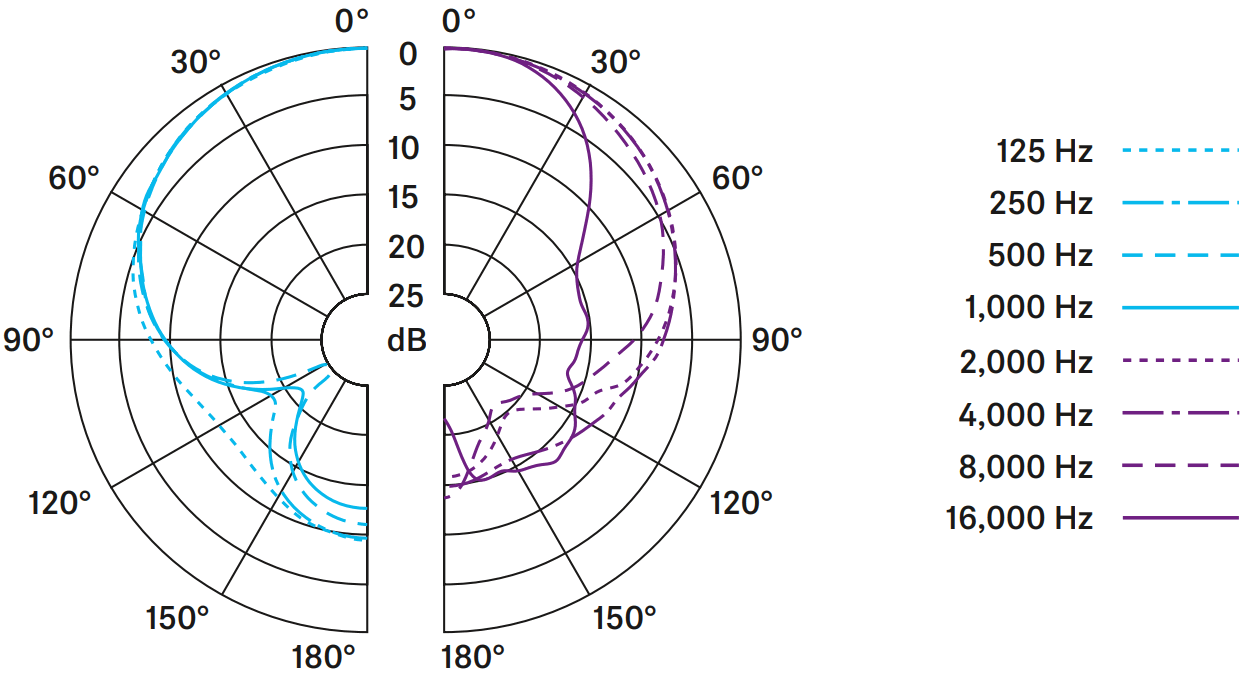

Polar pattern

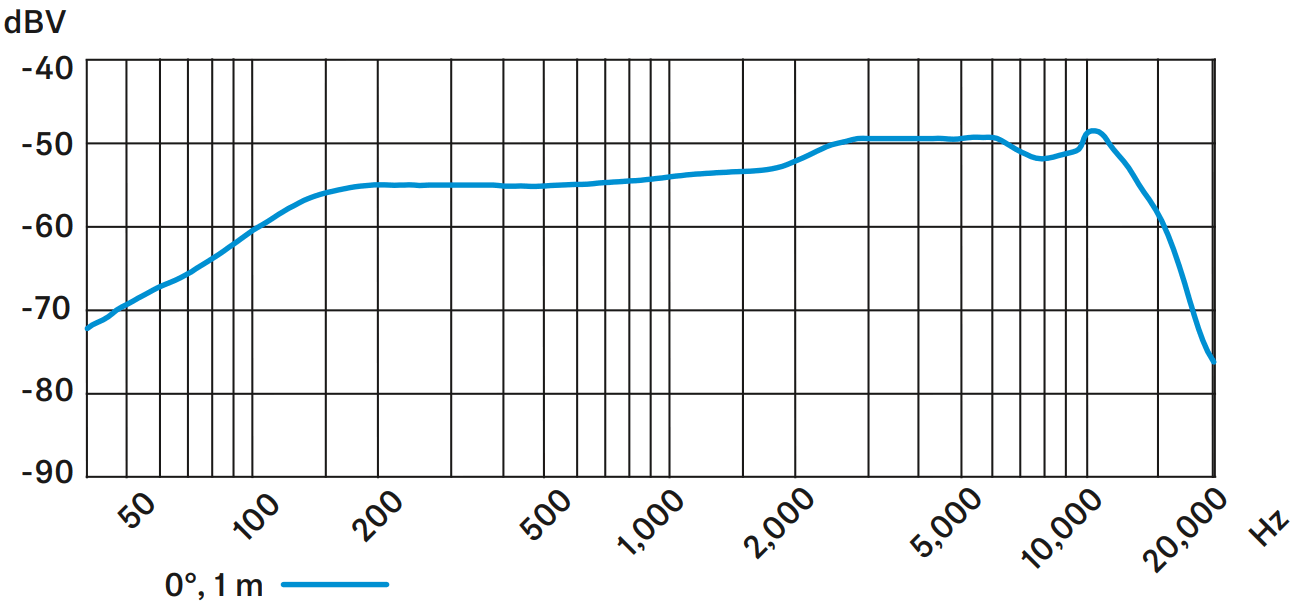

Frequency response

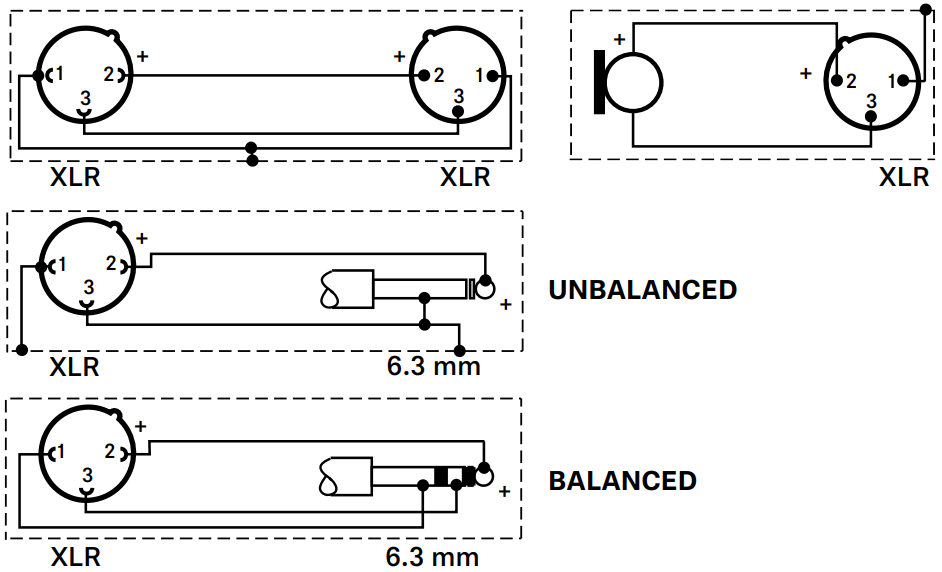

Connector assignment

Overview of applications

Primary application
Secondary application

e 945
