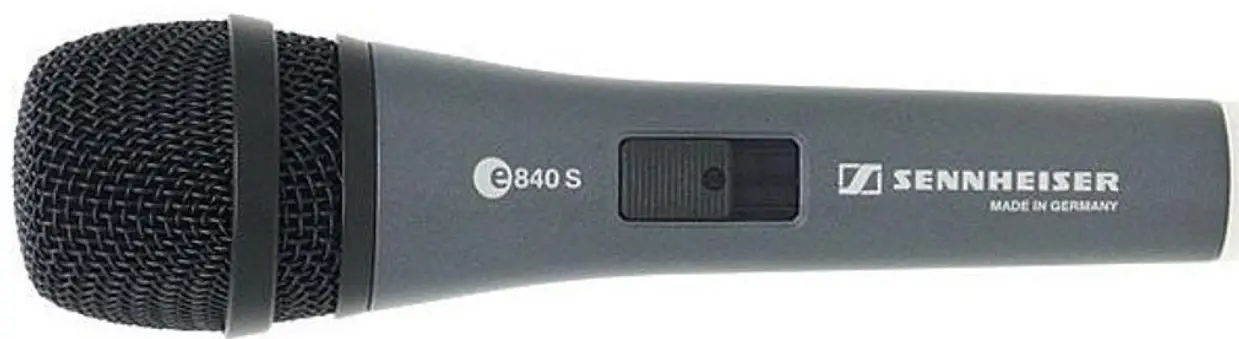

SENNHEISER E840-E840S Dynamic Microphone

The 840 has been engineered for the vocalist that needs the vocals to cut through the band. Due to its excellent acoustic properties, the 840 delivers a high signal output to cut through high on-stage sound levels with ease. A gentle presence boost to even tonal response ensures vocal clarity and projection.
The balanced frequency response maintains signal quality when moving on and off axis during performance. The minimal proximity effect provides for consistently clear bass-end performance when singing closer to, or further from the microphone.
The cardioid pick-up pattern provides excellent feedback rejection and good isolation from incidental rear noise. The rugged metal construction and internal damping isolates handling noise.
The 840 S variant features a silent ON/OFF switch.

Features

• Rugged metal body
• Shock-mounted capsule
• Frequency-independent directivity
• Exceptional feedback rejection
• Excellent vocal projection
• Humbucking coil

Delivery includes

• 840 / 840 S microphone
• MZQ 800 microphone clamp
• Pouch
• Instructions for use
• Warranty Certificate

ON/OFF switch ( 840 S only)
Use the screw to lock the switch in the ON position. With the switch set in the ON position, gently turn the screw head 90° to lock the switch in position.

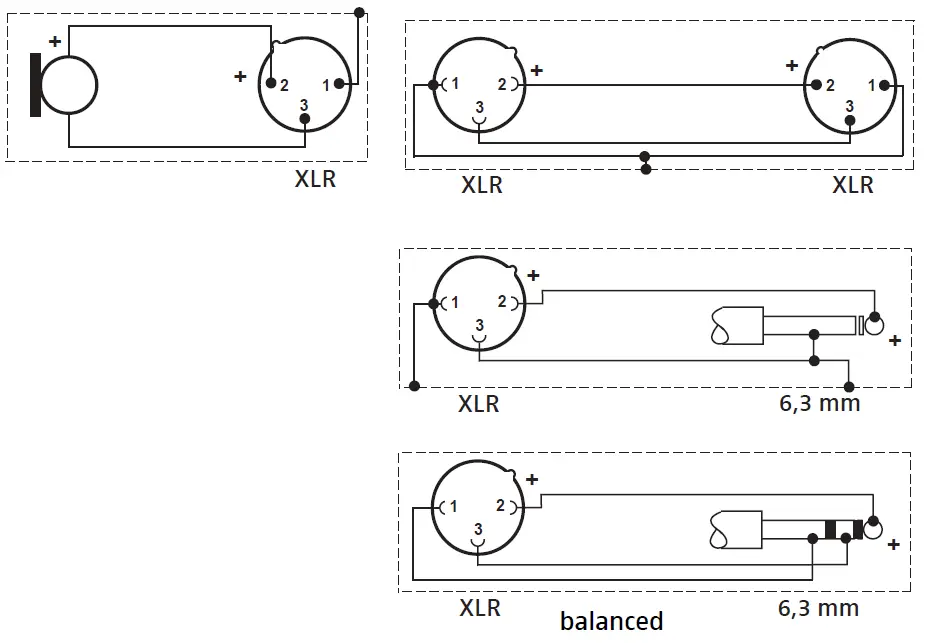

Pin assignment of XLR-3 connector

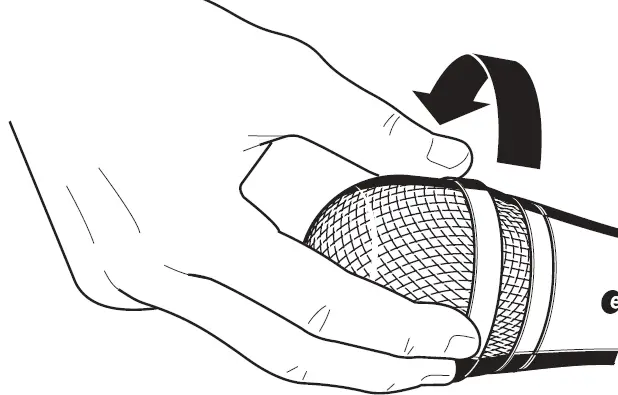

Removing the sound inlet basket

Positioning the microphone

Position	Resulting sound	Commentary
	High proximity effect (much bass/fundamental) Powerful, direct sound	Very little crosstalk from other sound sources
	Less proximity effect (less bass/fundamental) Some room ambience, natural, balanced sound	More crosstalk from other sound sources
	Very little proximity effect (little bass/fundamental) More room ambience, indirect sound	Much crosstalk from other sound sources

• If sibilance or “popping” occurs, position the microphone not directly in front of the mouth but slightly to the side. In order to prevent feedback, position monitor loud-speakers so that they are located in the angle area of the highest cancellation of the microphone.
• In order to prevent interference due to crosstalk between adjacent sound sources, try to position the microphone so that the interfering sound source is located in the angle area of the highest cancellation of the microphone

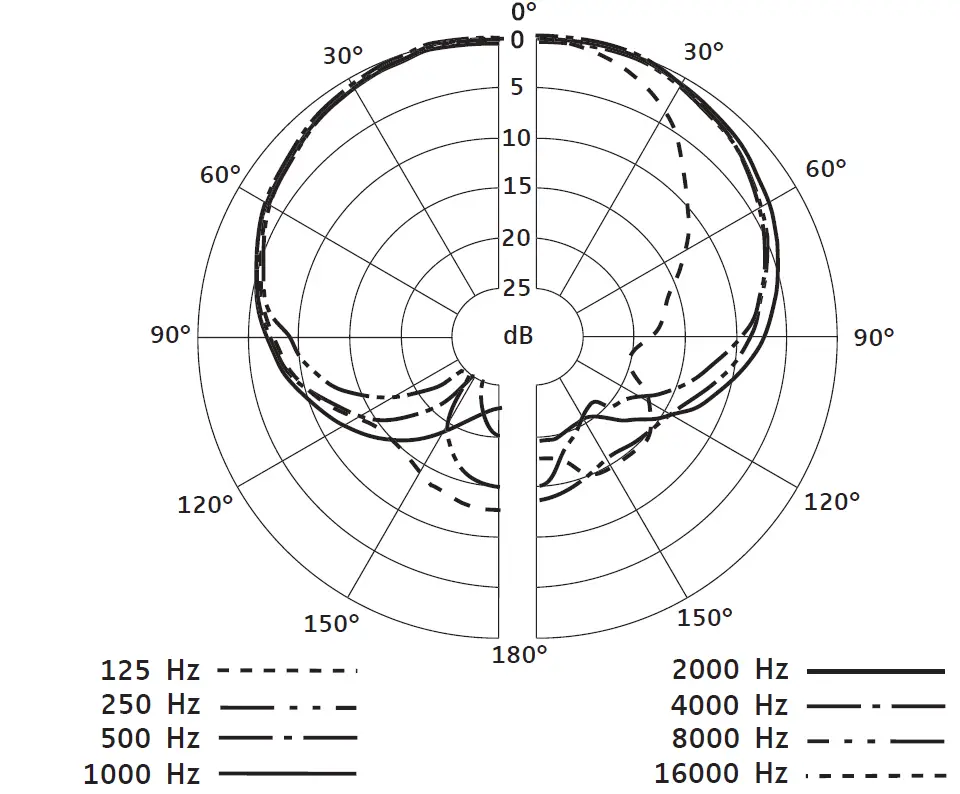

Polar diagram

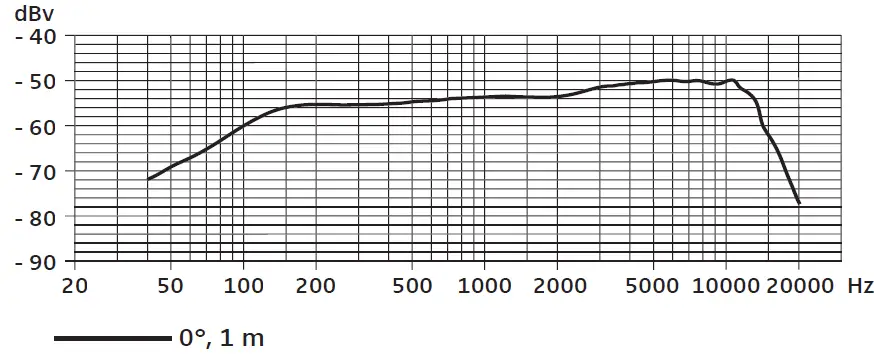

Frequency response curve

Specifications

• Transducer principle                                                        dynamic
• Frequency response                                                         40…..18,000 Hz
• Pick-up pattern                                                                 cardioid
• Sensitivity (free field, no load at 1 kHz)                           2 mV/Pa ± 3 dB
• Nominal impedance                                                         350 Ω
• Min. terminating impedance                                            1 kΩ
• Connector                                                                        XLR-3
• Weight                                                                              330 g
• Dimensions                                                                      47 x L 181 mm

Overview of microphone applications

Manufacturer declarations

Approval
Sennheiser electronic GmbH & Co. KG declare that this device is in compliance with the applicable CE standards and regulations.
