Sennheiser MKH 8000 series Digital Microphone Module

Product Information

The MZF 8000 II is a product manufactured by Sennheiser electronic GmbH & Co. KG, designed for indoor use. It is a low-cut filter that is switchable and comes with an attenuation switch. The product has an additional equivalent noise level of 1 dB(A), a maximum input voltage of 14 dBV, and a maximum output voltage of 14 dBV. It requires power of P48 (44 – 52 V, 6.800 – as per DIN 45596) and has an output impedance of 50, floating balanced (transformerless). The terminating impedance is 2k and it is compatible with modular MKH 8000 accessories. The product weighs 26 g (0,057 lbs) and has a temperature range of both switches disabled and enabled respectively.

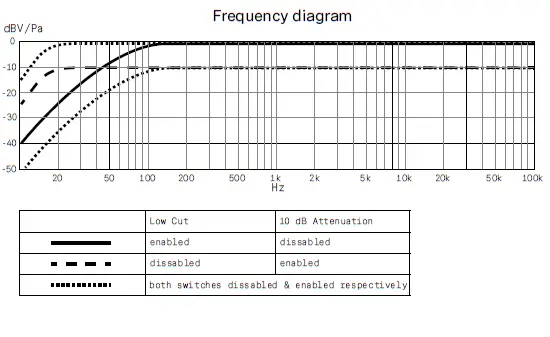

The product comes with a frequency diagram and a low-cut filter that can be enabled or disabled. The low-cut switch has a frequency range of 100-500 Hz and an attenuation of up to 10 dB. The product has a frequency response range of 20 Hz to 20 kHz and is compatible with XLR 3 input and output connectors.

Product Usage

Before using the MZF 8000 II, ensure that you read the instruction manual carefully, and adhere to all country-specific regulations. The product is designed for indoor use only. It is not recommended to use the product for any other application not named in the corresponding instruction manual as it may cause damage to the product and its attachments/accessories.

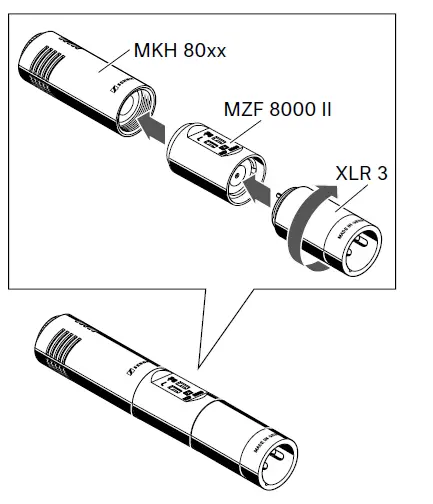

The MZF 8000 II is compatible with XLR 3 input and output connectors. To use the product, connect it to the input device using the XLR 3 connector. Ensure that the terminating impedance is set to 2k. Turn on the product and adjust the low-cut switch as per your requirement. The low-cut switch has a frequency range of 100-500 Hz and an attenuation of up to 10 dB. The product has a frequency response range of 20 Hz to 20 kHz.

After using the product, turn it off and disconnect it from the input device. Store the product in a dry and safe place, away from direct sunlight and moisture. For warranty-related queries, visit the Sennheiser website or contact your Sennheiser partner.

SPECIFICATIONS

Low-cut filter (fixed) –3 dB @ 16 Hz, 18 dB/oct
Low-cut (switchable) –3 dB @ 70 Hz, 18 dB/oct
Attenuation (switchable) –10 dB
Additional equivalent noise level (1)
@ 0 dB: 1 dB(A) @ –10 dB: 4 dB(A)
Max. Input voltage @ 0 dB: 14 dBV @ –10 dB: 9 dBV
Max. Output voltage @ 0 dB: 14 dBV @ –10 dB: –1 dBV
Power requirements P48 (44 − 52 V, 6.800 Ω – as per DIN 45596)
Output impedance 50 Ω, floating balanced (transformerless)
Min. Terminating impedance 2 kΩ
Input and Output Connector compatible to modular MKH 8000 accessories
Dimensions Ø 19 x 29 mm (0,75 x 1,14″)
Weight 26 g (0,057 lbs)
Temperature range –10 °C to +60 °C (14 °F – 140 °F)

(1) DIN IEC 651 (A-Weighted RMS-Value)

Important safety instructions

Read these safety instructions and the instruction manual of the product.
Keep these safety instructions and the instruction manual of the product. Always include all instructions when passing the product on to third parties.
Only use attachments, accessories and spare parts specified by the manufacturer.
Caution: The protective basket and pop shield must be completely dry when you mount them on the microphone. Moisture can cause malfunctions or damage to the capsule.
Connect the microphone only to microphone inputs and supply units that provide 48 V phantom powering in accordance with IEC 61938.
Do not attempt to open the product housing on your own. The warranty is voided for products opened by the customer.
Refer all servicing to qualified service personnel. Servicing is required when the product has been damaged in any way, liquid has been spilled or objects have fallen into the product, when the product has been exposed to rain or moisture, does not operate normally, or has been dropped.
Use the product only under the conditions of use listed in the specifications.
Let the product come to ambient temperature before switching it on.
Do not operate the product if it was damaged during transportation.
Always run cables so that no one can trip over them.
Keep the product and its connections away from liquids and electrically conductive objects that are not necessary for operating the product.
Do not use any solvents or aggressive cleaning agents to clean the product.
Caution: Very high signal levels can damage your hearing and your loudspeakers. Reduce the volume on the connected audio devices before switching on the product; this will also help prevent acoustic feedback.

Intended use
The product is designed for indoor use.
It is considered improper use when the product is used for any application not named in the corresponding instruction manual.
Sennheiser does not accept liability for damage arising from improper use or misuse of this product and its attachments/accessories.
Before putting the products into operation, please observe the respective country-specific regulations!

Manufacturer declarations

Warranty
Sennheiser electronic GmbH & Co. KG gives a warranty of 24 months on these products. For the current warranty conditions, please visit our website at www.sennheiser.com or contact your Sennheiser partner.
In the US please contact:
Sennheiser Electronic Corporation
1 Enterprise Drive, Old Lyme, CT 06371
www.sennheiser.com
Warranty FOR AUSTRALIA and NEW ZEALAND ONLY:
Sennheiser Australia Pty Ltd provides a warranty of 24 months on these products.
For the current warranty conditions, visit Sennheiser website:
Australia: https://en-au.sennheiser.com/
New Zealand: https://en-nz.sennheiser.com/ Sennheiser goods come with guarantees that cannot be excluded under Australian and New Zealand Consumer law. You are entitled to a replacement or refund for a major failure and compensation for any other reasonably foreseeable loss or damage. You are also entitled to have the goods repaired or replaced if the goods fail to be of acceptable quality and the failure does not amount to a major failure. This warranty is in addition to other rights or remedies under law. Nothing in this warranty excludes, limits or modifies any remedy available to be consumer which is granted by law.
To make a claim under this contract, raise a case via Sennheiser website
Australia: https://en-au.sennheiser.com/service-support-contact
New Zealand: https://en-nz.sennheiser.com/service-support-contact All expenses of claiming the warranty will be borne by the person making the claim. Sennheiser international warranty is provided by: Sennheiser Australia Pty Ltd (ABN 68 165 388 312) Level 14, Tower A Zenith Building, 821 Pacific Highway, Chatswood NSW 2067, Australia
In compliance with the following requirements

EU:
WEEE Directive (2012/19/EU)
Battery Directive
(2006/66/EC & 2013/56/EU)

UK:
WEEE Regulations (2013)
Battery Regulations (2015)

Notes on disposal
The symbol of the crossed-out wheeled bin on the product, The symbol of the crossed-out dumpster on the product, the (rechargeable) battery (if applicable) and/or the packaging indi-cates that these products must not be disposed of with normal household waste, but must be disposed of separately at the end of their service life. For the packaging, follow the regulations in your country for separating waste. Improper disposal of packaging materials can be harmful to your health and the environment.
The separate collection of waste electrical and electronic equipment, (rechargeable) batteries (if applicable) and packaging is intended to promote reuse and recycling and to prevent negative impacts on public health and the environment, for example due to hazardous substances contained in these products. At the end of their service life, recycle electrical and electronic equipment and (rechargeable) batteries so that their materials can be reused and to prevent environmental pollution.
If (rechargeable) batteries can be removed without destroying them, you are obliged to dispose of them separately (see the product’s operating instructions for information on how to remove the batteries safely). Be especially careful when handling (rechargeable) batteries containing lithium, as these pose special hazards, such as the risk of ﬁre and/or health risks if button cells are swallowed. Reduce battery waste as much as possible by using longer-life batteries or rechargeable batteries.
Further information on the recycling of these products can be obtained from your municipal administration, from the municipal collection points, or from your Sennheiser partner. You may also be able to return electrical or electronic equipment to your distributor, if they are legally required to do so. By disposing of your batteries properly, you are helping to protect public health and the environment.
UK Declaration of conformity.

RoHS Regulations (2012)

Radio Equipment Regulations (2017) Importer: Sennheiser UK Ltd.
Paciﬁc House, Third Avenue, Globe Park, Marlow Buckinghamshire SL7 1EY, United Kingdom

EU Declaration of conformity

RoHS Directive (2011/65/EU)
Hereby, Sennheiser electronic GmbH & Co. KG declares that the radio equipment type SL Rack Receiver DW, SL Handheld DW, SL Bodypack DW, SL Tablestand 133-S DW, SL Tablestand 153-S DW, SL Boundary 114-S DW is in compliance with Directive 2014/53/EU.
The full text of the EU declaration of conformity is available at the following internet address: www.sennheiser.com/download.

Sennheiser electronic GmbH & Co. KG
Am Labor 1, 30900 Wedemark, Germany
www.sennheiser.com
Printed in Germany, Publ. 07/22, 597202/A01
