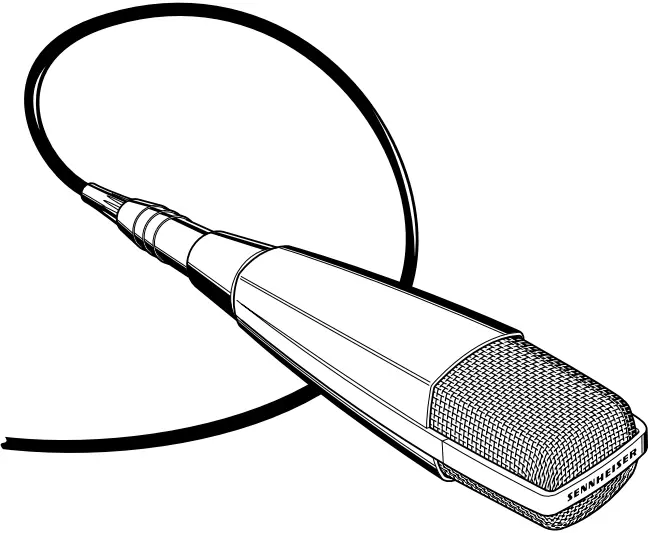

MD 421 II Microphone
Instruction Manual
INSTRUCTIONS FOR USE
MD 421-II
Dynamic microphone with cardioid-shaped directional characteristic. Suitable for vocal transmission and miking up instruments in all fields of live sound transmission.
ITS FEATURES
- Good feedback and handling noise rejection
- Transparent sound reproduction
- Pronounced directional characteristic
- Robust
- 5-step roll-off filter
- Lockable stand holder
RECOMMENDED ACCESSORIES
Desk stands: MZT 441, (art.-no. 00799); MZT 100 (art.-no. 01883).
Windscreens: MZW 40 (art.-no. 01794); MZW 421: grey(art.-no. 00536); blue (art.-no. 01527); red (art.-no. 01530)
TECHNICAL DATA

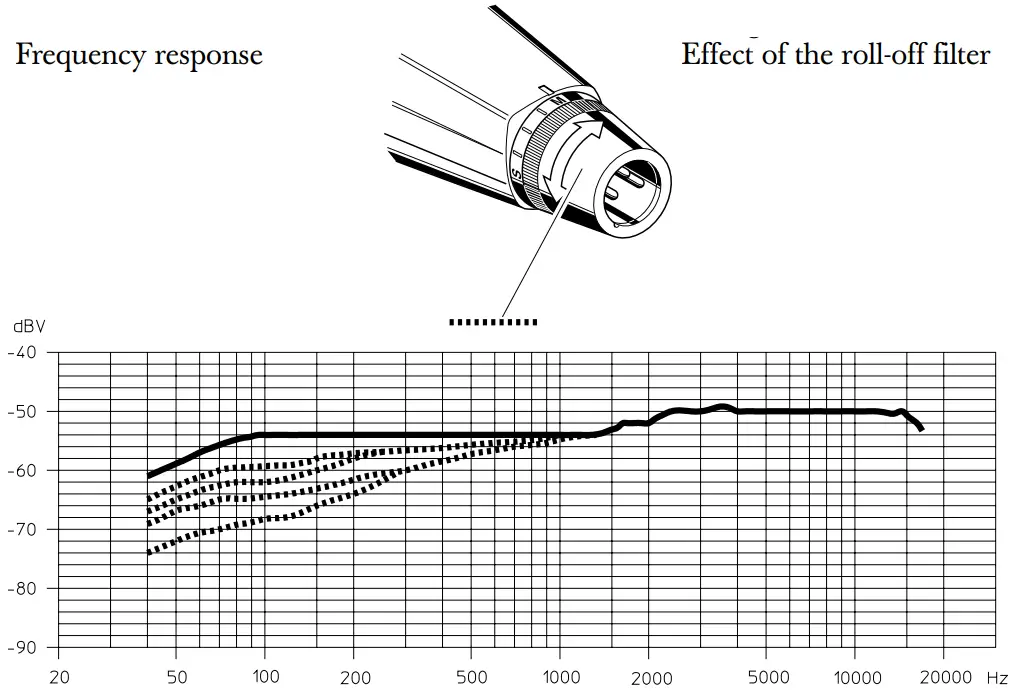

| Frequency response | 30 – 17,000 Hz |
| Acoustical mode of poeration | pressure gradient transducer |
| Directional characteristic | cardioid |
| Max. rejection at 180º | 18 dB – 2 dB |
| Open circuit output level | 2 mV / Pa (= -54 dBV) ± 2,5 dB |
| Electrical impedance | 200 Ω |
| Minimum load impedance | 200 Ω |
| Insensitivity to the magnetic field at 50 Hz | < 5 µV / 5 µT |
| Dimensions in mm | 215 x 46 x 49 |
| Weight | approx. 385 g |
| Delivery | 1 microphone, 1 stand holder 1 adaptor 3/8″ → 5/8″ |
Subject to alterations.

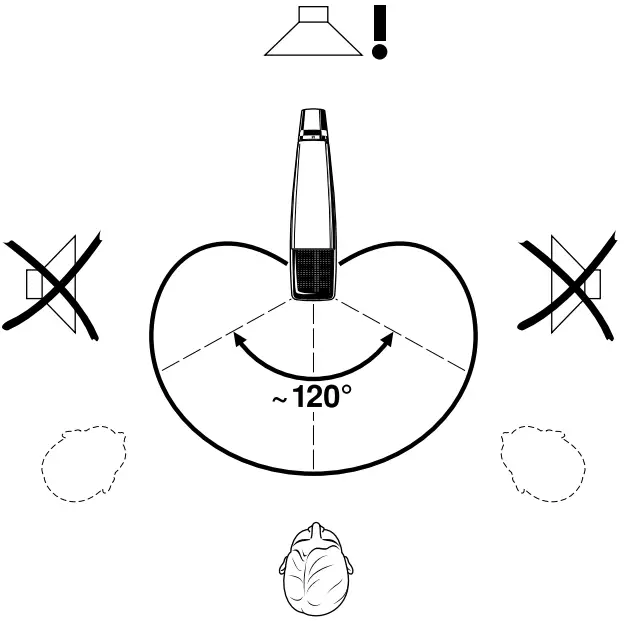

Speaking into the microphone
Mounting

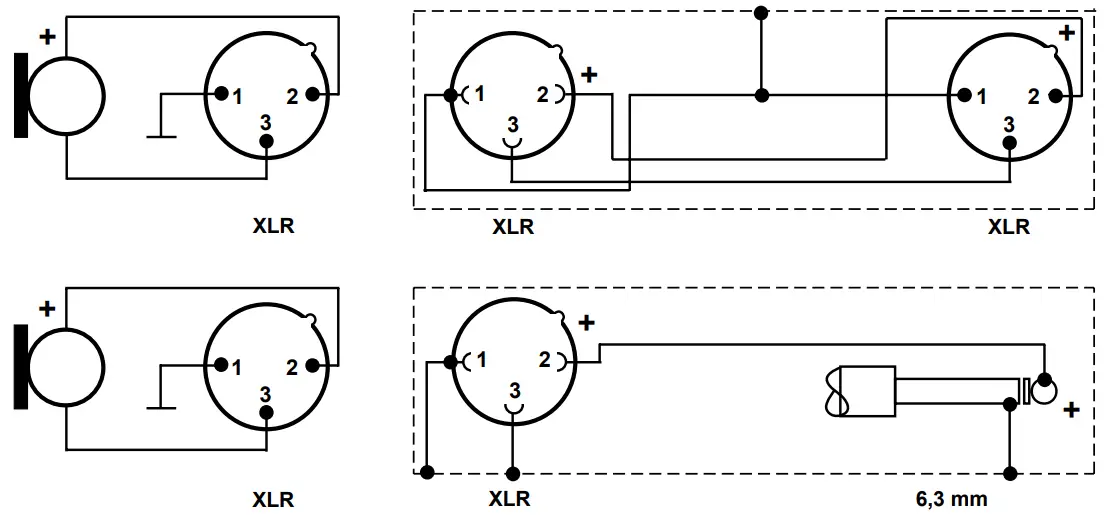

Connecting the microphone

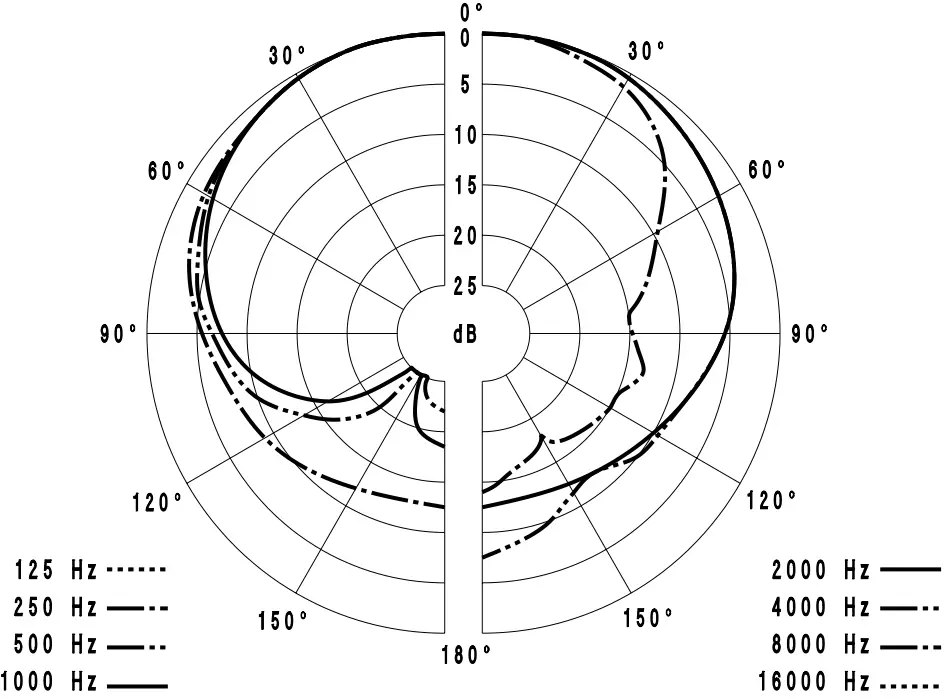

Polar diagram
Sennheiser electronic GmbH & Co. KG
D-30900 Wedemark
Printed in Germany
Telefon 05130/600-0
Telefax 05130/600-300
Publ. 01/98
54558/A03
