SENNHEISER e 604 Instrument Cardioid Microphone
Product Information

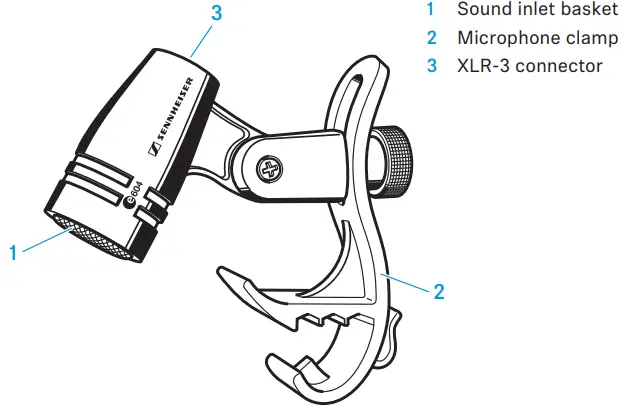

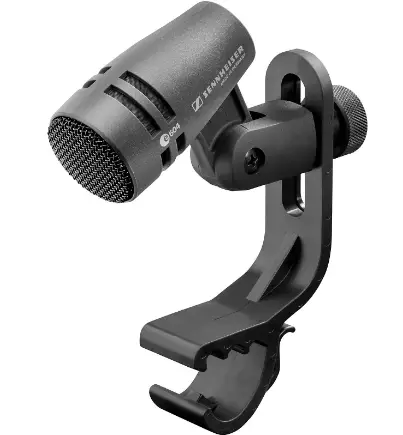

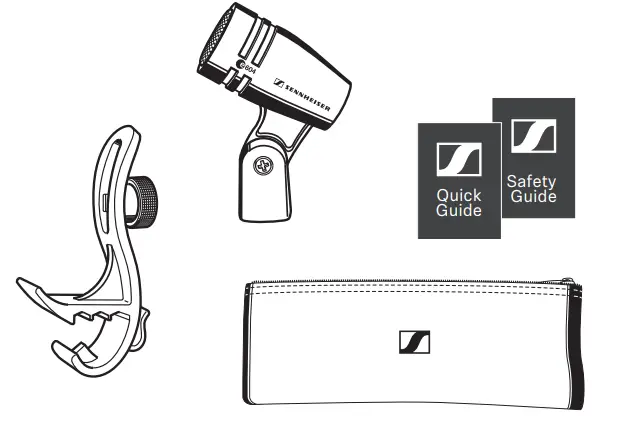

The Sennheiser e604 is a dynamic microphone that is designed for capturing drums and percussion instruments. It has a frequency response range of 40 – 18,000 Hz and a cardioid pick-up pattern. The microphone comes with a sound inlet basket, a microphone clamp, and an XLR-3 connector. The dimensions of the microphone are 33 x 59 mm and it weighs 60 g.

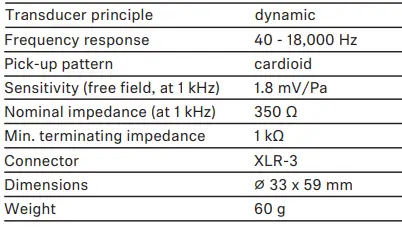

Specifications
- Transducer principle: dynamic

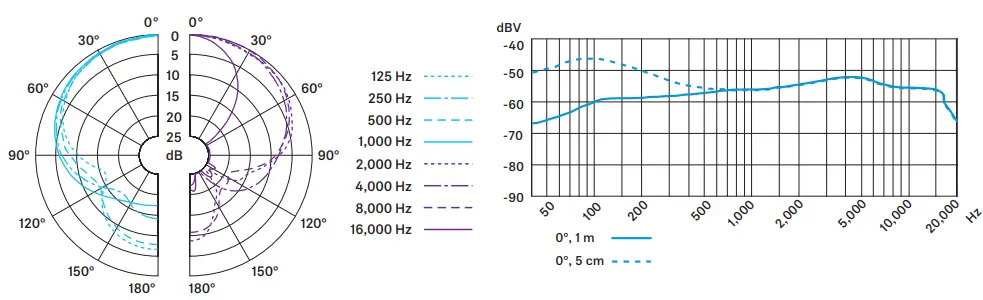

- Frequency response: 40 – 18,000 Hz

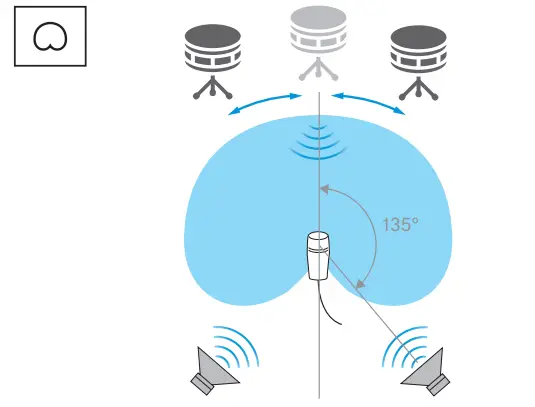

- Pick-up pattern: cardioid
- Sensitivity (free field, at 1 kHz): 1.8 mV/Pa
- Nominal impedance (at 1 kHz): 350 Ω
- Min. terminating impedance: 1 kΩ

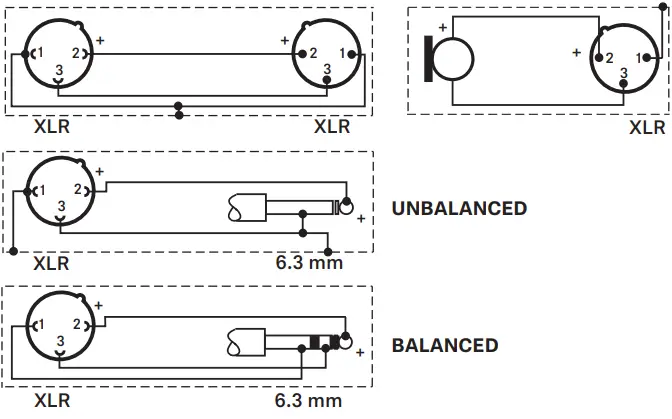

- Connector: XLR-3
- Dimensions: 33 x 59 mm
- Weight: 60 g
Product Usage Instructions

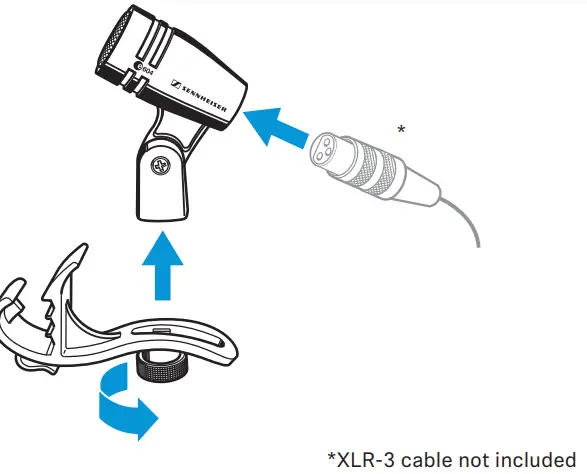

- Attach the sound inlet basket to the microphone.
- Attach the microphone clamp to the microphone.
- If you have an XLR-3 cable, connect it to the XLR-3 connector on the microphone. If not, purchase one separately.

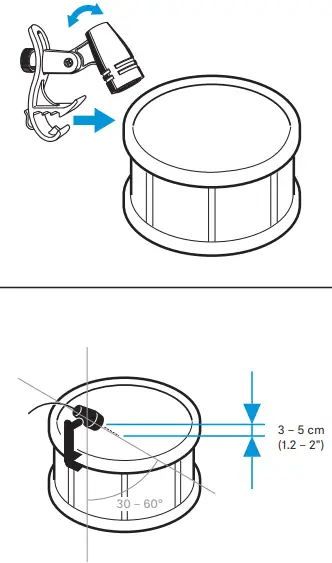

- Place the microphone near the drum or percussion instrument you want to capture.
- If using a mixer or audio interface, connect the other end of the XLR-3 cable to the appropriate input on your device.
- Adjust the microphone placement and levels as needed to capture the desired sound.
- When finished, disconnect the XLR-3 cable from the microphone and store the microphone in a safe place.
