SENNHEISER e 609 Silver Handheld Mic
Sennheiser e 609 Silver Microphone

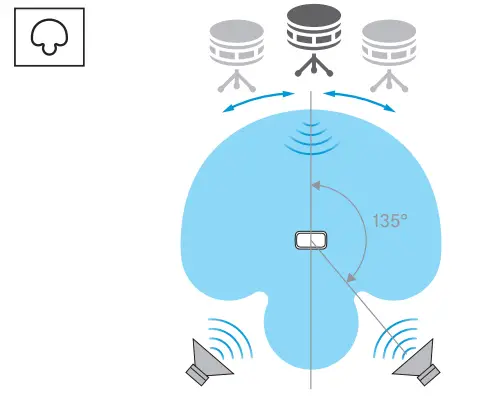

The Sennheiser e 609 Silver is a dynamic microphone suitable for recording guitars, drums, and other instruments. It has a super-cardioid pick-up pattern that isolates the sound source and reduces background noise. The microphone has a frequency response of 40 – 15,000 Hz, a sensitivity of 1.5 mV/Pa, and a nominal impedance of 350 ohms.

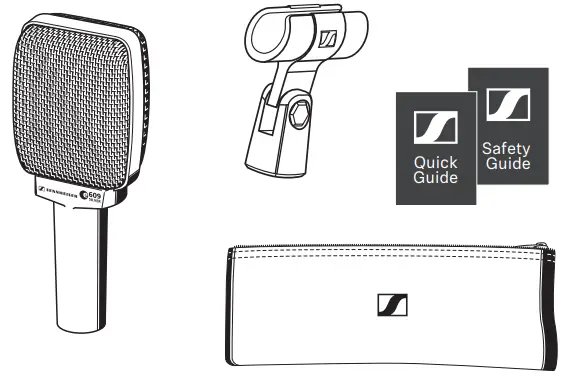

In the Box
- Sennheiser e 609 Silver microphone
- Quick Guide
- Safety Guide
Setup
The Sennheiser e 609 Silver microphone requires an XLR-3 cable, which is not included in the box. To use the microphone, connect it to a mixer or audio interface using the XLR-3 cable.

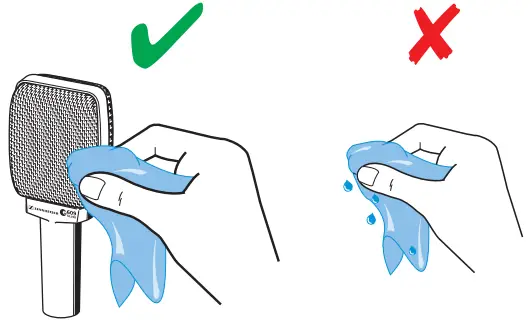

Cleaning
To clean the microphone, use a soft, damp cloth to wipe the body of the microphone. Do not use any abrasive cleaners or solvents.

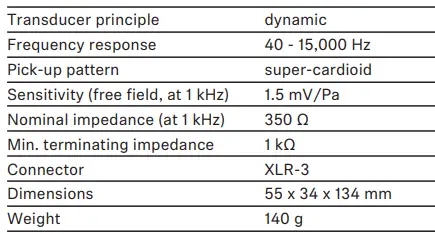

Specifications
- Transducer principle: dynamic
- Frequency response: 40 – 15,000 Hz
- Pick-up pattern: super-cardioid
- Sensitivity (free field, at 1 kHz): 1.5 mV/Pa
- Nominal impedance (at 1 kHz): 350 ohms
- Min. terminating impedance: 1 k ohms
- Connector: XLR-3
- Dimensions: 55 x 34 x 134 mm
- Weight: 140 g

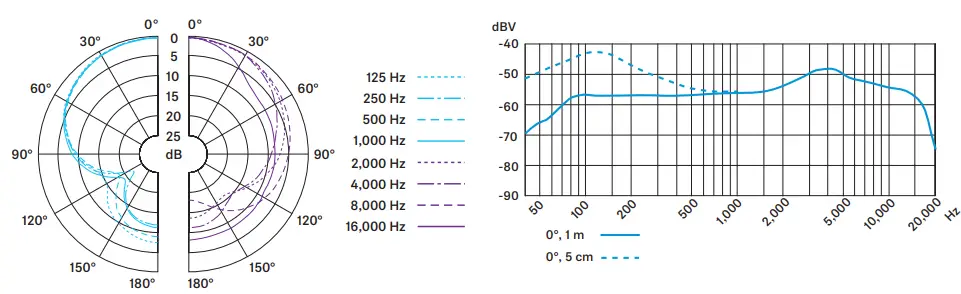

Polar Pattern and Frequency Response

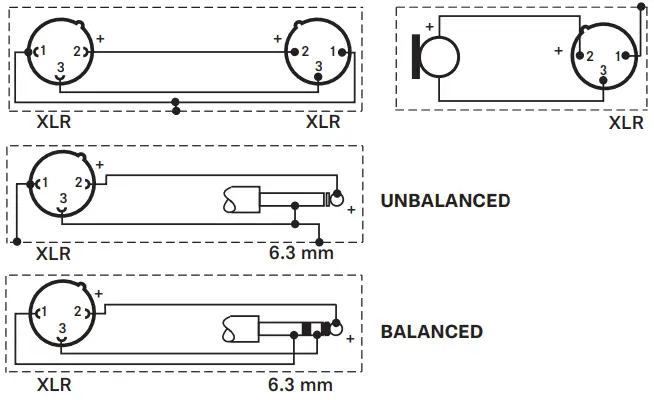

Connector Assignment
The XLR-3 connector on the microphone is assigned as follows:
| Pin | Assignment |
|---|---|
| 1 | Ground |
| 2 | Positive (+) |
| 3 | Negative (-) |
The microphone can also be connected to an unbalanced or balanced 6.3 mm connector using an appropriate adapter.
Sennheiser electronic GmbH & Co. KG
Am Labor 1, 30900 Wedemark, Germany
www.sennheiser.com
Printed in Germany
Publ. 05/23 581326/A03
