SENNHEISER MKH 8050 Condenser Microphone User Guide

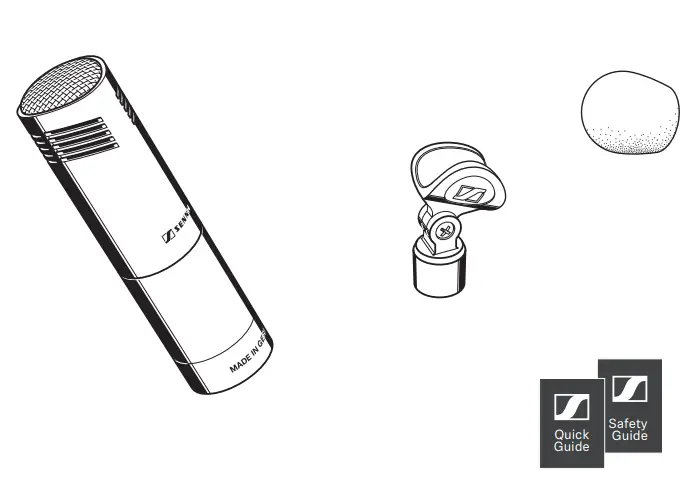

In the box

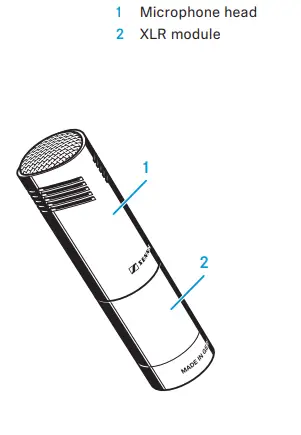

Overview
Setup
Stereo recording

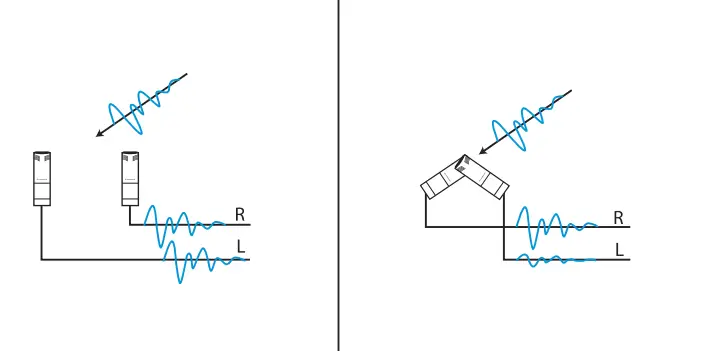

- Time-of-arrival stereo (AB): (almost) only time-of-arrival differences
- Intensity stereo (XY): only sound pressure level differences

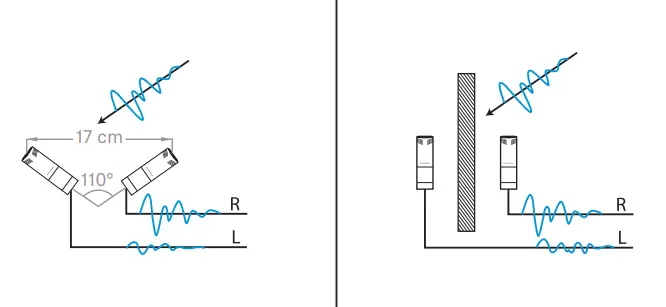

- Equivalence or mixed stereo (here: ORTF): sound pressure level and time-of-arrival differences Baffle stereo (here: OSS):
- sound pressure level, time-of-arrival and spectral differences with off-axis sound

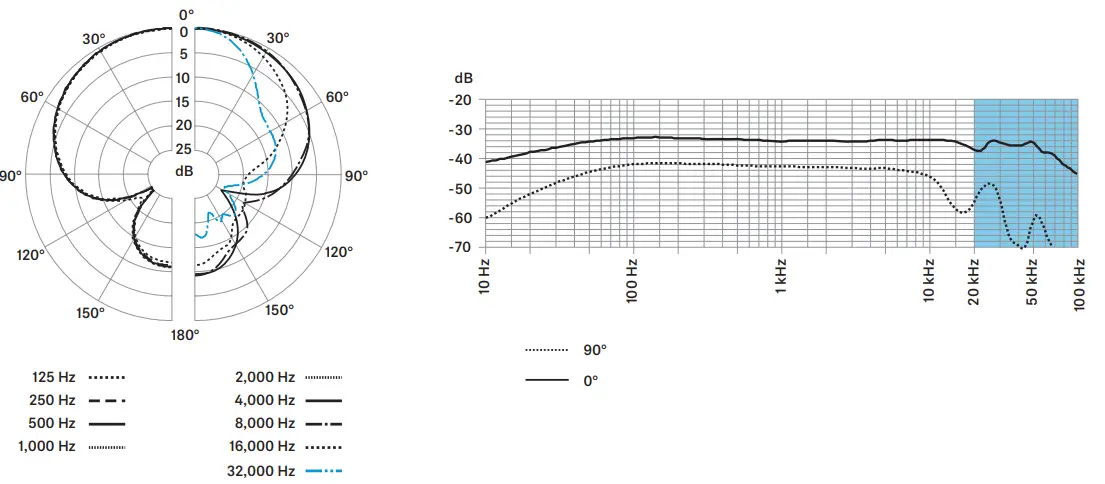

Polar pattern and frequency response
Specifications
| Specifications | ||
| Pick-up pattern | super-cardioid | |
| Frequency response | 30 – 50,000 Hz | |
| Sensitivity with MZF 8000 | −34 dBV/Pa (31 mV/Pa) −44 dBV/Pa (10 mV/Pa) | |
| Max. SPL with MZF 8000 | 142 dB 137 dB | |
| Equivalent noise level | 13 dB(A) 22 dB (CCIR) | |
| Phantom powering | 48 V ±4 V (P48, IEC 61938) | |
| Current consumption | 3.3 mA | |
| Diameter | approx. 19 mm | |
| Length with MZF 8000 | approx. 41 mm approx. 75 mm | |
| Weight with MZF 8000 | approx. 25 g approg. 55 g | |
| Operting temperature | -10 °C to 60 °C | |
