SENNHEISER MKE 1 Miniature Clip-On Condenser Microphone

Important safety instructions

Read these safety instructions and the instruction man-ual of the product.
Keep these safety instructions and the instruction man-ual of the product. Always include all instructions when passing the product on to third parties.
Only use attachments, accessories and spare parts speciﬁed by the manufacturer.
Caution: The protective basket and pop shield must be completely dry when you mount them on the micro-phone. Moisture can cause malfunctions or damage to the capsule
Connect the microphone only to microphone inputs and supply units that provide 48 V phantom powering in ac-cordance with IEC 61938.
Do not attempt to open the product housing on your own. The warranty is voided for products opened by the customer.
Refer all servicing to qualiﬁed service personnel. Servic-ing is required when the product has been damaged in any way, liquid has been spilled or objects have fallen into the product, when the product has been exposed to rain or moisture, does not operate normally, or has been dropped.
Use the product only under the conditions of use listed in the speciﬁcations.
Let the product come to ambient temperature before switching it on.
Do not operate the product if it was damaged during transportation.
Always run cables so that no one can trip over them.
Keep the product and its connections away from liquids and electrically conductive objects that are not neces-sary for operating the product.
Do not use any solvents or aggressive cleaning agents to clean the product.
Caution: Very high signal levels can damage your hearing and your loudspeakers. Reduce the volume on the con-nected audio devices before switching on the product; this will also help prevent acoustic feedback.

Intended use

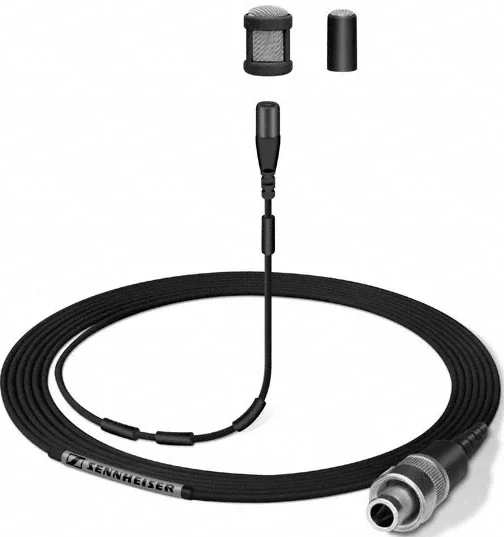

The MKE 1 is a high-quality, sub-miniature, sweatresistant clip-on condenser microphone. It features excellent sound quality and rugged design. The frequency response curve has been optimized for stage, studio and reporting applica-tions (ENG). The MKE 1 is ﬁtted with a very thin (only 1 mm) yet extremely rugged cable, making this microphone an ide-al partner for all live sound applications.

Delivery includes

MKE 1 microphone
MZC 1-1 frequency response cap, small
MZC 1-2 frequency response cap, large
3 make-up protectors
Instruction manual
MKE 1-4, MKE 1-4-1, MKE 1-5, MKE 1-ew: MZ 1

Putting into operation

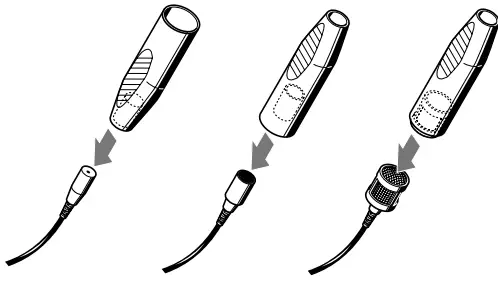

Treble boost
Your microphone is supplied with two different frequency response caps. These caps allow you to adjust the tre-ble response of the microphone (see page 13).

In addition, the large frequency re- MZC 1-2 sponse cap attenuates wind noise by approx. 15 dB and provides an extended protection against the ingress of moisture.

Slip the cap of your choice onto the microphone until it locks into place.

Make-up protection

X When putting on make-up or hair spray, protect the MKE 1 by slipping the make-up protector onto the mi-crophone (with or without frequency response cap).
X Only remove the make-up protector after makeup has been completed.

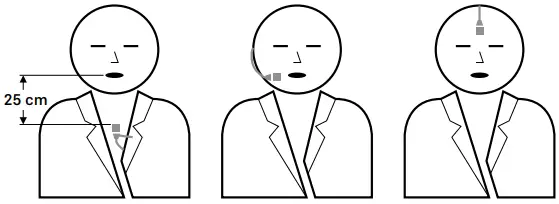

Attachment of the microphone
Depending on the area of application, you can attach the MKE 1 in different ways to either clothing or the body.

To do so, use the optional MZ 1 accessory kit (Art. no. 504060), that offers multiple and secure attachment possibilities. The clips, holders and mounts are suitable for almost any wearing situation and ensure optimum sound quality.

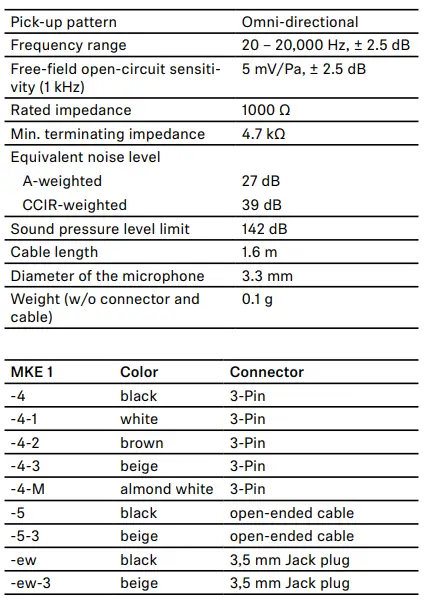

Speciﬁcations

Frequency response

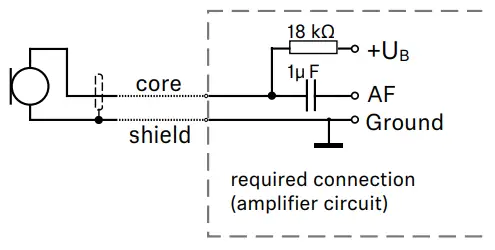

Pin assignment with open-ended cable

Manufacturer declarations

Warranty
Sennheiser electronic GmbH & Co. KG gives a warranty of 24 months on these products.
For the current warranty conditions, please visit our website at www.sennheiser.com or contact your Sennheiser partner.

In the US please contact:
Sennheiser Electronic Corporation
1 Enterprise Drive, Old Lyme, CT 06371 www.sennheiser.com
Warranty FOR AUSTRALIA and NEW ZEALAND ONLY:
Sennheiser Australia Pty Ltd provides a warranty of 24 months on these products. For the current warranty condi-tions, visit
Sennheiser website:
Australia: https://en-au.sennheiser.com
New Zealand: https://en-nz.sennheiser.com
Sennheiser goods come with guarantees that cannot be excluded under Australian and New Zealand Consumer law. You are entitled to a replacement or refund for a major fail-ure and compensation for any other reasonably foreseeable loss or damage. You are also entitled to have the goods repaired or replaced if the goods fail to be of acceptable quality and the failure does not amount to a major failure.
This warranty is in addition to other rights or remedies under law. Nothing in this warranty excludes, limits or modiﬁes any remedy available to be consumer which is granted by law.
To make a claim under this contract, raise a case via Senn-heiser website
Australia: https://en-au.sennheiser.com/service-sup-port-contact
New Zealand: https://en-nz.sennheiser.com/service-sup-port-contact
All expenses of claiming the warranty will be borne by the person making the claim.Sennheiser international warranty is provided by: Sennhe-iser Australia Pty Ltd (ABN 68 165 388 312) Level 14, Tower A Zenith Building, 821 Paciﬁc Highway, Chatswood NSW 2067, Australia In compliance with the following requirements
EU:
• WEEE Directive (2012/19/EU)
UK:
WEEE Regulations (2013)
Notes on disposal
The symbol of the crossed-out dumpster on the product, the (rechargeable) battery (if applicable) and/or the pack-aging indicates that these products must not be disposed of with normal household waste, but must be disposed of
separately at the end of their service life. For the packaging, follow the regulations in your country for separating waste. Improper disposal of packaging materials can be harmful to your health and the environment.
The separate collection of waste electrical and electron-ic equipment, (rechargeable) batteries (if applicable) and packaging is intended to promote reuse and recycling and to prevent negative impacts on public health and the environ-ment, for example due to hazardous substances contained in these products. At the end of their service life, recycle electrical and electronic equipment and (rechargeable) bat-teries so that their materials can be reused and to prevent environmental pollution.
If (rechargeable) batteries can be removed without destroy-ing them, you are obliged to dispose of them separately (see the product’s operating instructions for information on how to remove the batteries safely). Be especially careful when handling (rechargeable) batteries containing lithium, as these pose special hazards, such as the risk of ﬁre and/or health risks if button cells are swallowed. Reduce battery waste as much as possible by using longer-life batteries or rechargeable batteries.
Further information on the recycling of these products can be obtained from your municipal administration, from the municipal collection points, or from your Sennheiser partner. You may also be able to return electrical or electronic equip-ment to your distributor, if they are legally required to do so. By disposing of your batteries properly, you are helping to protect public health and the environment.
UK Declaration of conformity
- RoHS Regulations (2012)
- EMC Regulations (2016)
EU Declaration of conformity
- RoHS Directive (2011/65/EU)
- EMC Directive (2014/30/EU)
The full text of the EU declaration of conformity is available at the following internet address:www.sennheiser.com/download
