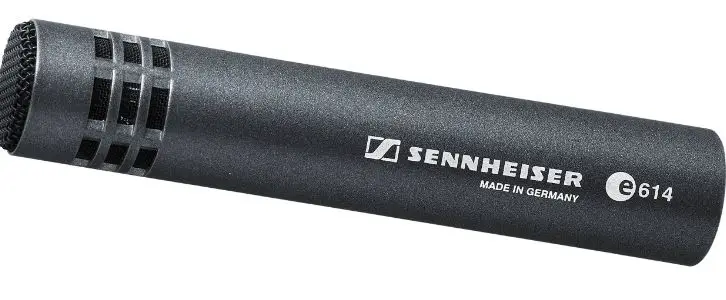

SENNHEISER e 614 Supercardioid Condenser Microphone
Delivery includes
Delivery includes- e 614
- MZQ 100 microphone clamp
- pouch
- quick guide
- safety guide

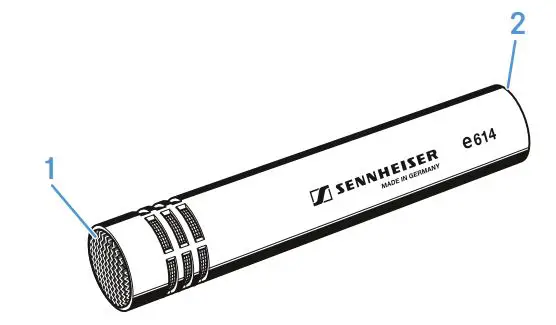

Product overview
- Sound inlet basket
- XLR-3 connector
Installation

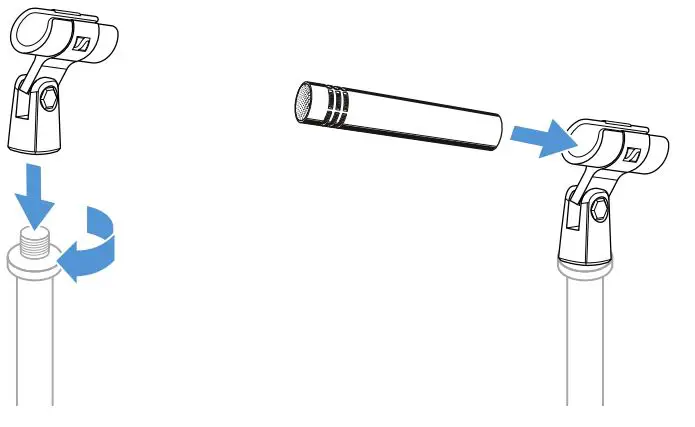

Attaching the microphone
- Screw the microphone clamp to a stand.
- Place the microphone with its back end into the microphone clamp.
- Orient the microphone together with the microphone clamp.

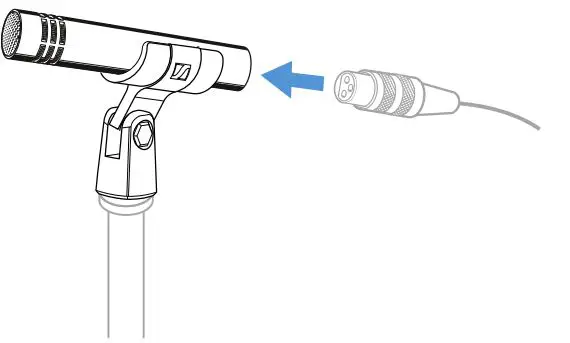

Connecting the microphone
Connect the XLR-3 socket of the microphone cable (optional accessories) to the XLR-3 socket of the microphone.

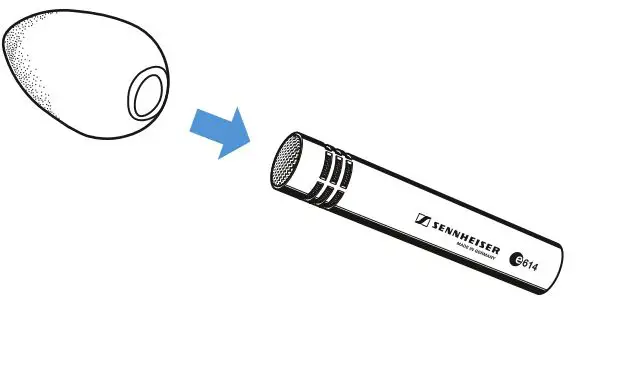

Using the windshield
Place the MZW 64 (optional accessories) windshield over the microphone head.
Operation

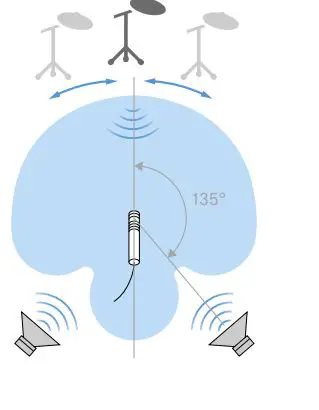

Positioning the monitor loudspeakers
To prevent feedback and crosstalk, postion your monitor loudspeakers in the angle area of the highest cancellation of the microphone (approx. 135°).

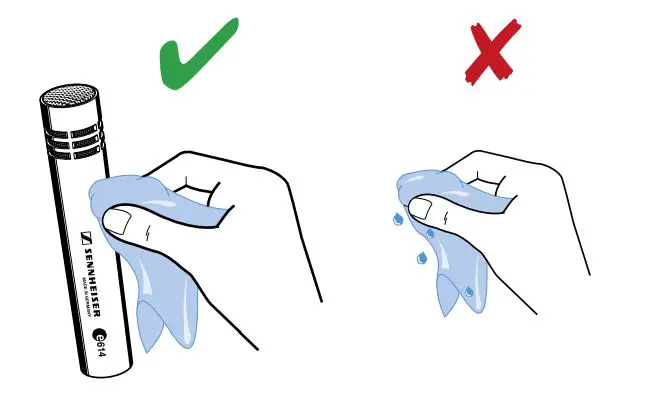

Cleaning and maintaining the e 614
- LIQUIDS CAN DAMAGE THE ELECTRONICS OF THE PRODUCT!
- Liquids entering the housing of the product can cause a short-circuit and damage the electronics.
- Keep all liquids away from the product.
- Do not use any solvents or cleansing agents.
- Disconnect the products from the power supply system and remove rechargeable batteries and batteries before you begin cleaning.
- Clean all products only with a soft, dry cloth

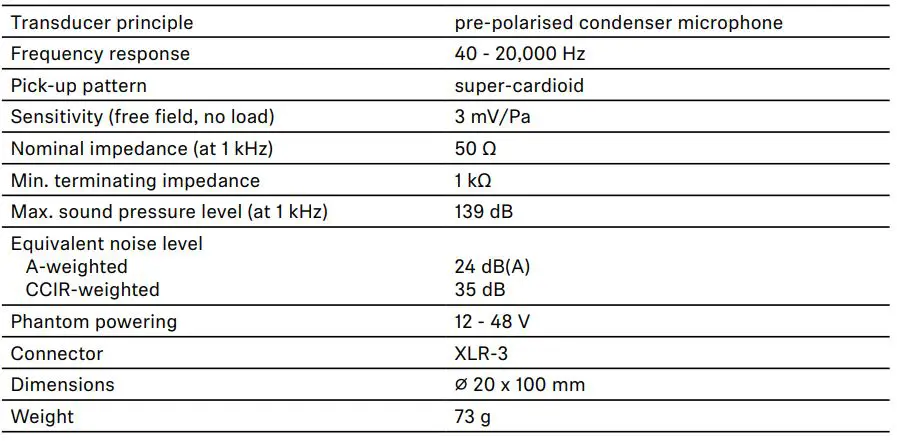

Specifications

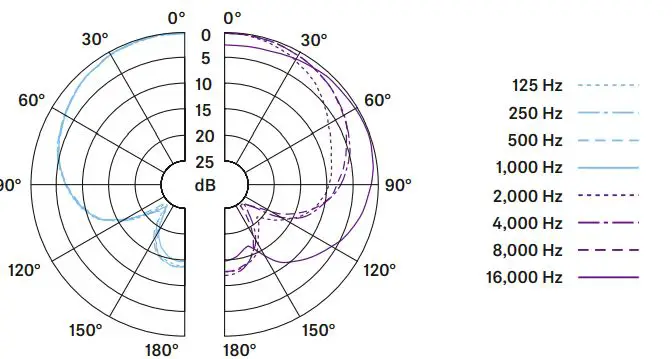

Polar pattern
Frequency response

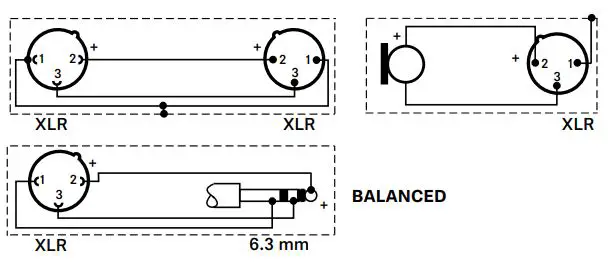

Connector assignment

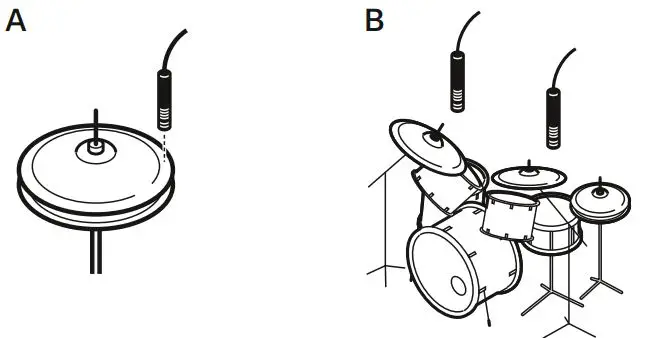

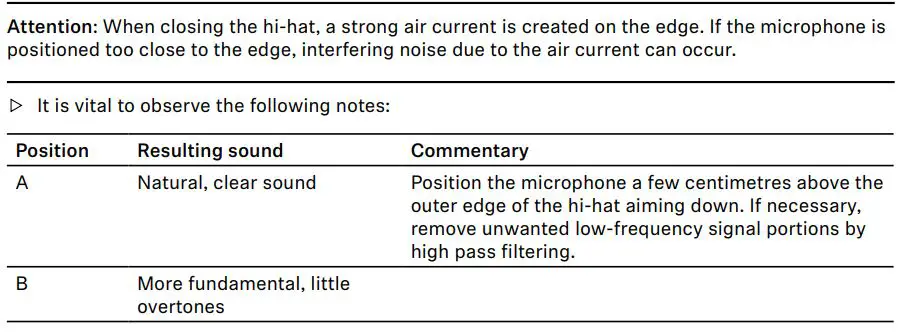

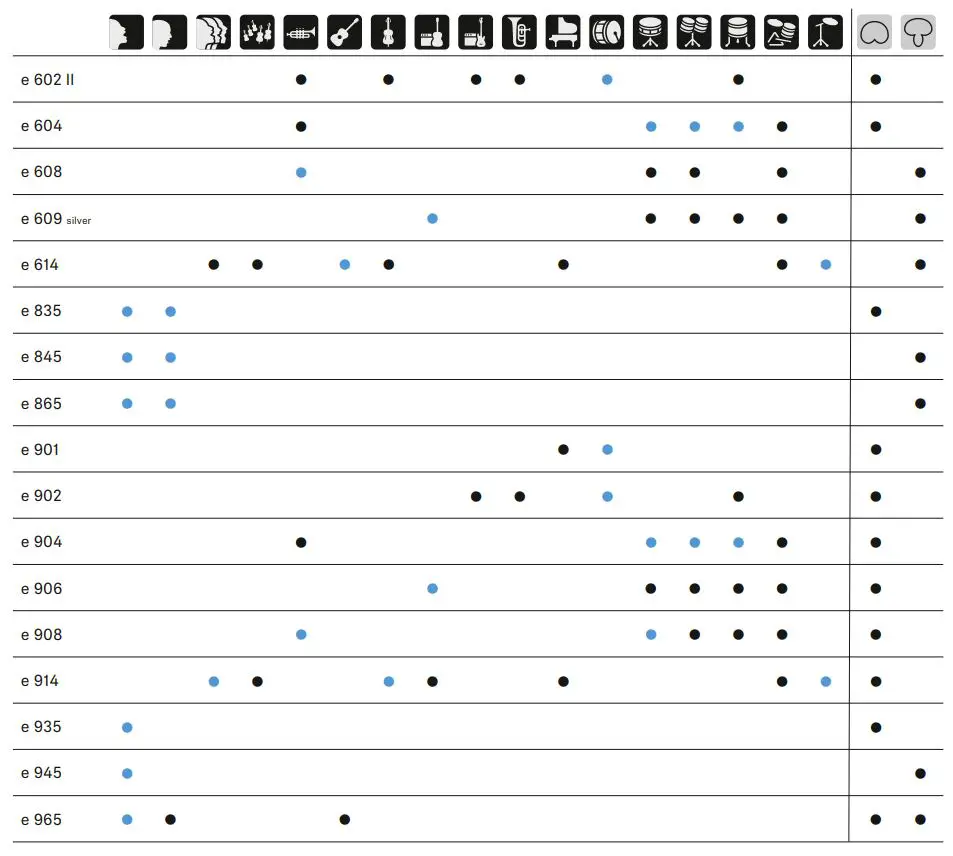

Overview of applications
- Primary application
- Secondary application
