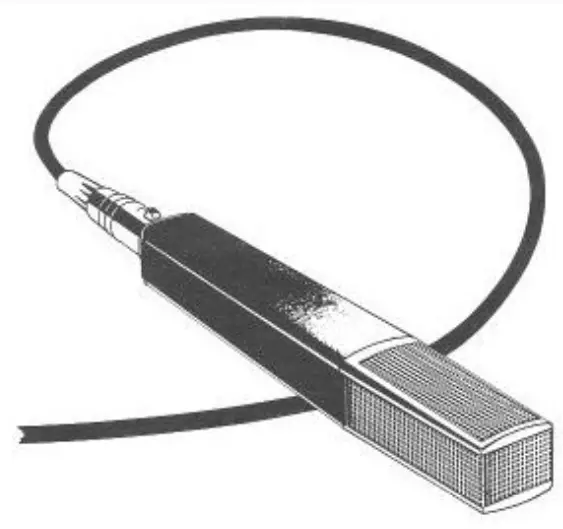

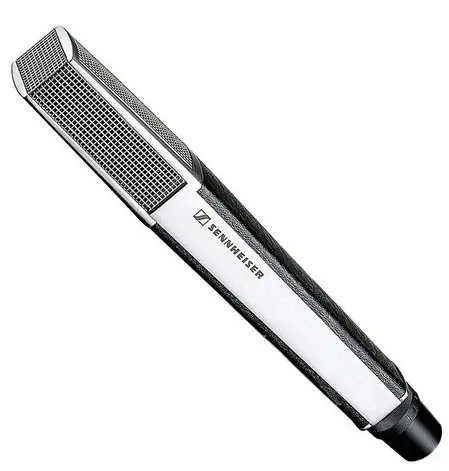

SENNHEISER MD 441-U Dynamic Supercardioid Microphone
Instructions for use
FREQUENCY RESPONSE
POLAR DIAGRAM
High-quality, dynamic microphone with super-cardioid-shaped directional characteristics. Suitable for vocal transmission and miking up instruments in all fields of live sound transmission
It’s features
- Extremely good feedback rejection
- Balanced frequency response
- 5-step roll-off filter

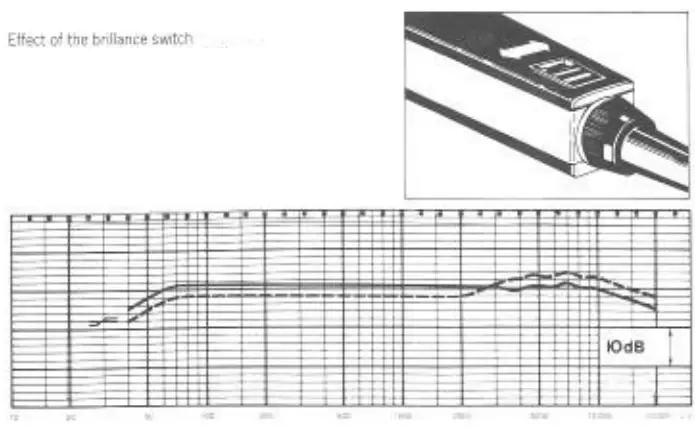

- Brilliance switch for the accentuation of high frequencies
- Insensitive against handling noise due to very effective shock mount
- Robust
- Stand holder included
Models
MD 441 N
With a 3-pin connector according to DIN 41524, screwable.
MD 441 U
With 3-pin XLRconnector.
Hints for use

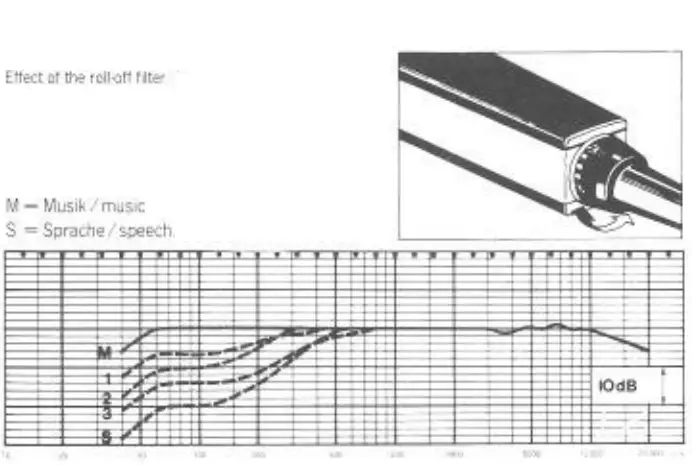

- Rollioff filter and brilliance switch enable you to match the frequency re Sponse to the respective recording situation. As sound is judged individually y only general recommendations for specific settings of both controls can be gIven
Rol-off filter position “M”:
Recording or transmission of music, Ocals, or speech at distances 30 cm.
Roll-off filter position “S
Vocals and speech recording/transmission at distances 10 cm For outdoor recording/ transmission or distances15 cm a pop/wind shield should be used (see “Recommended accessories”)
Recommended accessories
- Desk stands: MZT 441 fart. no. 0799): MZT 100 art. no. 1883)
- Windscreens: MZW 40 lart. no. 1794): MZW 441: black tart. no. 0976)
- red lart. no. 1439), blue fart. no. 1641), yellow (art no. 1440).
- green art no. 1441).
- Stand holder: MZQ 441 lart. no. 2613).

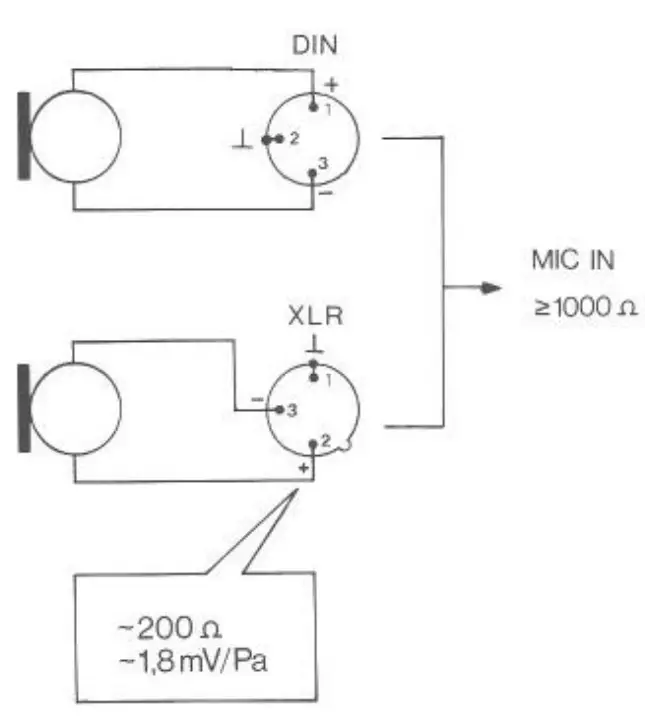

CONNECTING THE MICROPHONE

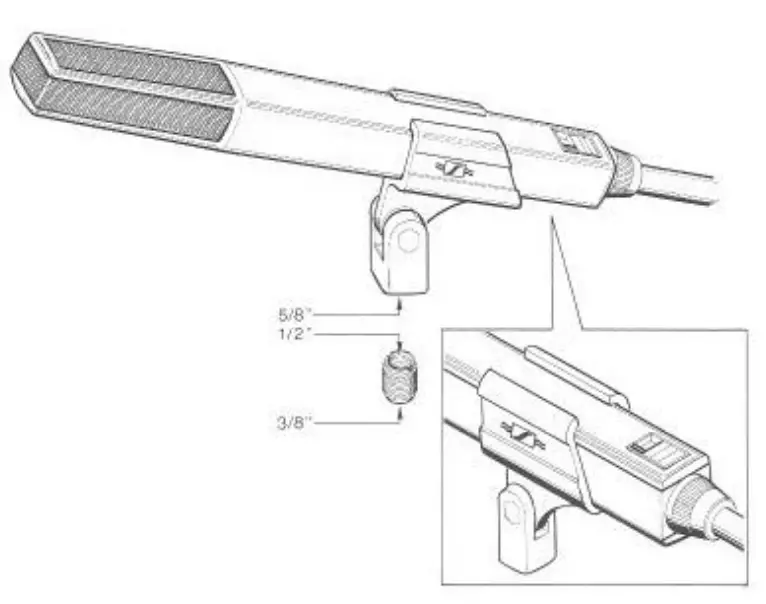

MOUNTING

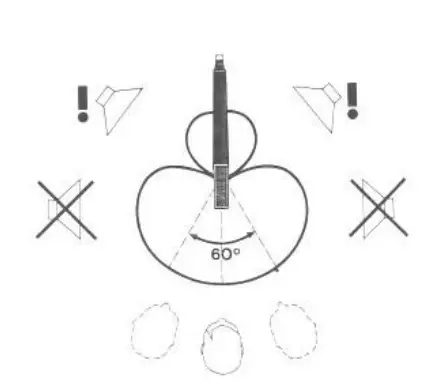

POSITIONING
Technical Data
- Frequency response, 30 20000 H2
- Mode of acoustical operation pressure gradient transducer
- Directional characteristic SUpercardioxd
- Reaction at 130 20 08-3 te
- Open circuit output voltage at I kH2 18 mv/Pa3 dB 55 dHv)
- Electrical impedance a1 kHz 200 Chm
- Minima lead mpédan0e I0CO Dhmn
- Plug MD 441 N: 3-pin DiN plue Screwable MD 441 U: 3-pin XLR 3
- Magnetic field interference factor 5 ov/5 T
- Dimensions in mm MD 441 N: 257 33 x 36 MO 44T U: 270 33 x 36
- Weight approx. 450
- Delivery microphone 1 stand holder
Sennheiser electronic GmbH & Co. KG 30900 Wedemark, Gerrmany Phone +49 (5130) 600 0 Fax +49 (51 30) 600 300 www.sennheiser.com
