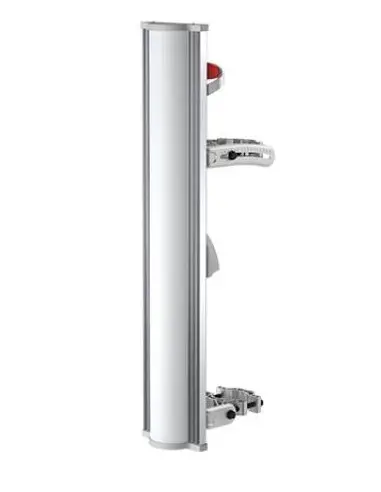

ELEMENTS Array Sector

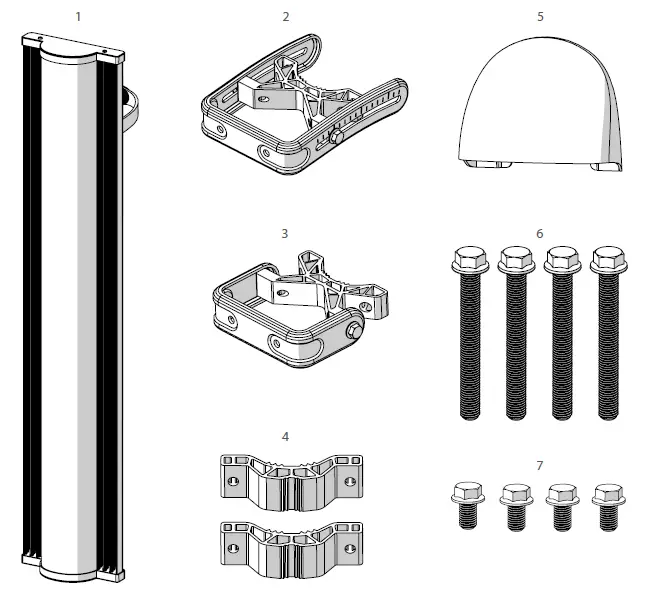

Package Contents:
| Number | Description | Quantity |
| 1 | Array Sector | 1x |
| 2 | Bracket Top | 1x |
| 3 | Bracket Bottom | 1x |
| 4 | Pole Mount Bracket | 2x |
| 5 | Radio Cover | 1x |
| 6 | M8 x 80mm Screw | 4x |
| 7 | M8 x 16mm Screw | 4x |
Pre – Installation

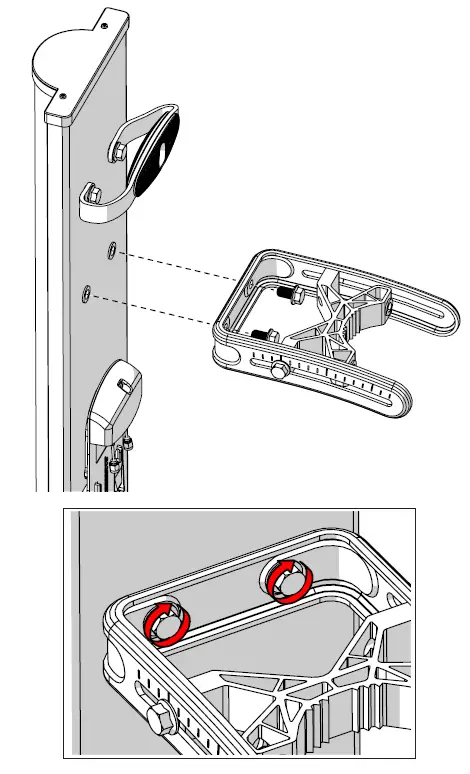

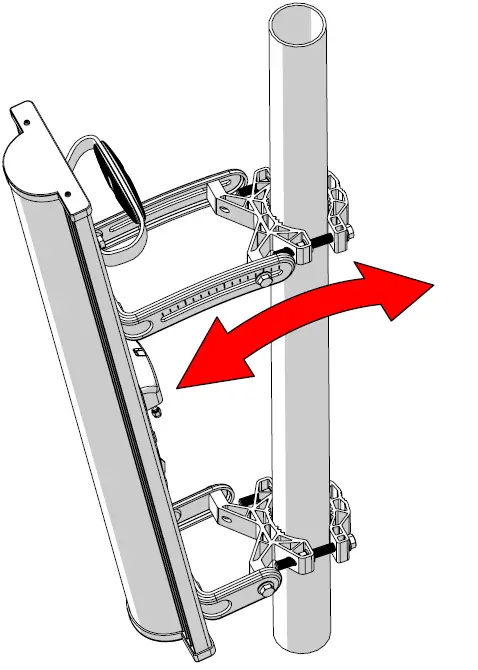

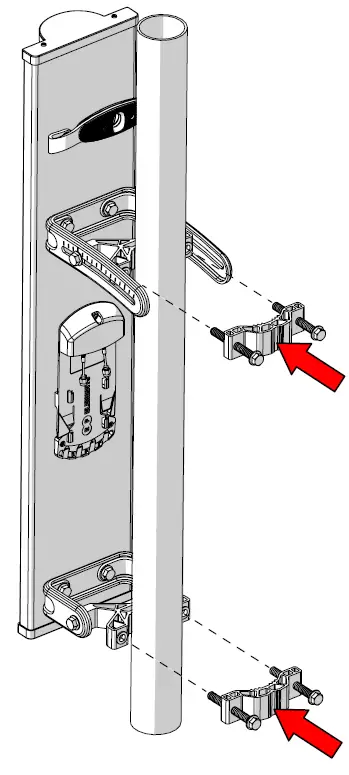

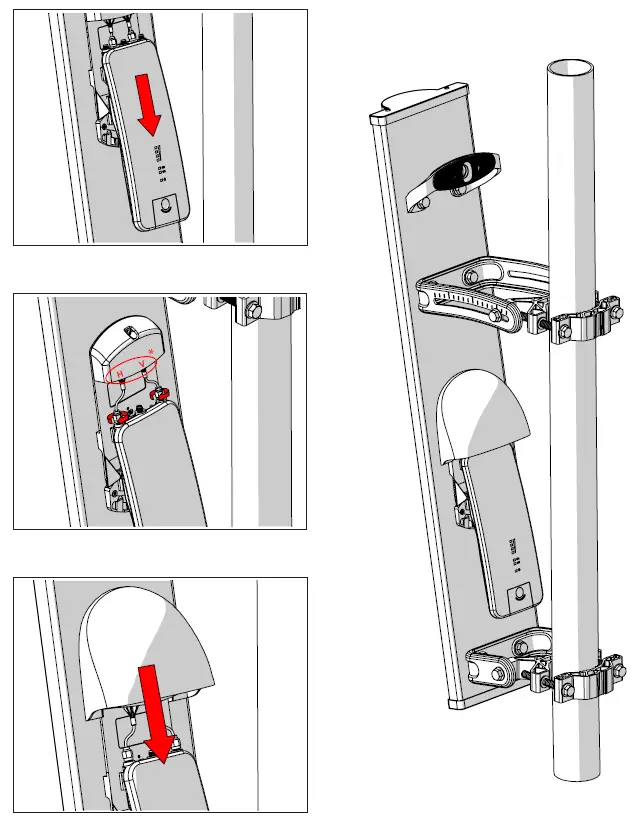

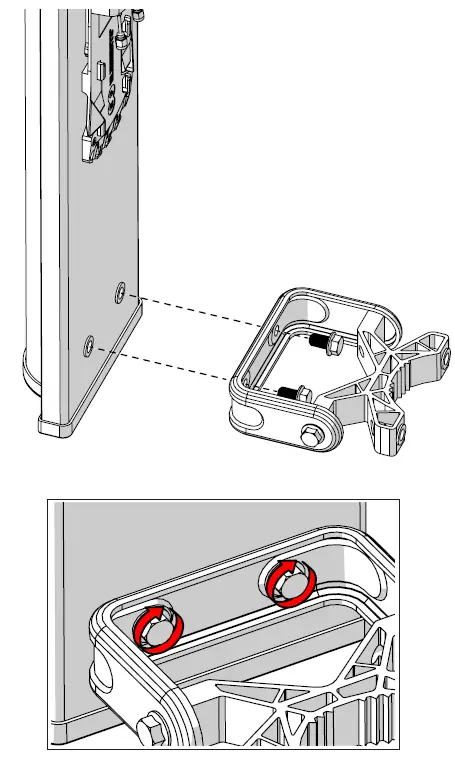

How to Install

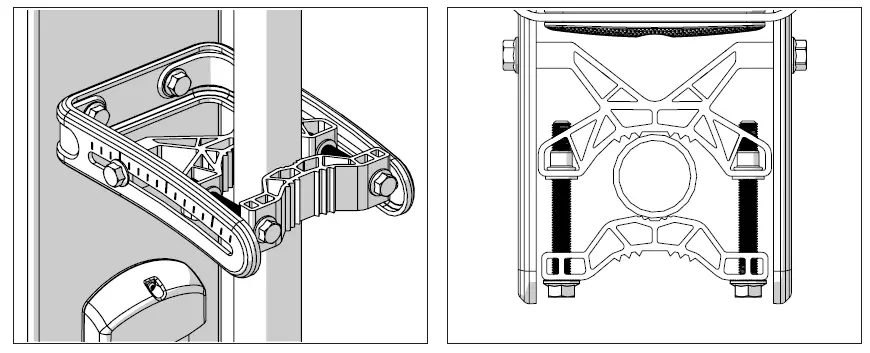

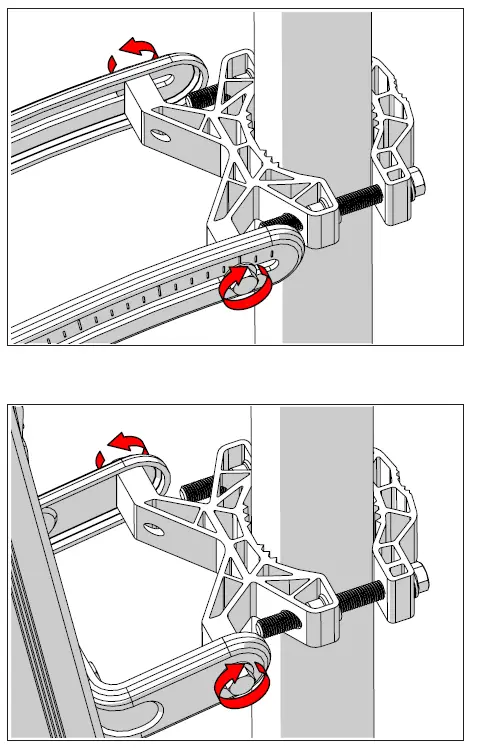

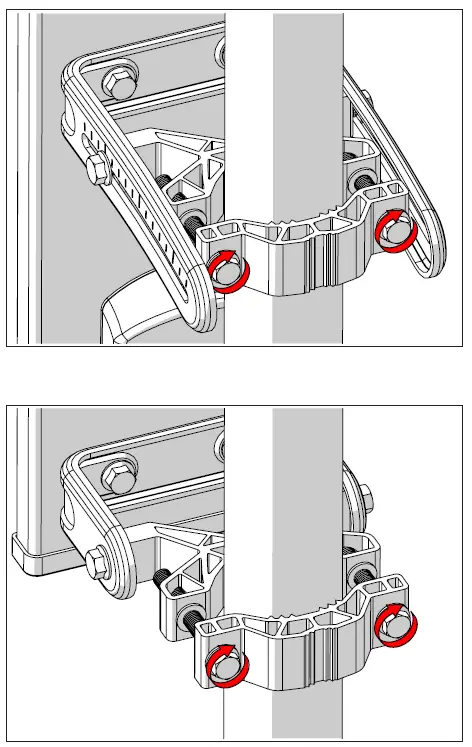

The Pole mount bracket should be oriented as shown in the image below for pole diameter span of 40 – 57 mm.

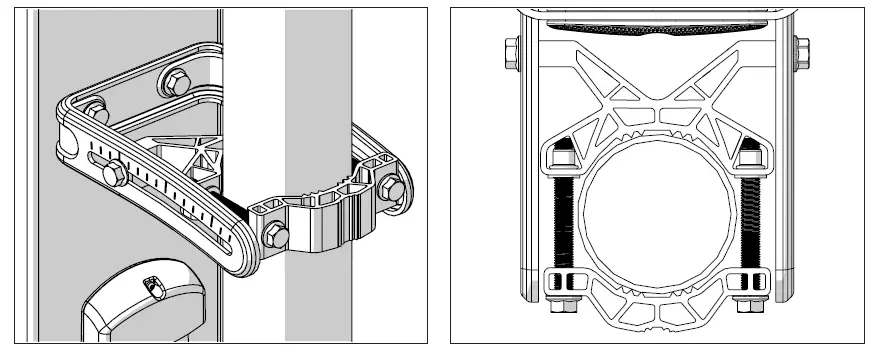

The Pole mount bracket should be oriented as shown in the image below for pole diameter span of 58 – 80 mm.
Compatible Devices
For a list of compatible devices visit www.rfelements.com
RF elements® is trademark of RF elements s.r.o., Slovakia.
All rights of trademark owners reserved.
