ARIA Flush Device Mount Installation Guide
Device Installation

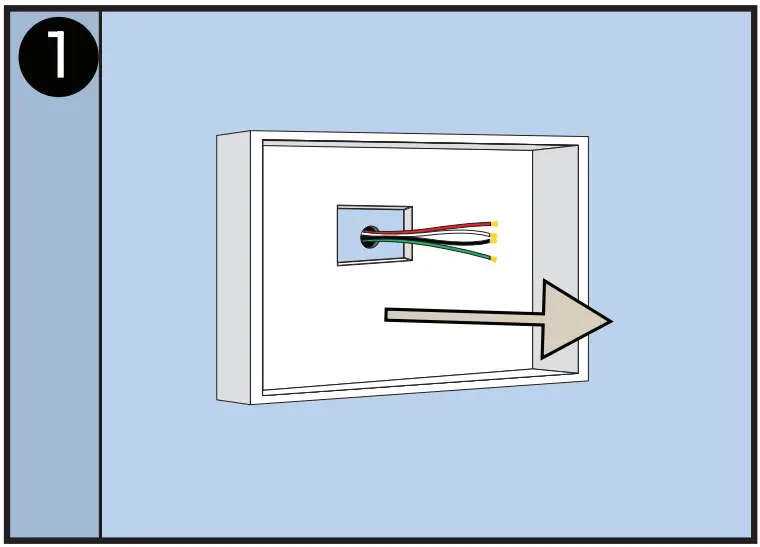

- Shut off circuit breaker and disconnect existing device from wall.

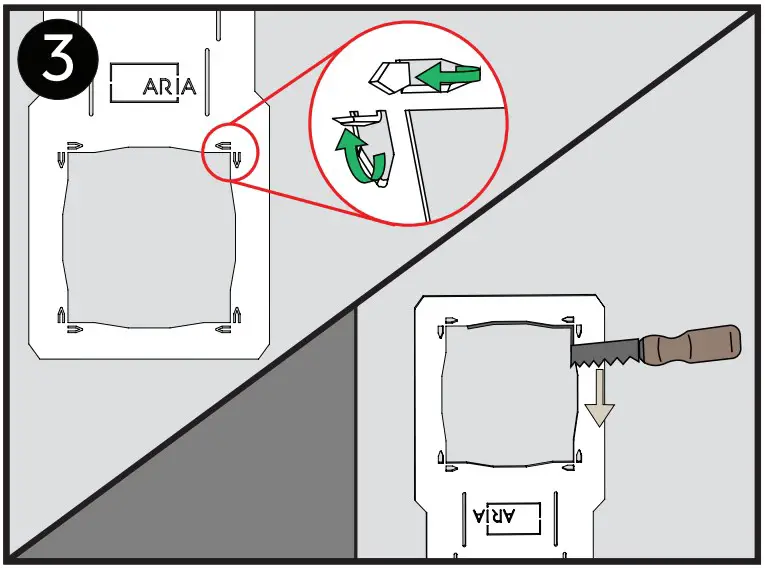

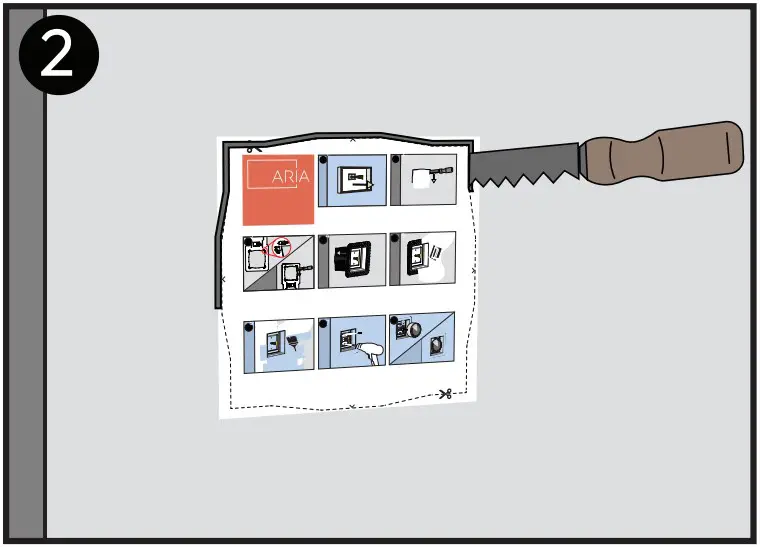

- Using dotted line on instruction guide, cut hole to allow Mount to be inserted.
- Optional: Use Smash Plate as guide, secure to wall using pins as a stamp.

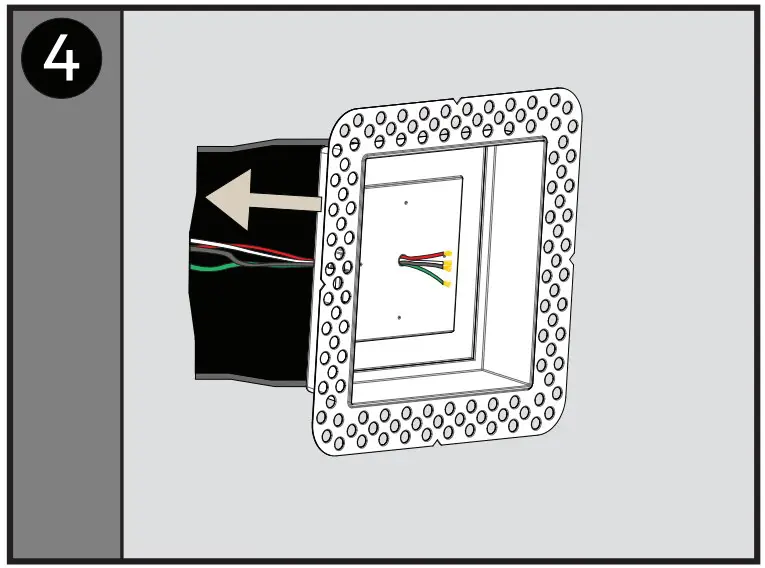

- Feed wires through pre-drilled hole and place the Mount in the cavity

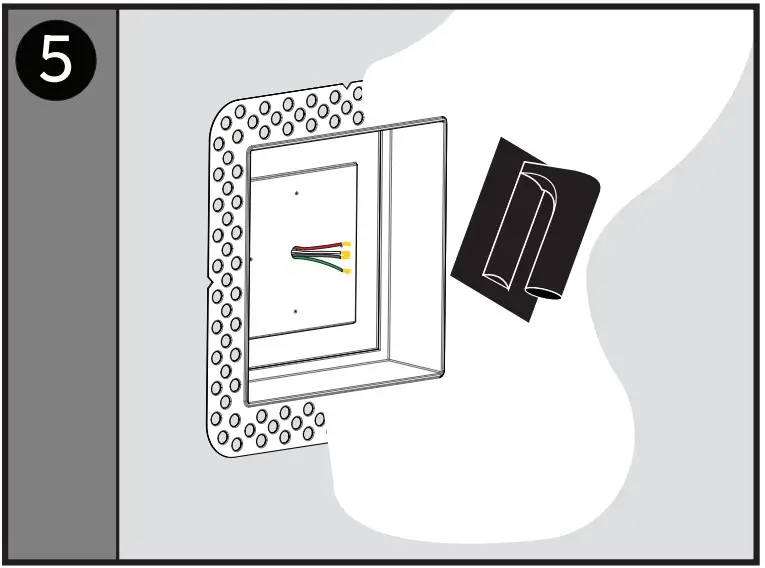

- Use drywall compund mud to cover flange. Once dry, sand. Repeat as needed.

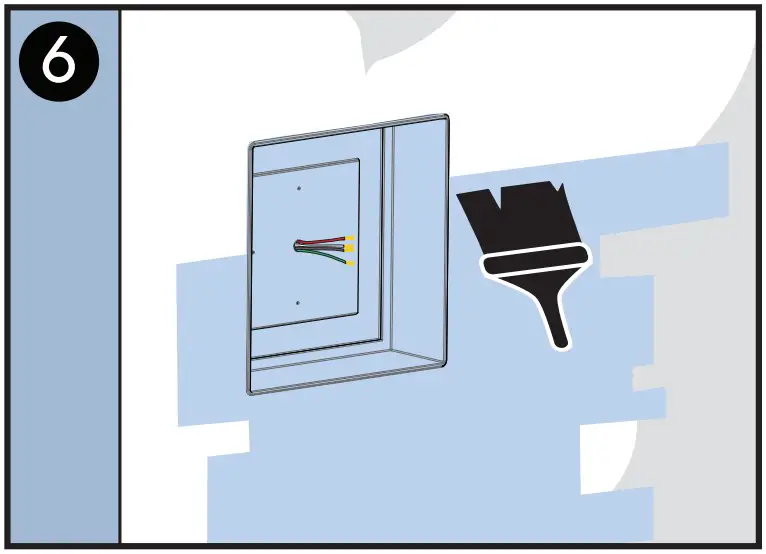

- Paint to match surface

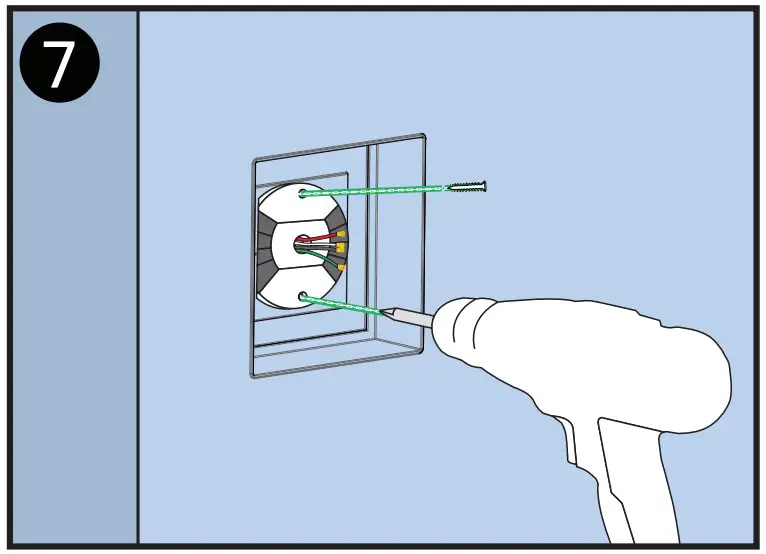

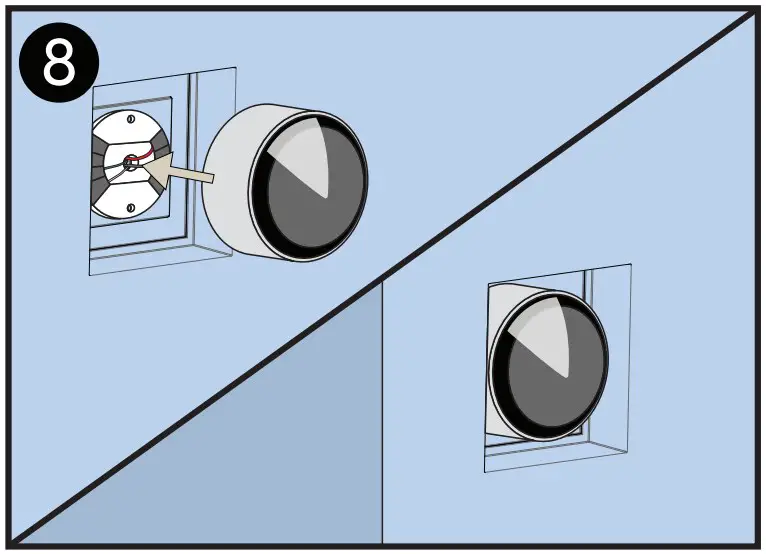

- Attach the unit to the Mount in the same manner as you would to drywall
- Connect device, turn on power and enjoy!
Pot Light Installation

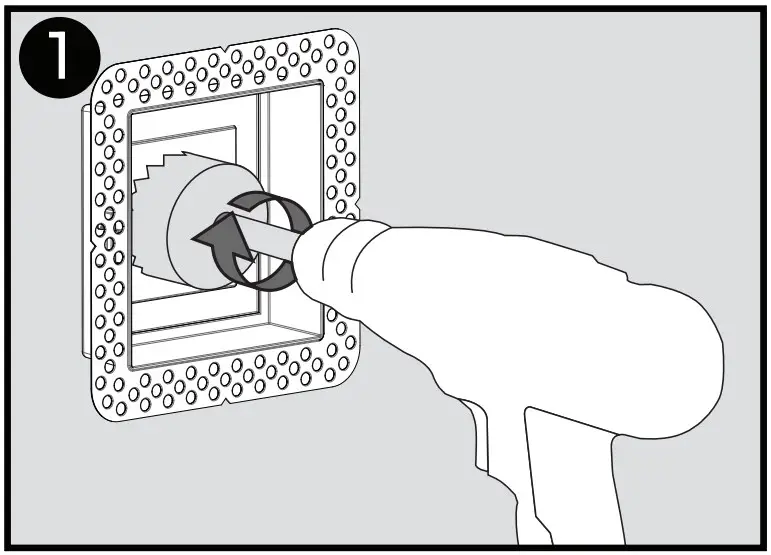

- Drill hole in Mount according to the dimensions of the pot-light being used

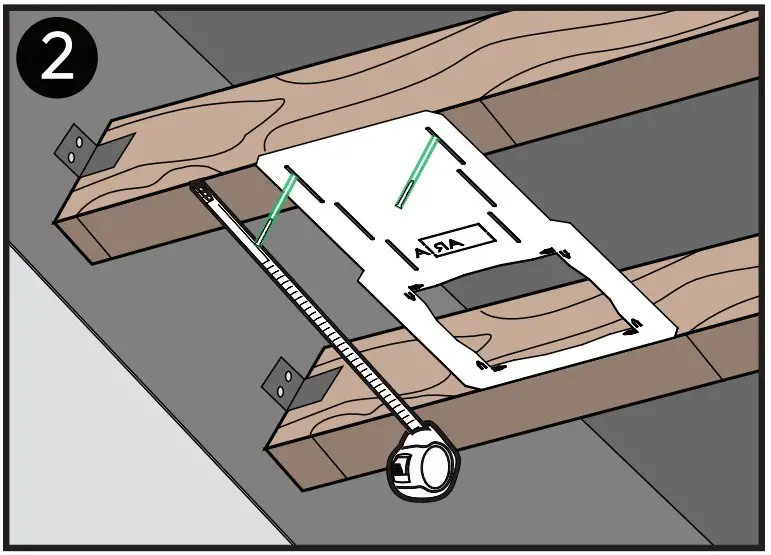

- Secure Smash Plate to ceiling frame prior to drywall using nails or wood screws.

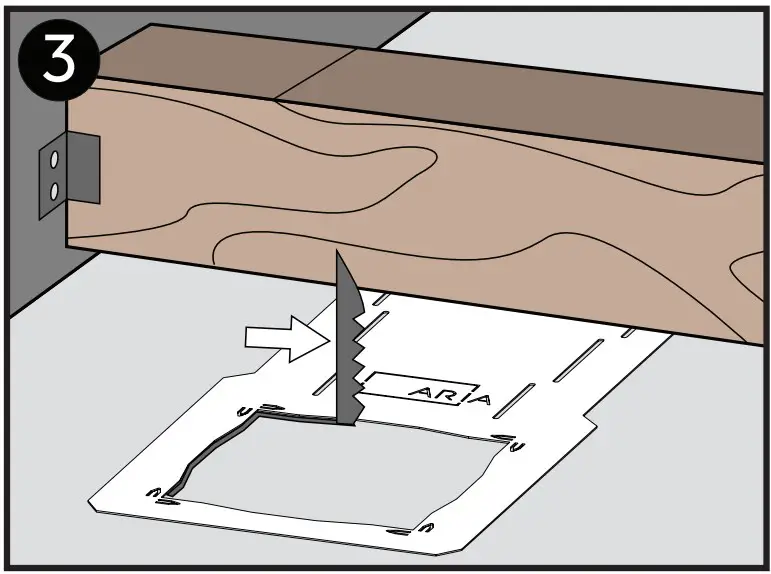

- Note the location of the cutout before installing the drywall. Install drywall and cut using the Smash Plate as a guide.

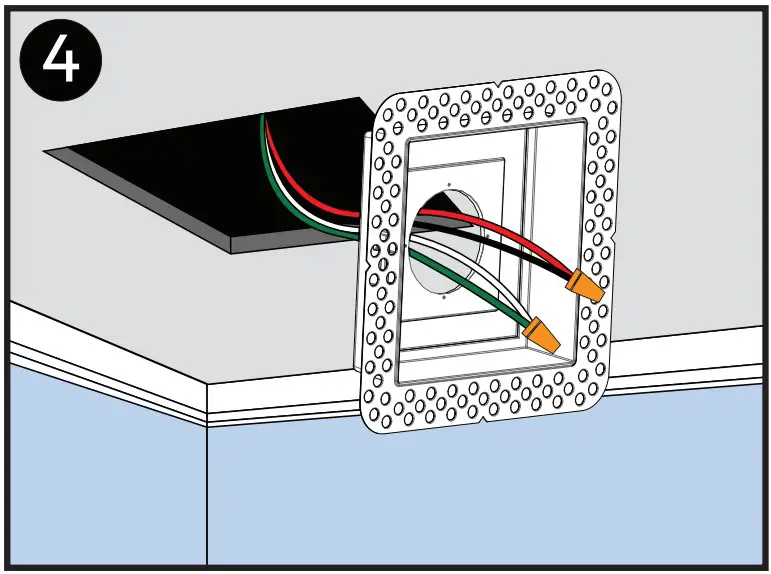

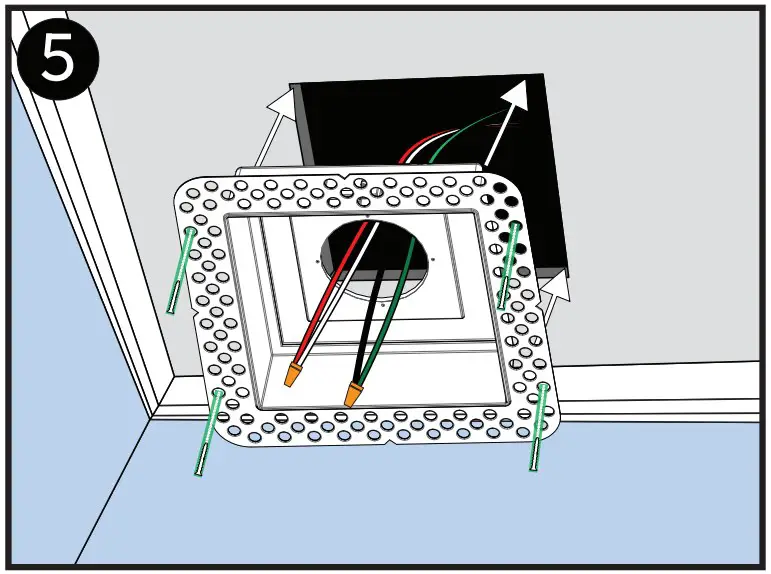

- Disconnect power and feed wires through ceiling and Mount
- Secure Mount using staples or drywall screws.

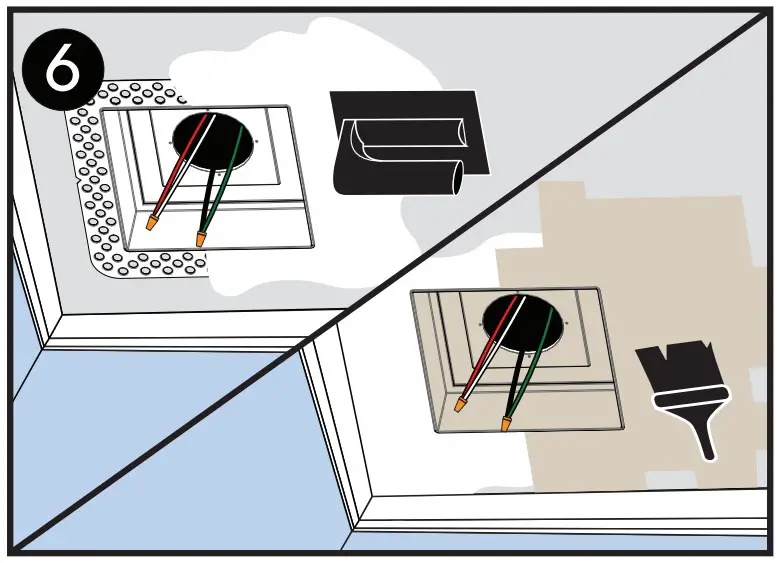

- Use drywall compund mud to cover flange. Enjoy!

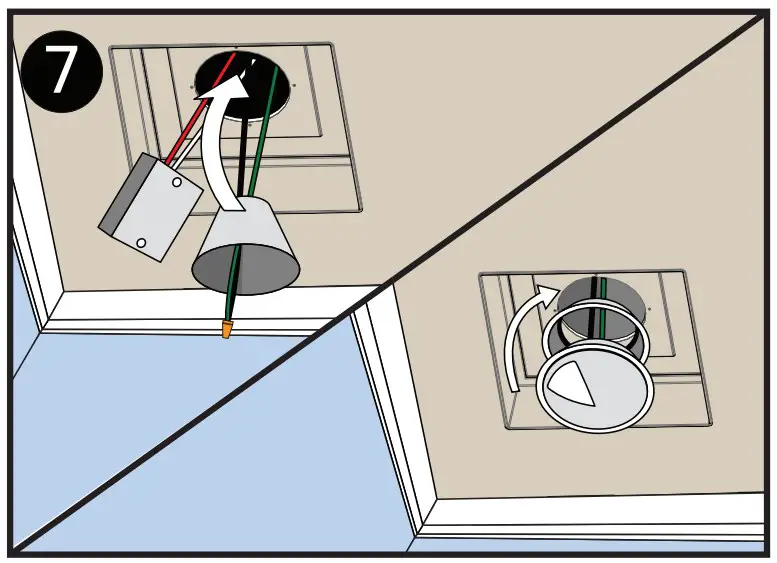

- Connect wires and place components through hole. Individual pot-light install may vary
- Enjoy!
