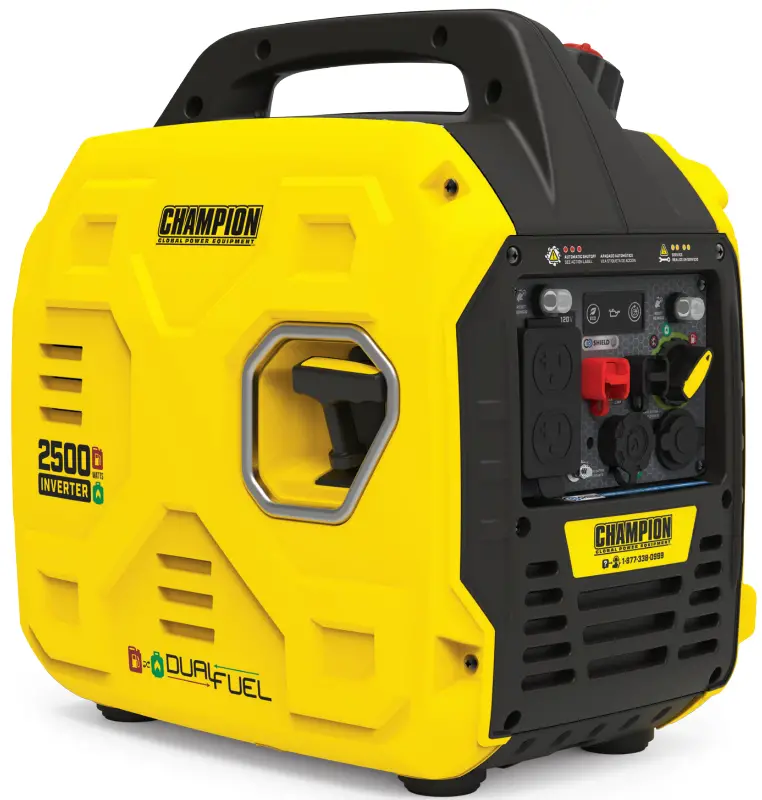

Champion 201183 2500w Dual Fuel Inverter Generator User Guide

201183
2500W Dual Fuel Inverter Generator

WARNING:

Read the ENTIRE operator’s manual to become familiar with the features of the product before operating.
Failure to operate the product correctly can result in damage to the product, personal property and cause serious injury or even death.

Set Up

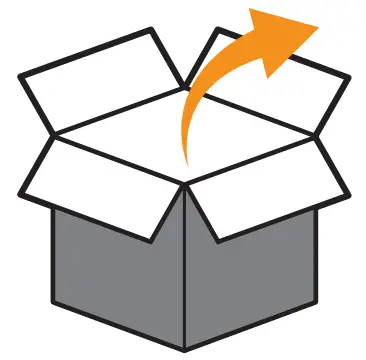

1. Open shipping carton.  Assembly > Unboxing

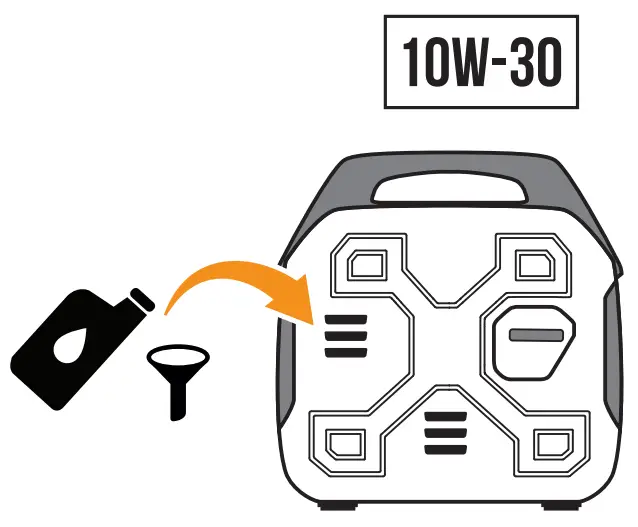

2. Add oil. Assembly > Add Engine Oil.

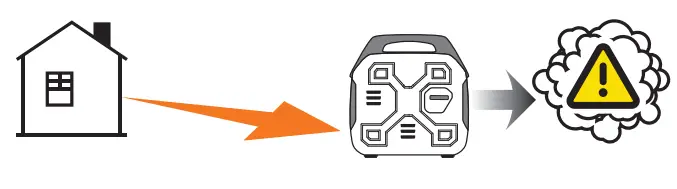

3. Move the generator outdoors.
   Move generator to an open, outdoor area. Point exhaust away. Never run generator in enclosed areas (e.g., not in house or garage).
   Keep all objects at least 5 feet (1.5 m) from the generator. The heat from the muffler and exhaust gas can ignite combustible materials.


Start Up

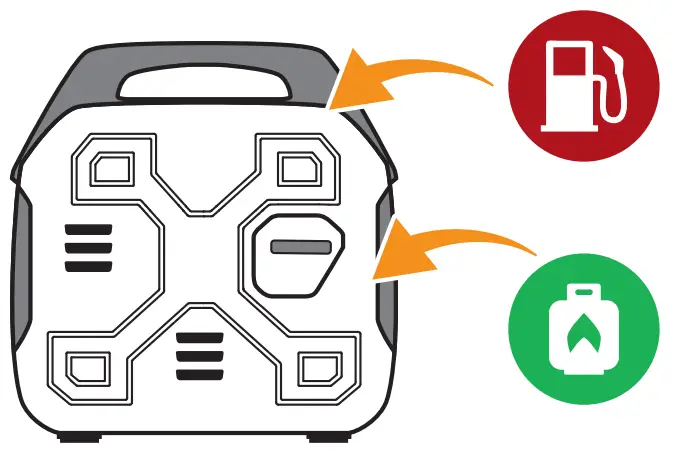

4. Add fuel – Gasoline or Propane (LPG)
 Assembly > Add Fuel

FOR GASOLINE OPERATION DO NOT USE E15 OR E85

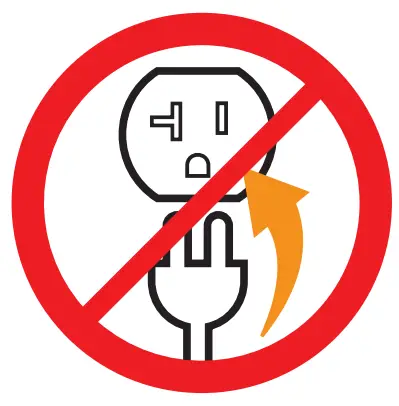

5. DO NOT plug in any electrical devices.

NEVER START OR STOP THE GENERATOR WITH ELECTRICAL DEVICES CONNECTED OR TURNED ON!

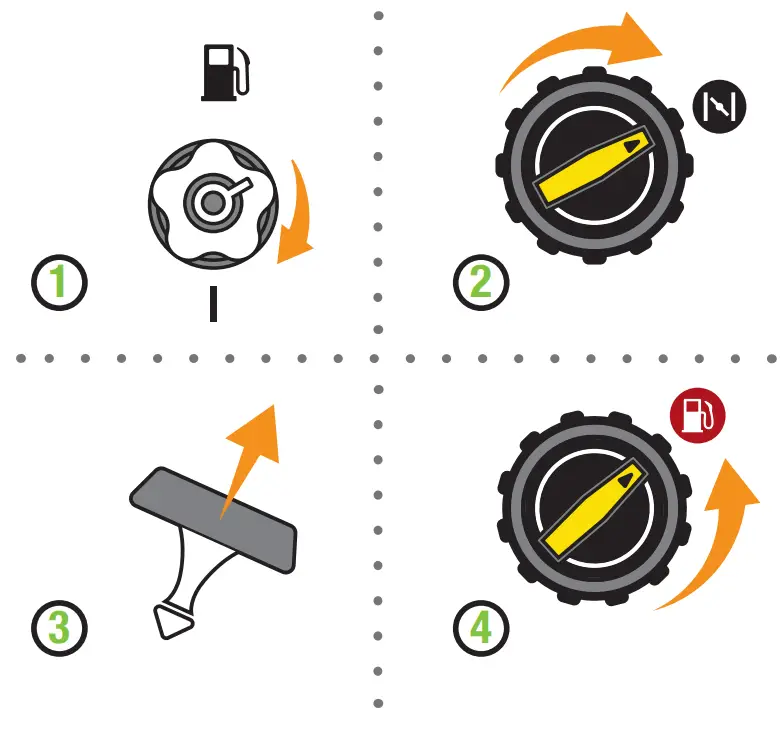

6a. Starting the Engine: Gasoline
Manual Start

1. Turn the fuel cap vent lever to the “ON” (|) position.
2. Turn the EZ Start Dial to the gasoline “CHOKE” position.
3. Pull the recoil to start the engine.
4. Turn the EZ Start Dial to the gasoline “RUN” position.

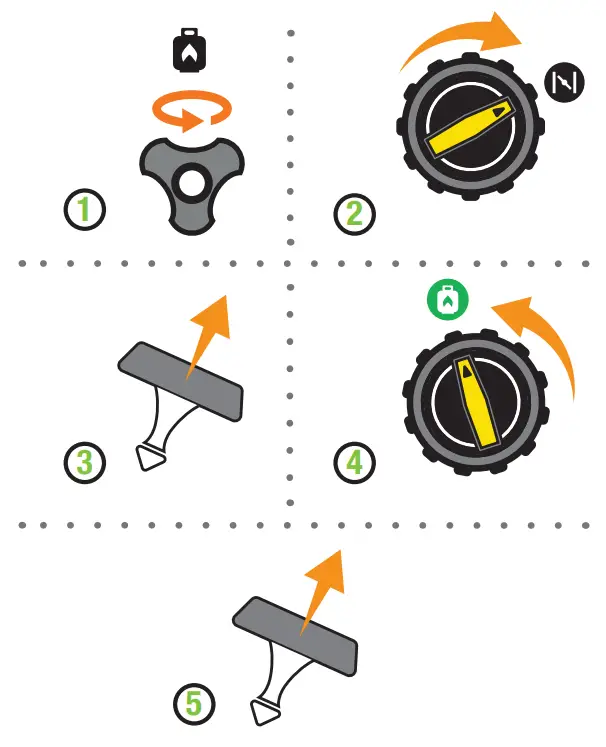

6b. Starting the Engine: Propane (LPG)
Manual Start: Propane (LPG)

1. Open the propane tank valve.
2. Turn the EZ Start Dial to the LPG “CHOKE” position.
3. Pull the recoil 3-5 times to prime the engine.
4. Turn the EZ Start Dial to the LPG “RUN” position.
5. Pull the recoil to start the engine.

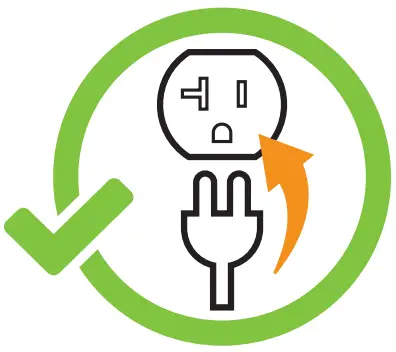

7. Plug in. Operation > Connecting Electrical Loads.

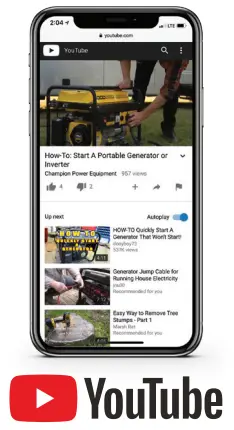

Visit our YouTube channel to watch our how-to videos and subscribe to view our latest videos on our Champion Power Equipment products!
