Champion 201153 2500w Inverter Generator User Guide

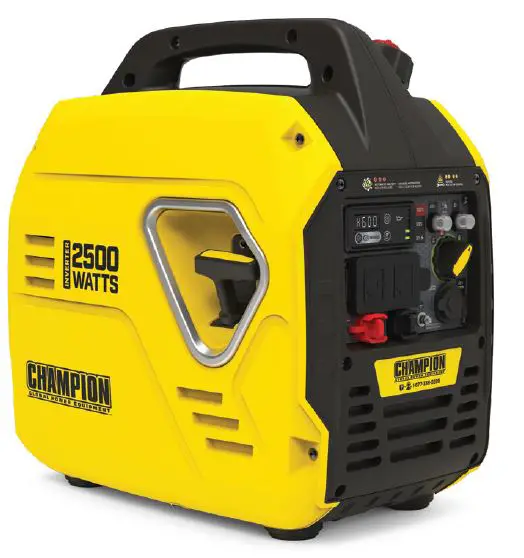

CHAMPION 201153 2500W Inverter Generator

Set-Up

1. Open shipping carton. ° Assembly > Unboxing

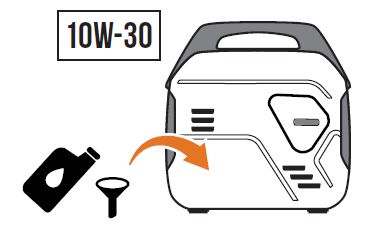

2. Add oil. ° Assembly > Add Engine Oil. Recommended: 10W-30, up to 16.9 fl. oz. (500 ml) DO NOT overfill.

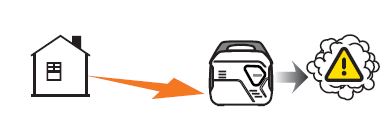

3. Move the generator outdoors. / Mueva el generador afuera.
   Move generator to an open, outdoor area. Point exhaust away. Never run generator in enclosed areas (e.g., not in house or garage).
   Keep all objects at least 5 feet (1.5 m) from generator. Heat from the muffler and exhaust gas can ignite combustible materials.

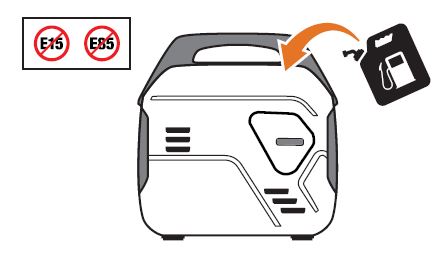

4. Add fuel. ° Assembly > Add Fuel DO NOT use E15 or E85.
5. DO NOT plug in any electrical devices.
   NEVER START OR STOP THE GENERATOR WITH ELECTRICAL DEVICES CONNECTED OR TURNED ON!
6. Turn the fuel cap vent lever to the “ON” (I) position.
7. Turn the EZ Start Dial to the gasoline “CHOKE” position.
8. Pull the recoil to start the engine.
9. Turn the EZ Start Dial to the gasoline “RUN” position.
10. Plug in. ° Operation > Connecting Electrical Loads.
