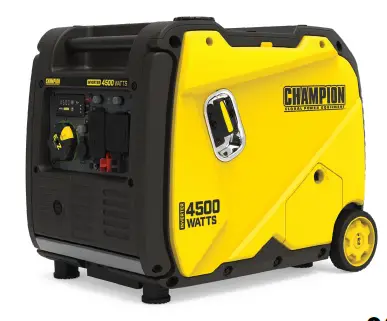

CHAMPION 200986 4500W Portable Inverter Generator

WARNING:

• Read the ENTIRE operator’s manual to become familiar with the features of the product before operating.
• Failure to operate the product correctly can result in damage to the product, personal property and cause serious injury or even death.

Set-Up

1. Open shipping carton. ° Assembly > Unpacking

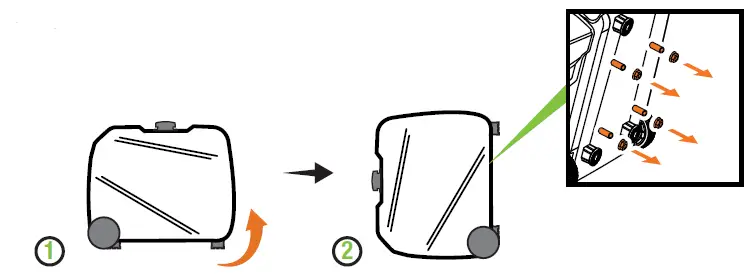

2. Shipping Support. ° Assembly > Remove Shipping Support Hardware. .
3. Add oil. ° Assembly > Add Engine Oil. Recommended: 10W-30, up to 16.9 fl. oz. (500 ml) DO NOT overfill.

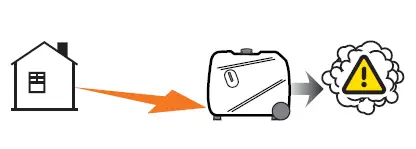

4. Move the generator outdoors. / Mueva el generador afuera.
   • Move generator to an open, outdoor area. Point exhaust away. Never run generator in enclosed areas (e.g., not in house or garage). .
   • Keep all objects at least 5 feet (1.5 m) from generator. Heat from the muffler and exhaust gas can ignite combustible materials.  .

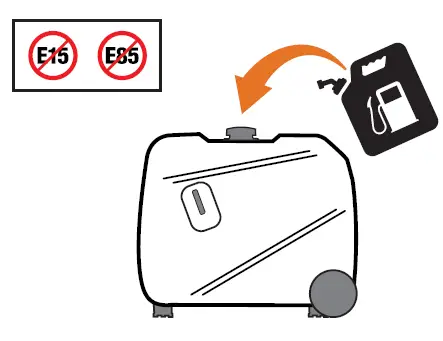

5. Add fuel. ° Assembly > Add Fuel DO NOT use E15 or E85.
6. DO NOT plug in any electrical devices.
   NEVER START OR STOP THE GENERATOR WITH ELECTRICAL DEVICES CONNECTED OR TURNED ON!

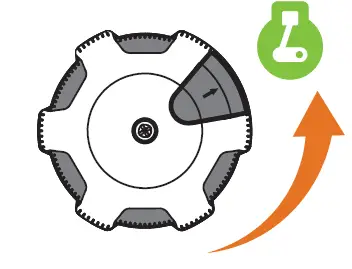

7. Turn the EZ Start dial to the full choke position.
8. Pull the recoil to start the engine.
9. Turn the EZ Start dial to the RUN position.
10. Plug in. ° Operation > Connecting Electrical Loads.
