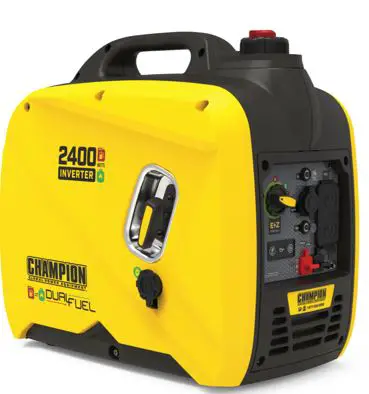

CHAMPION 201047 2400W Dual Fuel Inverter Generator
Set Up

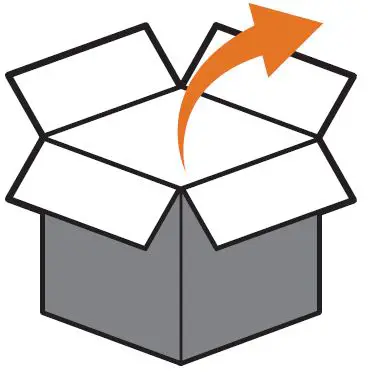

- Open shipping carton. Assembly > Unboxing

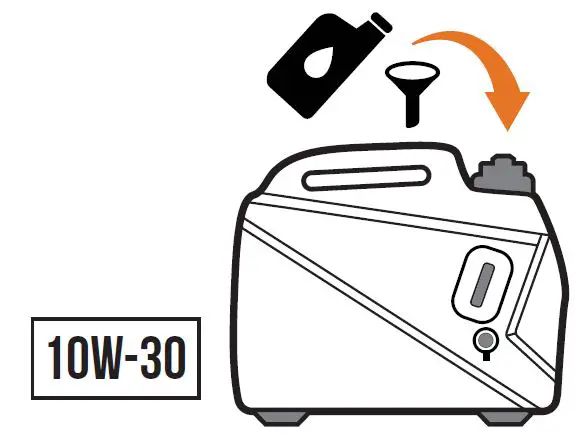

- Add oil. Assembly > Add Engine Oil.

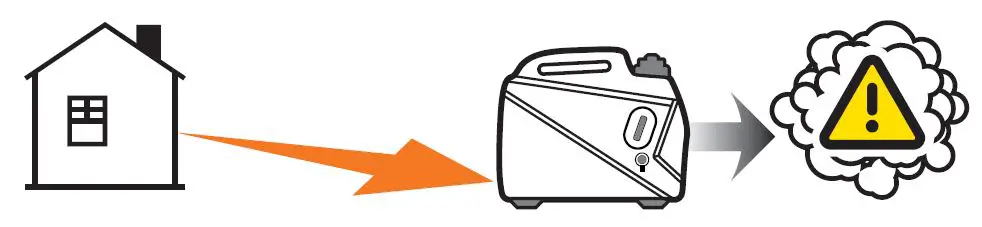

- Move the generator outdoors.
Move generator to an open, outdoor area. Point exhaust away. Never run generator in enclosed areas (e.g., not in house or garage).

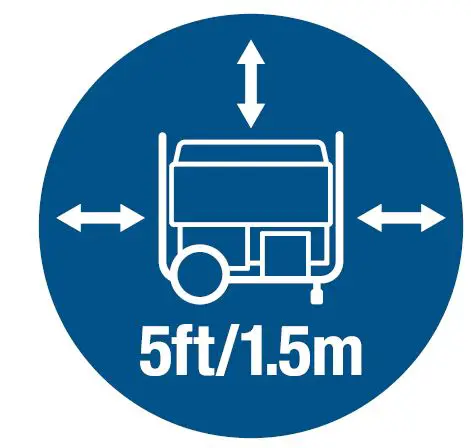

Keep all objects at least 5 feet (1.5 m) from generator. Heat from the muffler and exhaust gas can ignite combustible materials.
- Add fuel. Assembly > Add Fuel: Gasoline DO NOT use E15 or E85.
- Agregue combustible.
- Connect propane cylinder. Assembly > Add Fuel: Propane (LPG)

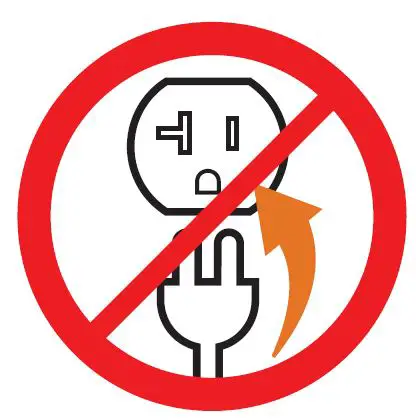

- DO NOT plug in any electrical devices.
NEVER START OR STOP THE GENERATOR WITH ELECTRICAL DEVICES CONNECTED OR TURNED ON!

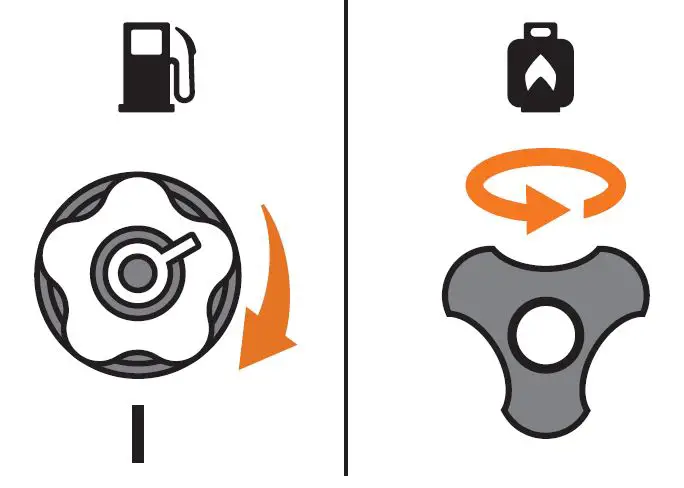

- For Gasoline Operation Turn the fuel cap vent lever to the “ON” (|) position.
For Propane Operation Open the propane tank valve.

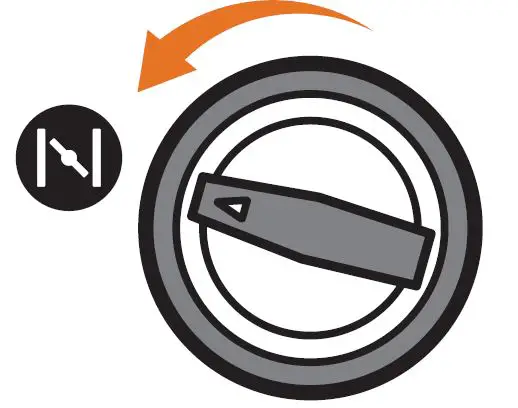

- Turn the EZ Start dial to the “CHOKE” position.

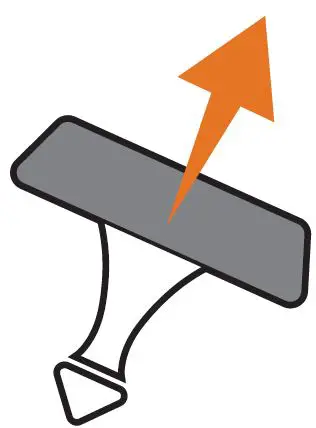

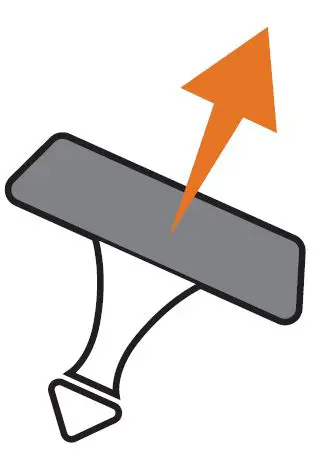

- For Gasoline Operation Pull the recoil to start the engine.
For Propane Operation Pull the recoil slowly 3-5 times to prime the engine.
Start Up

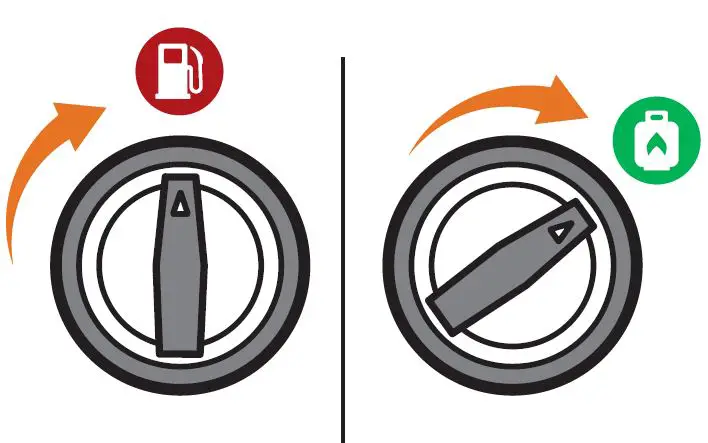

- For Gasoline Operation Turn the EZ Start dial to the gasoline “RUN” position.
For Propane Operation Turn the EZ Start dial to the propane “RUN” position.
- For Propane Operation Pull the recoil to start the engine.

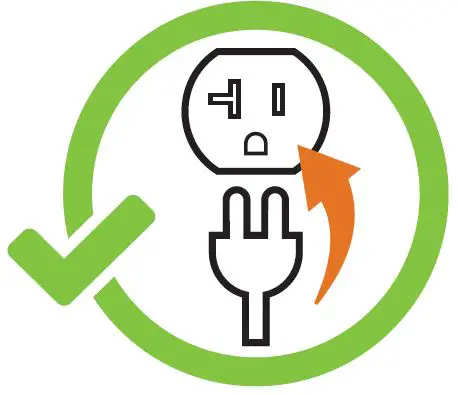

- Plug in. Operation > Connecting Electrical Loads.
