Soltech Stl-swl Solport Wall Pack Lights Installation Guide

SOLPORT
Wall Pack Lights
15W
Installation Manual
SOLTECH Provides Advanced LED
Technology Powered With Eco-friendly,
Clean, Solar Energy.

Introduction

Thank you for purchasing SOLPORT Urban Lighting Products.
Important
Please read these instructions before installation to ensure optimum results and longevity of your lights. The solar panel should be charged in full sunlight for 8 to 9 hours before initial first use to provide optimum results.

Features

• Adjust solar panel angle to maximize sunlight & allow snow to slide off
• The hinged LED module with the solar panel is adjustable to aim light at a target
• The solar panel blocks most glare for observer eye comfort
• Easy anti-theft installation
• Advanced new Li-ion battery lasts 500 charging-discharging cycles
• 3 operating modes that are programmable via remote control or on a fixture
• Long life battery lasts 3 nights with a one-day charge
• The easiest way to bring lighting to walls on any commercial building
• Integrates the solar panel, battery, sensor, and light fixture into one small form factor

Notice & Warning

1. The SOLPORT will provide optimal usage where there is enough sunshine.
2. Please note that the lighting time depends on sunshine duration and weather.
3. The lamp will light up automatically at dusk.
4. Built-in intelligent IC is with over-charge, over-discharge, and over-voltage protection.
5. The lamp is equipped with an internal battery pack, which is replaceable. If needed, please contact for the correct new battery pack.
6. If the battery is taken out and put back in or replaced with new batteries, please allow the solar panel to receive maximum sunshine to activate the lamp.
7. Non-professionals please do not disassemble the lamp.
8. Please do not dispose of the battery with household garbage to avoid an explosion.

Please Note
During continuous rainy or cloudy days, run time may be reduced as the battery will not be fully charged.

SOLPORT 10W

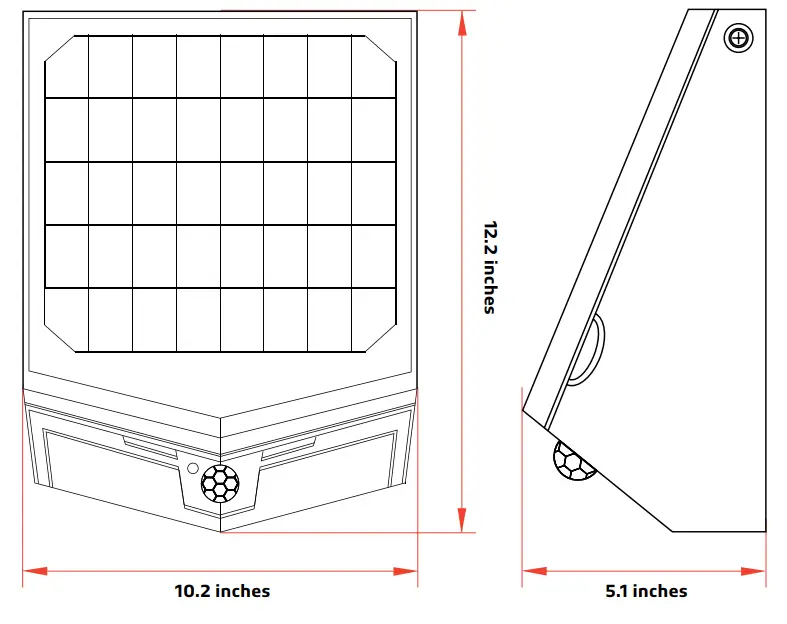

Specification

Ordering Information Chart

• The temperature can impact the battery’s charging and normal operation.
• The solar charge time data is base on 77 degrees F ambient temperature with the panel pointed directly at the solar radiation. The standard radiation value is 1000W/m².

Installation

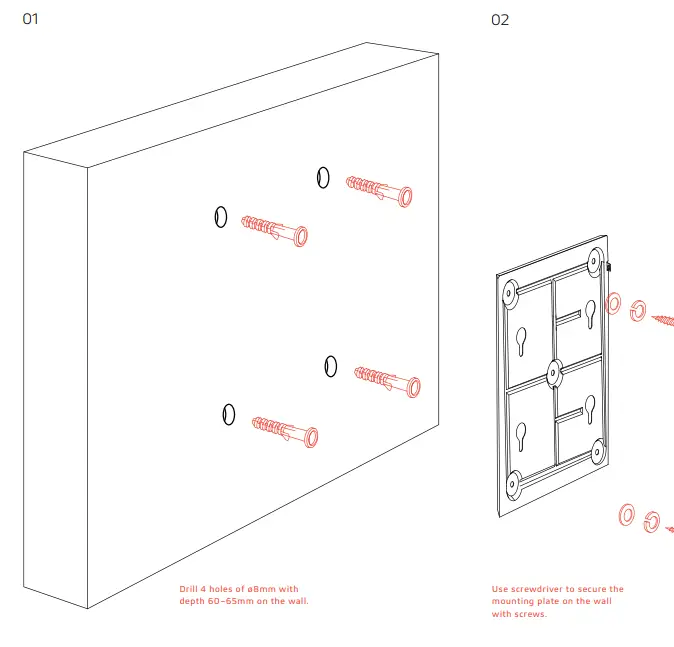

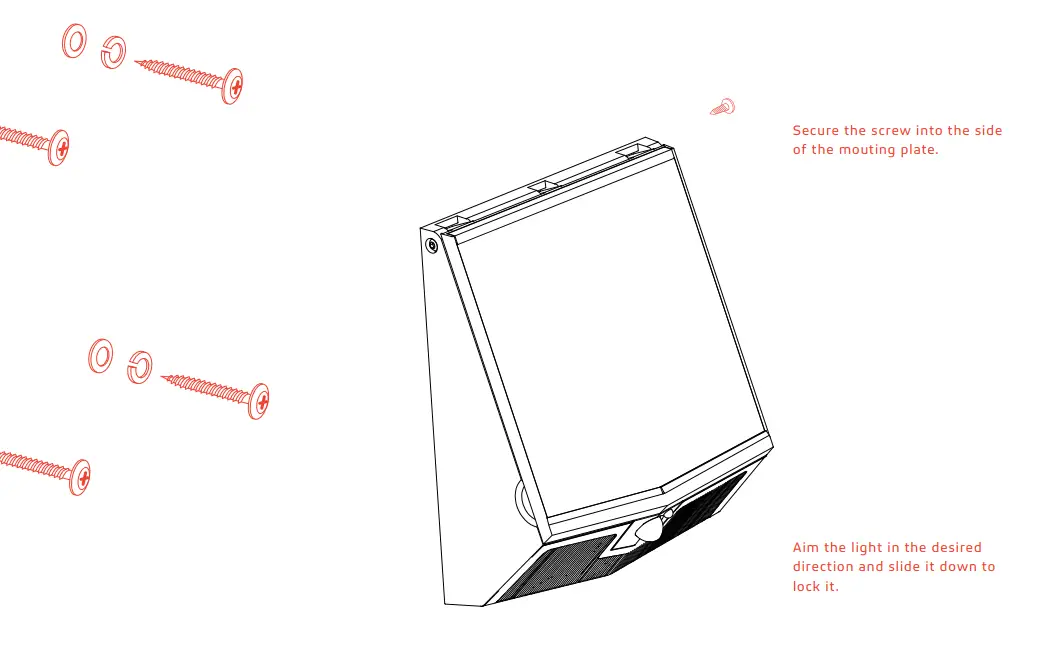

WALL MOUNT

03

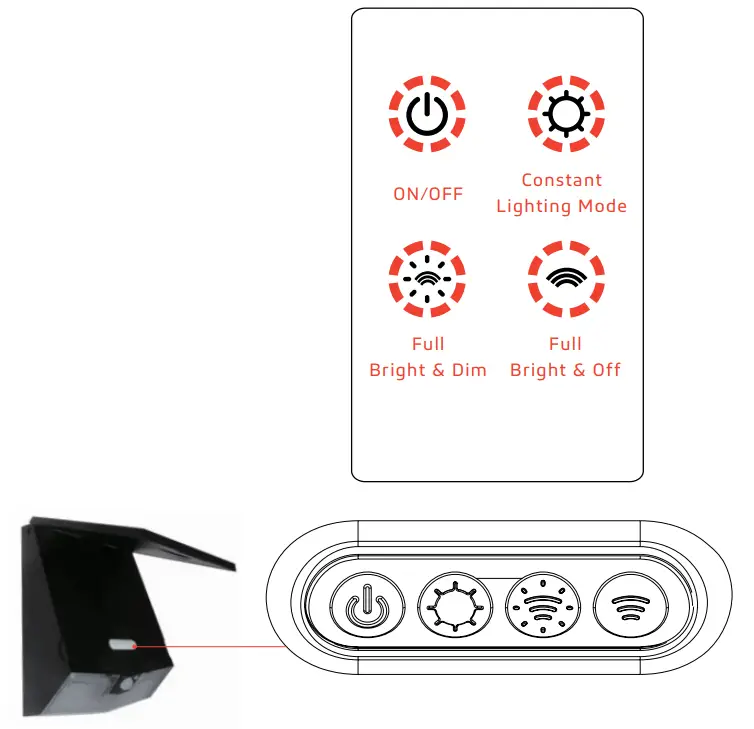

Remote Control

Please press any button on the lamp first to activate the lamp and remote control.
IR Remote Control
Control distance: ≤ 12 Meters

1. On / Off
   On / Off With the memory of the previous mode before shut off.
2. Constant Lighting Mode
   The light will automatically turn on at dusk and remain at 50% brightness when the motion sensor is disabled. After 5 hours or when the battery capacity is below 30%, the light will switch to Mode 3.

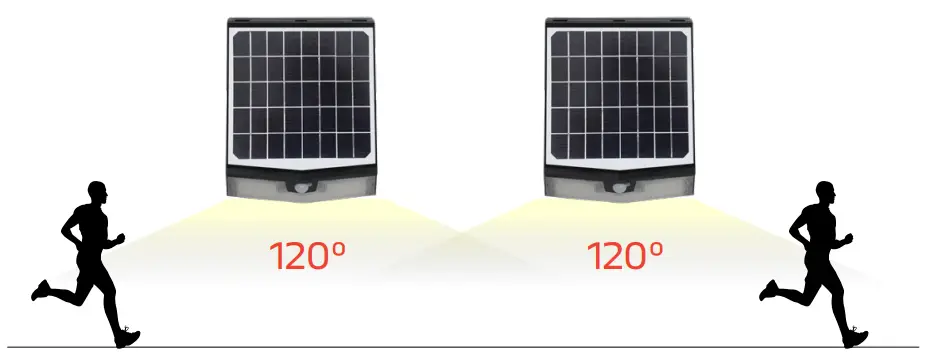

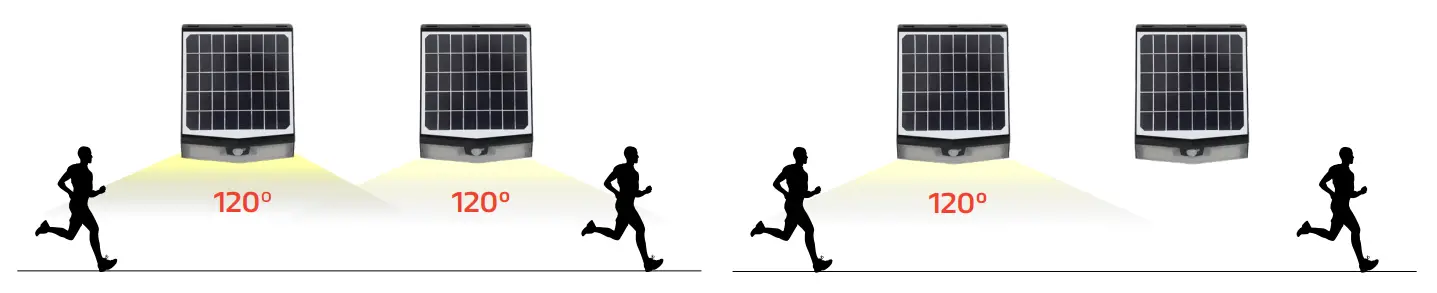

3. Full Bright & Dim
   The light will automatically turn on to full brightness when motion is detected within a range of 24 ft. It will turn off after 20 secondswhen there is no motion detected. The bottom portion of the light will turn on automatically when the upper light turns off and will then turn off once motion is detected.
4. Full Bright & Off
   The light will turn on to full brightness when motion is detected within a range of 24 ft. Once no motion is detected for 20 seconds, the light will turn off. The bottom portion of the light will not turn on in this mode.

WHEN SWITCHING TO A DIFFERENT OPERATING MODE, THE LAMP WILL FLASH ONCE TO INDICATE THAT THE OPERATING MODE HAS SWITCHED SUCCESSFULLY.

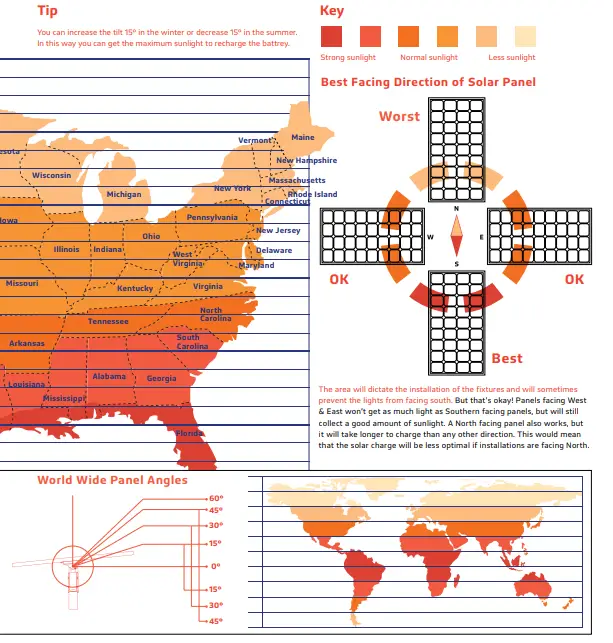

Panel Angle

The solar charge in a battery pack won’t last forever. The off-grid system relies on stored solar energy for autonomy. Angling your solar panels properly can boost the power intake of your solar lighting system. You want to angle your solar panels at a tilt based on the area’s latitude.

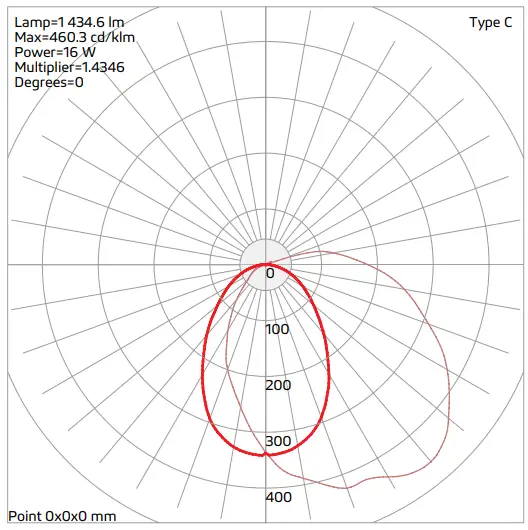

Luminous Distribution

SOLPORT 15W

Warranty

SOLPORT is covered by a 3-year limited warranty. SOLTECH urban light warrants to the original purchaser that this product is free from defects in materials and workmanship
for the period of 3 years from the date of purchase. To obtain warranty service please contact your local distributor or sales rep for further instruction.
SOLTECH Provides Advanced LED Technology Powered With Eco-friendly, Clean, Solar Energy.

1460 Park Avenue.
Emeryville, CA 94608 USA
www.soltechlighting.com
SOLTECH LLC reserves the right to update all
product data sheets at any time. Consult SOLTECH
marketing specialists for publication updates at
[email protected]
Copyright©2021–2022 SOLTECH LLC,
All Rights Reserved.
