FOCUS 10W 20W Sign Lights
Installation Guide

Introduction

Thank you for purchasing FOCUS Urban Lighting Products.
Important
Please read these instructions before installation to ensure optimum results and longevity of your lights. The solar panel should be charged in full sunlight for 8 to 9 hours before initial first use to provide optimum results.

Features

• Easy installation— no electrical wiring required with integrated design.
• Turns on automatically at night and off during the day.
• The lights include an On/Off switch and a built-in battery.
• Battery can support 5–6 nights with cloudy days.
• When fully charged, lights will operate for up to 5 nights.
• Intelligent power saving mode increases light duration x 1.5 times.
• IP65 water and dust resistant.

How the Solar Panel Works
During the day, the solar panel converts sunlight into electricity to charge the battery. At night, the lights turn ON automatically using the electricity stored in the battery. The performance of the solar lights is dependent on the location of the solar panel and/or weather conditions. Install the solar panel in a sunny position ensuring it receives 6–8 hours of sunlight each day. Reduced sunlight will reduce continuous working hours at night. Please note: during continuous wet & overcast days, lighting time may be reduced as the battery will not be fully charged. The lights may stop working during long rainy periods of more than 5 days & will return to normal function when the sun returns. After an extended period of poor weather restore the battery power by turning the unit off and, fully charging the battery for 8 hours in full sunlight. To test the light during daylight hours, fully cover the solar panel and press the main power button.

Please Note
During continuous rainy or cloudy days, the run time may be reduced as the battery will not be fully charged.

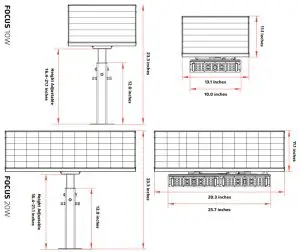

Specification

* The temperature can impact the battery’s charging and normal operation.
* The solar charge time data is based on 77 degrees F ambient temperature with the panel pointed directly at the solar radiation. The standard radiation value is 1000W/m²

Ordering Information Chart

Installation

GROUND MOUNT

01

Secure Mounting
For signage near the ground, the FOCUS can use a drill installation into concrete, to create a  secure, tightly bolted fixture.

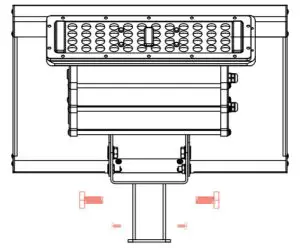

02

Attach light by using scale holes

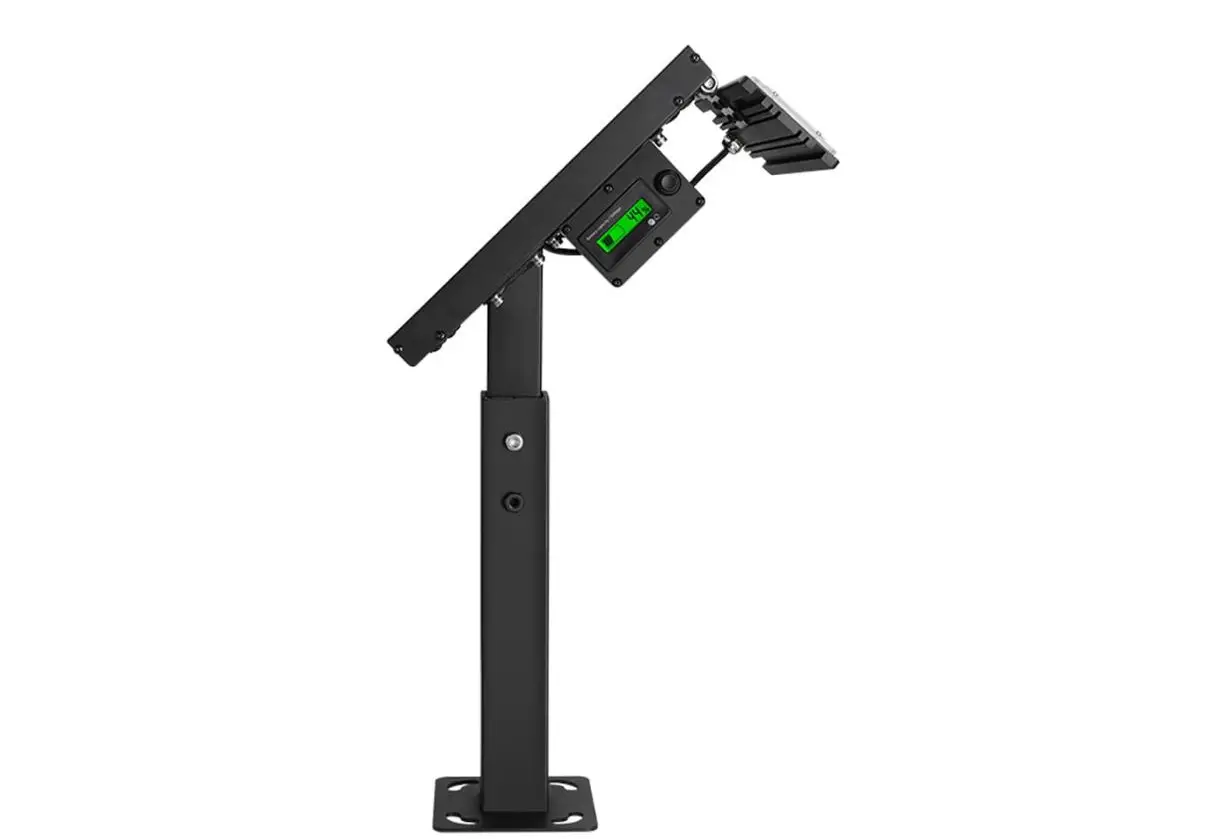

03

THE RIGHT ANGLE
You can adjust the angles of your FOCUS solar light, ensuring that no matter the installation, you can provide a right angle in different weather, signs, or temperature situations.

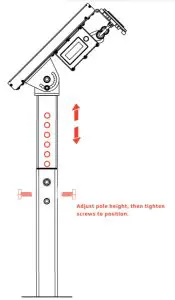

TIP
Use one bolt to set height, then tighten the rest of the screws.

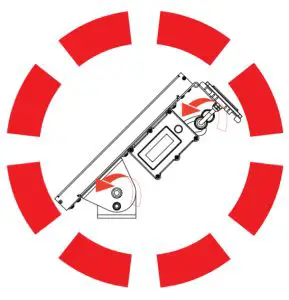

04

Optimize efficiency by rotation Panel and Light

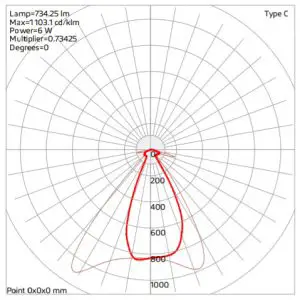

Luminous Distribution

FOCUS 10W

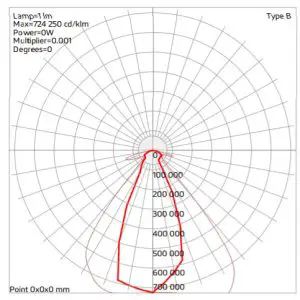

FOCUS 20W

Warranty

FOCUS is covered by a 3-year limited warranty. SOLTECH urban light warrants to the original purchaser that this product is free from defects in materials and workmanship for the period of 3 years from the date of purchase. To obtain warranty service please contact your local distributor or sales rep for further instruction.
