COSMO
Flood Lights
20W 50W
Installation Manual
SOLTECH Provides Advanced LED
Technology Powered With Eco-friendly,
Clean, Solar Energy.
Introduction
Thank you for purchasing COSMO Urban Lighting Products.
Important
Please read these instructions before installation to ensure optimum results and longevity of your lights. The solar panel should be charged in full sunlight for 8 to 9 hours before initial first use to provide optimum results.
Features
- Adjusting the solar panel angle maximizes solar collection & allows snow to slide off.
- The solar floodlight has a separate solar panel to collect energy from the sun.
- (IAP) Intelligent Adaptive Program Battery Control Technology that stays lit all night, even though cloudy or rainy days.
- The light can be used separately from the solar panel for both indoor and outdoor uses
- Use outdoor as a flag pole light, sign light, billboard light, or wall pack
- Use indoor as bus stop & shelter lighting
- 6 operating modes for indoor and outdoor use

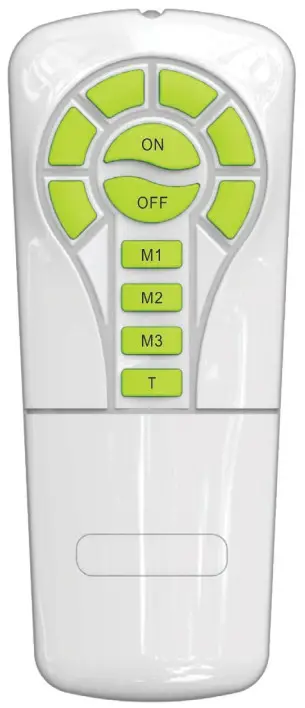

- The remote control can adjust brightness and set the timer
- LED Indicators show 3 levels of power storage
- The easiest way to bring lighting to both indoor and outdoor applications
Activation
Press and hold the button located in the image to the right to activate the light.
The battery indicator light will display as follows:
GREEN : >70% Battery Life
ORANGE: 30%–70% Battery Life
RED: 10%–30% Battery Life
*Please note that you must connect the light to the solar panel before usage, otherwise the light will not turn on. After charging the light in bright sunlight for at least 48 hours before first-time usage, press the Activation button. This will now allow the light to turn on when it senses darkness and turn off when it senses sufficient lighting. The sensor is located within the solar charging panel.
Specification
| LED Nominal Power | 20W | 50W |
| Solar Panel | Mono-Crystalline Silicon 14V 5W | Mono-Crystalline Silicon 14V 10W |
| Lithium-Ion Battery | 28.86WH 3.7V 2.6AH | 57.72WH 3.7V 2.6AH |
| CCT | 4,000K | 4,000K |
| Lumen Output@4,000K | 3,000 | 6,000 |
| CRI | > 70 | > 70 |

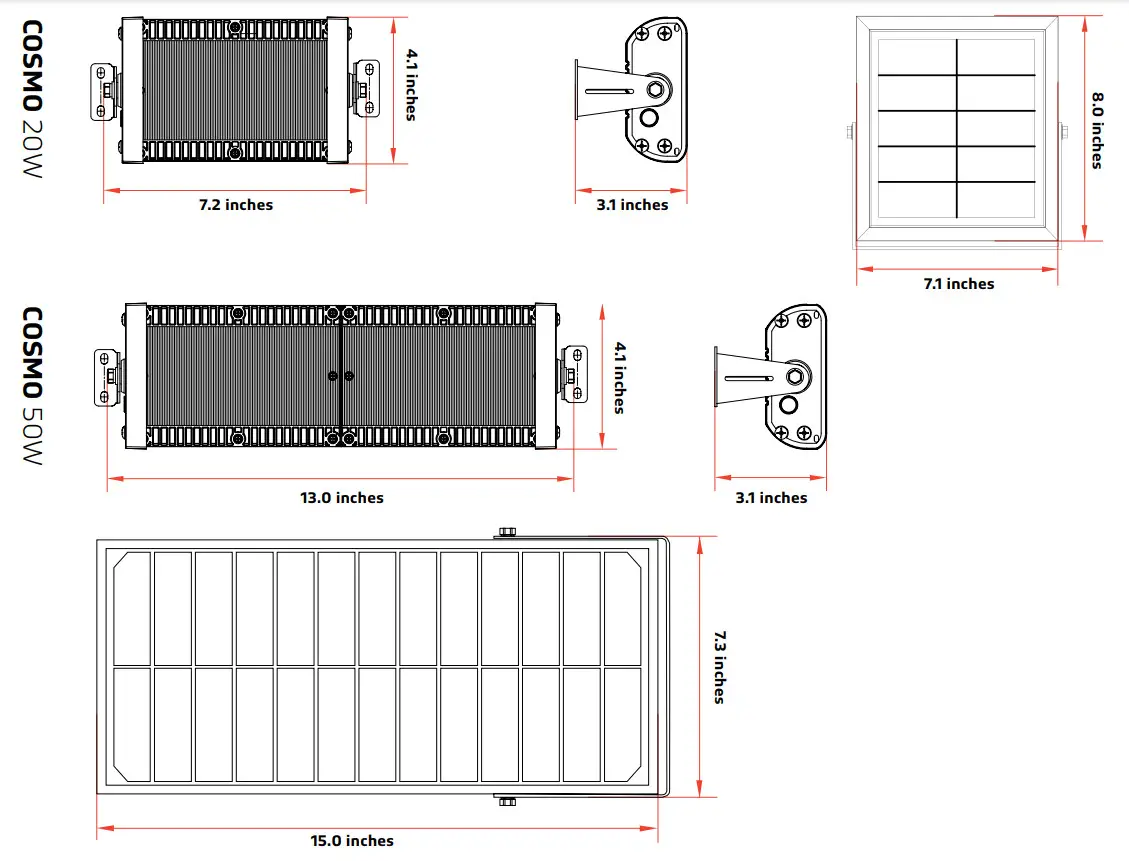

| Product Size | Solar Panel 8.0 X 7.1 Inches Light 7.2 X 4.1 X 3.1 Inches | Solar Panel 15.0 X 7.3 Inches Light 13.0 X 4.1 X3.1 Inches |
| LED | OSRAM 3030 | OSRAM 3030 |
| EPA | 0.67 ft | 1.28 ft |
| Cable Length | 13.1 ft | 13.1 ft |
| Waterproof Rate | IP65 | IP65 |
| Casting | PC & Aluminum | PC & Aluminum |
| Efficiency@4,000K | 150 lm/W | 120 lm/W |
| * Charging Time | 7.5 hrs (1000W/m2) | 7.5 hrs (1000W/m2) |
| Run Time (@Full Power) | 12–14 Hours | 12–14 Hours |
| Operation Mode | 6 Operating Modes | 6 Operating Modes |
| * Operating Temperature | -4 °F to 140 °F | -4 °F to 140 °F |
| * Charging Temperature | 32 °F to 113°F | 32 °F to 113°F |
* The temperature can impact the battery’s charging and normal operation.
* The solar charge time data is based on 77 degrees F ambient temperature with the panel pointed directly at the solar radiation. The standard radiation value is 1000W/m2.
Ordering Information Chart
Installation

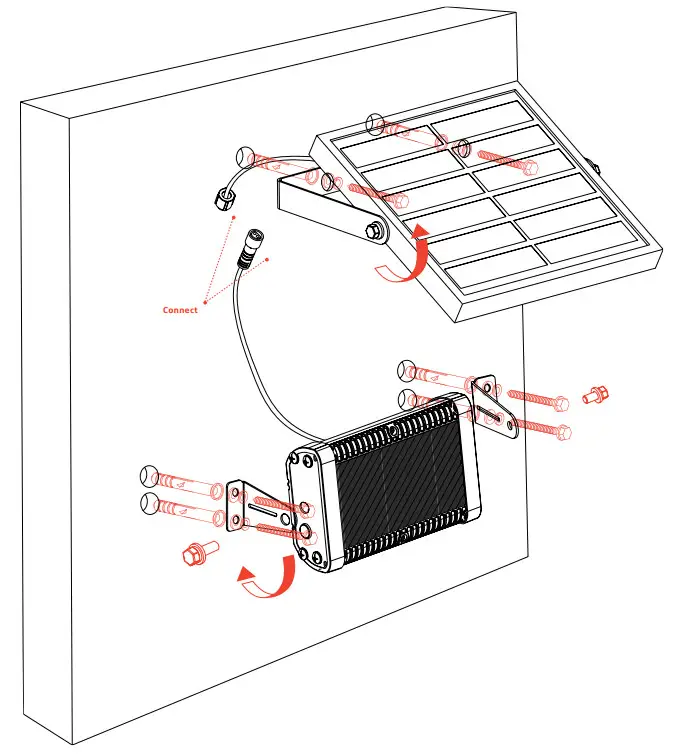

InstallationWALL MOUNT
Package Contents
- Lamp (with bracket)
- Solar Panel
- Bracket for Solar Panel
- Remote Control
- Expansion pillar-hinge (4pcs)
- Small Gasket (4 pcs)
- Screw PA4*25 (4 pcs)
- Large Gasket (2 pcs)
- Screw M5*16 (2 pcs)
1. Attach the bracket on the wall, then screw the solar panel onto the bracket.
2. Screw the bracket onto the fixture housing and mount it onto the wall.
3. Connect the light and solar panel cables.
OPERATING MODES
20W
 | 50% 5Hrs + 10% Till Dawn |
 | 30% 5Hrs + 10% Till Dawn |
 | 20% Till Dawn |
 | 100% 2Hrs + 50% 5Hrs + 10% Till Dawn |
| 100% 2Hrs + 30% 5Hrs + 10% Till Dawn |
| 100% 2Hrs + 20% Till Dawn |
50W
| 50% 5Hrs + 10% Till Dawn |
| 30% 5Hrs + 10% Till Dawn |
| 20% Till Dawn |
| 100% 2Hrs + 50% 5Hrs + 10% Till Dawn |
| 100% 2Hrs + 30% 5Hrs + 10% Till Dawn |
| 100% 2Hrs + 20% Till Dawn |
LIGHTING MODE INDICATOR
Red: M1
Green: M2
Orange: M3
T: Green Light Flashes
BATTERY CAPACITY INDICATOR
Green: >70%
Orange: 30%–70%
Red: 10%–30%
Note: The fixture is in low voltage protection status when the red light flashes.
Warning
- Keep the device away from fire and oil to avoid explosion.
- Severe shock to Solar powered light is to be avoided.
- Do not disassemble the light without assistance from an expert.
Additional Notes
- Prior to activation, allow for at least 48 hours of charging time in bright sunlight, for the battery to be sufficiently charged.
- Install the solar panel where it will receive optimal sunlight without any obstructions. If you are using this solar light in extreme conditions above 131° Fahrenheit or below 32° Fahrenheit, the battery and solar charging panel will functionless optimally as it gets colder.
- When using solar light in less than optimal conditions (cloudy, or not much direct sunlight), it may take longer to fully charge the battery.

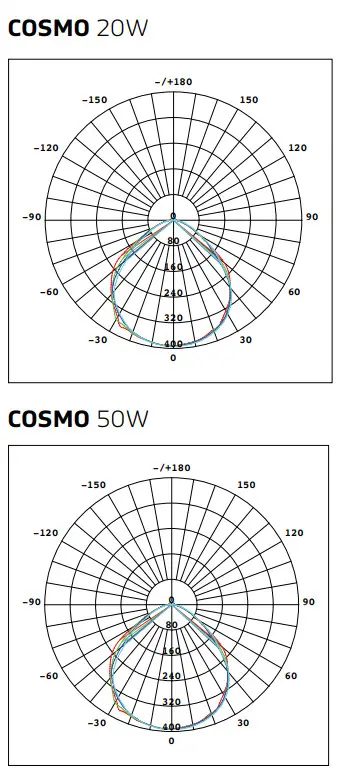

Luminous Distribution
Warranty
COSMO is covered by a 3-year limited warranty. COSMO urban light warrants to the original purchaser that this product is free from defects in materials and workmanship for the period of 3 years from the date of purchase. To obtain warranty service please contact your local distributor or sales rep for further instruction.
SOLTECH Provides Advanced LED Technology Powered With Eco-friendly, Clean, Solar Energy.
1460 Park Avenue.
Emeryville, CA 94608 USA
www.soltechlighting.com
SOLTECH LLC reserves the right to update all product data sheets at any time. Consult SOL TECH marketing specialists for publication updates at [email protected]
Copyright©2021–2022 SOLTECH LLC, All Rights Reserved.
