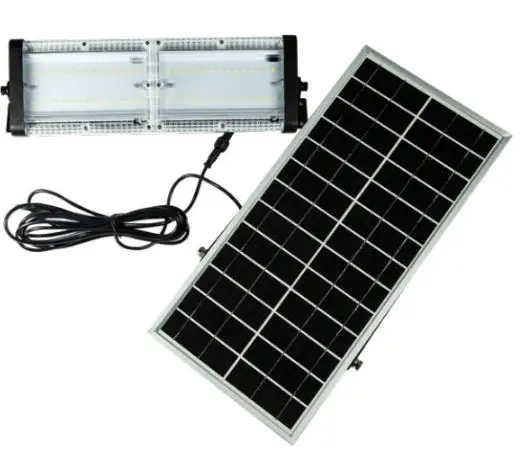

SOLTECH STL-SWL-50-5-WM-BK Cosmo Floodlights 50W

Introduction

Thank you for purchasing COSMO Urban Lighting Products.
Important
Please read these instructions before installation to ensure optimum results and longevity of your lights. The solar panel should be charged in full sunlight for 8 to 9 hours before initial first use to provide optimum results.

Features

• Adjusting the solar panel angle maximizes solar collection & allows snow to slide off.
• The solar flood light has a separate solar panel to collect energy from the sun.
• (IAP) Intelligent Adaptive Program Battery Control Technology that stays lit all night, even through cloudy or rainy days.
• The light can be used separately from the solar panel for both indoor and outdoor uses
• Use outdoor as a flag pole light, sign light, billboard light, or wall pack
• Use indoors as bus stop & shelter lighting
• 6 operating modes for indoor and outdoor use
• Remote control can adjust brightness and set the timer
• LED Indicators show 3 levels of power storage
• The easiest way to bring lighting to both indoor and outdoor applications

Activation

Press and Hold the button located in the image
to the right to activate the light.
The battery indicator light will display as follows:
GREEN : >70% Battery Life
ORANGE: 30%–70% Battery Life
RED: 10%–30% Battery Life
*Please note that you must connect the light to the solar panel before usage, otherwise the light will not turn on. After charging the light in bright sunlight for at least 48 hours before first time usage, press the Activation button. This will now allow the light to turn on when it senses darkness and turns off when it senses sufficient lighting. The sensor is located within the solar charging panel.

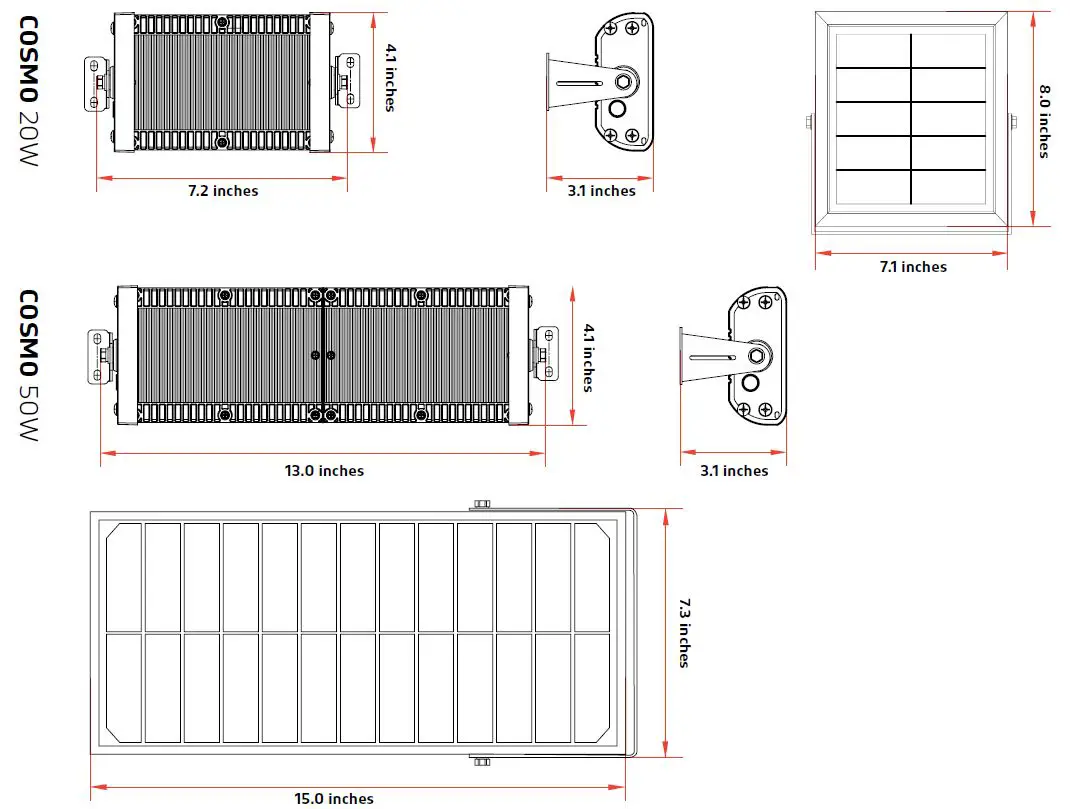

Specification

Installation

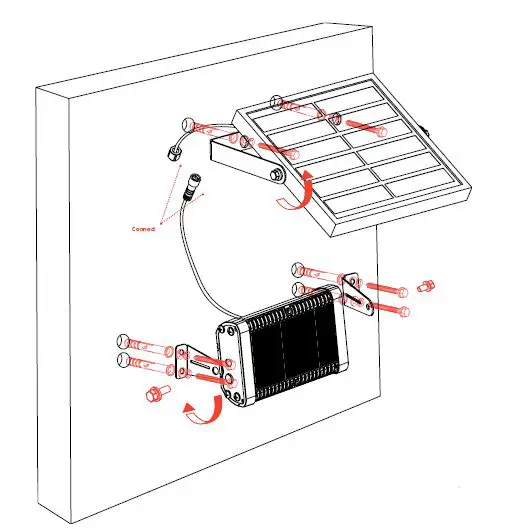

WALL MOUNT

Package Contents

1. Lamp (with bracket)
2. Solar Panel
3. Bracket for Solar Panel
4. Remote Control
5. Expansion pillar-hinge (4pcs)
6. Small Gasket (4 pcs)
7. Screw PA4*25 (4 pcs)
8. Large Gasket (2 pcs)
9. Screw M5*16 (2 pcs)

•  Attach the bracket on the wall, then screw the solar panel onto the bracket.
• Screw the bracket onto the fixture housing and mount it onto the wall.
• Connect the light and solar panel cables.

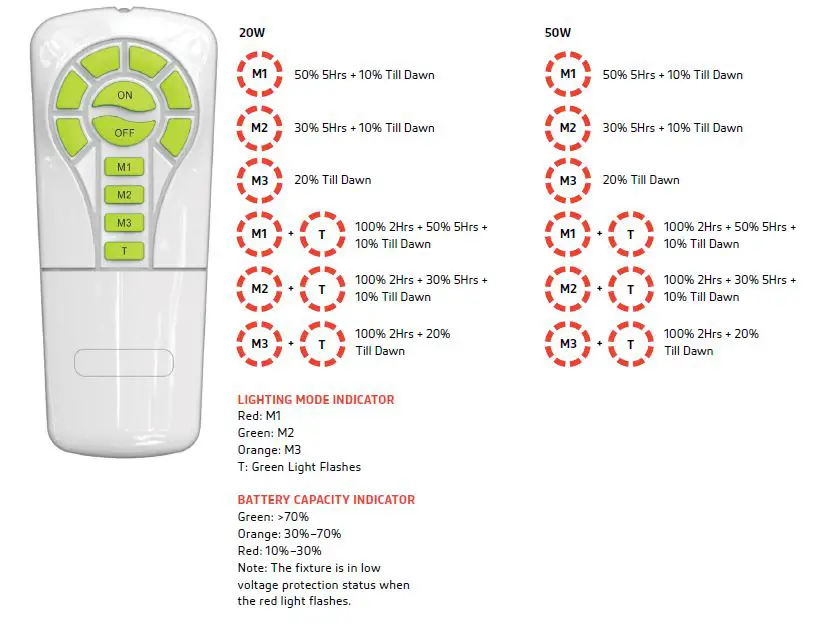

OPERATING MODES

Warning

1. Keep device away from fire and oil to avoid explosion.
2. Severe shock to Solar powered light is to be avoided.
3. Do not disassemble the light without assistance from an expert.

Additional Notes

1. Prior to activation, allow for at least 48 hours of charging time in bright sunlight for the battery to be sufficiently charged.
2. Install the solar panel where it will receive optimal sunlight without any obstructions. If you are using this solar light in extreme conditions above 131° Fahrenheit or below 32° Fahrenheit, the battery an solar charging panel will function optimally as it gets colder.
3. When using solar light in less than optimal conditions (cloudy, or not much direct sunlight), it may take longer to fully charge the battery.

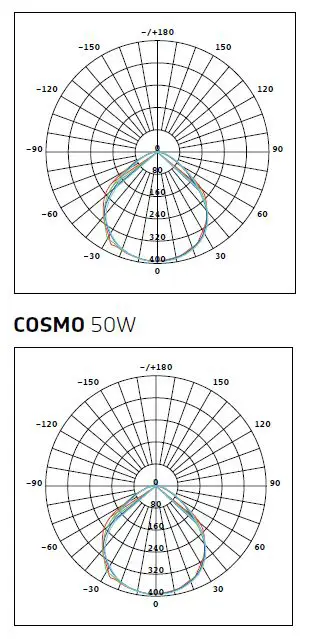

Luminous Distribution

COSMO 20W

Warranty

COSMO is covered by a 3 year limited warranty. SOLTECH urban light warrants to the original purchaser that this product is free from defects in materials and workmanship for the period of 3 years from date of purchase. To obtain
warranty service please contact your local distributor or sales rep for further instruction.
SOLTECH Provides Advanced LEDTechnology Powered With Eco-friendly, Clean, Solar Energy.
