SOLTECH FLUX Multifunctional Flood Light 6W 20W

Introduction

Thank you for purchasing FLUX Multifunctional Flood Light Products.
Important
Please read these instructions before installation to ensure optimum results and longevity of your lights. The solar panel should be charged in full sunlight for 8 to 9 hours before initial first use to provide optimum results.

Features

• Eliminates trenching, cabling, and electricity costs
• Solar panel bracket is 360 degrees adjustable, and the light module is 270 degrees adjustable. Adjusting the solar panel angle maximizes solar energy collection, and allows snow, dirt, and other debris to slide or wash off
• Large battery capacity of 7,680 mAh enables long run times and high light output
• Wall-mounting and post-mounting accessories available
• The latest advanced Li-ion battery lasts 2000+ charging cycles.
• 7 operating modes are programmable via remote control or controls on the fixture
• IP66 rated protection from water, dirt, and dust
• The easiest way to bring lighting to any outdoor application
• Photo and motion sensors, wide angle 360° detection, high sensitivity

Notice & Warning

1. The FLUX will provide optimal performance where there is direct sunshine.
2. Please note the lighting run time depends on sunshine duration and weather.
3. The fixture will turn on automatically at dusk.
4. Built-in intelligent IC provides over-charge, over-discharge, and over-voltage protection.
5. Do not disassemble the fixture.
6. Do not dispose of the battery with household garbage, to avoid explosion.

Please Note
During continuous rainy or cloudy days, run time may be reduced as the battery will not be fully charged.

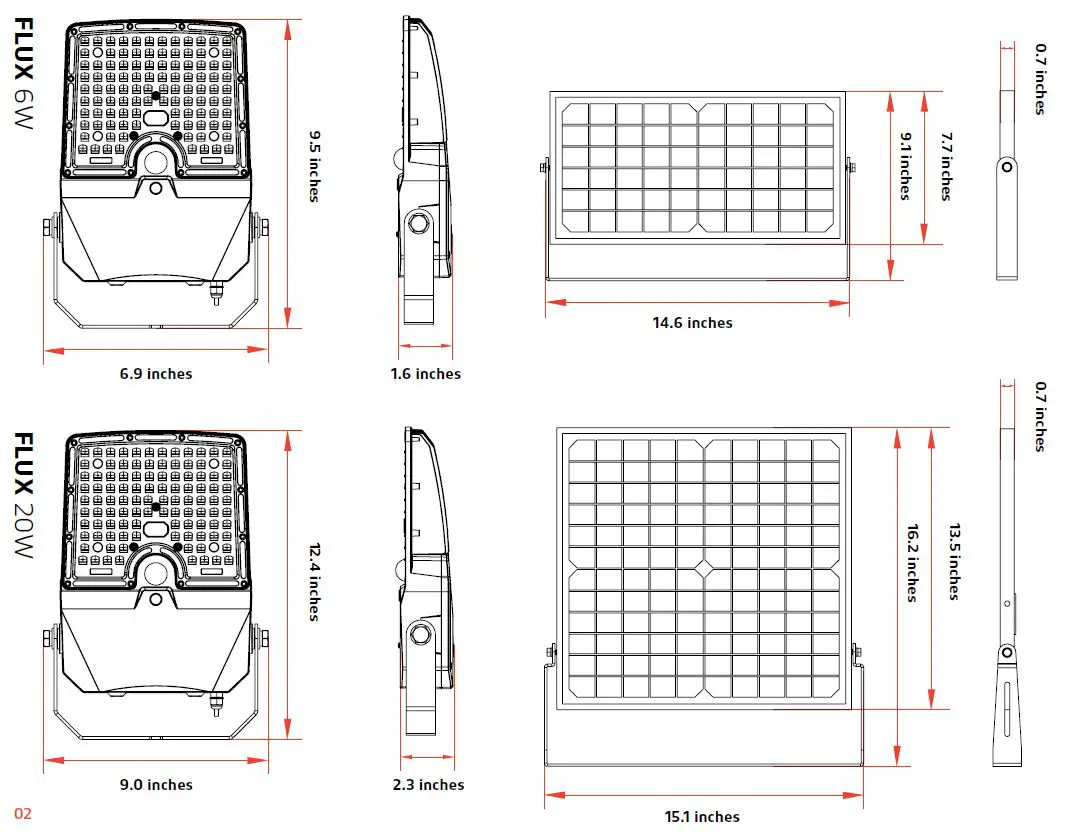

Specification

Ordering Information Chart

• The temperature can impact the battery’s charge and daily operation.
• The solar charge data is base on 77 degree F ambient temperature with the panel facing direct solar radiation. The standard radiation value is 1000W/m2.

Installation

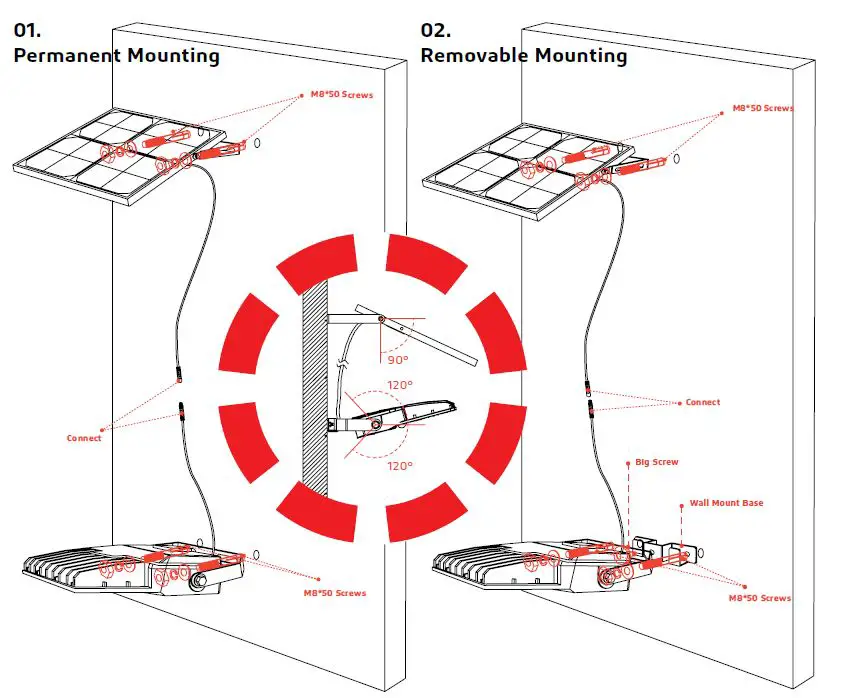

• First mount the solar panel:

1. Drill two holes into the wall surface then use the screw kit to secure the solar panel bracket on the wall.
2. After you secure the solar panel bracket, attach the solar panel to the bracket.
   Then mount the fixture:
3. Drill two holes into the wall surface. Attach the bracket to the fixture then secure to the wall surface with the screw kit.
4. Connect the light and solar panel cables.

• First mount the solar panel:

1. Drill two holes into the wall surface, then use the screw kit to secure the solar panel bracket on the wall.
2. After you secure the solar panel bracket, attach the solar panel to the bracket.
   Then mount the fixture:
3. Drill two holes into the wallsurface, then screw in the wall mount base to the wall.
4. Attach the bracket to the fixture and then hang the bracket on the wall mount base. Lastly, use the big screw nob to hold them together.
5. Connect the light and solar panel cables.

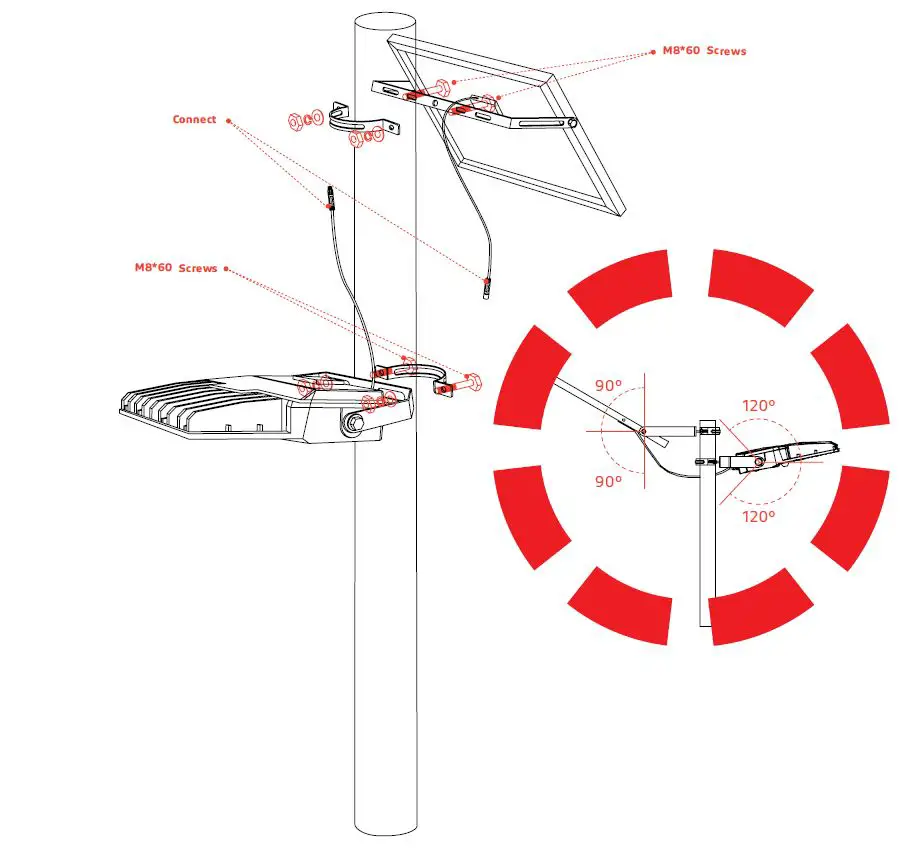

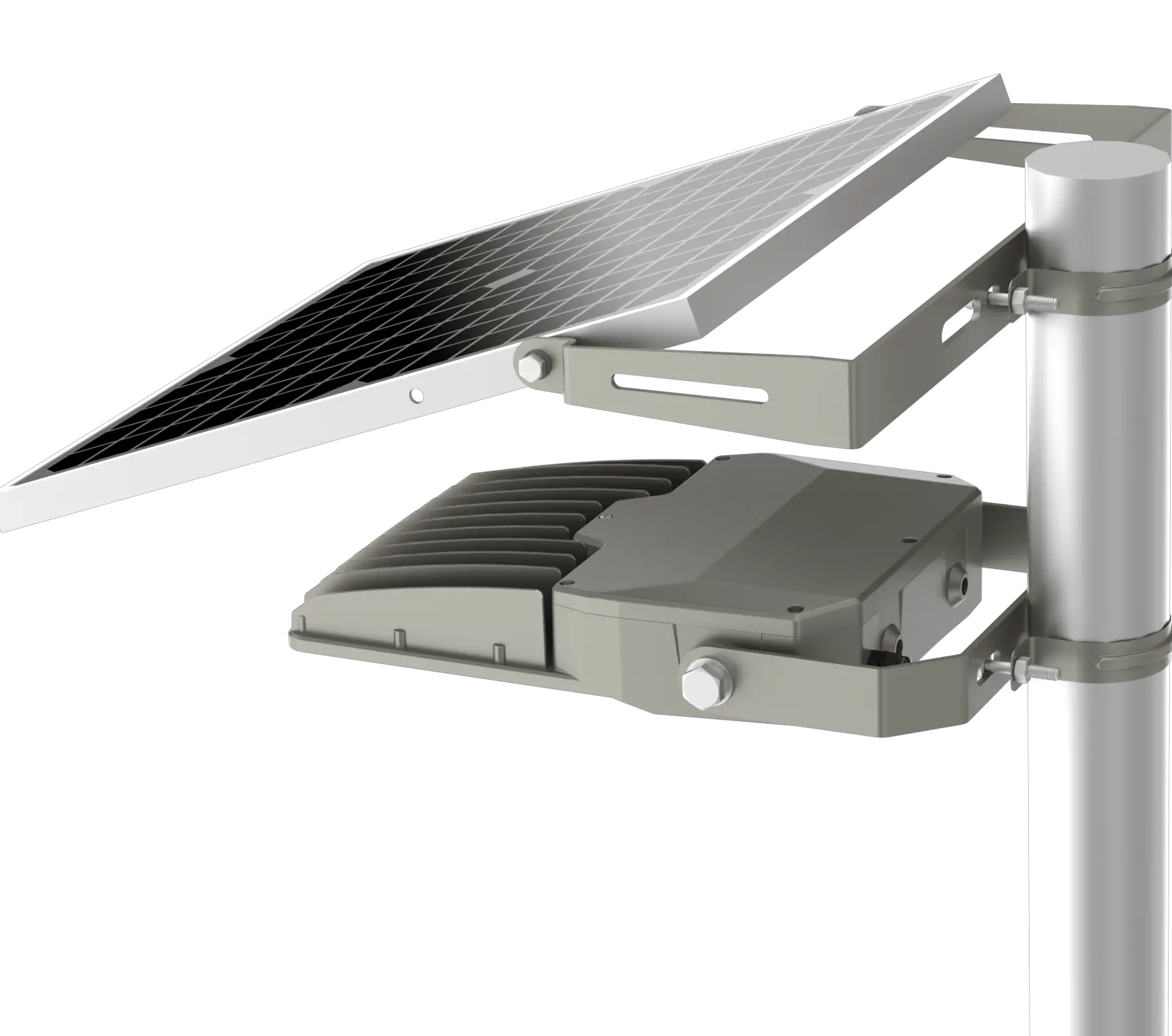

POLE MOUNT

First, mount the solar panel to the pole:

1. Use the screw kit to secure the pole mount base and the solar panel bracket to the pole.
2. Then attach the solar panel to the bracket.
   Then, mount the fixture:
3. Attach the bracket to the fixture.
4. Use the screw kit to secure the fixture bracket to the pole mount base on the pole.
5. Connect the light and solar panel cables.

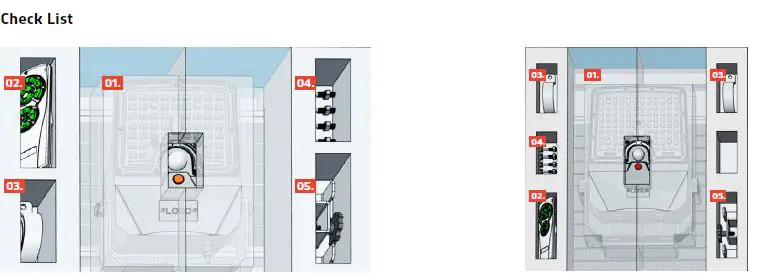

• FLUX 6W

1. Fixture
2. Remote Control
3. Pole Mount
4. Screw Kit (M8*60 X 4, M8*50 X 4)
5. Wall Mount Base

• FLUX 20W

1. Fixture
2. Remote Control
3. Pole Mount
4. Screw Kit (M8*60 X 4, M8*50 X 4)
5. Wall Mount Base

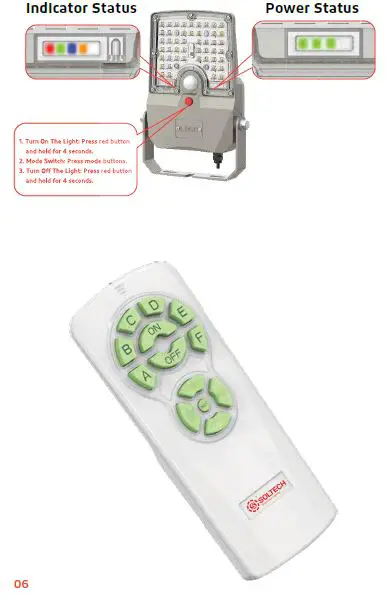

Remote Control

MOTION SENSOR MODES

1. Light on 100% if motion is detected, stand-by period is 60 seconds. Light will turn off when no motion is detected.
2. Light on 100% if motion is detected, stand-by period is 60 seconds. Light will dim down to 5% output when no motion is detected.

3. Light on 100% if motion is detected, stand-by period is 120 seconds. Light will turn off when no motion is detected.

4. Light on 100% if motion is detected, stand-by period is 120 seconds. Light will dim down to 5% output when no motion is detected.

5. Light on 50% for 3 hours (Sensor disabled), then returns to motion sensor mode. If motion detected, stand-by period is 60 seconds. Light will turn off when no motion is detected.
6. Light on 50% for 3 hours (Sensor disabled), then returns to motion sensor mode. If motion detected, stand-by period is 60 seconds. Light will dim down to 5% output when no motion is detected.
7. Light on 50% for 2 hours, then dims down to 20% for 6 hours, then dims down to 10% untill dawn (Sensor disabled).


REMOTE CONTROL INSTRUCTIONS

Additonal Notes

1. The flood lights “Turn On” time depends on the client’s local time (Turn-on Light Level:< 20Lux).
2. A, B, C, D, E and F modes have memory functions. For example, if you press mode A and then press the OFF button, Mode A will still be activated when you turn the light on again until end user resets the mode.

Panel Angle

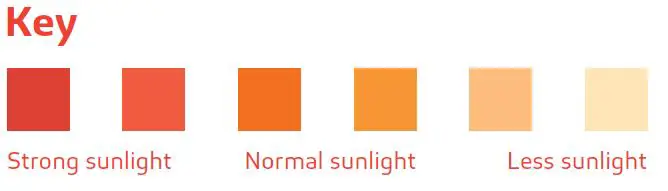

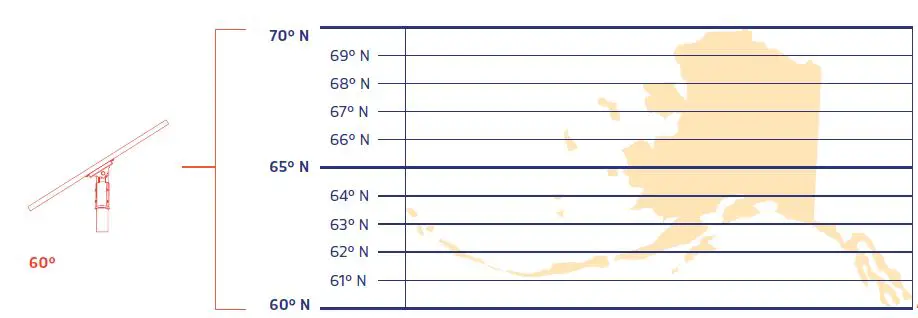

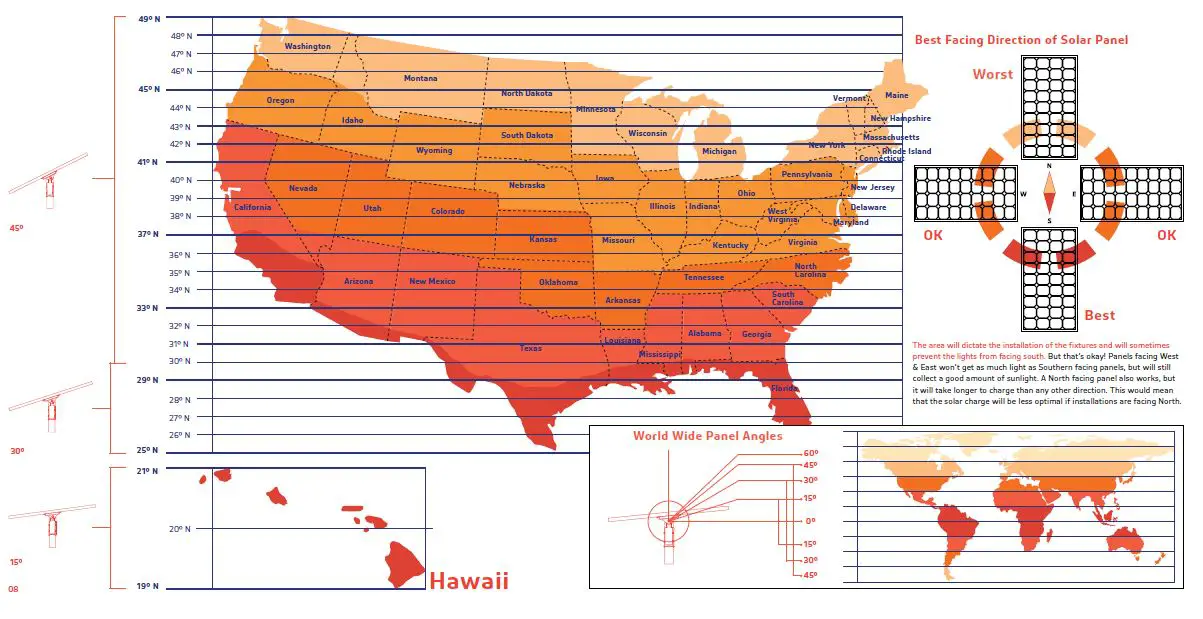

The solar charge in a battery pack won’t last forever. The off-grid system relies on stored solar energy for autonomy. Angling your solar panels properly can boost the power intake of your solar lighting system. You want to angle your solar panels at a tilt based on the area’s latitude.
Tip
You can increase the tilt 15° in the winter or decrease 15° in the summer. In this way you can get the maximum sunlight to recharge the battrey.

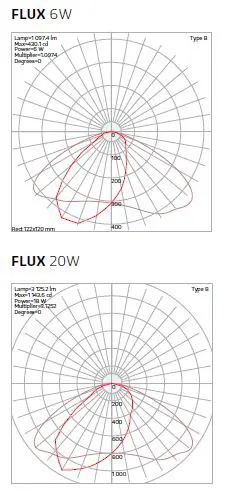

IES Light Distribution

Warranty

FLUX is covered by a 3 year limited warranty. SOLTECH urban light warrants to the original purchaser that this product is free from defects in materials and workmanship for the period of 3 years from date of purchase. To obtain warranty service please contact your local distributor or sales rep for further instruction.

SOLTECH Provides Advanced LED Technology Powered With Eco-friendly, Clean, Solar Energy.

1460 Park Avenue.
Emeryville, CA 94608 USA
www.soltechlighting.com
SOLTECH LLC reserves the right to update all product data sheets at any time. Consult SOLTECH marketing specialists for publication updates at [email protected]
