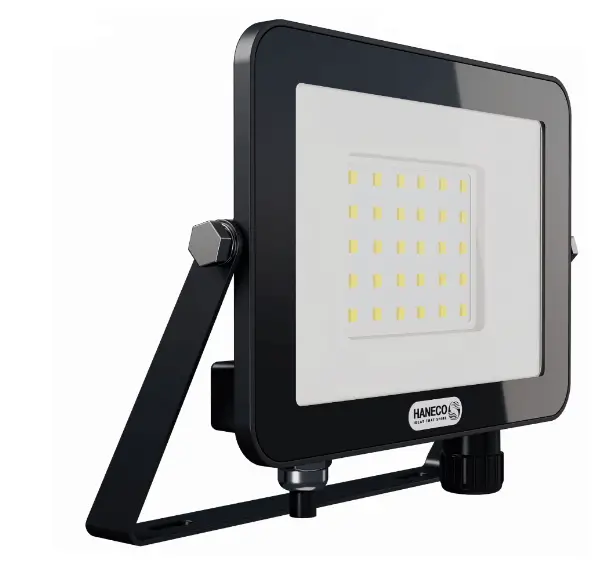

HANECO STAX20W4K LED Floodlight
Thanks for choosing the STAX LED Floodlight. We strongly recommend that you read this manual carefully before installation.
Product Specification
| PRODUCT CODE | POWER | VOLTAGE/ FREQUENCY | PF | IK RATING | IP RATING | OPERATING TEMPERATURE | NET WEIGHT |
| STAX20W4K | 20W |
220-240Vac 50Hz-60Hz |
≥0.9 |
IK08 |
IP66 |
-20 – +45°C | 0.6kg |
| STAX30W4K | 30W | 0.6kg | |||||
| STAX15W30W-TRI | 15W/30W | 0.6kg | |||||
| STAX50W-TRI | 50W | 1.2kg | |||||
| STAX100W4K | 100W | 1.8kg | |||||
| STAX150W4K | 150W | 2.4kg | |||||
| STAX200W4K | 200W | 2.8kg |
Dimensions for installation

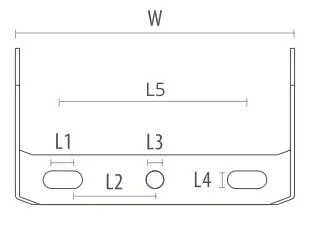

Bracket Dimensions:
| 20W | 30W | 15/30W | 50W | 100W | 150W | 200W | |
| L1 | 10 mm | 10 mm | 11.7 mm | 10 mm | 25 mm | 25 mm | 25 mm |
| L2 | 50 mm | 50 mm | 34 mm | 50 mm | 70 mm | 100 mm | 100 mm |
| L3 | 5.5 mm | 5.5 mm | 5.3 mm | 5.5 mm | 11 mm | 11 mm | 11 mm |
| L4 | 5.5 mm | 5.5 mm | 5.3 mm | 5.5 mm | 11 mm | 11 mm | 11 mm |
| L5 | 110 mm | 110 mm | 79.7 mm | 110 mm | 165 mm | 225 mm | 225 mm |
| W | 155 mm | 155 mm | 132 mm | 216 mm | 276 mm | 317 mm | 357 mm |
Product Dimension:
| 20W | 30W | 15/30W | 50W | 100W | 150W | 200W | |
| L | 186.88 mm | 186.88 mm | 178.5 mm | 194.04 mm | 233.21 mm | 283.62 mm | 316.83 mm |
| W | 164.9 mm | 164.9 mm | 140 mm | 232.9 mm | 289.16 mm | 330.16 mm | 376.16 mm |
| D | 18.47 mm | 18.47 mm | 26 mm | 44.42 mm | 39.42 mm | 39.42 mm | 39.42 mm |
Installation
- Ensure the mains supply is switched off before commencing installation.

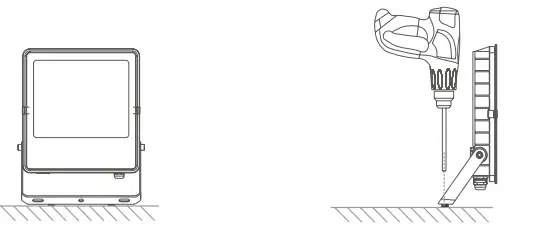

- Mark the wall with an appropriate fixing position and install the bracket with appropriately rated fixing hardware.

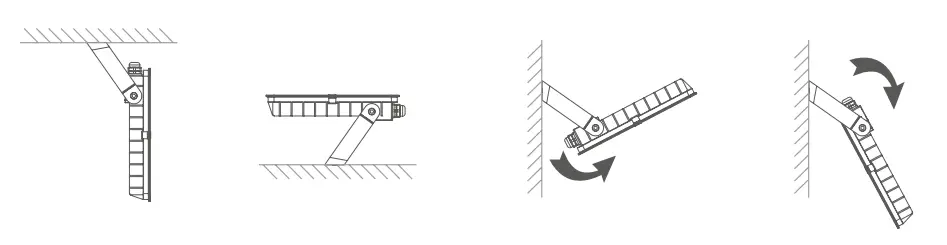

- Adjust the luminaire to the desired angle.

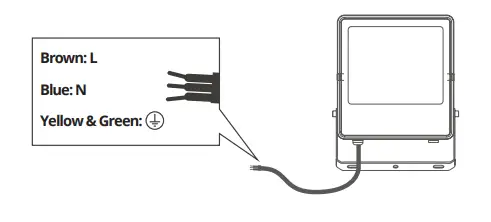

- Connect luminaire to 240V main supply as per diagram.
WARNING
- The luminaire must be installed by a professional electrician.
- Switch power off when wiring the luminaire.
- Ensure input voltage conforms to the voltage range of the product.
- Ensure wires are securely connected.
- Before switching on, ensure that all the wiring is correct.
- The warranty is void if the product is not installed according to the instructions.
Product Code:
- STAX20W4K
- STAX30W4K
- STAX15W30W-TRI
- STAX50W-TRI
- STAX100W4K
- STAX150W4K
- STAX200W4K
For more information
www.haneco.com.au
1300 001 LED
