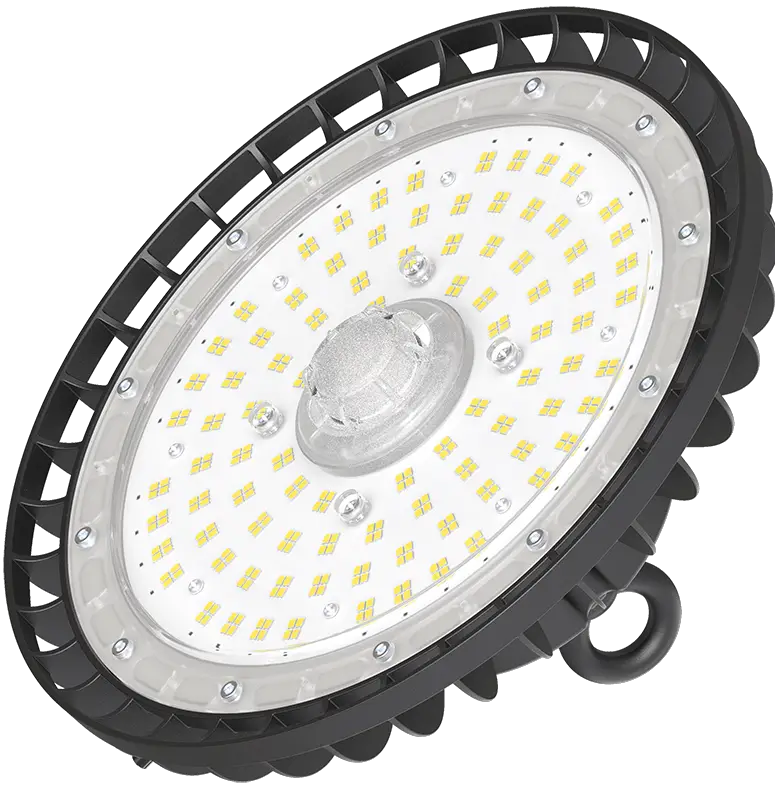

HANECO SKYLUX GEN II LED Highbay Black 5000k

Thanks for choosing our SKYLUX Generation II products.
We strongly recommend that you read this manual carefully before installation.

Product Specification

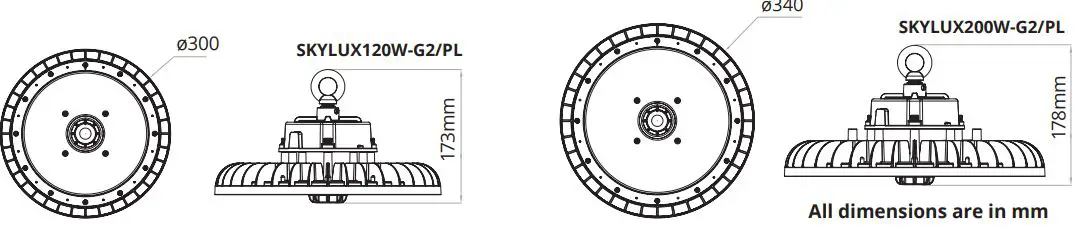

Product Dimension

Installation

1. Ensure main supply is switched off before commencing installation.
2. Select desired power via dip switchable on the side.
3. Screw the eye bolt on top of the luminaire.
4. Install optional accessories and desired settings prior luminaire installation. (See table below for available accessories)

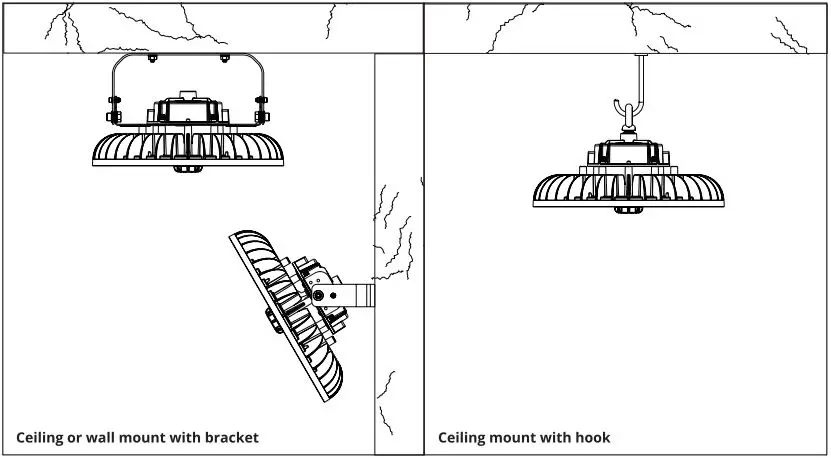

5. Install the luminaire onto desired location.
6. Connect power supply using the plug provided. Connect 0-10V dimmable cables to the dimming system if required.

SKYLUX GEN II

Accessories (Not included)

WARNING

• Installation must be carried out by a licenced electrician and in accordance with these instructions and relevant Australian standards and local regulations.
• Ensure wires are securely connected.
• Before switching on, ensure all wires are correctly connected.
• The warranty is void if product is not installed according to the instructions.

Note: Product technical information and specification may change over time without prior notice. For latest information, please contact our customer service or visit our
website www.haneco.com.au

Product Code:

• SKYLUX120W-G2
• SKYLUX200W-G2
• SKYLUX120W-PL
• SKYLUX200W-PL

For more information www.haneco.com.au 1300 001 LED (533)
