MARTEC Lighting TLKD34510 Kobi 10W LED Downlight
KOBI Installation Guide
We strongly recommend that you read this manual carefully before installation.
Models Parameters
- TLKD34510WD 10W Tricolour LED Downlight Surface Mounted White
- TLKD34510MD 10W Tricolour LED Downlight Surface Mounted Matt Black
Application
- Residential
- Apartment
- Office

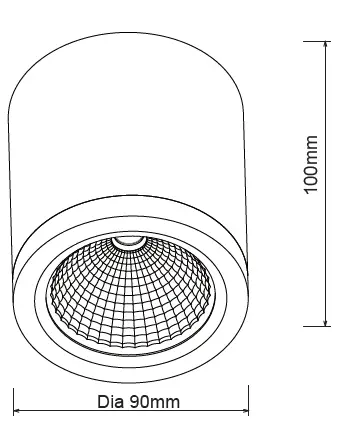

Dimensions
Installation Instructions

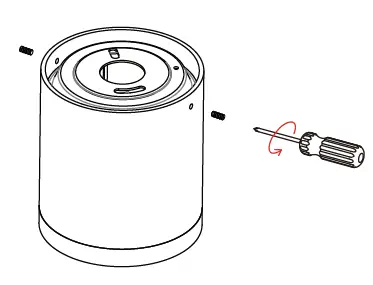

- Remove 2 screws from the side of the fitting (fg.1).

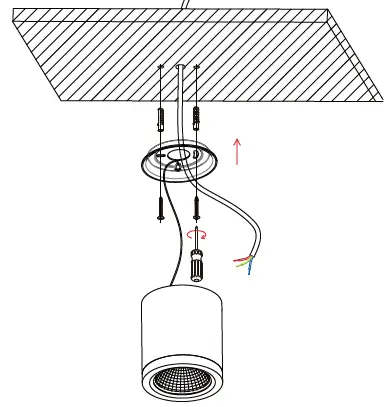

- Fix the installation plate to the ceiling using the mounting hardware provided. (See Fg.2)

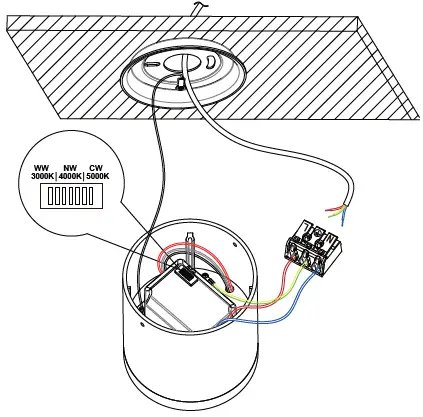

- Connect mains wiring to quick connector. Select desired colour temperature via switch. (See Fg.3)

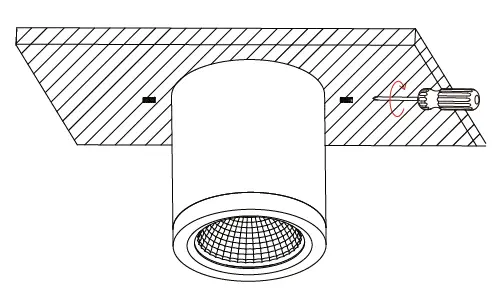

- Fasten with 2 screws on the sides of the fitting.
- Turn the power on. (See Fg.5)
NB: Fitting supplied with clear to do this before installation. Simply unscrew the front ring of the main housing. Fit the frosted main housing. E: [email protected] | P: 02 8778 7500 www.martecaustralia.com.au
Martec® Australia | Life, enhanced®
