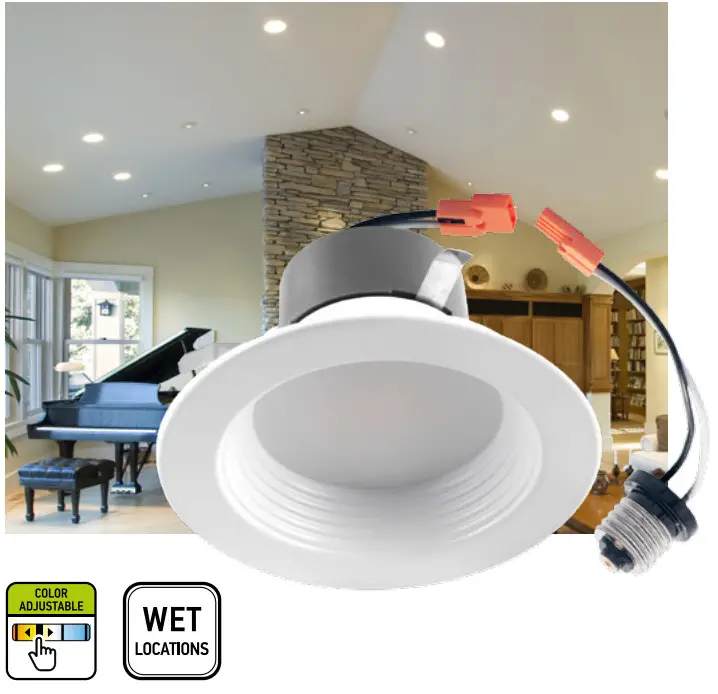

LED ROUND DOWNLIGHT RETROFIT KIT

DESIGN & OPTIONS – LED ROUND DOWNLIGHT RETROFIT KIT has a classic low-profile design with a baffle trim, allowing you to have a stylish look with efficient lighting. On the back of each retrofit is a dip switch letting you choose either a 2700K, 3000K, 4000K, or 5000K color temperature. Smooth dimming capabilities ranging from 100% to 10% with modern LED dimmers let you control the look and feel of your space. The 105° beam angle and CRI90+ will leave no dark spots on the floor.
INSTALLATION – Installation is easy with universal TP24 or E26 connectors. It has everything you need in one set. Preinstalled spring clips are the best solution for quick and easy installation. This fixture is suitable for most new construction, remodeling, and shallow recessed lighting housings. Refer to installation instructions for detailed steps.
APPLICATION – Install the retrofit fixture to the ceiling for bright light in your family room, bedroom, hallway, or any other common area in your living space. It is suitable for wet locations, making it perfect for kitchen and bathroom lighting as well. You could also use it as a complimentary light to an existing ceiling light.
ENERGY SAVING & EFFICIENCY – Replacing an incandescent fixture with LED ROUND DOWNLIGHT RETROFIT KIT can save you 8 times as much on your current energy costs. With a lifespan of 50,000 hours, these fixtures are made to last decades under normal operation! This fixture will save you a significant amount of money in its lifetime.
CERTIFICATION & WARRANTY – Buy with confidence: ASD provides a 5-year warranty along with ETL and ENERGY STAR certifications to guarantee top-quality products and safety! Top US certifications allow participation in rebates; please check the rebate programs available in your state.

Catalog number
Notes
Type

PRODUCT LEGEND:

Family	Size	Dimmable	Watts	CCT	Finish
ASD-LRKR	X	X	XX	XX	XX
LED Round Downlight Retrofit Kit	4 = 4 inch	D = Dimmable	10 = 10 W	CC = 2,700/3,000/4,000/5,000 K	WH = White
	6 = 5-6 inch		15 = 15 W

LED ROUND DOWNLIGHT RETROFIT KIT:

Model	Size	Watts	Voltage	Dimmable	CCT	Lumens	Dimensions (LxH)	UPC
ASD-LRKR-4D10CC-WH	4 inch	10 W	120 V	TRIAC	2,700/3,000/4,000/5,000 K	650 lm	5″ x 2 3/4″	810050734776
ASD-LRKR-6D15CC-WH	5-6 inch	15 W	120 V	TRIAC	2,700/3,000/4,000/5,000 K	1000 lm	7 3/8″ x 3″	810050734783

ORDERING INFORMATION:

Model	Pcs in middle box	Middlebox Size	Middlebox Weight	GTIN 14 for Middlebox	Pcs. per Carton	Carton Size	Carton Weight	GTIN 14 for Carton
ASD-LRKR-4D10CC-WH	6	10.8″ x 9.4″ x 5.6″	3.3 lb	10810050734773	12	19.5″ x 11.4″ x 6.3″	7.3 lb	20810050734770
ASD-LRKR-6D15CC-WH	6	15.9″ x 9.8″ x 8.2″	5.7 lb	10810050734780	12	20.5″ x 16.5″ x 9.0″	12.6 lb	20810050734787

PRODUCT SPECIFICATIONS:

Construction & Materials							Electrical System
Housing			Iron				Input Voltage	120 V
Lens			Acrylic				Max input current	ASD-LRKR-4D10CC-WH	0.1 A
Finish Color			White					ASD-LRKR-6D15CC-WH	0.125 A
Weight			ASD-LRKR-4D10CC-WH		0.4 lb (0.2 kg)		Inrush current (Action time)	ASD-LRKR-4D10CC-WH	0.1 A ( 0.18 S)
			ASD-LRKR-6D15CC-WH		0.8 lb (0.4 kg)			ASD-LRKR-6D15CC-WH	0.125 A ( 0.18 S)
Environmental System							AC input range	min 108 V max 132 V
Work Environment			Suitable for Wet Locations				Off State Power	0 W
Operating Temperature			-4℉ to 104℉ (-20℃ to 40℃)				Power Consumption	ASD-LRKR-4D10CC-WH	10 W
L-70 Life			> 50,000 hrs					ASD-LRKR-6D15CC-WH	15 W
Optical System							Power Factor	> 0.9
Luminous Flux			ASD-LRKR-4D10CC-WH		650 lm		Output voltage	ASD-LRKR-4D10CC-WH	60 V
			ASD-LRKR-6D15CC-WH		1000 lm			ASD-LRKR-6D15CC-WH	90 V
Color Temperature			2,700/3,000/4,000/5,000 K				Output current	150 mA
CRI			> 90				LED Driver Class	Non-isolated
Dimming range
10-100%
Dimming compatible controls
Brand	Lutron					Leviton
Models	DVELV-300P		CTELV-303P-WH	SELV-300P		6674
Regular and Voluntary Certifications
5-year limited warranty		cETLus certified 4008281			Energy Star listed

INSTALLATION GUIDE
IMPORTANT SAFETY INFORMATION:
Please read all the instructions below before installation.

Make sure that the supply voltage corresponds to the rated product voltage.
The product must be installed by a qualified electrician in accordance with National Electrical Code and corresponding local codes.
If the product is damaged, do not use it.

WARNING
RISK OF PERSONAL INJURY – READ and follow all WARNINGS and installation instructions.
Keep or give to the owner for future reference.
Risk of cuts: Wear gloves to prevent cuts or abrasions when removing from the carton, handling, installing, and maintaining this product.
Risk of electric shock: This product must be installed in accordance with the applicable installation code by a person familiar with the construction and operation of the product and the hazards involved.
Risk of Fire: Minimum 194°F supply conductors. Consult a qualified electrician to ensure the correct branch circuit conductor.
ASD® assumes no responsibility for claims arising out of improper or careless Installation or handling of this product.
For recessed installation: Access above ceiling required. Inherently protected.
Vapor barrier must be suitable for 194°F.

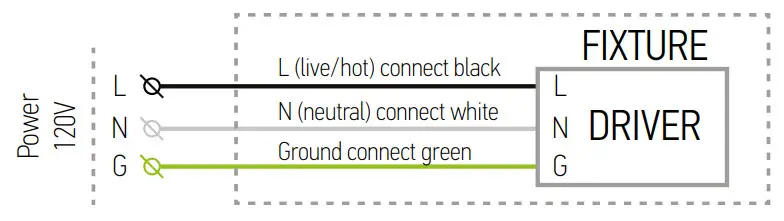

ELECTRICAL SCHEMATIC DIAGRAM:

PACKAGE CONTENTS:

Description	Q-ty
LED Round Downlight Retrofit Kit	1
Adapter TP24-E26 (A)	1
Box	1
Cut sheet	2

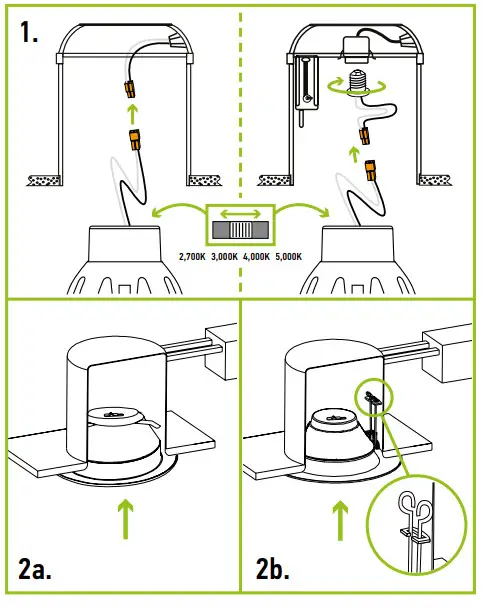

INSTALLATION STEPS:

Turn off the main power and remove the existing trim and bulb from the Can. Use one of the options to connect the terminals. Choose needed color temperature by adjusting switch position.

2a. 4″ Downlight
Carefully rotate the clips counterclockwise until the clips are fully-deployed. Install fixture up into the recessed housing firmly until trim ring is flush with the ceiling.
2b. 6″ Downlight
Squeeze the two sets of spring clip arms up toward each other. Route wires into the Can and hook both springs into the arm hook on the inside of the Can. Release springs and push the fixture up into the Can until sealed.
