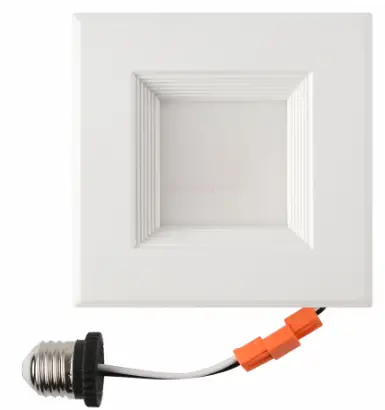

ASD-LDLRK-1BS-4D930-WH LED Square Downlight Retrofit Kit
INSTALLATION GUIDE
IMPORTANT SAFETY INFORMATION:
Please read all the instructions below before installation.
- Make sure that the supply voltage corresponds to the rated product voltage.
- The product must be installed by a qualified electrician in accordance with the National Electrical Code and corresponding local codes.
- If the product is damaged, do not use it
WARNING
RISK OF PERSONAL INJURY – READ and follow all WARNINGS and installation instructions.
- Keep or give to the owner for future reference.
- Risk of cuts: Wear gloves to prevent cuts or abrasions when removing from carton, handling, installing, and maintaining this product
- Risk of electric shock: This product must be installed in accordance with the applicable installation code by a person familiar with the construction and operation of the product and the hazards involved.
- Risk of Fire: Minimum 194 °F supply conductors. Consult a qualified electrician to ensure correct branch circuit conductor. ASD® assumes no responsibility for claims arising out of improper or careless Installation or handling of this product For recessed installation: Access above ceiling required. Inherently protected. Vapor barrier must be suitable for 194 °F.

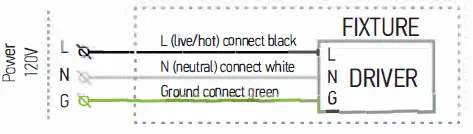

ELECTRICAL SCHEMATIC DIAGRAM:

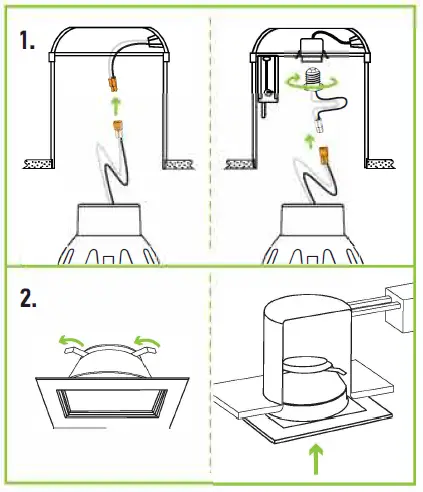

INSTALLATION STEPS:
- Turn off the main power and remove the existing trim and bulb from the Can. Use one of the options to connect the terminals.
- Adjust springs to open position. Carefully route wires into the Can and gentle push fixture up into fhe Can until sealed.
- Adjust springs to open position. Carefully route wires into the Can and gentle push fixture up into fhe Can until sealed.
DESIGN & OPTIONS
LED SQUARE DDWNLIGHT RETROFIT KIT has a classic. low-profile design with a baffle trim that allows you to have a stylish look with efficient lighting. Smooth dimming capabilities ranging from 100% to 10% with modern LED dimmers allow you to control the look and feel of your space. You can choose either 3000K, 4000K or 5000K color temperature. The 120° beam angle will leave no dark spots on the surface of your floor.
INSTALLATION
Easy installation with universal TP24 or E26 connectors. It has everything you need in one set Preinstalled spring clips are the best solution for quick and easy installation. This fixture is suitable for most new construction. remodeling, and shallow recessed lighting housings. Refer to install instructions for detailed steps.
APPLICATION
Install the retrofit fixture to the ceiling for bright light in your family room, bedroom, hallways, corridors, or any other common areas in your living space. It is suitable for Wet locations. making it perfect for kitchen and bathroom lighting as well. You could also use it as a complimentary light to an existing ceiling light
ENERGY SAVINGS & EFFICIENCY
Replacing an incandescent fixture with LED SQUARE DOWN LIGHT RETROFIT KIT can save you 8 times as much on your current energy costs. With a lifespan of 50,000 hours. these fixtures are made to last decades under normal operationl This fixture will save you a significant amount of money in its lifetime.
CERTIFICATION & WARRANTY
Buy with confidence:ASD provides a 5-year warranty along with ETL and ENERGY STAR certifications to guarantee top quality products and safety Top US certifications allow participation in rebates; please check the rebate programs available in your state.
PRODUCT LEGEND:
| Family | Model | Trim | Shape | Size | Dimmable | Watts | CCT | Rnish | |||
| ASD-LDLRK | I | 1 | B | I | s | X | X | xx | xx | xx | |
| LED Square Downlight Retrofit Kit | I | Baffle | I | Square | 4 = 4 inch | D = Dimmable | 9= 9W | 30 = 3,000 K | WH=White | ||
| 6 =6 inch | 12= 12W | 40 = 4,000 K | |||||||||
| 50 = 5,000 K | |||||||||||
LED SQUARE DOWNLIGHT RETROFIT KIT:
| Model | Size | Watts | Voltage | Dimmable | CCT | Lumens | Dimensions ClxWxHl |
| ASD-LDLRK-1BS- 40930-WH | 4 inch | 9W | 120 V | TRIAC | 3,000 K | 600 Im | 5′ X 5′ X 2′ |
| ASD-LDLRK-1BS- 40940-WH | 4 inch | 9W | 120 V | TRIAC | 4,000 K | 600 Im | 5′ X 5′ X 2′ |
| ASD-LDLRK-1BS- 40950-WH | 4 inch | 9W | 120 V | TRIAC | 5,000 K | 600 Im | 5′ X 5′ X 2′ |
| ASD-LDLRK-IBS-601230-WH | 6 inch | 12W | 120 V | TRIAC | 3,000 K | 900 Im | 7 3/8′ X 7 3/8′ X 2 3/8′ |
| ASD-LDLRK-IBS-601240-WH | 6 inch | 12W | 120 V | TRIAC | 4,000 K | 950 Im | 7 3/8′ X 7 3/8′ X 2 3/8′ |
| ASD-LDLRK-IBS-601250-WH | 6 inch | 12W | 120 V | TRIAC | 5,000 K | 950 Im | 7 3/8′ X 7 3/8′ X 2 3/8′ |
ORDERING INFORMATION:
| Model UPC Pts. oer Carton Carton Size Carton Weight GTIN 14 | |||||
| ASD-LDLRK-1BS- 40930-WH | 810050731720 | 12 | 13′ X 11′ X 5. 9′ | 5.3 lb | 30810050731721 |
| ASD-LDLRK-1BS- 40940-WH | 810050731737 | 12 | 13′ X 11′ X 5. 9′ | 5.3 lb | 30810050731738 |
| ASD-LDLRK-1BS- 40950-WH | 810050731744 | 12 | 13′ X 11′ X 5. 9′ | 5.3 lb | 30810050731745 |
| ASD-LDLRK- IBS-601230-WH | 810050731751 | 12 | 15.9’x15.6’x8.1′ | 10.4 lb | 30810050731752 |
| ASD-LDLRK- IBS-601240-WH | 810050731768 | 12 | 159’x15.6’x8.1′ | 10.4 lb | 30810050731769 |
| ASD-LDLRK- IBS-601250-WH | 810050731775 | 12 | 15.9’x15.6’x8.1′ | 10.4 lb | 30810050731776 |
PRODUCT SPECIFICATIONS:
| Housing Aluminum, PP | ||
| Lens Acrylic | ||
| Finish Color White | ||
|
Weight | ASD-LDLRK-1BS-4D930-WH | 03 lb(0 1 kg) |
| ASD-LDLRK-1BS-4D940-WH | ||
| ASD-LDLRK-1BS-4D950-WH | ||
| ASD-LDLRK-1BS-6Dl 230-WH | 0.4 lb(02kg) | |
| ASD-LDLRK-1BS-6D1240-WH | ||
| ASD-LDLRK-1BS-6Dl 250-WH | ||
|
Luminous Flux | ASD-LDLRK-1BS-4D930-WH ASD-LDLRK-1BS-4D940-WH 600 Im ASD-LDLRK-1BS-4D950-WH |
| ASD-LDLRK-1BS-6D1230-WH 900 Im | |
| ASD-LDLRK-1BS-6D1240-WH 950 Im ASD-LDLRK-1BS-6Dl 250-WH | |
| Color Temperature 3,000 K; 4,000 K; 5,000 K | |
| CRI > 90 | |
| Input Voltage | 120 V |
|
Max input current | ASD-LDLRK-1BS-4D930-WH ASD-LDLRK-1BS-4D940-WH 0.09 A ASD-LDLRK-1BS-4D950-WH |
| ASD-LDLRK-1BS-601230-WH ASD-LDLRK-1BS-6D1240-WH 0.12 A ASD-LDLRK-1BS-6D1250-WH | |
| Inrush current(Action time) 02A(0.01 S) | |
| AC input range | min 100 V max 135 V |
| Off State Power | ow |
|
Power Consumption | ASD-LDLRK-1BS-4D930-WH ASD-LDLRK-1BS-4D940-WH 9W ASD-LDLRK-1BS-4D950-WH |
| ASD-LDLRK-1BS-6D1230-WH ASD-LDLRK-1BS-601240-WH 12 W ASD-LDLRK-1BS-6D1250-WH | |
| Power Factor | > 0.9 |
| Output voltage | 132 V |
| LED Driver Class | DOB |
| Brand Lutron Leviton | |||
| Models | DVCL-153P-WH CT-603PG | S-600P 6672 | 6633-P |
| MACL 153M-WH S-603P | DV 600P 1F4205 | 1E1205 | |
| DVLV-603P-IV DVW-603PGH-WH | 6631 | 6674 | |
| CTCL-153PDH SLV-600P-WH | OB33K1 | ||
PACKAGE CONTENTS:
| LED Square Downlight Retrofit Kit | 1 |
| Adapter TP24-E26(A) | 1 |
| Box | 1 |
| Cut sheet | 2 |
