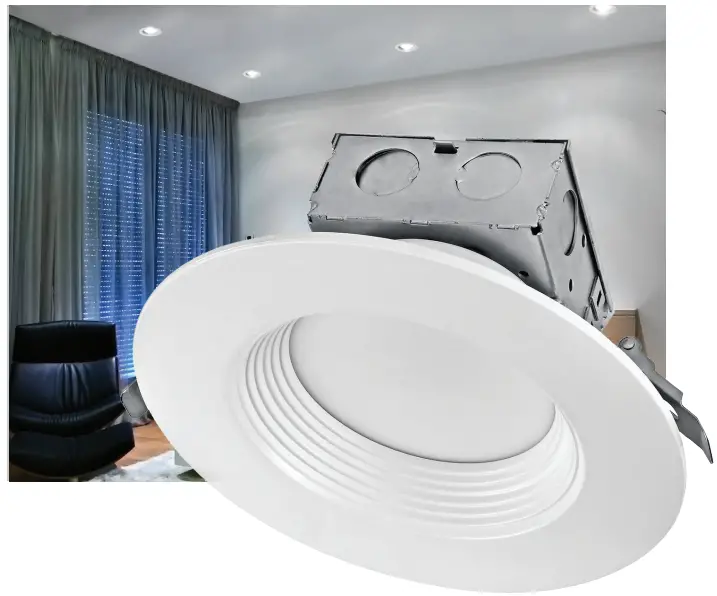

LED ROUND DOWNLIGHT with Junction box
DESIGN & OPTIONS – LED ROUND DOWNLIGHT WITH JUNCTION BOX has a classic, low-profile design with a baffle trim that allows you to have a stylish look with efficient lighting. Smooth dimming capabilities ranging from 100% to 1096 with modern LED dimmers allow you to control the look and feel of your You can choose either 3000K, 4000K, or 5000K color temperature. The 120° beam angle grants you smooth and even lighting.
INSTALLATION – This fixture has an integrated J-box, making installation quick and easy. It has everything you need in one set. Just cut out the template, connect the J-box wiring on the back of the recessed downlight to your light switch, and place it into your ceiling. Spring-loaded clips ensure a snug fit to the surface. This fixture is IC rated so there is no can or any other housing required. Refer to installation instructions for detailed steps.
APPLICATION – Install the fixture to the ceiling for bright light in your family room, bedroom, hallways, corridors, or any other common areas in your living space. It is also suitable for wet locations, making it perfect for kitchen and bathroom lighting as well. You could also use it as a complimentary light to an existing ceiling light.
ENERGY SAVINGS & EFFICIENCY – Replacing an incandescent bulb with the LED ROUND DOWNLIGHT WITH JUNCTION BOX can save you up to 8 times as much on your current energy costs. With a lifespan of 50,000 hours, these fixtures are made to last decades under normal operation! This fixture will save you a significant amount of money in its lifetime.
CERTIFICATION & WARRANTY-Buy with confidence: ASD provides a 5-year warranty along with ETL and ENERGY STAR certifications to guarantee top-quality products and safety!
Top US certifications allow participation in rebates; please check the rebate programs available in your state.
| Catalog number | |
| Notes | |
| Type |
PRODUCT LEGEND:
| Family | Size | Dimmable | Watts | CTT | Finish |
| ASD-LDLOBR | X | X | XX | XX | XX |
| LED Round Downlight with Junction box | 4 = 4 inch | D = Dimmable | 10 = 10 W | 30 = 3,000 K | WH = White |
| 6 = 6 inch | 15 = 15 W | 40 = 4,000 K | |||
| 50 = 5,000 K |
LED ROUND DOWNLIGHT WITH JUNCTION BOX:
| Model | Size | Watts | Voltage | Dimmable | CTT | Lumens | Dimensions (LxWxH) |
| ASD-LOLOBR-4D1030-WH | 4 inch | 10 W | 120 V | TRIAC | 3.000 K | 6351m | 5″ × 5″× x 3 7/8″ |
| ASD-LDLOBR-401040-WH | 4 inch | 10w | 120 V | TRIAC | 4.000 K | 635 lm | 5″ × 5″ × 3 7/8″ |
| ASD-LDLOBR-401050-WH | 4 inch | 10 W | 120 V | TRIAC | 5.000 K | 635 lm | 5″ × 5″ × 3 7/8″ |
| ASD-LDLOBR-6D1530-WH | 6 inch | 15 W | 120 V | TRIAC | 3,000 K | 1,000 Im | 7 3/8″ × 7 3/8″ × 3 3/4″ |
| ASD-LDLOBR-6D1540-WH | 6 inch | 15 W | 120 V | TRIAC | 4,000 K | 1,000 Im | 7 3/8″ × 7 3/8″ × 3 3/4″ |
| ASD-LDLOBR-601550-WH | 6 inch | 15 W | 120 V | TRIAC | 5,000 | 1,000 Im | 7 3/8″ × 7 3/8″ × 3 3/4″ |
ORDERING INFORMATION:
Model | UPC | Pcs in middlebox | Middlebox Size | Middlebox Weight | GTIN 14 for Middlebox | Pcs. per Carton | Carton Size | Carton Weight | GTIN 14 for Carton |
| ASD-LDLCT3R-401030-WI i | 810050731256 | 6 | 12.8′ × 10.6′ × 5.5′ | 10810050731253 | 21.9″ × 13.4″ × 6.3″ | 11lb | 20810050731250 | ||
| ASD-LDLOBR-4D1040-WH | 810050731263 | 6 | 12.8″ × 10.6′ × 5.5′ | 10810050731260 | 21.9″ × 13.4″ × 6.3* | 11lb | 20810050731267 | ||
| ASD-LDLOBR-401050-WH | 810050731270 | 6 | 17.8″ × 10.6′ × 5.5′ | 10810050731277 | 21.9″ × 13.4″ × 6.3″ | 11lb | 7081005073127. | ||
| ASD-LDLOBR-6D1530-WH | 810050731287 | – | – | 15.6″ × 12.6″ × 15.7″ | 14.3 lb | 30810050731288 | |||
| ASD-LDLOBR-6D1540-V/H | 8100507312% | – | – | 15.6′ × 12.6 × 15.7′ | 14.3 lb | 30810050731295 | |||
| – ASD-LOLOBR-601550-WH | 810050731300 | – | – | 15.6′ × 12.61× 15.7′ | 14.3 lb | 30810050731301 |
PRODUCT SPECIFICATIONS:
| Construction & Materials | Electrical System | ||||||||
| Housing | Aluminum, PC | Input Voltage | 120 V | ||||||
| Lens | Acrylic | Max input current | ASD-LDLOBR-401030-WH | 0.1 A | |||||
| Finish Color | White | ASD-LDLOBR-401040-WH | |||||||
| Weight | ASD-LDLOBR-401030-WH | 0.6 lb (0.3 kg) | AS0-LIDLOBR-4131050-WH | ||||||
| ASD-LDLOBR-401040-WH | ASO-LDLOBR-601530-WH | 0.15 A
| |||||||
| ASD-LDLOBR-401050-WH | ASD-LDLOBR-601540-WH | ||||||||
| ASD-LDLOBR-6131530-WH | 0.9 lb (0.4 kg) | ASD-LDLOBR-6131550-W1-1 | |||||||
| ASD-LDLOBR-601540-WH | Inrush current (Action time) | 0.2 A ( 0.03 5) | |||||||
| ASO-LOLOBR-601550-WH | AC input range | min 108 V max 132V | |||||||
| Environmental System | Off State Power | 0 W | |||||||
| Work Environment | Suitable for Wet Locations | Power Consumption | 10 W | ||||||
| Operating Temperature | -13°F to 113°F (-25°C to 45°C) | ASO-LDLOBR-401040-WH | |||||||
| L-70 Life | > 50,000 hrs | ASD-LDLOBR-401050-WH | |||||||
| Optical System | ASO-LIDLOBR-6131530-WH | 15 W | |||||||
| Luminous Flux | ASD-LDLOBR-401030-WH | 635 Em | ASD-LDLOBR-601540-WH | ||||||
| ASD-LDLOBR-401040-WH | ASD-LDLOBR-601550-WH | ||||||||
| ASD-LDLOBR-401050-WH | Power Factor | > 0.9 | |||||||
| ASD-LDLOBR-601530-WH | 1,0001m
| Output voltage | 132 V | ||||||
| ASO-LDLOBR-601540-WH | ASD-LDLOBR-4D1030-WH | 60 mA | |||||||
| ASD-LDLOBR-6131550-WH | ASD-LDLOBR-401040-WH | ||||||||
| Color Temperature | 3,000 K; 4.000 K; 5.000 K | ASO-LIDLOBR-401050-WH | |||||||
| CRI | > 90 | Max output current | ASD-LDLOBR-601530-WH | 90 mA | |||||
| Control | ASD-LOLOBR-601540-WH | ||||||||
| Dimming Range 10-100% | ASD-LDLOBR-601550-WH | ||||||||
| Dimming compatible controls | LED Driver Class | DOB | |||||||
| Brand | Lutron | Leviton | Regular and Voluntary Certifications | ||||||
| Models | DVCL-153P-WH | SLV-600P-WH | 6672 | 6674 | 5 – year limited warranty | cETLus certified 4008281 | Energy Star listed | ||
| MACL-153M-WH | CT-603PG | OB33K1 | 6631 | ||||||
| S-600P | S-603P | 1E1205 | |||||||
| OVLV-603P-IV | DV-600P | 1F4205 | |||||||
| CTCL-153PDH | DVW-603PGH-WH | 6633-P | |||||||
INSTALLATION GUIDE
IMPORTANT SAFETY INFORMATION:
Please read all the instructions below before installation.
► Make sure that the supply voltage corresponds to the rated product voltage.
► The product must be installed by a qualified electrician in accordance with the National Electrical Code and corresponding local codes.
► If the product is damaged, do not use it.
WARNING
RISK OF PERSONAL INJURY — READ and follow all WARNINGS and installation instructions.
Keep or give to the owner for future reference.
Risk of cuts: Wear gloves to prevent cuts or abrasions when removing from the carton, handling, installing, and maintaining this product.
Risk of electric shock: This product must be installed in accordance with the applicable installation code by a person familiar with the construction and operation of the product and the hazards involved.
Risk of Fire: Minimum 194°F supply conductors. Consult a qualified electrician to ensure the correct branch circuit conductor.
ASD® assumes no responsibility for claims arising out of improper or careless Installation or handling of this product.
For recessed installation: Access above ceiling required. Inherently protected. The vapor barrier must be suitable for 194°F

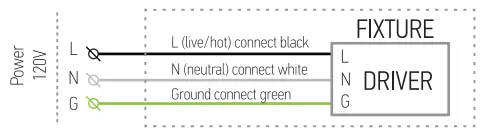

ELECTRICAL SCHEMATIC DIAGRAM:
PACKAGE CONTENTS:
| Description | Q-ty |
| LED Round Downlight with Junction box | 1 |
| Wire Nut (A) | 3 |
| Template (B) | 1 |
| Box | 1 |
| Cut sheet | 2 |
TEMPLATE:
| Model | Fixture size | Rec. holes |
| 6 inch | 5″ | 41/2″ x 4 1/2″ |
| 6 inch | 7 3/8″ | 6 11/16″ x 6 11/16″ |
INSTALLATION STEPS:
- Use the template to cut an appropriately sized hole.
- Open the junction box. Connect the wires: Black to Black, White to White, Green to Green. Secure the connection with wire nuts. Tuck all the wires back into the junction box and close it.
- Push the spring-loaded clips upwards and insert the fixture base into the mounting hole. Release the clips and the fixture will be “pulled” into place against the ceiling. Once assembly is complete, turn the power on to ensure the fixture is operating properly.
For most up-to-date spec sheets please refer to asd-lighting.com
ASD LIGHTING CORP
E-mail: [email protected] | Web site: www.asd-lichtiracom
