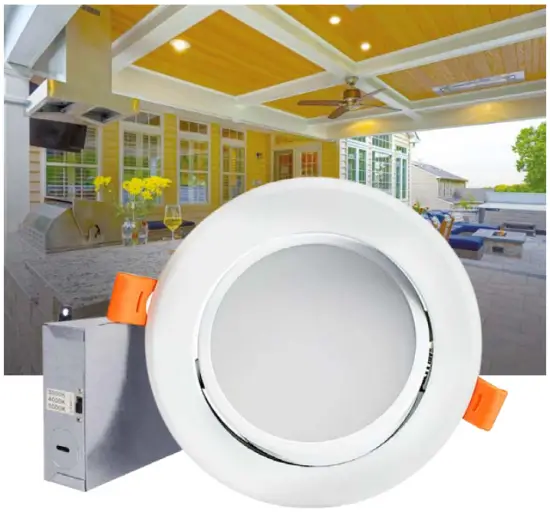

ASD-LMPJBR-GB-6D12CC-BZ 6 Inch Gimbal LED Recessed Lighting with Junction Box
DESIGN & OPTIONS
– LED ROUND RECESSED MINI PANEL WITH GIMBAL is perfect for sloped ceilings and directional lighting as the light can pivot and rotate to illuminate the desired area. It provides smooth dimming capabilities ranging from 100% to 10% with modern LED dimmers. There is also a color adjustable option, letting you set it to 3,000K, 4,000K or 5,000K with a simple switch. The 110° beam angle will leave no dark spots on the floor. It comes in 4″ and 6″ sizes with a WHITE or BRONZE finish.
INSTALLATION
– This fixture has a J-box and requires only 2″ of ceiling space, making installation quick and easy. It has everything you need in one set. Just cut out the template, connect the J-box wiring to your light switch, and place it into your ceiling. Spring-loaded clips ensure a snug fit to the surface. This fixture is IC rated so there is no can or any other housing required. Refer to install instructions for detailed steps.
APPLICATION
– With 35° of vertical rotation, this LED ROUND RECESSED MINI PANEL WITH GIMBAL provides you with even and balanced lighting in your family room, bedroom, hallway, corridor, or any other common area in your living space. It is also suitable for Damp locations, making it perfect for kitchens and garages as well. You could also use it as a complimentary light to an already existing ceiling light.
ENERGY SAVINGS & EFFICIENCY
– Replacing an incandescent bulb with the LED ROUND RECESSED MINI PANEL WITH GIMBAL can save you up to 8 times as much on your current energy costs. With a lifespan of 50,000 hours, these fixtures are made to last decades under normal operation! This fixture will save you a significant amount of money in its lifetime.
CERTIFICATION & WARRANTY
– Buy with confidence: ASD provides a 5-year warranty along with ETL and ENERGY STAR certifications to guarantee top quality products and safety.
Top US certifications allow participation in rebates; please check the rebate programs available in your state.
PRODUCT LEGEND:
| ASD-LMPJBR-GB | X | X | XX | XX | XX |
| LED Round Recessed Mini Panel Gimbal | 4 = 4 inch | D = Dimmable | 9 = 9 W | CC = 3,000/4,000/5,000 K | WH = White |
| 6 = 6 inch | 12 = 12 W | BZ = Oil Rubbed Bronze |
LED ROUND RECESSED MINI PANEL GIMBAL:
| ASD-LMPJBR-GB-4D9CC-WH | 4 inch | 9 W | TRIAC | 3,000/4,000/5,000 K | 630 lm | 5″ x 1 3/16″ | White | 810050730891 |
| ASD-LMPJBR-GB-4D9CC-BZ | 4 inch | 9 W | TRIAC | 3,000/4,000/5,000 K | 630 lm | 5″ x 1 3/16″ | Oil Rubbed Bronze | 810050730907 |
| ASD-LMPJBR-GB-6D12CC-WH | 6 inch | 12 W | TRIAC | 3,000/4,000/5,000 K | 840 lm | 8″ x 1 5/8″ | White | 810050730914 |
| ASD-LMPJBR-GB-6D12CC-BZ | 6 inch | 12 W | TRIAC | 3,000/4,000/5,000 K | 840 lm | 8″ x 1 5/8″ | Oil Rubbed Bronze | 810050730921 |
ORDERING INFORMATION:
| Model | Pcs in middle box | Middle box Size | Middle box Weight | GTIN 14 for Middle box | Pcs in one Carton | Carton Size | Carton Weight | GTIN 14 for Carton |
| ASD-LMPJBR-GB-4D9CC-WH | – | – | – | – | 12 | 16.5″ x 11.6″ x 6.7″ | 13.2 lb | 30810050730892 |
| ASD-LMPJBR-GB-4D9CC-BZ | 6 | 15.7″ x 5.5″ x 5.9″ | 6.1 lb | 10810050730904 | 12 | 16.5″ x 11.6″ x 6.7″ | 13.2 lb | 20810050730901 |
| ASD-LMPJBR-GB-6D12CC-WH | – | – | – | – | 12 | 17.9″ x 9.4″ x 17.3″ | 22.6 lb | 30810050730915 |
| ASD-LMPJBR-GB-6D12CC-BZ | 6 | 16.5″ x 11.6″ x 6.7″ | 10.6 lb | 10810050730928 | 12 | 17.9″ x 9.4″ x 17.3″ | 22.6 lb | 20810050730925 |
PRODUCT SPECIFICATIONS
| Construction & Materials | |||
| Housing | Aluminum | ||
| Lens | Acrylic | ||
| Finish Color | White, Oil Rubbed Bronze | ||
| Weight | ASD-LMPJBR-GB-4D9CC-WH | 0.8 lb (0.4 kg) | |
| ASD-LMPJBR-GB-4D9CC-BZ | |||
| ASD-LMPJBR-GB-6D12CC-WH | 1.4 lb (0.6 kg) | ||
| ASD-LMPJBR-GB-6D12CC-BZ | |||
| Environmental System | |||
| Work Environment | Suitable for Damp Locations | ||
| Operating Temperature | 14℉ to 113℉ (-10℃ to 45℃) | ||
| L-70 Life | > 50,000 hrs | ||
| Optical System | |||
| Luminous Flux | ASD-LMPJBR-GB-4D9CC-WH | 630 lm | |
| ASD-LMPJBR-GB-4D9CC-BZ | |||
| ASD-LMPJBR-GB-6D12CC-WH | 840 lm | ||
| ASD-LMPJBR-GB-6D12CC-BZ | |||
| Color Temperature | 3,000/4,000/5,000 K | ||
| CRI | > 80 | ||
| Electrical System | |||
| Input Voltage | 120 V | ||
| Max input current | ASD-LMPJBR-GB-4D9CC-WH | 0.08 A | |
| ASD-LMPJBR-GB-4D9CC-BZ | |||
| ASD-LMPJBR-GB-6D12CC-WH | 0.1 A | ||
| ASD-LMPJBR-GB-6D12CC-BZ | |||
| Inrush current (Action time) | ASD-LMPJBR-GB-4D9CC-WH | 0.341 A (0.59 S) | |
| ASD-LMPJBR-GB-4D9CC-BZ | |||
| ASD-LMPJBR-GB-6D12CC-WH | 0.349 A (0.59 S) | ||
| ASD-LMPJBR-GB-6D12CC-BZ | |||
| AC input range | min 100 V max 130 V | ||
| Off State Power | 0 W | ||
| Power Consumption | ASD-LMPJBR-GB-4D9CC-WH | 9 W | |
| ASD-LMPJBR-GB-4D9CC-BZ | |||
| ASD-LMPJBR-GB-6D12CC-WH | 12 W | ||
| ASD-LMPJBR-GB-6D12CC-BZ | |||
| Power Factor | > 0.9 | ||
| Output voltage | ASD-LMPJBR-GB-4D9CC-WH | 18-32 V | |
| ASD-LMPJBR-GB-4D9CC-BZ | |||
| ASD-LMPJBR-GB-6D12CC-WH | 32-40 V | ||
| ASD-LMPJBR-GB-6D12CC-BZ | |||
| LED Driver Class | Class 1 | ||
| Dimming range | |||
| 10-100% | |||
| Dimming compatible controls | |||
| Brand | Lutron | Leviton | |
| Models | CTELV-303P-WH | DVELV-300P | 6674 |
| SELV-300P | |||
| Regular and Voluntary Certifications | |||
| 5-year limited warranty | |||
| cETLus certified 3194213 | |||
| Energy Star listed | |||
PACKAGE CONTENTS
| Description | Q-ty |
| LED Round Recessed Mini Panel Gimbal | 1 |
| Wire Nut (A) | 3 |

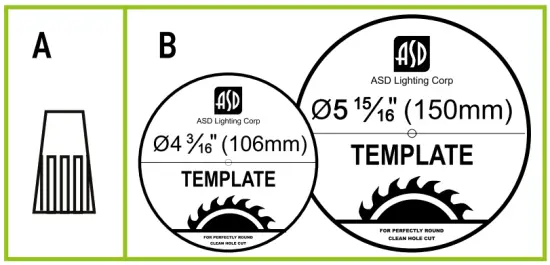

| Template for 4 inch or 6 inch (B) | 1 |
| Box | 1 |
| Cut Sheet | 2 |
INSTALLATION GUIDE
IMPORTANT SAFETY INFORMATION:
Please read all the instructions below before installation. Make sure that the supply voltage corresponds to the rated product voltage. The product must be installed by a qualified electrician in accordance with the National Electrical Code and corresponding local codes. If the product is damaged, do not use it.
WARNING
RISK OF PERSONAL INJURY - READ and follow all WARNINGS and installation instructions.
Keep or give to the owner for future reference.
Risk of cuts: Wear gloves to prevent cuts or abrasions when removing from carton, handling, installing, and maintaining this product.
Risk of electric shock: This product must be installed in accordance with the construction and operation of the product and the hazards involved.
Risk of Fire: Minimum 194°F supply conductors. Consult a qualified electrician to ensure correct branch circuit conductor.
ASD® assumes no responsibility for claims arising out of improper or careless Installation or handling of this product.
For recessed installation: Access above ceiling required. Inherently protected. Vapor barrier must be suitable for 194°F

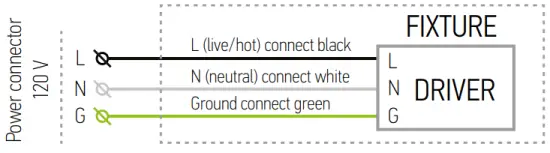

ELECTRICAL SCHEMATIC DIAGRAM
INSTALLATION STEPS:

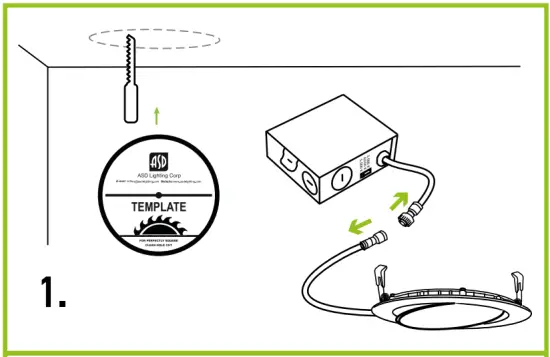

- Use template to cut an appropriate sized hole. Disconnect the fixture from the Junction Box.

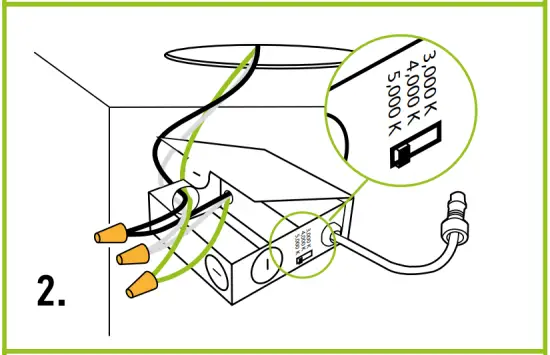

- Open Junction box. Connect the wires: Black to Black, White to White, Green to Green. Secure the connection with Wire Nuts. Choose needed color temperature by adjusting the switch. Close the Junction box.

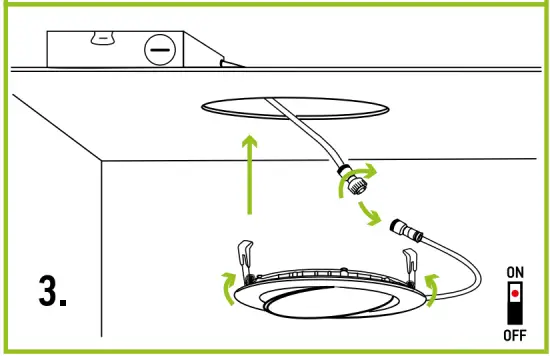

- Insert the Junction box into the cut hole, leaving the connection cable outside. Connect the fixture to the Junction box inserting the cable and securing it with a cap. Push the spring loaded clips upwards and insert the fixture base into the mounting hole. Release the clips, so the fixture fits snugly.
