ASD-LFMDR-10D16CC-BZ 10 Inch LED Flush Mount Ceiling Light User Guide

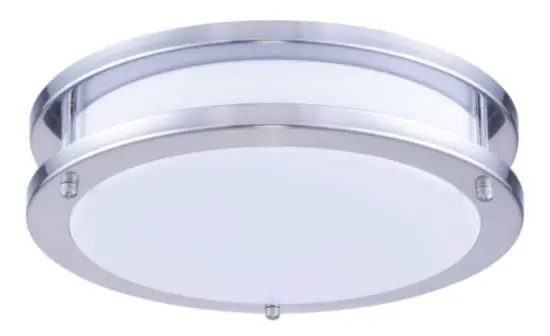

LED DOUBLE RING FLUSHMOUNT
DESIGN & OPTIONS –
LED DOUBLE RING FLUSHMOUNT has a modern, multipurpose design and a stylish look with efficient lighting. It provides smooth dimming capabilities ranging from 100% to 10% with modern LED dimmers. The 120° beam angle grants you smooth and even lighting. It is also CCT adjustable, letting you set it to either 3,000K, 4,000K or 5,000K with a simple switch. Models with a built-in bi-level microwave motion sensor and battery back-up are also available. Sensor can be programmed via dip switches. The built-in battery backup ensures 90 min of power. It comes with a 120V or 120-277V, in 10″, 12″, 14″, 16″ and 18″ with either a BRONZE or BRUSHED NICKEL finish.
INSTALLATION
– Installation is quick and easy: just attach the mounting bracket to the outlet box, connect the wires and fix the lamp body on the mounting Screws, wire nuts and all installation accessories are provided. Refer to install instructions for detailed steps.
APPLICATION
– The LED DOUBLE RING FLUSHMOUNT provides bright, yet smooth lighting for your family room, bedroom, hallway, corridor, or any other common area in your living space. It can be used as an additional light to an already existing ceiling light as well. This fixture is also Damp location rated.
ENERGY SAVING & EFFICIENCY
– Replacing an incandescent fixture with LED DOUBLE RING FLUSHMOUNT can save you 8 times as much on your current energy With a lifespan of 50,000 hours, these fixtures are made to last decades with normal operation! This fixture will save you a significant amount of money in its lifetime.
CERTIFICATION & WARRANTY
– Buy with confidence: ASD provides a 5-year warranty along with ETL and ENERGY STAR certifications to guarantee top quality products and safety!
Top US certifications allow participation in rebates; please check the rebate programs available in your state.
| Catalog number | |
| Notes | |
| Type |
LED DOUBLE RING FLUSHMOUNT
| Model | Size | Watts | Voltage | Dimmable | Lumens | CCT | Finish | Dimensions (LxWxH) | Options |
| ASD-LFMDR-10D16CC-NK | 10 inch | 16 W | 120 V | TRIAC | 1,150 lm | 3CCT (3,000/4,000/5,000 K) | Brushed Nickel | 10 3/8″ x 10 3/8″ x 3 1/2″ | – |
| ASD-LFMDR-10D16CC-BZ | 10 inch | 16 W | 120 V | TRIAC | 1,150 lm | 3CCT (3,000/4,000/5,000 K) | Oil Rubbed Bronze | 10 3/8″ x 10 3/8″ x 3 1/2″ | – |
| ASD-LFMDR-12D15CC-NK | 12 inch | 15 W | 120 V | TRIAC | 1,150 lm | 3CCT (3,000/4,000/5,000 K) | Brushed Nickel | 11 7/8″ x 11 7/8″ x 3 1/8″ | – |
| ASD-LFMDR-12D15CC-BZ | 12 inch | 15 W | 120 V | TRIAC | 1,150 lm | 3CCT (3,000/4,000/5,000 K) | Oil Rubbed Bronze | 11 7/8″ x 11 7/8″ x 3 1/8″ | – |
| ASD-LFMDR-12D20CC-NK | 12 inch | 20 W | 120 V | TRIAC | 1,400 lm | 3CCT (3,000/4,000/5,000 K) | Brushed Nickel | 11 7/8″ x 11 7/8″ x 3 1/8″ | – |
| ASD-LFMDR-14D21CC-NK | 14 inch | 21 W | 120 V | TRIAC | 1,500 lm | 3CCT (3,000/4,000/5,000 K) | Brushed Nickel | 14″ x 14″ x 3 5/8″ | – |
| ASD-LFMDR-14D21CC-BZ | 14 inch | 21 W | 120 V | TRIAC | 1,500 lm | 3CCT (3,000/4,000/5,000 K) | Oil Rubbed Bronze | 14″ x 14″ x 3 5/8″ | – |
| ASD-LFMDR-16D24CC-NK | 16 inch | 24 W | 120 V | TRIAC | 1,700 lm | 3CCT (3,000/4,000/5,000 K) | Brushed Nickel | 15 3/4″ x 15 3/4″ x 3 3/4″ | – |
| ASD-LFMDR-16D24CC-BZ | 16 inch | 24 W | 120 V | TRIAC | 1,700 lm | 3CCT (3,000/4,000/5,000 K) | Oil Rubbed Bronze | 15 3/4″ x 15 3/4″ x 3 3/4″ | – |
| ASD-LFMDR-18D28CC-NK | 18 inch | 28 W | 120 V | TRIAC | 1,960 lm | 3CCT (3,000/4,000/5,000 K) | Brushed Nickel | 17 3/4″ x 17 3/4″ x 4″ | – |
| ASD-LFMDR-18D28CC-BZ | 18 inch | 28 W | 120 V | TRIAC | 1,960 lm | 3CCT (3,000/4,000/5,000 K) | Oil Rubbed Bronze | 17 3/4″ x 17 3/4″ x 4″ | – |
| LFMDR-MS WITH MOTION SENSOR | |||||||||
| ASD-LFMDR-MV-12N15CC-MS-NK | 12 inch | 15 W | 120-277 V | – | 1,050 lm | 3CCT (3,000/4,000/5,000 K) | Brushed Nickel | 12″ x 12″ x 3 1/8″ | Motion sensor |
| ASD-LFMDR-MV-14N21CC-MS-NK | 14 inch | 21 W | 120-277 V | – | 1,500 lm | 3CCT (3,000/4,000/5,000 K) | Brushed Nickel | 14″ x 14″ x 3 1/2″ | Motion sensor |
| LFMDR-EM WITH BATTERY BACK-UP | |||||||||
| ASD-LFMDR-MV-12D15CC-EM-NK | 12 inch | 15 W | 120-277 V | TRIAC | 1,050 lm | 3CCT (3,000/4,000/5,000 K) | Brushed Nickel | 11 7/8″ x 11 7/8″ x 4 1/4″ | 6W Battery back up |
| ASD-LFMDR-MV-14D21CC-EM-NK | 14 inch | 21 W | 120-277 V | TRIAC | 1,470 lm | 3CCT (3,000/4,000/5,000 K) | Brushed Nickel | 13 3/4″ x 13 3/4″ x 4 3/4″ | 12W Battery back up |
| ASD-LFMDR-MV-16D24CC-EM-NK | 16 inch | 24 W | 120-277 V | TRIAC | 1,680 lm | 3CCT (3,000/4,000/5,000 K) | Brushed Nickel | 15 3/4″ x 15 3/4″ x 4 3/4″ | 12W Battery back up |
| ASD-LFMDR-MV-18D28CC-EM-NK | 18 inch | 28 W | 120-277 V | TRIAC | 2,000 lm | 3CCT (3,000/4,000/5,000 K) | Brushed Nickel | 17 3/4″ x 17 3/8″ x 5 1/8″ | 12W Battery back up |
PRODUCT SPECIFICATIONS
| Construction & Materials | ||||||||
| Lens | White Acrylic | |||||||
| Housing | Steel | |||||||
| Finish Color | Brushed Nickel, Oil Rubbed Bronze | |||||||
|
Weight | ASD-LFMDR-10D16CC-NK | 1.3 lb (0.6 kg) | ASD-LFMDR-14D21CC-NK | 2.5 lb (1.1 kg) | ASD-LFMDR-MV-12N15CC-MS-NK | 1.8 lb (0.8 kg) | ||
| ASD-LFMDR-10D16CC-BZ | ASD-LFMDR-14D21CC-BZ | ASD-LFMDR-MV-14N21CC-MS-NK | 2.6 lb (1.2 kg) | |||||
| ASD-LFMDR-12D15CC-NK | 1.7 lb (0.8 kg) | ASD-LFMDR-16D24CC-NK | 3 lb (1.4 kg) | ASD-LFMDR-MV-12D15CC-EM-NK | 3.3 lb (1.5 kg) | |||
| ASD-LFMDR-12D15CC-BZ | ASD-LFMDR-16D24CC-BZ | ASD-LFMDR-MV-14D21CC-EM-NK | 4.1 lb (1.9 kg) | |||||
| ASD-LFMDR-12D20CC-NK | ASD-LFMDR-18D28CC-NK | 4.3 lb (2 kg) | ASD-LFMDR-MV-16D24CC-EM-NK | 4.9 lb (2.2 kg) | ||||
| ASD-LFMDR-18D28CC-BZ | ASD-LFMDR-MV-18D28CC-EM-NK | 6.6 lb (3 kg) | ||||||
| Environmental System | ||||||||
| Work Environment | Suitable for Damp Locations | |||||||
| Operating Temperature | -4°F to 131°F / -20°C to 55°C | |||||||
| L70 life | > 50,000 hrs | |||||||
| Optical System | ||||||||
|
Luminous Flux | ASD-LFMDR-10D16CC-NK | 1,150 lm | ASD-LFMDR-14D21CC-NK | 1,500 lm | ASD-LFMDR-MV-12N15CC-MS-NK | 1,050 lm | ||
| ASD-LFMDR-10D16CC-BZ | ASD-LFMDR-14D21CC-BZ | ASD-LFMDR-MV-14N21CC-MS-NK | 1,500 lm | |||||
| ASD-LFMDR-12D15CC-NK | 1,050 lm | ASD-LFMDR-16D24CC-NK | 1,700 lm | ASD-LFMDR-MV-12D15CC-EM-NK | 1,050 lm | |||
| ASD-LFMDR-12D15CC-BZ | ASD-LFMDR-16D24CC-BZ | ASD-LFMDR-MV-14D21CC-EM-NK | 1,470 lm | |||||
| ASD-LFMDR-12D20CC-NK | 1,400 lm | ASD-LFMDR-18D28CC-NK | 1,960 lm | ASD-LFMDR-MV-16D24CC-EM-NK | 1,680 lm | |||
| ASD-LFMDR-18D28CC-BZ | ASD-LFMDR-MV-18D28CC-EM-NK | 2,000 lm | ||||||
| Color Temperature | 3CCT (3,000/4,000/5,000 K) | |||||||
| CRI | > 80 | |||||||
| Electrical System | ||||||||
| Input Voltage | 120 V | 120-277 V | ||||||
|
Max input current | ASD-LFMDR-10D16CC-NK | 0.175 A | ASD-LFMDR-14D21CC-NK | 0.2 A | ASD-LFMDR-MV-12N15CC-MS-NK | 0.15 A | ||
| ASD-LFMDR-10D16CC-BZ | ASD-LFMDR-14D21CC-BZ | ASD-LFMDR-MV-14N21CC-MS-NK | 0.35 A | |||||
| ASD-LFMDR-12D15CC-NK | 0.15 A | ASD-LFMDR-16D24CC-NK | 0.25 A | ASD-LFMDR-MV-12D15CC-EM-NK | 0.3 A | |||
| ASD-LFMDR-12D15CC-BZ | ASD-LFMDR-16D24CC-BZ | ASD-LFMDR-MV-14D21CC-EM-NK | 0.4 A | |||||
| ASD-LFMDR-12D20CC-NK | 0.19 A | ASD-LFMDR-18D28CC-NK | ASD-LFMDR-MV-16D24CC-EM-NK | |||||
| ASD-LFMDR-18D28CC-BZ | ASD-LFMDR-MV-18D28CC-EM-NK | 0.5 A | ||||||
|
Inrush current (Action time) | ASD-LFMDR-10D16CC-NK | 0.13 A (0.1 S) | ASD-LFMDR-14D21CC-NK | 0.175 A (0.1 S) | ASD-LFMDR-MV-12N15CC-MS-NK | 0.12 A (0.1 S) | ||
| ASD-LFMDR-10D16CC-BZ | ASD-LFMDR-14D21CC-BZ | ASD-LFMDR-MV-14N21CC-MS-NK | 0.17 A (0.1 S) | |||||
| ASD-LFMDR-12D15CC-NK | 0.125 A (0.1 S) | ASD-LFMDR-16D24CC-NK | 0.2 A (0.1 S) | ASD-LFMDR-MV-12D15CC-EM-NK | 0.12 A (0.1 S) | |||
| ASD-LFMDR-12D15CC-BZ | ASD-LFMDR-16D24CC-BZ | ASD-LFMDR-MV-14D21CC-EM-NK | 0.2 A (0.1 S) | |||||
| ASD-LFMDR-12D20CC-NK | 0.167 A (0.1 S) | ASD-LFMDR-18D28CC-NK | 0.23 A (0.1 S) | ASD-LFMDR-MV-16D24CC-EM-NK | ||||
| ASD-LFMDR-18D28CC-BZ | ASD-LFMDR-MV-18D28CC-EM-NK | 0.25 A (0.1 S) | ||||||
| AC input range | min 108 V max 132 V | for EM models: min 100 V max 277 V | for MS models: min 120 V max 277 V | |||||
| Off State Power | 0 W | |||||||
|
Power Consumption | ASD-LFMDR-10D16CC-NK | 16 W | ASD-LFMDR-14D21CC-NK | 21 W | ASD-LFMDR-MV-12N15CC-MS-NK | 15 W | ||
| ASD-LFMDR-10D16CC-BZ | ASD-LFMDR-14D21CC-BZ | ASD-LFMDR-MV-14N21CC-MS-NK | 21 W | |||||
| ASD-LFMDR-12D15CC-NK | 15 W | ASD-LFMDR-16D24CC-NK | 24 W | ASD-LFMDR-MV-12D15CC-EM-NK | 15 W | |||
| ASD-LFMDR-12D15CC-BZ | ASD-LFMDR-16D24CC-BZ | ASD-LFMDR-MV-14D21CC-EM-NK | 21 W | |||||
| ASD-LFMDR-12D20CC-NK | ASD-LFMDR-18D28CC-NK | 28 W | ASD-LFMDR-MV-16D24CC-EM-NK | 24 W | ||||
| ASD-LFMDR-18D28CC-BZ | ASD-LFMDR-MV-18D28CC-EM-NK | 28 W | ||||||
| Power Factor | > 0.9 | |||||||
|
Output voltage | ASD-LFMDR-10D16CC-NK |
– | ASD-LFMDR-14D21CC-NK |
– | ASD-LFMDR-MV-12N15CC-MS-NK | 30-38 V | ||
| ASD-LFMDR-10D16CC-BZ | ASD-LFMDR-14D21CC-BZ | ASD-LFMDR-MV-14N21CC-MS-NK | ||||||
| ASD-LFMDR-12D15CC-NK | ASD-LFMDR-16D24CC-NK | ASD-LFMDR-MV-12D15CC-EM-NK | 25-37 V | |||||
| ASD-LFMDR-12D15CC-BZ | ASD-LFMDR-16D24CC-BZ | ASD-LFMDR-MV-14D21CC-EM-NK | ||||||
| ASD-LFMDR-12D20CC-NK | ASD-LFMDR-18D28CC-NK | ASD-LFMDR-MV-16D24CC-EM-NK | ||||||
| ASD-LFMDR-18D28CC-BZ | ASD-LFMDR-MV-18D28CC-EM-NK | |||||||
|
Max output current | ASD-LFMDR-10D16CC-NK |
– | ASD-LFMDR-14D21CC-NK |
– | ASD-LFMDR-MV-12N15CC-MS-NK | 350 mA | ||
| ASD-LFMDR-10D16CC-BZ | ASD-LFMDR-14D21CC-BZ | ASD-LFMDR-MV-14N21CC-MS-NK | 580 mA | |||||
| ASD-LFMDR-12D15CC-NK | ASD-LFMDR-16D24CC-NK | ASD-LFMDR-MV-12D15CC-EM-NK | 350 mA | |||||
| ASD-LFMDR-12D15CC-BZ | ASD-LFMDR-16D24CC-BZ | ASD-LFMDR-MV-14D21CC-EM-NK | 600 mA | |||||
| ASD-LFMDR-12D20CC-NK | ASD-LFMDR-18D28CC-NK | ASD-LFMDR-MV-16D24CC-EM-NK | ||||||
| ASD-LFMDR-18D28CC-BZ | ASD-LFMDR-MV-18D28CC-EM-NK | 700 mA | ||||||
| LED driver class | DOB | Class 2 | ||||||
| Dimming range | Dimming compatible controls | |||||||
| 10-100% | Brand | Lutron | Leviton | |||||
| Regular and Voluntary Certifications | Models | MACL-153MLH | TGCL-153P | P-PKG1W | DSL06 | |||
| 5-year limited warranty | DVCL-153PR | CTCL-153P | PD-6WCL | RNL06 | ||||
| ETL certified 4001256 | Energy Star certified (except EM models) | STCL-153PH | ||||||
MOTION SENSOR INFORMATION
| Specifications | Model HD401S 1 | ||
| Operating voltage | 120-277 V | ||
| Switching capacity | Max. 200 W (Control gear) Max. 400 W (Incandescent lamp) | ||
| Standby power | < 1 W | ||
| Detection area | 10% / 50% / 75% / 100% | ||
| Hold-time | 5 s / 90 s / 5 min / 15 min | ||
| Daylight threshold | 2Lx (0.2Fc) / 10Lx (0.9Fc) / 50Lx (4.7Fc) / Disable | ||
| Microwave frequency | 5.8 GHz ± 75 MHz | ||
| Microwave power | < 0.3 mW | ||
| Interfaces | 4-pole pluggable clamp terminal (L,N,N,L’) for 1.5 mm 2 cable | ||
| Mounting height | Max. 39.4 ft (11.9 m) | ||
| Detection range | Max. 52.5 x 39.4 ft (15.8 x 11.9 m) (ceiling mounted) | RF interference may affect the operation of this sensor | |
| Operating temperature | -4 +158°F (-20 +70°C) | ||
| IP rating | IP20 | ||
| Size | 3.2 x 1.4 x 0.9 inch | ||
BACK-UP BATTERY INFORMATION
| Model | Battery Watts | Lumens in emergency mode | Battery Capacity | Emergency Mode | Charging time |
| ASD-LFMDR-MV-12D15CC-EM-NK | 6 W | 644 lm | 2,200 mAh | 90 > min | 8 hours |
| ASD-LFMDR-MV-14D21CC-EM-NK | 12 W | 826 lm | 2,200 mAh | 90 > min | 8 hours |
| ASD-LFMDR-MV-16D24CC-EM-NK | 12 W | 826 lm | 2,200 mAh | 90 > min | 8 hours |
| ASD-LFMDR-MV-18D28CC-EM-NK | 12 W | 826 lm | 2,200 mAh | 90 > min | 8 hours |
BATTERY BACK-UP OPERATION
- Indicator light is ON: Battery back-up fully charged and device is using circuit
- Indicator light is FLICKERING: Battery back-up recharging and device is using circuit
- Indicator light is OFF: Device is using battery back-up
- In order to test the battery back-up press the test switch one To turn off the emergency power state press test switch one more time.
PACKAGE CONTENTS:
| Description | Q-ty |
| LED Double Ring Flushmount | 1 |
| Wire nut (A) | 3 |
| Screw (B) | 2 |
| Box | 1 |
| Cut sheet | 2 |
DEFAULT SETTING
 | 1 | 2 | ||
| I | ON | ON | 100% | |
| II | – | ON | 75% | |
| III | ON | – | 50% | |
| IV | – | – | 10% |
Detection Area
Detection area means detection coverage. lt can be adjusted by combining
DIP swithches for specific application.
| 3 | 4 | ||
| I | ON | ON | 5s | |
| II | – | ON | 90s | |
| III | ON | – | 5min | |
| IV | – | – | 15min |
Hold Time
Hold-time is the time period the light will be ON after the last detection.
| 5 | 6 | ||
| I | ON | ON | Disable | |
| II | – | ON | 50Lx (4.7Fc) | |
| III | ON | – | 10Lx (0.9Fc) | |
| IV | – | – | 2Lx (0.2Fc) |
Daylight threshold
Daylight sensor priors to motion sensor. Set threshold for specific needs. If set on “Disable” only the motion sensor will work.
| Specifications | GL-INR18650-3S1P-2200mAh-11.1V | |
| Input Voltage | 100-277 V 50/60 Hz | |
| AC Input Current | 110 mA max. | |
| AC Input Power Rating | 5.0 W max. | |
| Output Current and Voltage | 360 mA 36 Vdc | |
| Output Power | 6 W | 12 W |
| Lumens | 400 lm | 800 lm |
| Emergency Time | min 90 minutes | |
| Warranty | 5 Years | |
| Indicator Light | Illuminated Test Switch | |
| Battery | Li-ion battery – 11.1 V / 4000 mAh | |
| Battery Charging Current | 440 mA | |
| Charging Time | 5 Hours | |
| Temperature Rating (Ambient) | 32°F to 113°F (0°C to +45°C) | |
INSTALLATION GUIDE
IMPORTANT SAFETY INFORMATION:
Please read all the instructions below before installation.
- Make sure that the supply voltage corresponds to the rated product
- The product must be installed by a qualified electrician in accordance with the National Electrical Code and corresponding local codes.
If the product is damaged, do not use it.
ELECTRICAL SCHEMATIC DIAGRAM:

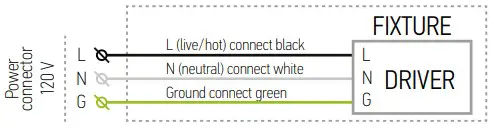

LFMDR

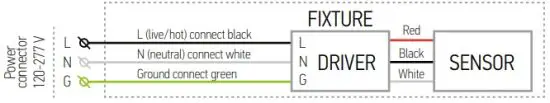

LFMDR-MS with motion sensor

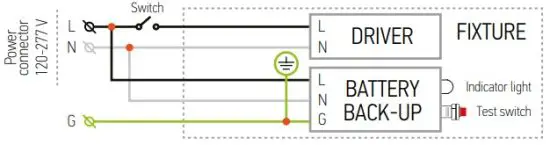

LFMDR-EM with battery back-up
WARNING
WARNINGRISK OF PERSONAL INJURY – READ and follow all WARNINGS and installation instructions.
Keep or give to the owner for future reference.
Risk of cuts: Wear gloves to prevent cuts or abrasions when removing from carton, handling, installing, and maintaining this product.
Risk of electric shock: This product must be installed in accordance with the applicable installation code by a person familiar with the construction and operation of the product and the hazards involved.
Risk of Fire: Minimum 194°F supply conductors. Consult a qualified electrician to ensure correct branch circuit conductor.
ASD® assumes no responsibility for claims arising out of improper or careless Installation or handling of this product.
INSTALLATION STEPS:
- Unscrew three cap nuts counter-clockwise, remove the metal ring and the lens.
- Attach two screws to the outlet Connect the wires: Black to Black, White to White, Ground to Ground. Carefully tuck all the wires back into the outlet box.
- In fixtures with Emergency battery connect the LED Emergency controller to the battery back-up.
3. Place the fixture pan over the outlet box and feed fixture screws through keyhole slots. Rotate the fixture pan clockwise until screws lock into the narrow end of the keyhole slots and tighten screws firmly. Choose either 3,000K, 4,000K or 5,000K with a simple switch. Secure the lens and the metal ring to the fixture pan using three cap nuts.
ORDERING INFORMATION
| Model | UPC | Pcs. per Carton | Carton Size | Carton Weight | GTIN-14 |
| ASD-LFMDR-10D16CC-NK | 810050731706 | 4 | 16.3″ x 12″ x 12.2″ | 9.9 lb | 10810050731703 |
| ASD-LFMDR-10D16CC-BZ | 810050731713 | 4 | 16.3″ x 12″ x 12.2″ | 9.9 lb | 10810050731710 |
| ASD-LFMDR-12D15CC-NK | 810050735728 | 4 | 15.6″ x 13.2″ x 13.4″ | 11.7 lb | 10810050735725 |
| ASD-LFMDR-12D15CC-BZ | 810050736077 | 4 | 15.6″ x 13.2″ x 13.4″ | 11.7 lb | 10810050736074 |
| ASD-LFMDR-12D20CC-NK | 810050735735 | 4 | 15.6″ x 13.2″ x 13.4″ | 11.7 lb | 10810050735732 |
| ASD-LFMDR-14D21CC-NK | 810050736084 | 4 | 15.9″ x 15.9″ x 15.7″ | 16.4 lb | 10810050736081 |
| ASD-LFMDR-14D21CC-BZ | 810050736091 | 4 | 15.9″ x 15.9″ x 15.7″ | 16.4 lb | 10810050736098 |
| ASD-LFMDR-16D24CC-NK | 810050736107 | 4 | 17.7″ x 17.5″ x 16.5″ | 19.2 lb | 10810050736104 |
| ASD-LFMDR-16D24CC-BZ | 810050736114 | 4 | 17.7″ x 17.5″ x 16.5″ | 19.2 lb | 10810050736111 |
| ASD-LFMDR-18D28CC-NK | 810050735551 | 4 | 20.1″ x 18.3″ x 20.1″ | 27.5 lb | 10810050735558 |
| ASD-LFMDR-18D28CC-BZ | 810050735940 | 4 | 20.1″ x 18.3″ x 20.1″ | 27.5 lb | 10810050735947 |
| LFMDR-MS WITH MOTION SENSOR | |||||
| ASD-LFMDR-MV-12N15CC-MS-NK | 810050733519 | 4 | 15.4″ x 13.4″ x 13.4″ | 12.1 lb | 10810050733516 |
| ASD-LFMDR-MV-14N21CC-MS-NK | 810050733526 | 4 | 15.9″ x 15.9″ x 15.9″ | 16.9 lb | 10810050733523 |
| LFMDR-EM WITH BATTERY BACK-UP | |||||
| ASD-LFMDR-MV-12D15CC-EM-NK | 819201027989 | 4 | 13.6″ x 13.6″ x 22″ | 19.4 lb | 10819201027986 |
| ASD-LFMDR-MV-14D21CC-EM-NK | 819201027996 | 4 | 15.9″ x 15.9″ x 22″ | 24.2 lb | 10819201027993 |
| ASD-LFMDR-MV-16D24CC-EM-NK | 819201028009 | 4 | 23.4″ x 17.9″ x 17.9″ | 31.3 lb | 10819201028006 |
| ASD-LFMDR-MV-18D28CC-EM-NK | 819201028016 | 4 | 24.8″ x 20.5″ x 20.5″ | 41.2 lb | 10819201028013 |
