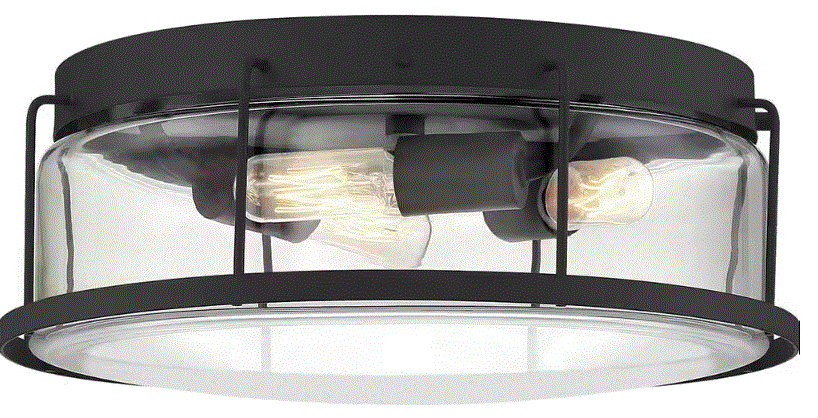

QUOIZEL LUD1613EK Ludlow 3 Light Brushed Nickel Flush Mount Ceiling Light
Product Information
LUD1613BN and LUD1613EK
The LUD1613BN and LUD1613EK are fixtures that come with a fixture body, glass shade, mounting hardware, crossbar assembly, wire connector, outlet box screw, and ground screw. These fixtures require a 40W candelabra (E12) type B bulb for maximum wattage. They are designed to be installed by following the instructions provided in the user manual.
Product Usage Instructions
Before installation, please read the safety information carefully. If you need further assistance, call Quoizel Customer Care at 1-800-645-3184 (9:00 am – 5:00pm EST), or visit www.quoizel.com online.
Product Package Contents
- Fixture Body x1
- Glass Shade x1
- Crossbar Assembly x1
- Wire Connector x3
- Outlet Box Screw x2
Product Installation
- Install the Crossbar Assembly using the mounting hardware provided.
- Connect the wires by matching the white wire from the supply with the white wire from the fixture and the black (or red) wire from the supply with the black wire from the fixture. Connect the ground wire from the supply with the ground wire from the fixture using the green ground screw.
- Install the Fixture Body onto the Crossbar Assembly using the mounting hardware provided.
- Install three correct bulbs referring to fixture markings and/or labels for maximum wattage.
- Install the Glass Shade onto the Fixture Body.
Your installation is now complete! Restore electricity and save the user manual for future reference.
SAFETY INFORMATION
Please read and understand this entire manual before attempting to assemble, install or operate the product.
WARNING
- RISK OF ELECTRIC SHOCK – Before beginning installation, turn off electricity at the circuit breaker box or the main fuse box.
- RISK OF FIRE – Use bulbs specified by the markings and/or labels on the fixture.
CAUTION
- For your safety, read instructions completely before beginning installation.
- If in doubt about electrical installation, consult a licensed electrician.
- Turn off electricity to fixture before replacing the bulb(s).

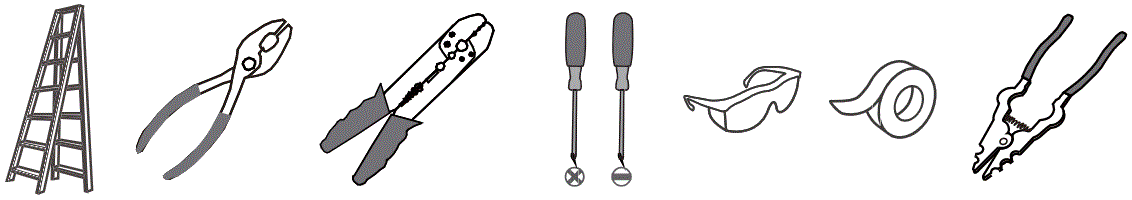

TOOLS REQUIRED
CARE AND MAINTENANCE
- Wipe clean using soft, dry cloth or static duster. Always avoid using harsh chemicals and abrasives to clean fixture as they may damage the finish.
- If you need further assistance call Quoizel Customer Care at 1-800-645-3184 (9:00 am – 5:00 pm EST), or visit us online at www.quoizel.com.

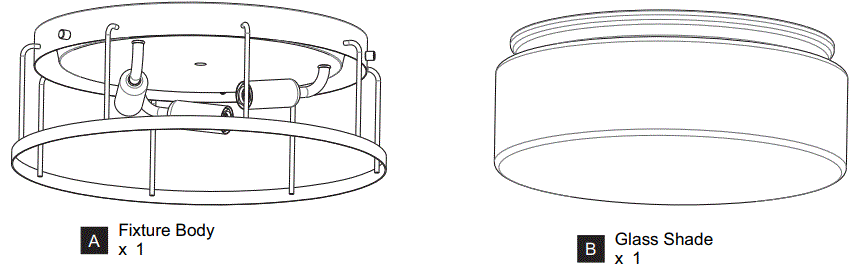

PACKAGE CONTENTS

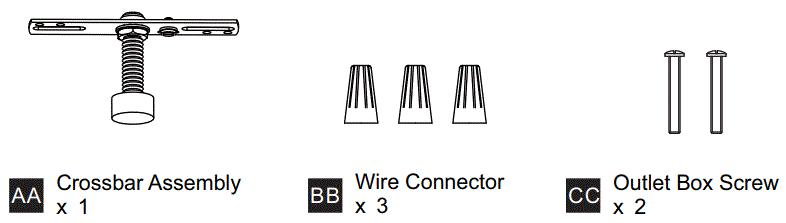

MOUNTING HARDWARE
INSTALLATION

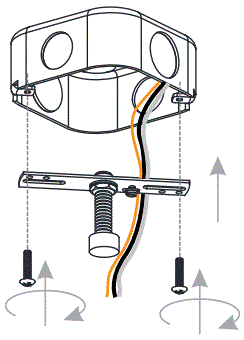

Install Crossbar Assembly
Wiring

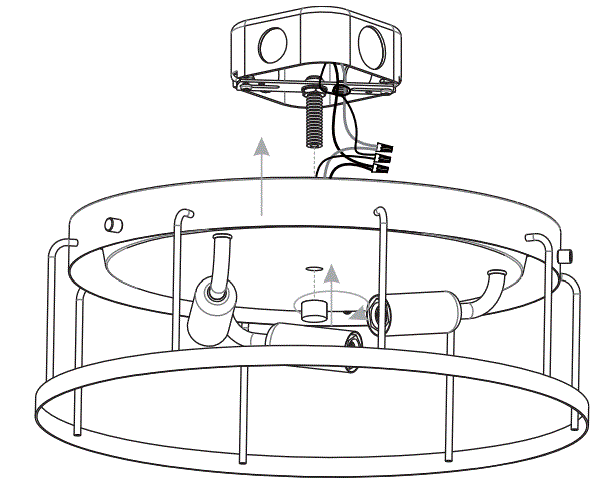

Install Fixture Body

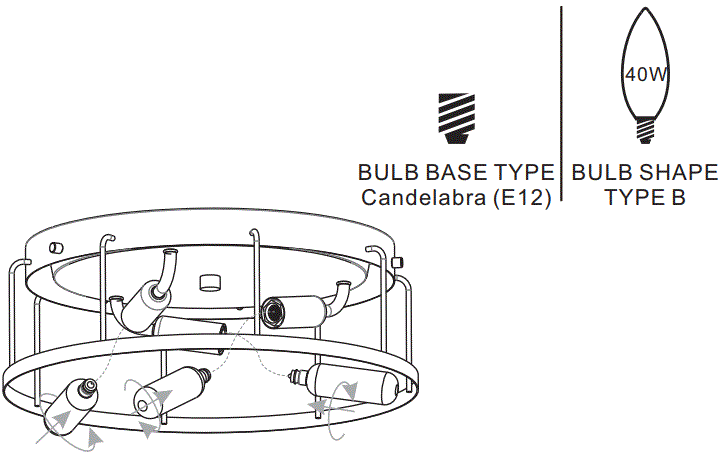

Install Bulbs
- Install three correct bulbs referring to fixture markings and/or labels for maximum wattage.
Recommended Bulb Type (not included)

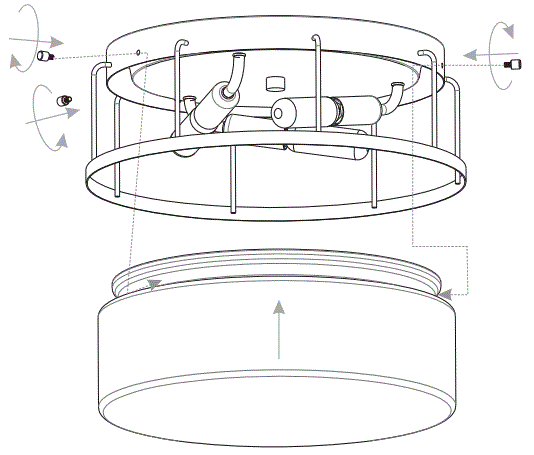

Install Glass Shade
Your installation is now complete! Restore electricity and save this sheet for future reference.
