Asd-lmpjbs-3d6cc-wh Led Square Recessed Mini Panel User Manual

3D6CC-WH LED Square Recessed Mini Panel
User Manual

LED SQUARE RECESSED MINI PANEL

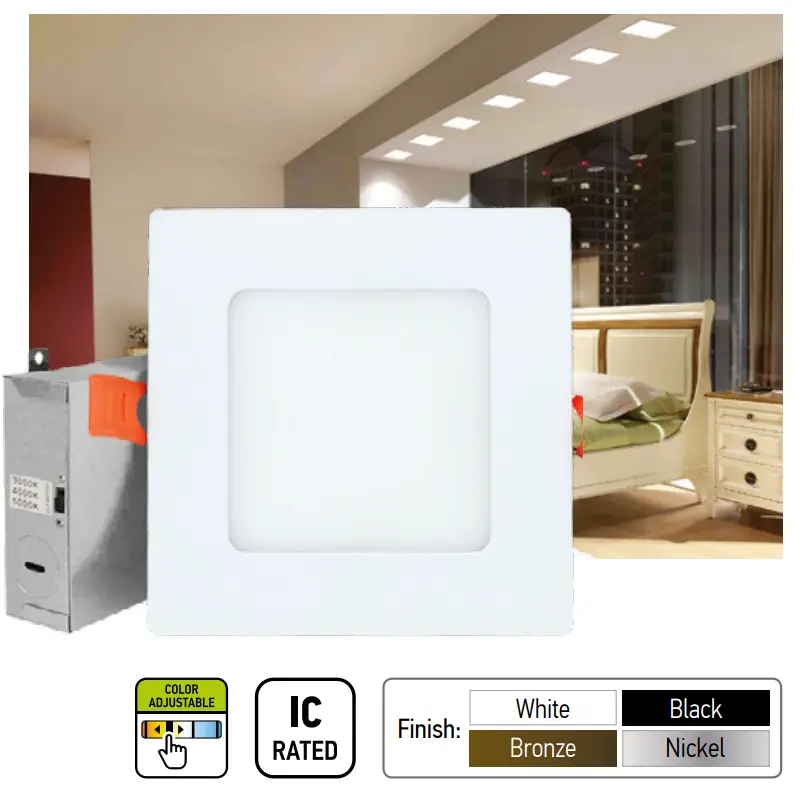

▶ DESIGN & OPTIONS – LED SQUARE RECESSED MINI PANEL has a lowprofile, classic design that allows you to have a sleek look with efficient lighting. Smooth dimming capabilities ranging from 100% to 10% with modern LED dimmers. Includes a color adjustable option, you can choose either 3,000K, 4,000K or 5,000K with a simple switch. The 120° beam angle will leave no dark spots on the floor surface. Сomes in five sizes: 3″, 4″, 6″, 8″, 12″ and four finish options: WHITE, BLACK, BRONZE and BRUSHED NICKEL.
Use the NEW CONSTRUCTION MOUNTING PLATES to install LED RECESSED MINI PANEL into newly constructed or remodeled homes. Included mounting holes and tracks mean these plates will fit perfectly in many different structural layouts. Alignment notches on the plate help to align multiple plates. It is compatible with a range of 3″, 4″, and 6″ LED recessed lights.
▶ INSTALLATION – This fixture has a J-box and requires only 2″ of ceiling space, making the installation process quick and easy. It has everything you need in one set. Just cut out the template, connect the J-box wiring to your light switch, and place it into your ceiling. Spring-loaded clips ensure a snug fit to the surface. This fixture is IC rated so there is no can or any other housing required. Refer to install instructions for detailed steps.
▶ APPLICATION – Install the fixture to the ceiling for bright light in your family room, bedroom, hallways, corridors, or any other common areas in your living space. It is also suitable for Damp locations, making it perfect for your kitchen or garage as well. You could also use it as a complimentary light to an existing ceiling light.
▶ ENERGY SAVINGS & EFFICIENCY – Replacing an incandescent bulb with the LED SQUARE RECESSED MINI PANEL can save you up to 8 times as much on your current energy costs. With a lifespan of 50,000 hours, these fixtures are made to last decades under normal operation! This fixture will save you a significant amount of money in its lifetime.
▶ CERTIFICATION & WARRANTY – Buy with confidence: ASD provides a 5-year warranty along with ETL and ENERGY STAR certifications to guarantee top quality products and safety! Top US certifications allow participation in rebates; please check the rebate programs available in your state.
Catalog number…………
Notes………………………..
Type…………………………
LED SQUARE RECESSED MINI PANEL

PRODUCT SPECIFICATIONS:

Construction & Materials

Environmental System

Optical System

Electrical System

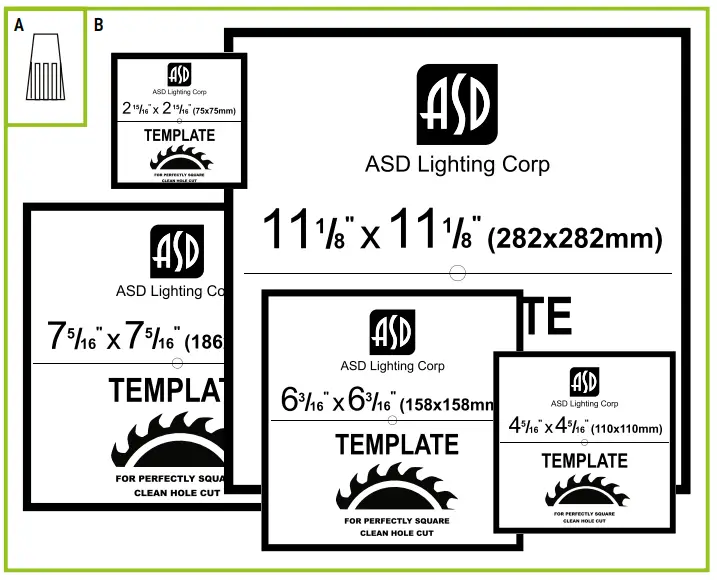

PACKAGE CONTENTS:

INSTALLATION GUIDE

IMPORTANT SAFETY INFORMATION:
Please read all the instructions below before installation.
▶ Make sure that the supply voltage corresponds to the rated product voltage.
▶ The product must be installed by a qualified electrician in accordance with theNational Electrical Code and corresponding local codes.
▶ If the product is damaged, do not use it.
WARNING
RISK OF PERSONAL INJURY – READ and follow all WARNINGS and installation instructions.
Keep or give to the owner for future reference.
Risk of cuts: Wear gloves to prevent cuts or abrasions when removing from carton, handling, installing, and maintaining this product.
Risk of electric shock: This product must be installed in accordance with the applicable installation code by a person familiar with the construction and operation of the product and the hazards involved.
Risk of Fire: Minimum 194°F supply conductors. Consult a qualified electrician toensure correct branch circuit conductor.
ASD® assumes no responsibility for claims arising out of improper or careless Installation or handling of this product.
ACCESSORIES (sold separately):

New construction mounting plate with square holes and sliding clips	New construction flat mounting plate with an asymmetric square hole
New construction flat mounting plate with a symmetric square hole ASD-MPLS-346-FS

ACCESSORY COMPATIBILITY LIST

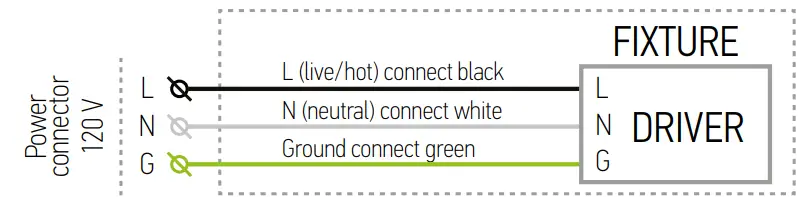

ELECTRICAL SCHEMATIC DIAGRAM:

INSTALLATION STEPS:

1. Use template to cut an appropriate sized hole. Disconnect the fixture from the Junction Box.
2. Open Junction box. Connect the wires: Black to Black, White to White, Green to Green. Secure the connection with Wire Nuts. Choose needed color temperature by adjusting the switch. Close the Junction box.
3. Insert the Junction box into the cut hole, leaving the connection cable outside. Connect the fixture to the Junction box inserting the cable and securing it with a cap. Push the spring loaded clips upwards and insert the fixture base into the mounting hole. Release the clips, so the fixture fits snugly.

* The fixture is suitable for ceiling thickness of 10-25 mm.

MOUNTING PLATE INSTALLATION

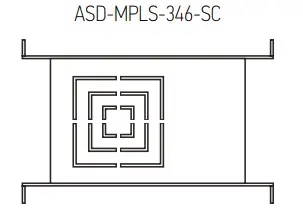

ASD-MPLS-346-SC
ASD-MPLS-346-SC

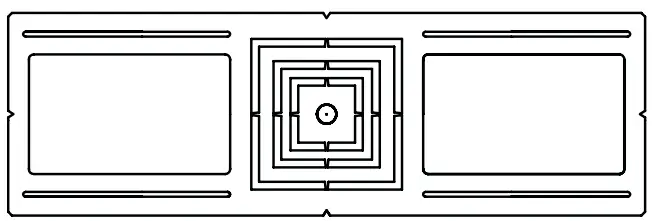

ASD-MPLS-346-FA
sold separately:

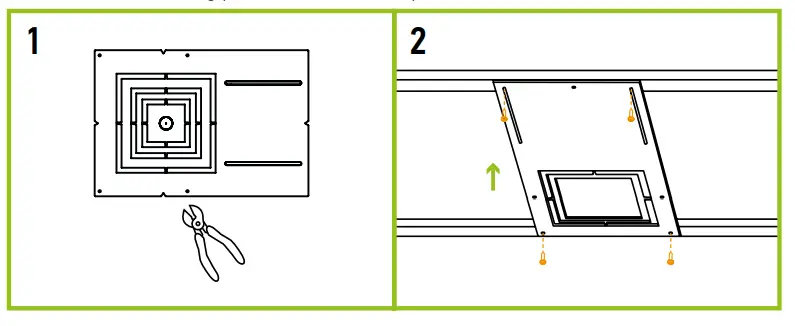

1. Remove the metal ring from the mounting plate according to the size of fixture.
2. Place the mounting plate and secure its position with the screws on the beams.

ORDERING INFORMATION

ORDERING INFORMATION

ACCESSORIES

For most up-to-date spec sheets please refer to asd-lighting.com

ASD LIGHTING CORP
E-mail: [email protected]
Website: www.asd-lighting.com
