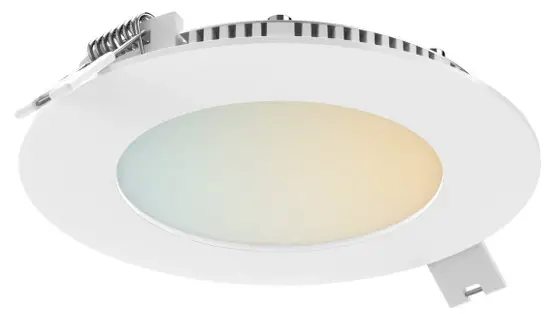

2004 4 Inch Round LED Recessed Panel Light
Access
Our new LED Panel lights are more accessible than ever before. The sleek and minimal construction allows for the easiest of installations.

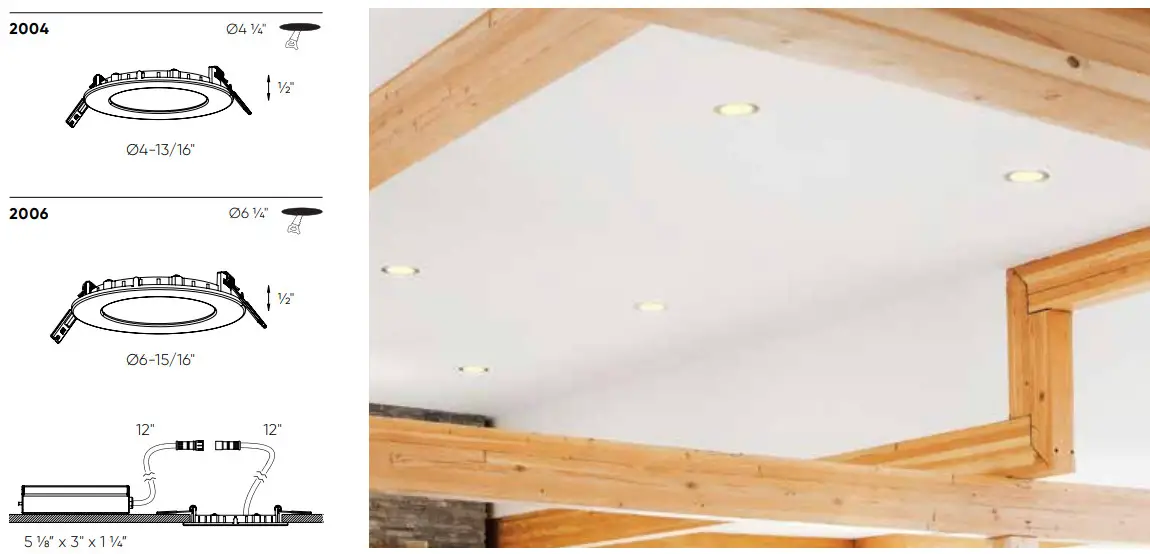

| Model | Size | Watts | Delivered lumens | LED lumens | CRI | Color °T | Voltage |
| 2004 | 4″ | 11 W | 770 lm | 880 lm | 80 | 3000 K | 120 V |
| 2006 | 6″ | 14 W | 980 lm | 1120 lm | 80 | 3000 K | 120 V |
Specifications
Every fixture includes a junction box with an integrated driver
Over 35,000 hours of service life
Can be daisy chained
Superior LED performance and lifespan
Smooth 360° wide spread
Minimal heat emission
Frosted lens
Edge lit technology
Aluminum construction
Very low profile
IC certification (suitable for direct contact with insulation)
Air-tight certified as per ASTM E283-04
Suitable for damp locations
Refer to website for dimmer compatibility 5-year warranty
Finish
O WH White
Accessories
REC-PT4-BB (2004)
4″ recessed panel trim in brushed brass
REC-PT4-BK (2004)
4″ recessed panel trim in black
REC-PT4-SN (2004)
4″ recessed panel trim in satin nickel
REC-EXT108
108″ extension cable
REC-EXT230
230″ extension cable
RFP-46
Rough-in plate
RFP-UNI
Universal rough-in plate
Order example
2004-WH
White 4” round panel with
770 lumens at 3000 K
Note
Other Color °T and Finishes available, but may require MOQ’s and longer lead times.
Please contact your DALS representative for more information.
Recessed | dals.com 65
