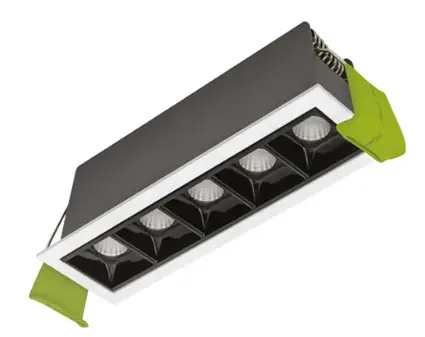

integral Tracelux Recessed Linear Downlights

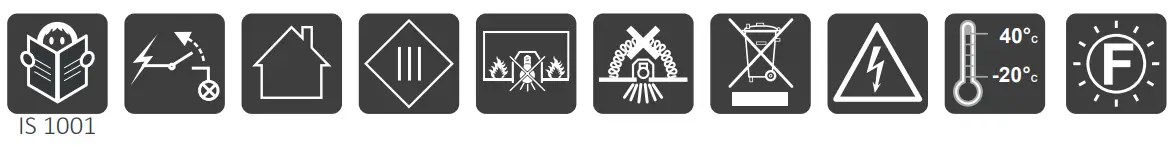

SYMBOLS
INSTALLATION INSTRUCTIONS

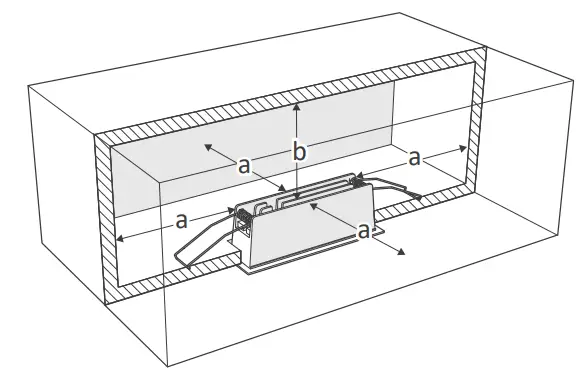

a = Min. 50mm
b = Min. 50mm

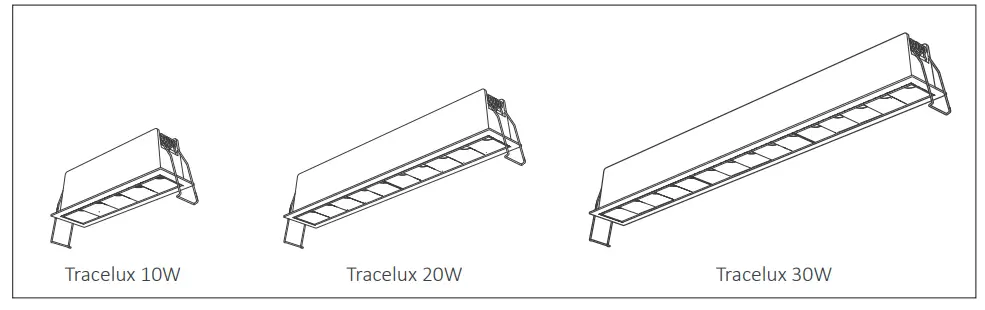

PRODUCT | ||
| L (mm) | W (mm) | |
| 10W | 140 | 37 |
| 20W | 273 | 37 |
| 30W | 405 | 37 |

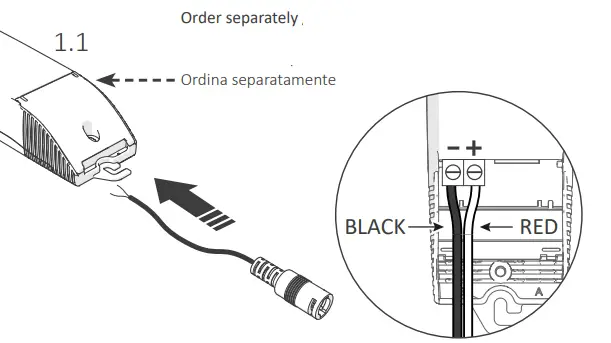

Connection
| PRODUCT | Max. mA | Max. Vf |
| 10W | ≤ 600 | DC 14V |
| 20W | ≤ 600 | DC 28V |
| 30W | ≤ 600 | DC 42V |

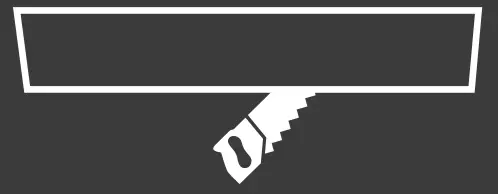

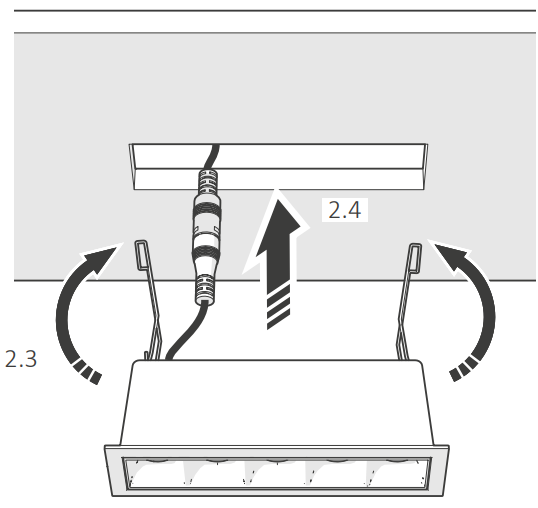

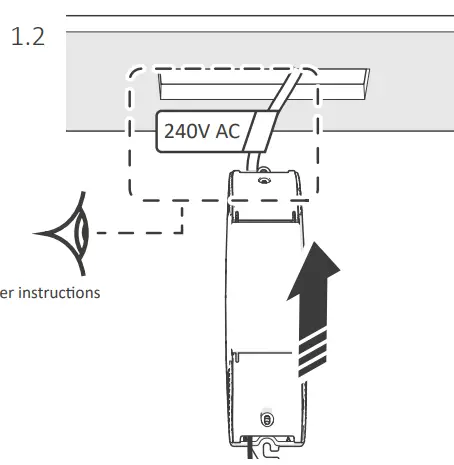

Installation
Warranty/ Technical & contact information are all available at
www.integral-led.com
