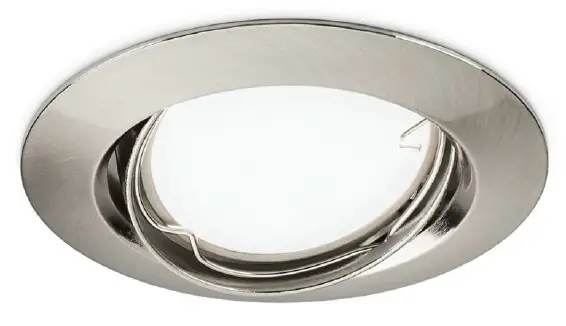

PHILIPS RS049B Zadora LED Recessed Adjustable Downlights
Zadora LED
Zadora LED is a range of recessed adjustable downlights for MASTERLEDspot lamps. They come in ready-to-install KIT versions including the MASTERLEDspot MV lamp. MASTER LEDspot delivers huge energy savings and minimizes maintenance cost without compromising on brightness, enabling owners to achieve a return on their investment within one year. The adjustable version offers 30°orientation from the vertical. Both lamps deliver a flux equivalent to that of a 50 W halogen lamp. Zadora LED downlights are available in different color finishes. Maintenance is easy as the lamp can be accessed directly.
Benefits
- Easiest and cheapest way to convert from halogen luminaire to LED luminaire
- Reducing operational cost with 85% energy saving and 15 x longer lifetime compared to standard halogen-based luminaire
- Direct lamp access for easy maintenance
Features
- Integrates latest LED technology
- Available in different finishes
- Improved dimmer compatibility
Application
- Hospitality
- Retail
- Offices
Specifications
Versions
MASTER LED – 36 ° – 5 W – 2700 K – GU10 – White – 50 W equivalent
| Application conditions Ambient temperature range -20 to +45 °C
Approval and application | |
| Mech. impact protection code | IK02 |
| Ingress protection code | IP20 |
| Controls and dimming | |
| Dimmable | Yes |
| Operating and electrical | |
| Input Voltage | 220 to 240 V |
| General information | |
| CE mark | CE mark |
| Protection class IEC | Safety class II (II) |
| Gear | – |
| Lamp power | 5 W |
| Light source replaceable | Yes |
| Optic type | 40 |
| Initial performance (IEC compliant) | |
| Init. Color Rendering Index | 80 |
| Luminous flux tolerance | +/-10% |
| Initial input power | 5 W |
| 07012399 | RS049B LED- | (0.43, 0.40) | 2700 K | 73 lm/W | 355 lm | |
| MS-40-5W-2700-GU10 WH | SDCM <5 | |||||
| 50W | ||||||
| 07013099 | RS049B LED- | (0.38, 0.37) SDCM | 4000 K | 78 lm/W | 380 lm | |
| MS-40-5W-4000-GU10 WH | <5 | |||||
| 50W | ||||||
| 07014799 | RS049B LED- | (0.43, 0.40) | 2700 K | 73 lm/W | 355 lm | |
| MS-40-5W-2700-GU10 ALU | SDCM <5 | |||||
| 50W | ||||||
| 07015499 | RS049B LED- | (0.43, 0.40) | 3000 K | 75 lm/W | 365 lm | |
| MS-40-5W-3000-GU10 WH | SDCM <5 | |||||
| 50W |
Mechanical and housing
