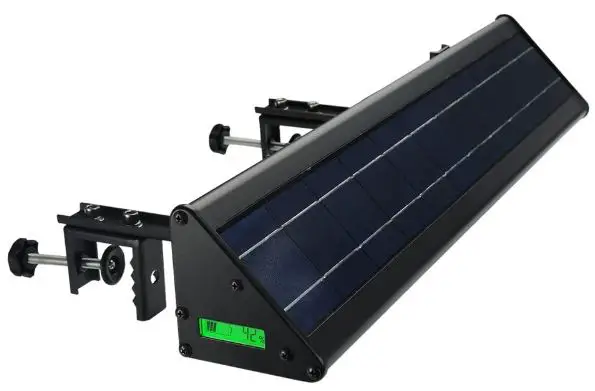

SOLTECH BROADWAY Billboard Lights
Introduction
Thank you for purchasing BROADWAY Urban Lighting Products. Important Please read these instructions before installation to ensure optimum results and longevity of your lights. The solar panel should be charged in full sunlight for 8 to 9 hours before initial first use to provide optimum results.
Features
- Easy Installation—No electrical wiring is required with its integrated design
- Turns on automatically at night and off during the day
- The lights include an ON / OFF switch and built-in battery
- The battery can support 2-3 nights with cloudy days once fully charged
- Intelligent power saving mode increases lighting x1.5 times
- IP65 water and dust resistance
How The Solar Panel Works
During the day, the solar panel converts sunlight into electricity to charge the battery. At night, the lights turn ON automatically using the electricity stored in the battery. The performance of the solar light depends on the location of the solar panel and weather conditions. Install the solar panel in a sunny location to ensure it receives 6–8 hours of sunlight each day. Reduced sunlight will reduce continuous working hours at night.
Please Note
During continuous rainy or cloudy days, run time may be reduced as the battery will not be fully charged.

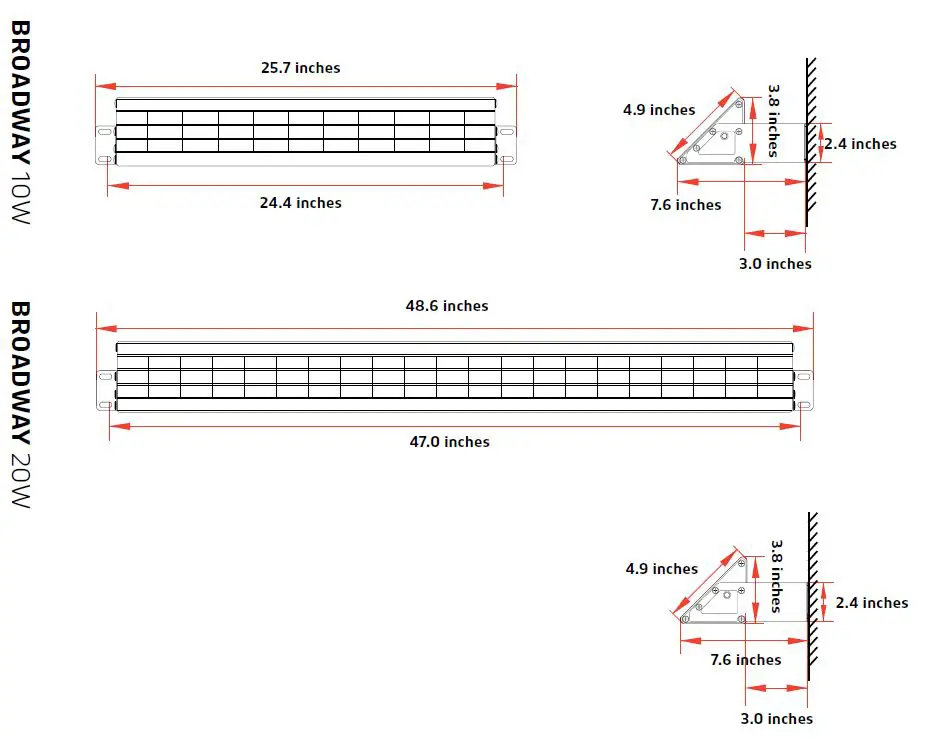

Specification
| Specifications | BROADWAY 10W | BROADWAY 20W |
| LED Nominal Power | 10W | 20W |
| Solar Panel | 5.5V 8W polycrystalline | 5.5V 17W polycrystalline |
| Lithium Ion Battery | 3.7V 17.6AH | 3.7V 35.2AH |
| CCT | 4,000K, 5,000K | 4,000K, 5,000K |
| Lumen Output@5000K | 1,000 | 2,000 |
| CRI | > 70 | > 70 |
| LED Chip | OSRAM | OSRAM |
| EPA | 1.05 | 2.1 |
| Beam Angle | 120° | 120° |
| Waterproof Rate | IP65 | IP65 |
| Casting | PC & Aluminum | PC & Aluminum |
| Efficiency@5000K | 100 lm/W | 100 lm/W |
| * Charging Time | 8–10 hrs (1000W/m2) | 8–10 hrs (1000W/m2) |
| Run Time (@Full Power) | 2–3 Days | 2–3 Days |
| Operation Mode | First 4 hours 100% brightness, 25% brightness till dawn | First 4 hours 100% brightness, 25% brightness till dawn |
| * Operating Temperature | -4 °F to 149 °F | -4 °F to 149 °F |
| * Charging Temperature | 32 °F to 113°F | 32 °F to 113°F |
Ordering Information Chart
| SERIES | WATTAGE | COLOR TEMPERATURE | MOUNTING OPTIONS | SIZE |
| STL-TRI=BROADWAY | 10=10W 1000 Lumens | 4=4000K | WM=WALL MOUNT | 24=24 INCHES |
| 20=20W 2000 Lumens | 5=5000K | LAB=LONG ARM MOUNT | (only for BROADWAY 10W) | |
| 48=48 INCHES | ||||
| (only for BROADWAY 20W) |
Installation
Wall Mount
Long Arm Mount

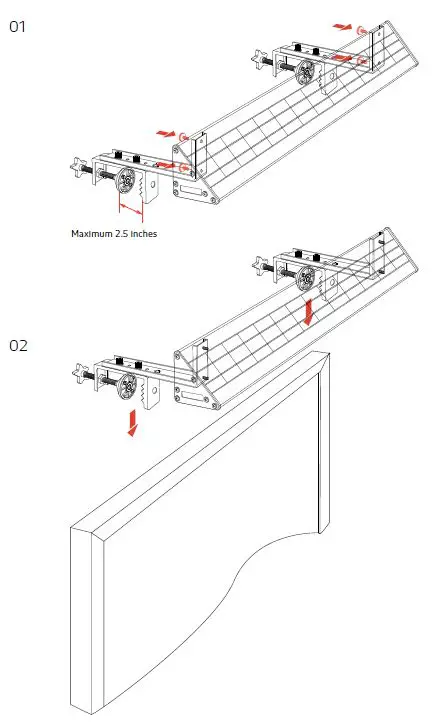

BROADWAY 10W needs two Long Arm Mounts. If you install BROADWAY 20W, you need three Long Arm Mounts. Long Arm Mount accessories not included in standard packaging. Please advise your SOL TECH sales representative if needed. For thinner billboards, the Long Arm mount uses a tighten-to-grip system that securely places the Broadway into place. Perfect for temporary signs that need illumination for a shorter period of time.

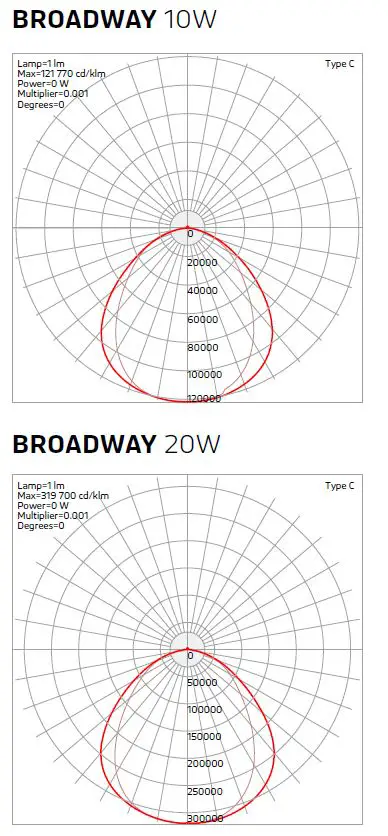

Luminous Distribution
Warranty
BROADWAY is covered by a 3 year limited warranty. SOLTECH urban light warrants to the original purchaser that this product is free from defects in materials and workmanship for the period of 3 years from date of purchase. To obtain warranty service please contact your local distributor or sales rep for further instruction.
