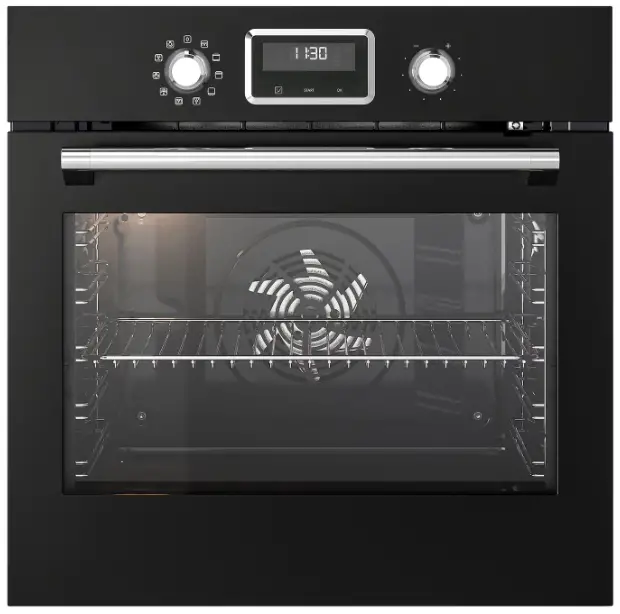

IKEA 304.131.22 SMAKSAK Hot Air Oven

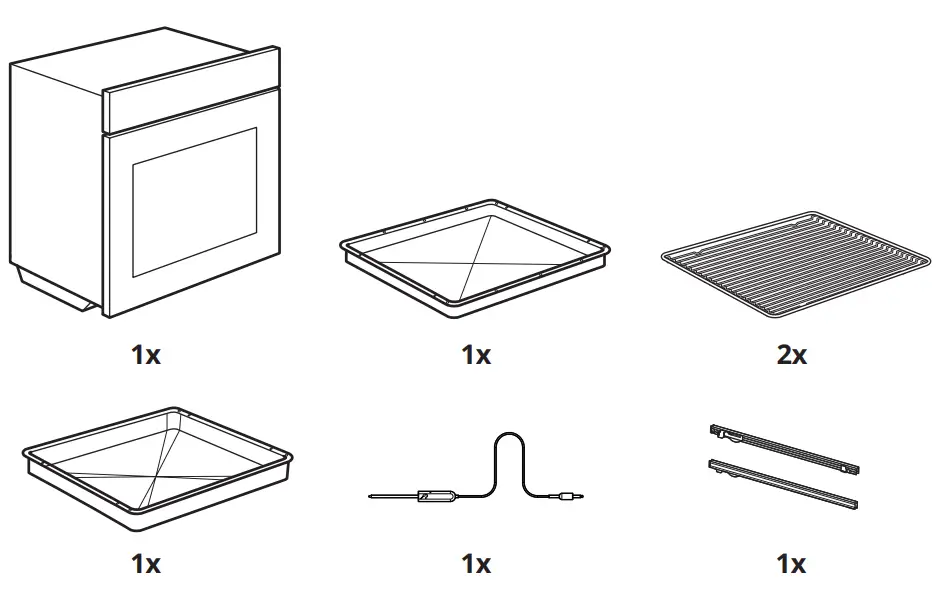

PACKAGE CONTENT

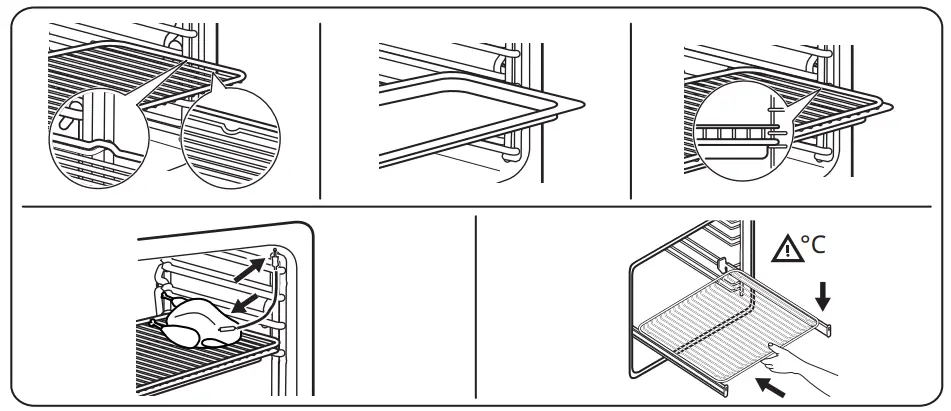

GRILL POSITIONING

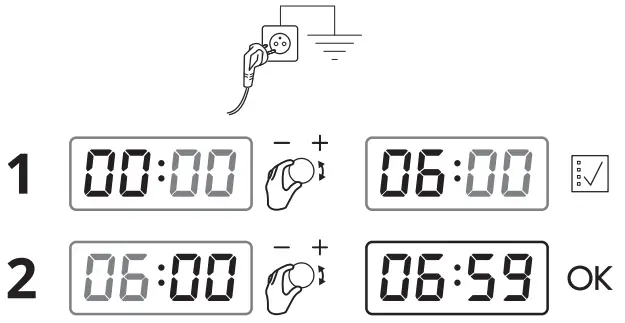

TIMMER

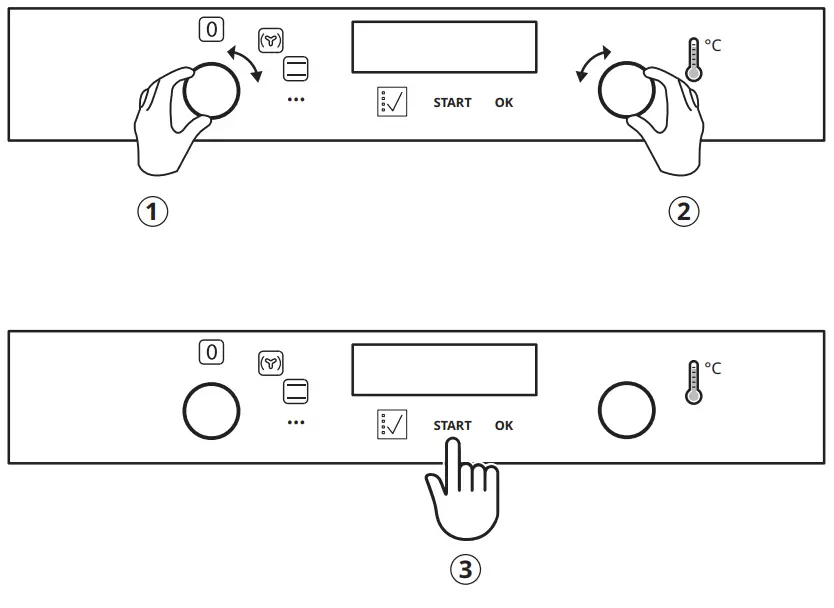

BAKING

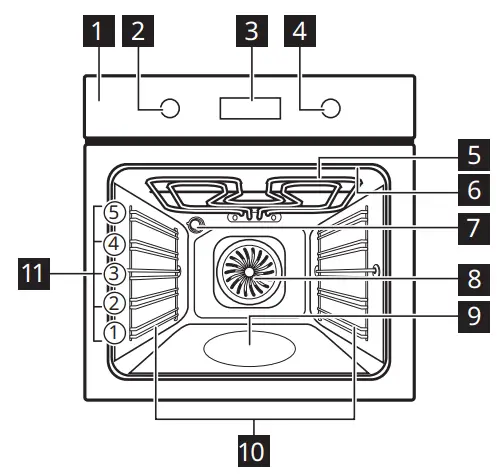

General overview
- Control panel
- Knob for the heating functions
- Display
- Control knob
- Heating element
- Socket for the food sensor
- Lamp
- Fan
- Cavity embossment
- Shelf support, removable
- Shelf positions

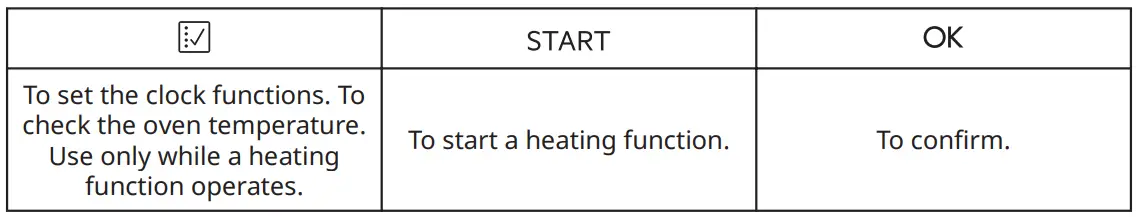

Display
- A. Timer / Temperature
- B. Heat-up and residual heat indicator
- C. Food Sensor (selected models only)
- D. Door lock (selected models only)
- E. Hours / minutes
- F. Demo mode (selected models only)
- G. Clock functions

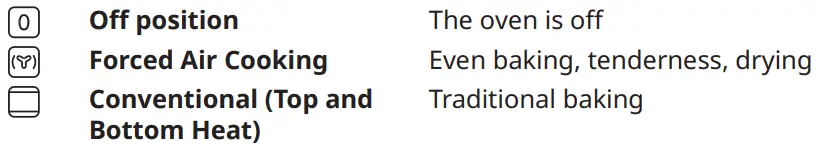

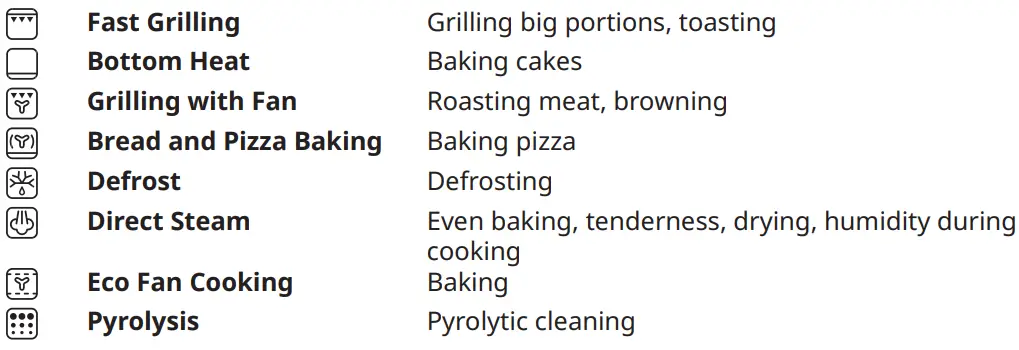

Heating Functions
Notes on: Eco Fan Cooking
- This function was used to comply with the energy efficiency class and ecodesign requirements according to EU 65/2014 and EU 66/2014. Tests according to EN 60350-1.
- The oven door should be closed during cooking so that the function is not interrupted and the oven operates with the highest energy efficiency possible.
- When you use this function the lamp automatically turns off after 30 sec.
- This function is designed to save energy during cooking. When you use this function, the temperature in the cavity may differ from the set temperature. The heating power may be reduced.
Troubleshooting
If you encounter an issue with your appliance, check “Troubleshooting” chapter in the full version of the User Manual available on: www.ikea.com.
Product Information and Product Information Sheet
| Supplier’s name | IKEA |
| Model identification | SMAKSAK 304.131.22 SMAKSAK 704.116.73 |
| Energy Efficiency Index | 81.2 |
| Energy efficiency class | A+ |
| Energy consumption with a standard load, convention‐ al mode | 0.93 kWh/cycle |
| Energy consumption with a standard load, fan-forced mode | 0.69 kWh/cycle |
| Number of cavities | 1 |
| Heat source | Electricity | |
| Volume | 72 l | |
| Type of oven | Built-In Oven | |
| Mass | SMAKSAK 304.131.22 | 34.3 kg |
| SMAKSAK 704.116.73 | 34.4 kg | |
| * For European Union according to EU Regulations 65/2014 and 66/2014. For Republic of Belarus according to STB 2478-2017, Appendix G; STB 2477-2017, Annexes A and B. For Ukraine according to 568/32020. |
| Energy efficiency class is not applicable for Russia. |
| EN 60350-1 – Household electric cooking appliances – Part 1: Ranges, ovens, steam ovens and grills – Methods for measuring performance. |
