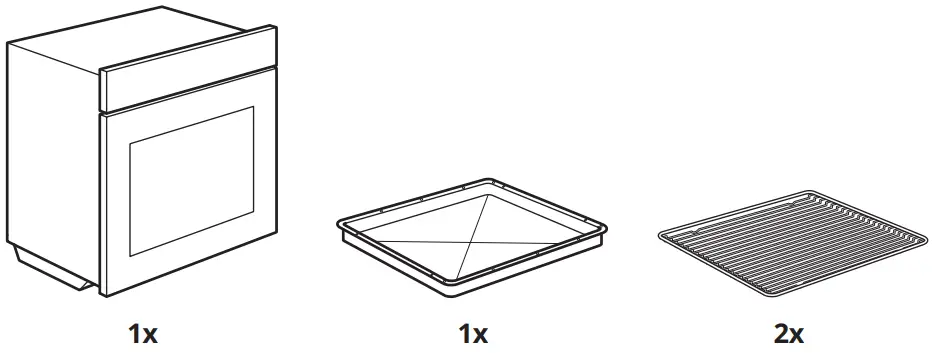

1 Package Contents

2 Cooking Instructions

3 Product Description

8 Notes on: Moist Fan Baking

9 Troubleshooting

10 Product Information and Product Information Sheet / Product Information Sheet according to UK Ecodesign and Energy Labelling Regulations

11 Documents / Resources

11.1 References

12 Related Posts

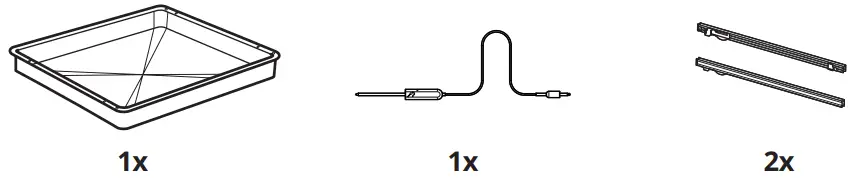

Package Contents

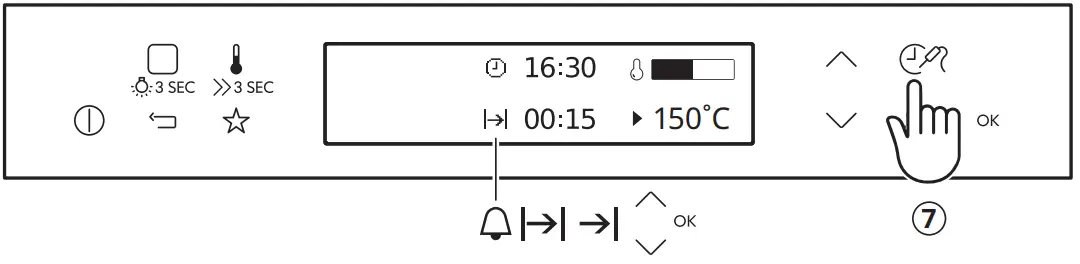

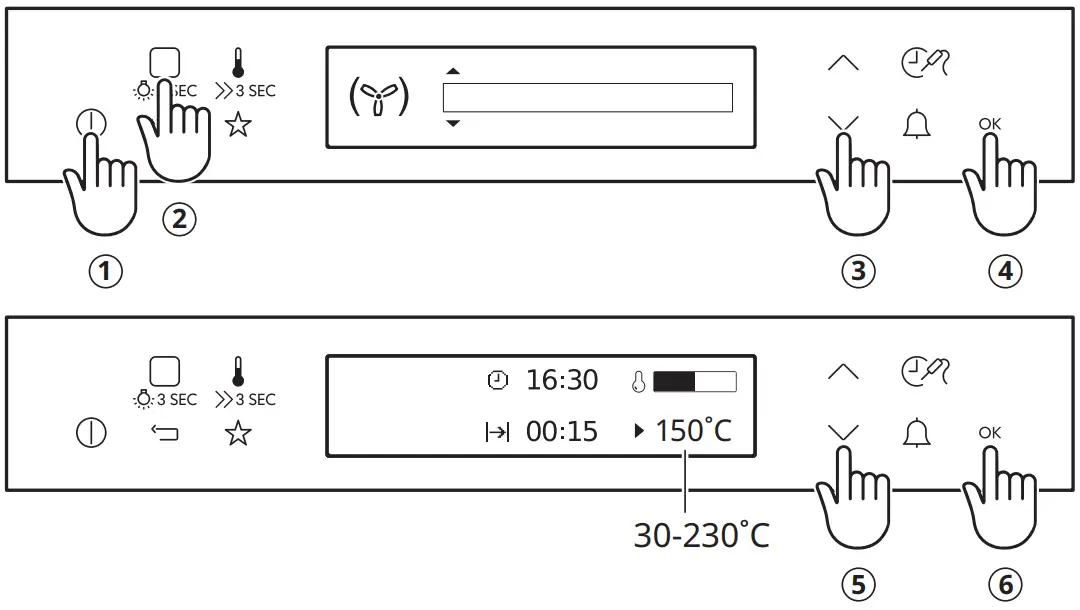

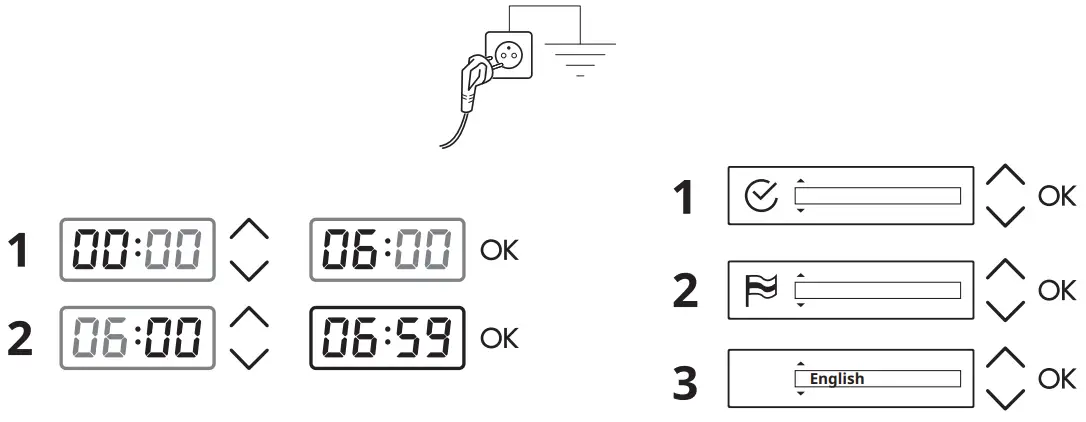

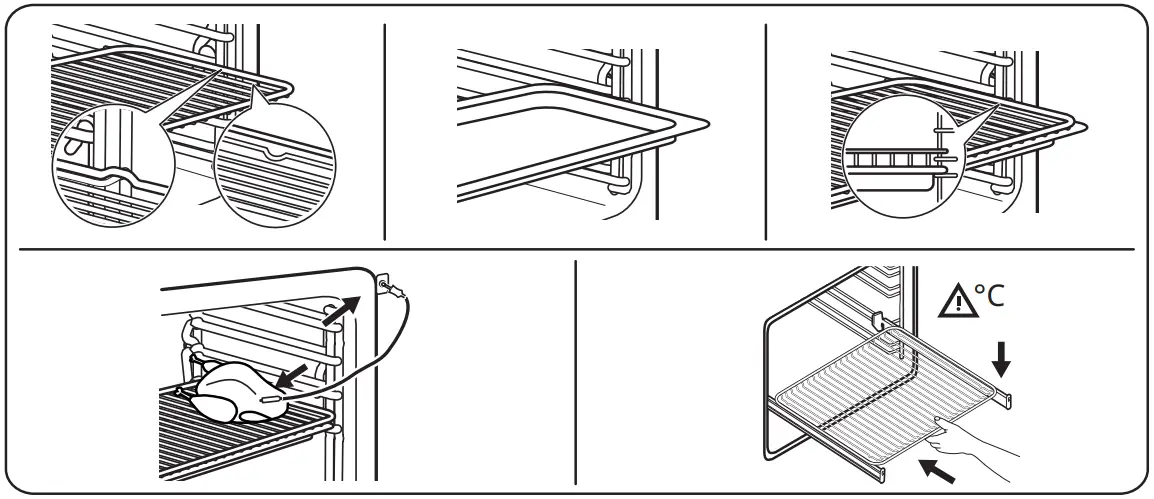

Cooking Instructions

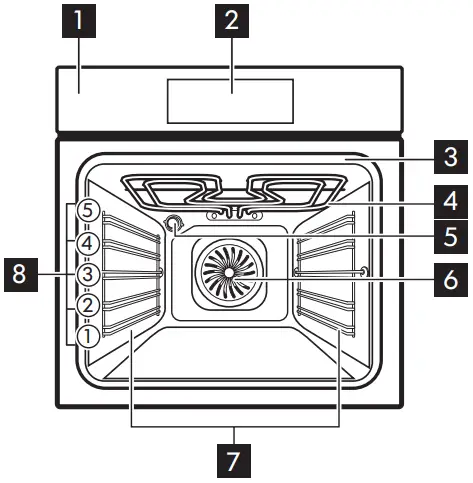

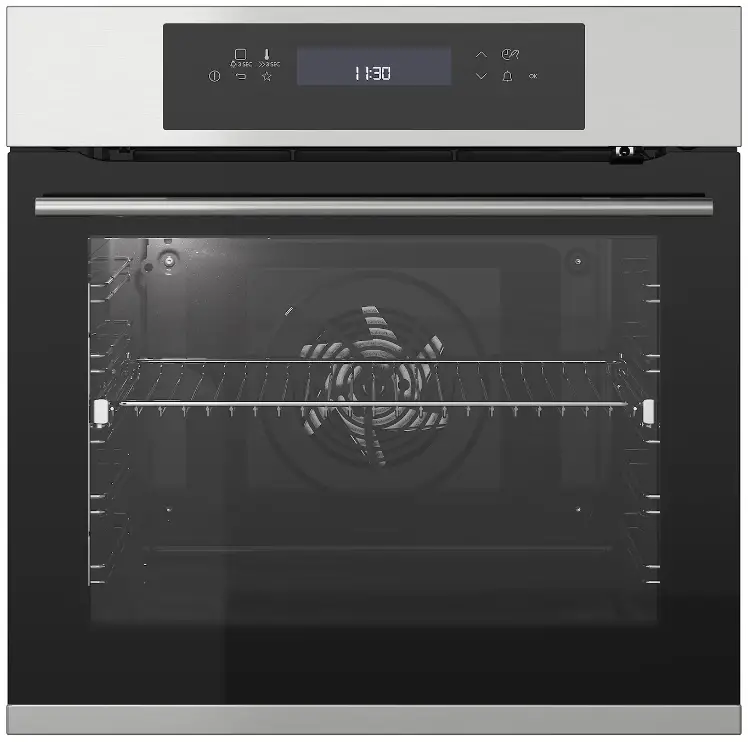

Product Description

Control panel
Electronic programmer

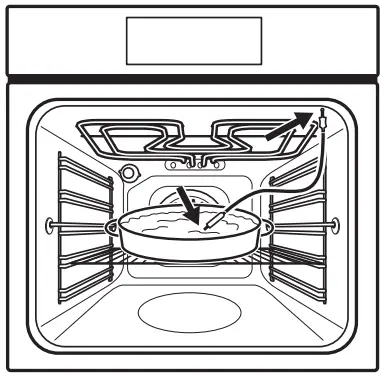

Socket for the core temperature sensor
Grill
Lamp
Fan
Shelf support, removable
Shelf positions

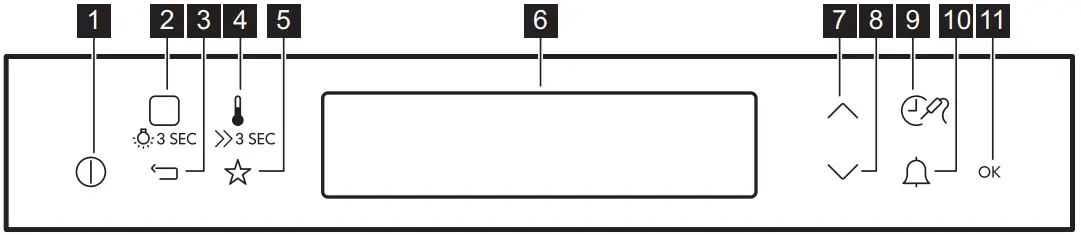

Control Panel

ON / OFF
Heating Functions / Assisted Cooking / Lamp
Back key
Temperature / Fast Heat Up
Favorite programmes
Display
Up key
Down key
Time / More functions
Minute minder
Confirm setting

Display

A. Heating function
B. Time of day
C. Heat-up indicator
D. Temperature
E. Duration time or end time of a function

Other indicators of the display:

Symbol	Function
	The function is on.
	Shows current time.
	Shows the necessary time for cooking.
	Shows cooking duration.
	Shows the temperature.
	Shows when the set cooking time ends. Press and at the same time to reset the time.
	The oven calculates required cooking time.
	Indicates heat level in the oven.
	Fast Heat Up is on.
	Shows that Weight Automatic function is on, or that you can change the weight setting
	Heat + Hold is on.

Heating Functions

True Fan Cooking
Even baking, tenderness, drying
Conventional Cooking
Traditional baking
Pizza Function
Baking pizza
Slow Cooking
For tender roasts
Bottom Heat
Baking cakes
Moist Fan Baking
Baking
Frozen Foods
For convenience food (e.g. french fries)
Grill
Grilling, toasting
Fast Grilling
Grilling big portions, toasting
Turbo Grilling
Roasting meat, browning

Specials

Bread Baking
Dough Proving
Preserving
Keep Warm
Au Gratin
Plate Warming
Dehydrating
Defrost

Notes on: Moist Fan Baking

This function was used to comply with the energy eԔcJencZ class and ecodesign requirements (according to EU 65/2014 and EU 66/2014). Tests according to:
For EU: EN 60350-1
For UK: BS EN 60350-1

The oven door should be closed during cooking so that the function is not interrupted and the oven operates with the highest energy eԔcJencZ possible.

When you use this function the lamp automatically turns off after 30 sec.

This function is designed to save energy during cooking. When you use this function, the temperature in the cavity may dJffeS from the set temperature. The heating power may be reduced.

Troubleshooting

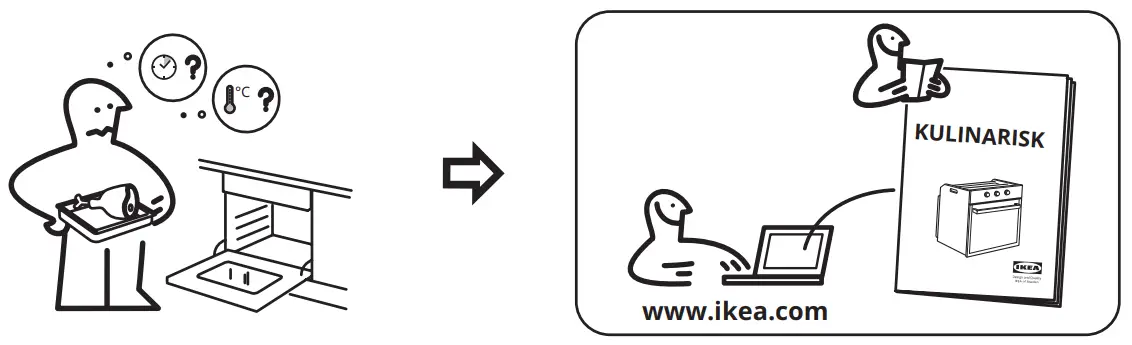

If you encounter an issue with your appliance, check “Troubleshooting” chapter in the full version of the User Manual available on: www.ikea.com.

Product Information and Product Information Sheet / Product Information Sheet according to UK Ecodesign and Energy Labelling Regulations

Supplier’s name	IKEA
Model identification	KULINARISK 104.210.62
Energy Efficiency Index	81.2
Energy efficiency class	A+
Energy consumption with a standard load, conventional mode	0.93 kWh/cycle
Energy consumption with a standard load, fan-forced mode	0.69 kWh/cycle
Number of cavities	1
Heat source	Electricity
Volume	72 l
Type of oven	Built-In Oven
Mass	35.6 kg
For EU: EN 60350-1- Household electric cooking appliances – Part 1: Ranges, ovens, steam ovens and grills – Methods for measuring performance. For UK: BS EN 60350-1 – Household electric cooking appliances – Part 1: Ranges, ovens, steam ovens and grills – Methods for measuring performance.
