SMAKSAK

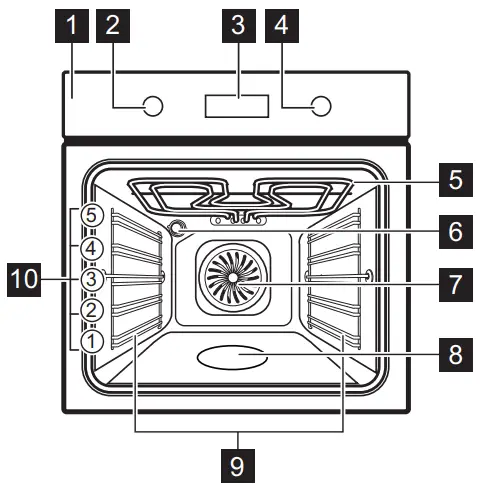

General overview
| 1 Control panel 2 Knob for the heating functions 3 Display 4 Control knob 5 Heating element | 6 Lamp 7 Fan 8 Cavity embossment 9 Shelf support, removable 10 Shelf positions |
 | START | OK |
| To set the clock functions. To check the oven temperature. Use only while a heating function operates. | To start a heating function. | To confirm. |

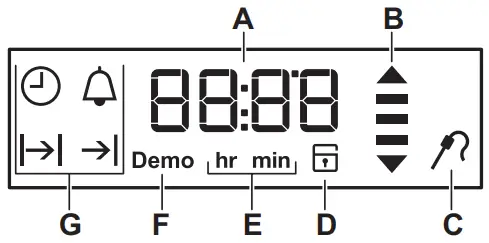

Display
A. Timer / Temperature
B. Heat-up and residual heat indicator
C. Food Sensor (selected models only)
D. Door lock (selected models only)
E. Hours/minutes
F. Demo mode (selected models only)
G. Clock functions
Heating Functions
 | Off position | The oven is off |
 | Forced Air Cooking | Even baking, tenderness, drying |
 | Conventional (Top and | Traditional baking |
 | Fast Grilling | Grilling big portions, toasting |
 | Bottom Heat | Baking cakes |
 | Grilling with Fan | Roasting meat, browning |
 | Bread and Pizza Baking | Baking pizza |
 | Defrost | Defrosting |

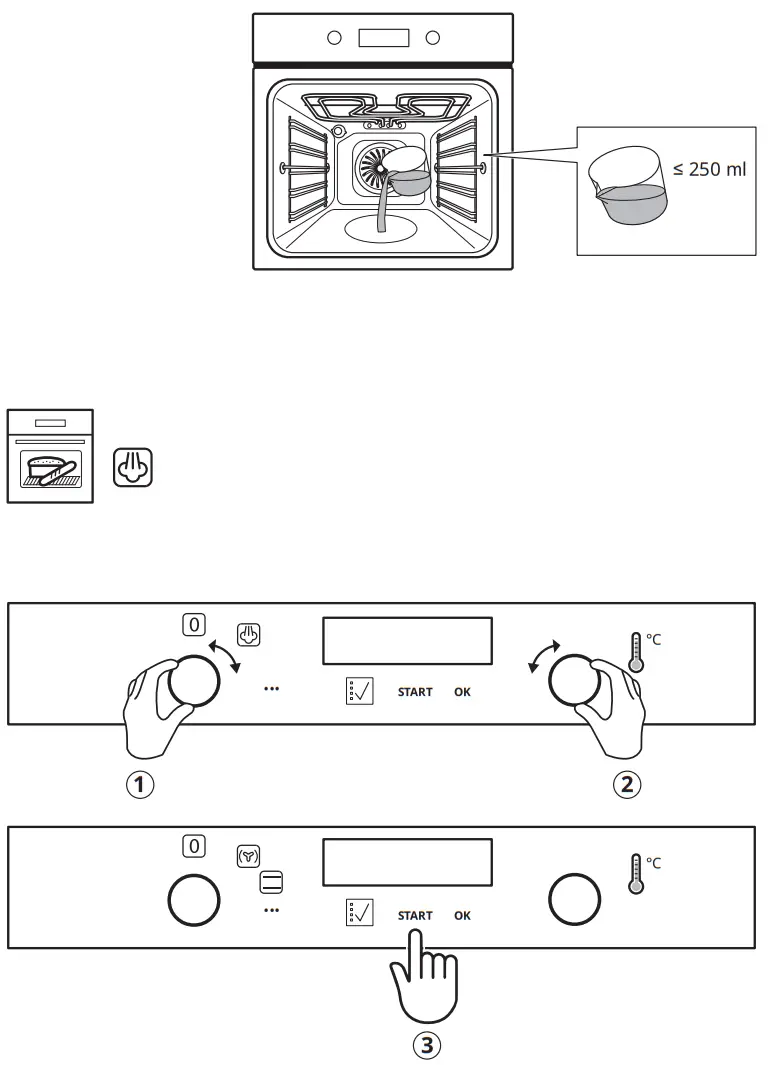

 | Direct Steam | Even baking, tenderness, drying, and humidity during cooking |
 | Eco Fan Cooking | Baking |
 | Light | Oven lamp |
Notes on: Eco Fan Cooking
This function was used to comply with the energy efficiency class and ecodesign requirements. Tests according to BS EN 60350-1.
The oven door should be closed during cooking so that the function is not interrupted and the oven operates with the highest energy efficiency possible.
When you use this function the lamp automatically turns off after 30 sec. This function is designed to save energy during cooking. When you use this function, the temperature in the cavity may differ from the set temperature. The heating power may be reduced.
Troubleshooting
If you encounter an issue with your appliance, check the “Troubleshooting” chapter in the full version of the User Manual available on: www.ikea.com.
Product Information and Product Information Sheet*
| Supplier’s name | IKEA |
| Model identification | SMAKSAK 204.118.78 SMAKSAK 604.118.57 |
| Energy Efficiency Index | 81.2 |
| Energy efficiency class | A+ |
| Energy consumption with a standard load, conventional mode | 0.93 kWh/cycle |
| Energy consumption with a standard load, fan-forced mode | 0.69 kWh/cycle |
| Number of cavities | 1 |
| Heat source | Electricity | |
| Volume | 72 I | |
| Type of oven | Built-In Oven | |
| Mass | SMAKSAK 204.118.78 | 32.8 kg |
| SMAKSAK 604.118.57 | 32.7 kg | |
| * For European Union according to EU Regulations 65/2014 and 66/2014. For the Republic of Belarus according to STB 2478-2017, Appendix G; STB 2477-2017, Annexes A and B. For Ukraine according to 568/32020. The energy efficiency class is not applicable to Russia. EN 60350-1 – Household electric cooking appliances – Part 1: Ranges, ovens, steam ovens, and grills – Methods for measuring performance. |
To download the full version visit www.ikea.com
© Inter IKEA Systems B.V. 2022
