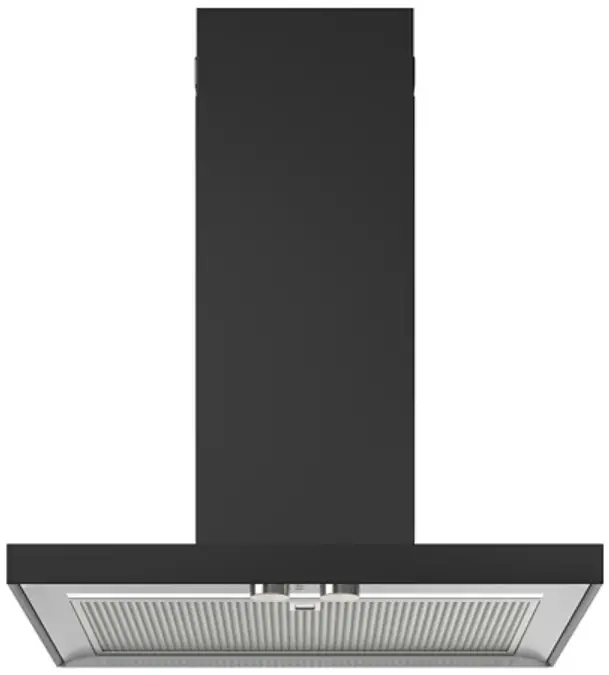

IKEA 103.687.81 MATALSKARE Forced Air Oven Instruction Manual
Safety Instruction

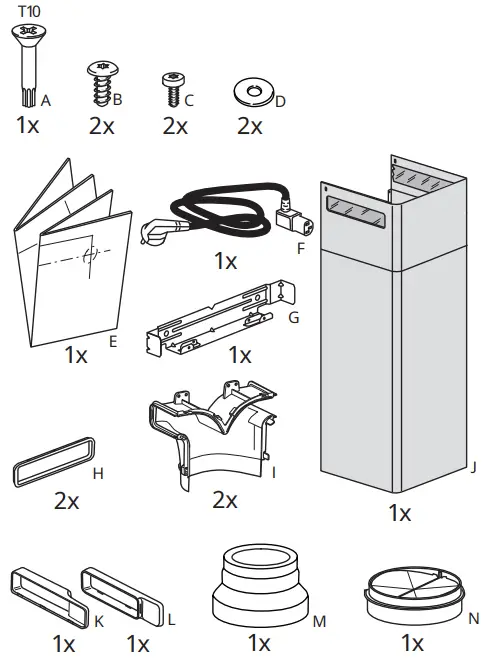

Tools Needed

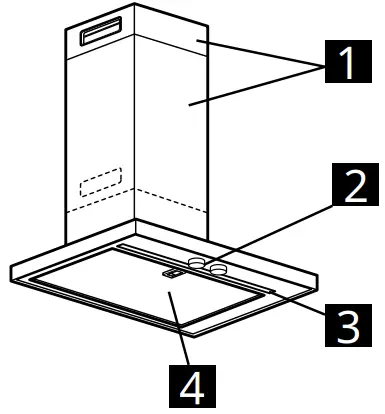

Description of the appliance
- Chimney
- Control Panel
- Lamp
- Grease filter

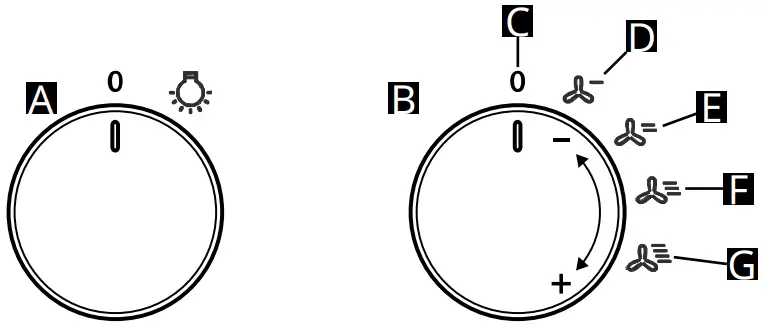

Control Panel
| A. | Lighting ON/OFF knob |
| B. | Suction speed selection knob |
| C. | Switch-off |
| D. | Low suction speed |
| E. | Average suction speed |
| F. | High suction speed |
| G. | Maximum suction speed |
Technical Data
| Type of appliance | Wall-mounted Hood | ||
| Dimension | Width | mm | 598 |
| Depth | mm | 458 | |
| mm | 633 | ||
| Total height m sullen mode (min-mold | |||
| Total height In ‘Wrote:10w mode (nn-ma0 | mm | 1088 | |
| Total power | W | 217 | |
| Light info | Type | LED | |
| Number & Power | W | 1i7vr | |
| Connection | LED 501p | ||
| maximum installation height – gas cooker | mm | 650 | |
| maximum installation height – electro cooker | mm | 500 | |
| Product weight | Kg | 129 | |
| Product Information In accordance with EU Regulation no. 65/2014 | |||
| Name of Supplier | IKEA | ||
| Model identification code | MATALSKARE 90368800 MATALSKARE 10388977 | ||
| Annual energy consumption – AEC | Kwh/year | 40.6 | |
| Energy efficiency class | A | ||
| Fluid dynamic efficiency FDE | % | 29.3 | |
| Fluid dynamic efficiency class | A | ||
| luminous efficiency LE | lux/Vi | 29.0 | |
| Luminous efficacy class | lux | A | |
| Grease Meting efficiency – GFE | % | 86.0 | |
| Grease filtering efficiency class | B | ||
| Minimum air flow (normal power | m3/h | 206.0 | |
| Maximum air flow(normal power | m3fh | 510.0 | |
| Airflow setting In boost mode | m3fh | NA | |
| A. weighted sound power level of noise emissions at (Kern= speed | DNA) re IpW | 46.0 | |
| A. Weighted sound power level of noise emissions at maximum speed | DNA) re ION | 65.0 | |
| A. Weighted sound pow level of noise emissions WI boost node | DNA) re Iplei | NA | |
| Power consumption In off mode-PO | W | NA | |
| Paver cordumption In standby mode-Ps | W | NA | |
| Product Information In asordarce with EU Regulation no. 6612014 | |||
| Factor of Increase ow Wne – f | 0.9 | ||
| Energy efficiency Index – EEI | 51.7 | ||
| Airflow measured at best of efficiency point – QBEP | m3/h | 278.0 | |
| Air pressure measured at best efficiency point – PBEP | Pa | 410.0 | |
| Maximum airflow – Q max | m3/h | 510.0 | |
| Electric power consumption at test efficiency pork – WBEP | W | 108.0 | |
| Rated power of fighting system – WL | W | 7.0 | |
| Average illuminance of the lighting system on the cooking surface – Enridge | lux | 203.0 | |
